Product Introduction

Electric forklift

Product Detail

The Electric walk behind pallet jack is equipped with a high-performance power system, which can easily handle heavy-duty handling tasks in various working environments, ensuring efficient and smooth operation.

Efficient Operation: Thanks to its optimized design and advanced technology, it can maintain a stable operating speed and excellent efficiency during handling operations, significantly enhancing work productivity.

Sensitive Response: The control system is highly sensitive, enabling the driver to precisely control the forklift's driving direction and speed for accurate handling operations.
Easy to Operate: The user - friendly design makes the operation simple and easy to understand. Even beginners can quickly get the hang of it and easily drive this forklift.

High - quality Materials: This forklift is made of premium materials, ensuring the structural strength and durability of the vehicle body.
Rigorous Testing: After meticulous design and strict testing, this handling forklift can withstand high - intensity use and a variety of harsh conditions, guaranteeing its long - term stable performance.

Large Capacity: This handling forklift has an excellent load - bearing capacity and can easily handle all kinds of heavy objects, meeting the needs of different work scenarios.
Efficient Operation: Its strong carrying capacity helps improve work efficiency by reducing the number of handling operations, thereby further enhancing the overall work efficiency.

Comfortable Operation: This handling forklift takes the operator's experience into full consideration. The seat is designed for comfort, and the operation interface is reasonably laid out, allowing the operator to maintain a good state during long - term work.
Convenient Maintenance: Maintenance work is convenient and fast, reducing maintenance costs and time, and ensuring that the forklift is always in optimal working condition.

Intelligent Control System: This electric walk - behind pallet jack is equipped with an advanced intelligent control system that can monitor the vehicle's status in real - time, realizing intelligent operation and management, and improving the safety and reliability of work.
High Efficiency and Energy Saving: While ensuring performance, it effectively reduces energy consumption, not only saving costs for users but also meeting environmental protection requirements.

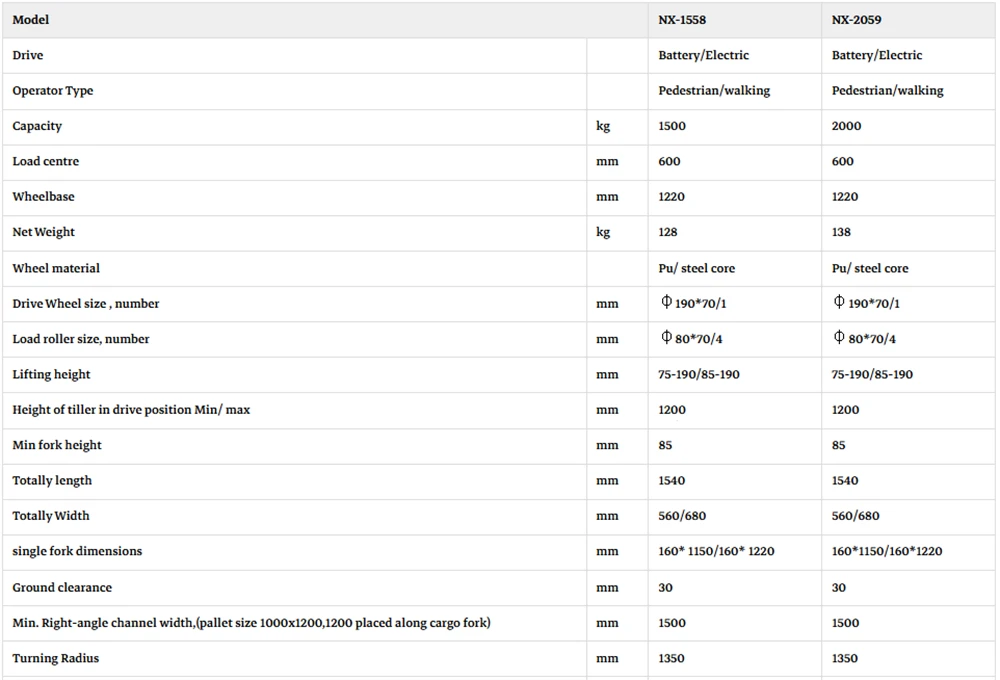

Model		NX-1558	NX-2059
Drive		Battery/Electric	Battery/Electric
Operator Type		Pedestrian/walking	Pedestrian/walking
Capacity	kg	1500	2000
Load centre	mm	600	600
Wheelbase	mm	1220	1220
Net Weight	kg	128	138
Wheel material		Pu/ steel core	Pu/ steel core
Drive Wheel size, number	mm	φ190*70/1	φ190*70/1
Load roller size, number	mm	φ80*70/4	φ80*70/4
Lifting height	mm	75-190/85-190	75-190/85-190
Height of tiller in drive position Min/ max	mm	1200	1200
Min fork height	mm	85	85
Totally length	mm	1540	1540
Totally Width	mm	560/680	560/680
single fork dimensions	mm	160* 1150/160* 1220	1601150/1601220
Ground clearance	mm	30	30
Min. Right-angle channel width, (pallet size 1000x1200,1200 placed along cargo fork)	mm	1500	1500
Turning Radius	mm	1350	1350

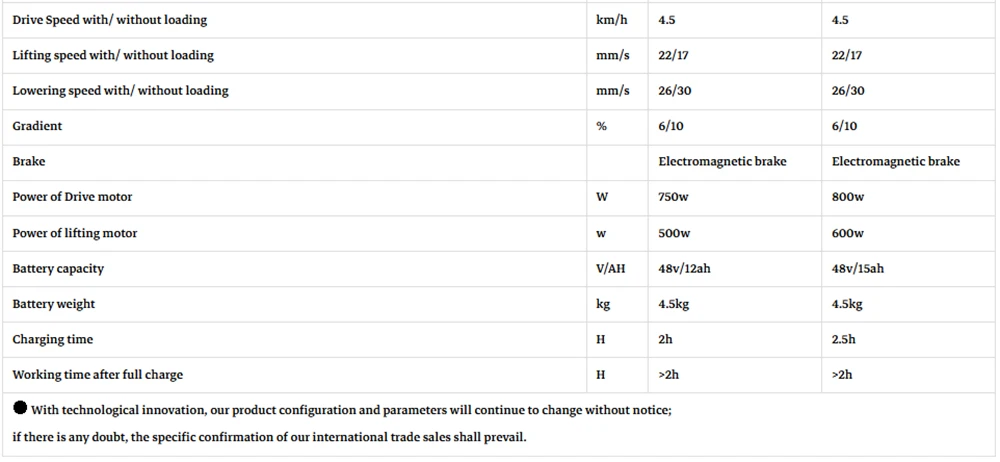

Drive Speed with/ without loading	km/h	4.5	4.5
Lifting speed with/ without loading	mm/s	22/17	22/17
Lowering speed with/ without loading	mm/s	26/30	26/30
Gradient	%	6/10	6/10
Brake		Electromagnetic brake	Electromagnetic brake
Power of Drive motor	W	750w	800w
Power of lifting motor	w	500w	600w
Battery capacity	V/AH	48v/12ah	48v/15ah
Battery weight	kg	4.5kg	4.5kg
Charging time	H	2h	2.5h
Working time after full charge	H	>2h	>2h
● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail.
