Description
Technical Parameters
Product Introduction
|
Item |
Pallet Trucks |
|
Maximum load capacity |
4ton; 5ton; 6ton; 7ton; 8ton; |
|
Load center |
600mm |
|
Maximum lifting height |
110mm |
|
Caster wheel |
130*80mm |
Product Detail

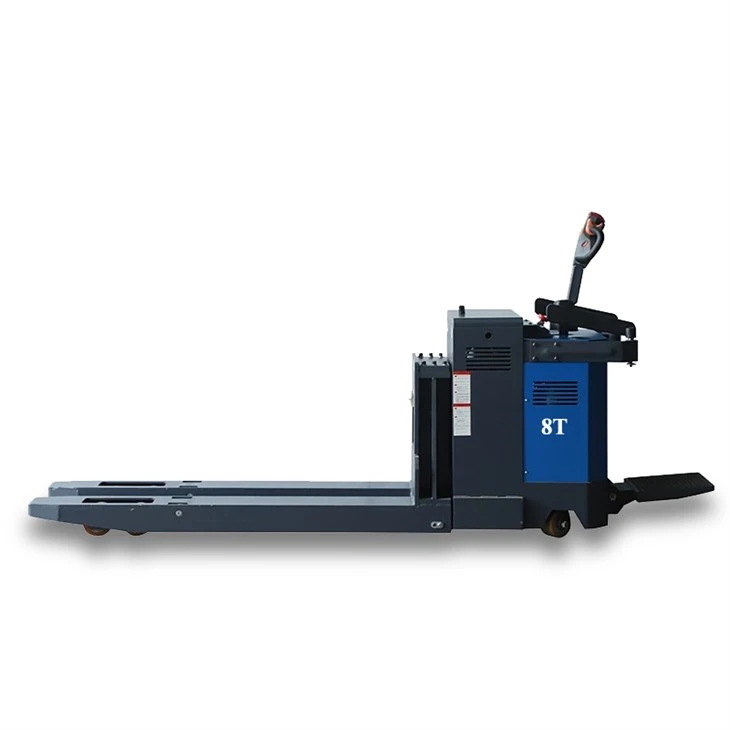

- This 8 ton Large tonnage transporter has a super load capacity. It can easily handle large cargo, ensuring efficient and stable handling tasks in various industrial scenarios.This ability not only reflects the robustness of its mechanical structure, but also the strength of its power system.
Excellent stability
- To ensure safe operation under heavy loads, this truck is outfitted with an advanced stabilization system. The vehicle's chassis is thoughtfully designed with a low center of gravity, effectively minimizing the risk of overturning. During the journey, various sensors continuously monitor the vehicle's status in real - time, guaranteeing that it remains stable at all times and giving operators peace of mind.
Efficient power system
- This Pallet Trucks is equipped with a high - performance power system that offers abundant power support. Whether it's starting, accelerating, or climbing, it can respond swiftly and deliver excellent performance. The efficient power transmission system can also reduce energy consumption, enhance energy efficiency, and thereby cut down on operating costs.
Precise handling
- This 8 Ton Large Tonnage Transporter features precise handling performance, enabling operators to effortlessly control the vehicle's direction, speed, and movement. The advanced control system makes operation easier and more flexible, allowing operators to accurately complete tasks even in complex working environments.
Rugged construction
- The truck's body is crafted from high - strength materials, boasting excellent impact and wear resistance. It can withstand the rigors of long - term heavy - duty operation, extending the vehicle's service life. Additionally, the well - designed structure of the truck facilitates maintenance, reducing the likelihood of malfunctions.
Humanized design
- The cockpit's design fully takes into account the needs of operators. Comfortable seats, a clear dashboard, and a user - friendly operation interface allow operators to maintain a good working state even during long hours of work. The vehicle is also equipped with various safety protection facilities to ensure the personal safety of operators.
Technical Specifications
Technical Parameters
| NX-4061/NX-5061/NX-6061/NX-7062/NX-8063 | ||||||
| Model | NX-4061 | NX-5061/NX-6061 | NX-7062/NX-8063 | |||
| Performance | Maximum load capacity | kg | 4000 | 5000/6000 | 7000/8000 | |
| Load center | Q | mm | 600 | 600 | 800 | |
| Maximum lifting height | H3 | mm | 110 | 110 | 110 | |
| Travel speed (without load) | km/h | 5.5 | 5.5 | 5.5 | ||
| Travel speed (with load) | km/h | 5 | 5 | 5 | ||
| Lifting speed (without load) | mm/s | 50 | 50 | 50 | ||
| Lifting speed (with load) | mm/s | 30 | 30 | 30 | ||
| Lowering speed (without load) | mm/s | 57 | 57 | 57 | ||
| Lowering speed (with load) | mm/s | 57 | 57 | 57 | ||
| Gradeability (without load) | % | \ | \ | 7 | ||
| Gradeability (with load) | % | \ | \ | 6 | ||
| Service Weight (with battery) | kg | 1085 | 1085 | 1400 | ||

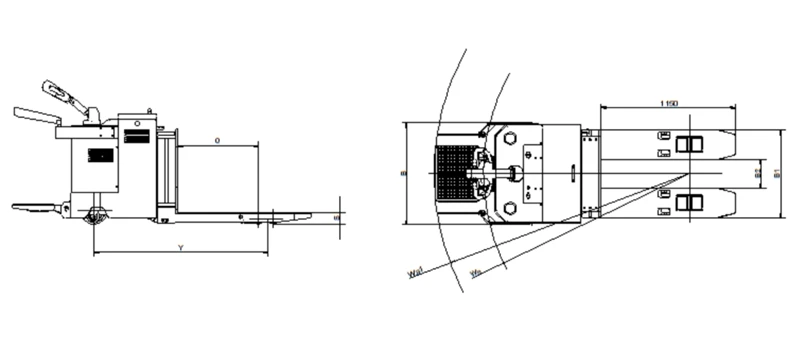

| Dimensions | Overall length of frame | L | mm | 2065 | 2065 | 2215 |
| Overall length of frame(with platform) | mm | 2570 | 2570 | 2720 | ||
| Overall width of frame | B | mm | 876 | 876 | 876 | |
| Wheelbase | Y | mm | 1480 | 1480 | 1580 | |
| Fork length | mm | 1150 | 1150 | 1300 | ||
| Fork outside width | B1 | mm | 750 | 750 | 900 | |
| Fork inside width | B2 | mm | 250 | 250 | 400 | |
| Fork thickness | mm | 78 | 78 | 128 | ||
| Fork height when fork lowered to lowest | S | mm | 100 | 100 | 150 | |
| Min ground clearance | mm | 5 | 5 | 15 | ||
| Theoretical width of minimum aisle for right-angle stacking (1200x1000) | Asts | mm | 2440 | 2440 | 2610 | |
| Minimum turning radius (without platform) | Wa | mm | 1770 | 1770 | 2070 | |
| Minimum turning radius (with platform) | Wal | mm | 2190 | 2190 | 2500 | |
| Tire | Front wheel | mm | 85*110 | 85*110 | 130*55 | |
| Drive wheel | mm | 230*75 | 230*75 | 250*100 | ||
| Caster wheel | mm | 130*80 | 130*80 | 130*80 | ||
| Wheel material | polyurethane | |||||
| Electrical components |
Drive motor type | AC series motor | ||||
| Rated output | kw | 2.2 | 2.2 | 3 | ||
| Hoist motor type | DC series motor | |||||
| Rated output | kw | 2.2 | ||||
| Battery | Voltage | V | 24 | |||
| Capacity | AH | 210 | 210 | 300 | ||
| Weight | kg | 195 | 195 | 260 | ||
| ● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail. |
||||||
