Description
Technical Parameters
Product Introduction
|
Item |
Pallet Trucks |
|
Other Maximum load capacity |
2ton; 2.5ton; 3ton; |
|
load center |
600mm |
|
Overall width of frame |
782mm |
Product Detail

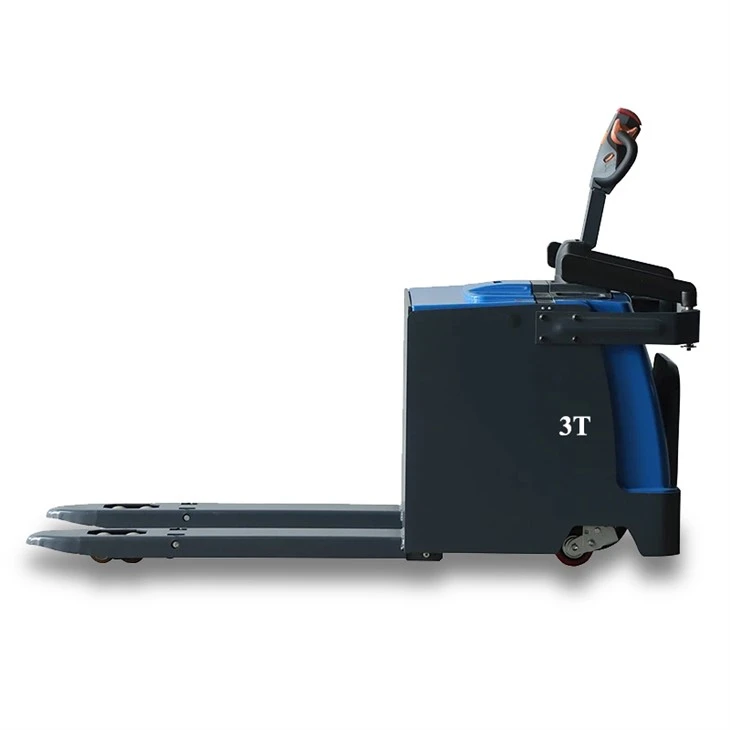

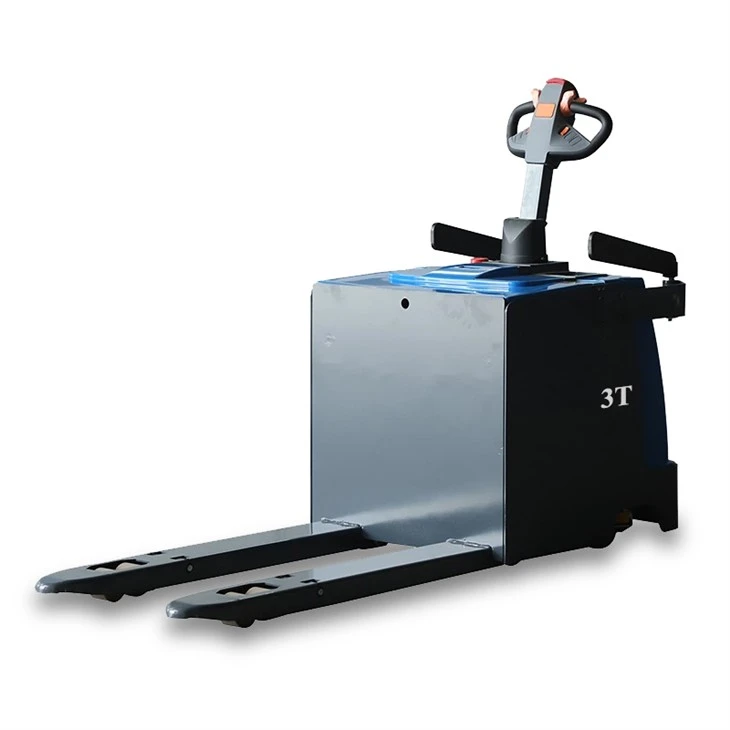

- This 3 ton Pallet Trucks Strong Gradeability is equipped with an advanced powertrain, which allows it to respond quickly and improve work efficiency during handling.
- No matter whether it is on the ground or on the slope, it can maintain a stable running speed to ensure that the goods arrive at their destination in a timely and accurate manner.
Precise handling performance
- The meticulously - crafted control system empowers operators to effortlessly manage the vehicle's trajectory, velocity, and lift height. This level of accurate control streamlines the handling operation, minimizing the likelihood of human errors and enhancing work precision.
Stable and reliable structure
- Constructed from top - grade materials, this pallet truck boasts a robust body build. Rigorous testing and validation guarantee its consistent performance across diverse work settings, reducing breakdown risks and boosting equipment reliability.
Humanized design
- With the operator's comfort in mind, the cockpit flaunts a well - thought - out layout and an intuitive operation panel. The ergonomic seat effectively alleviates operator fatigue, thereby increasing work efficiency. Additionally, an array of safety provisions has been installed to safeguard the operator's well - being.
Agile Mobility
- Featuring a compact and nimble body design, the pallet truck can freely maneuver through restricted spaces, readily adapting to a variety of work scenarios. It can effortlessly tackle a wide range of handling tasks, whether deployed in warehouses, workshops, or logistics hubs.
Economical Maintenance
- The straightforward design makes the parts easily serviceable and replaceable. This simplifies maintenance proceedings, reduces the upkeep duration, and cuts down on associated costs. Users can count on a hassle - free experience during the usage.
Green and Sustainable
- With an emphasis on environmental friendliness, this electric pallet truck incorporates energy - efficient technology to curtail energy consumption and emissions. While facilitating high - efficiency handling, it also plays its part in environmental protection.
Technical Specifications
Technical Parameters

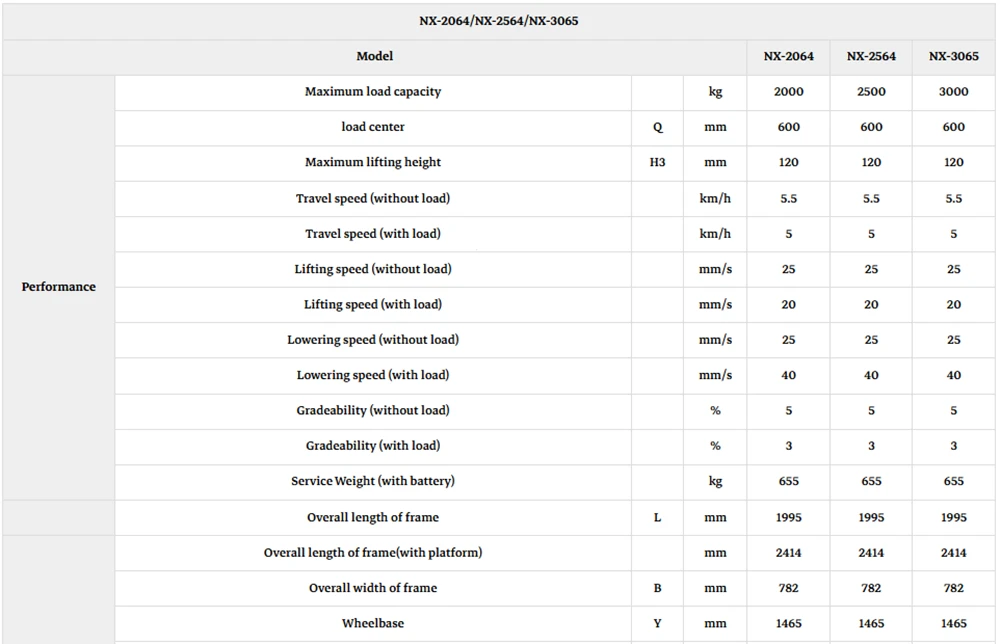

| NX-2064/NX-2564/NX-3065 | ||||||
| Model | NX-2064 | NX-2564 | NX-3065 | |||
| Performance | Maximum load capacity | kg | 2000 | 2500 | 3000 | |
| load center | Q | mm | 600 | 600 | 600 | |
| Maximum lifting height | H3 | mm | 120 | 120 | 120 | |
| Travel speed (without load) | km/h | 5.5 | 5.5 | 5.5 | ||
| Travel speed (with load) | km/h | 5 | 5 | 5 | ||
| Lifting speed (without load) | mm/s | 25 | 25 | 25 | ||
| Lifting speed (with load) | mm/s | 20 | 20 | 20 | ||
| Lowering speed (without load) | mm/s | 25 | 25 | 25 | ||
| Lowering speed (with load) | mm/s | 40 | 40 | 40 | ||
| Gradeability (without load) | % | 5 | 5 | 5 | ||
| Gradeability (with load) | % | 3 | 3 | 3 | ||
| Service Weight (with battery) | kg | 655 | 655 | 655 | ||
| Overall length of frame | L | mm | 1995 | 1995 | 1995 | |
| Dimensions | Overall length of frame(with platform) | mm | 2414 | 2414 | 2414 | |
| Overall width of frame | B | mm | 782 | 782 | 782 | |
| Wheelbase | Y | mm | 1465 | 1465 | 1465 | |

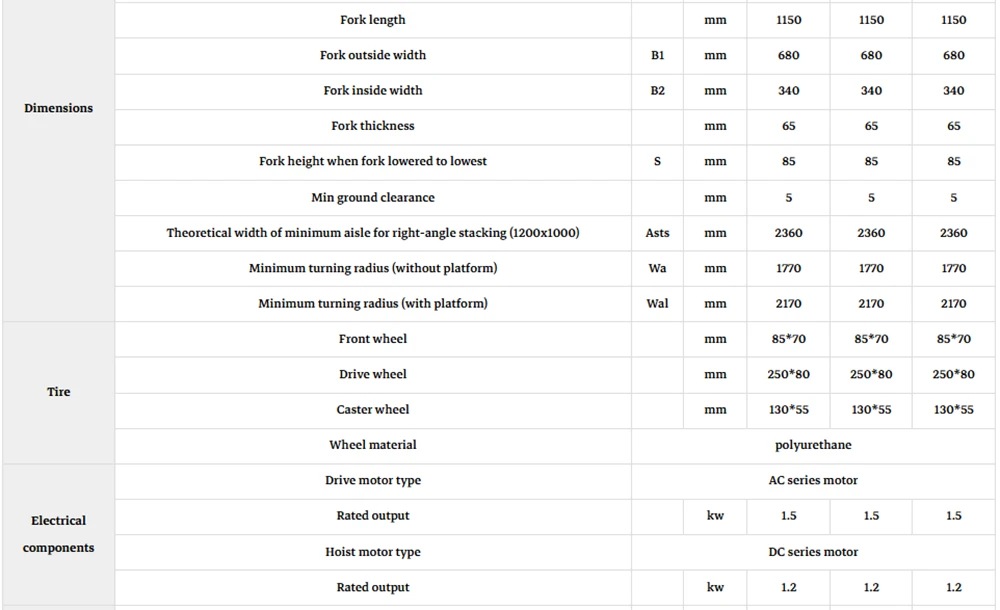

| Fork length | mm | 1150 | 1150 | 1150 | ||
| Fork outside width | B1 | mm | 680 | 680 | 680 | |
| Fork inside width | B2 | mm | 340 | 340 | 340 | |
| Fork thickness | mm | 65 | 65 | 65 | ||
| Fork height when fork lowered to lowest | S | mm | 85 | 85 | 85 | |
| Min ground clearance | mm | 5 | 5 | 5 | ||
| Theoretical width of minimum aisle for right-angle stacking (1200x1000) | Asts | mm | 2360 | 2360 | 2360 | |
| Minimum turning radius (without platform) | Wa | mm | 1770 | 1770 | 1770 | |
| Minimum turning radius (with platform) | Wal | mm | 2170 | 2170 | 2170 | |
| Tire | Front wheel | mm | 85*70 | 85*70 | 85*70 | |
| Drive wheel | mm | 250*80 | 250*80 | 250*80 | ||
| Caster wheel | mm | 130*55 | 130*55 | 130*55 | ||
| Wheel material | polyurethane | |||||
| Electrical components |
Drive motor type | AC series motor | ||||
| Rated output | kw | 1.5 | 1.5 | 1.5 | ||
| Hoist motor type | DC series motor | |||||
| Rated output | kw | 1.2 | 1.2 | 1.2 | ||

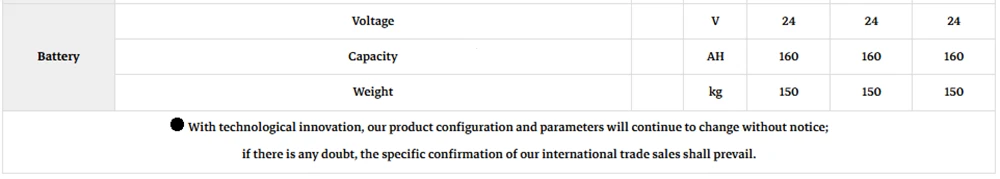

| Battery | Voltage | V | 24 | 24 | 24 | |
| Capacity | AH | 160 | 160 | 160 | ||
| Weight | kg | 150 | 150 | 150 | ||
| ● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail. |
||||||
