Description
Technical Parameters
Product Introduction
|
Item |
Pallet Trucks |
|
Other Maximum load capacity |
2ton; 2.5ton; 3ton; |
|
Load center |
600mm |
|
Overall width of frame |
782mm |
Product Detail

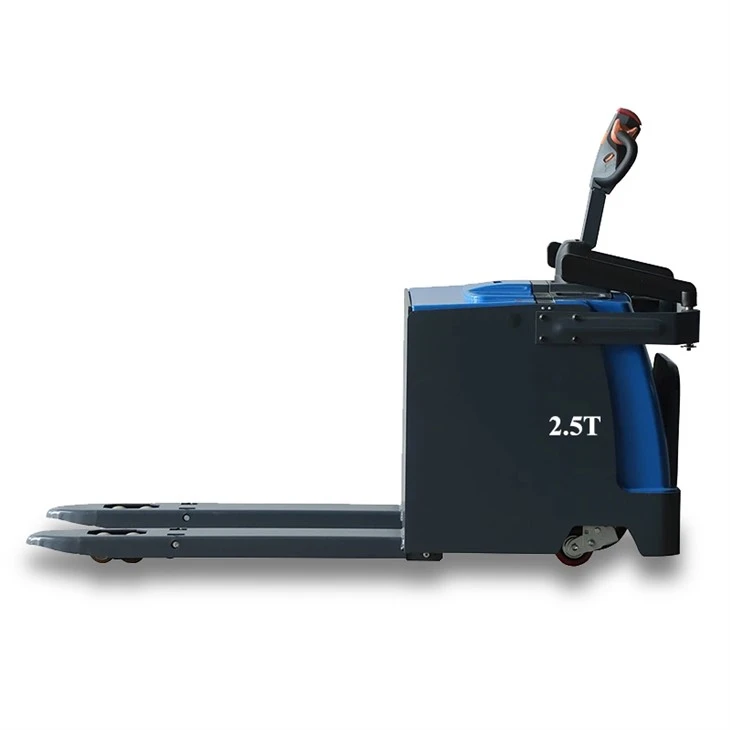

- This 2.5 ton Pallet Trucks Strong Gradeability has an impressive load capacity. This capability allows it to thrive in a variety of industrial and logistics scenarios, ensuring efficient and stable execution of cargo handling tasks.
Powerful and Efficient Power System
- This pallet truck is equipped with an advanced power source, endowing it with a robust driving force. Whether on flat ground or slopes, it can respond promptly and operate smoothly, significantly enhancing work efficiency. Moreover, the truck excels in energy conservation, effectively reducing operating costs.
Precise and Flexible Handling
- Its control system is ingeniously designed, easy to operate, and highly flexible. Operators can precisely control the driving direction, speed, and lifting height of the vehicle, enabling accurate handling operations. Even in complex work environments, it can effortlessly meet various operational requirements.
Sturdy and Reliable Stability
- This pallet truck is constructed with a solid structure and high - quality materials, ensuring stability and reliability even under heavy loads. The chassis is firm and stable, and the driving process is smooth without jolts, effectively reducing the shaking and collisions during cargo handling and comprehensively safeguarding the safety of the goods.
Humanized design
- The design of this 2.5 Ton Pallet Trucks Strong Gradeability fully takes into account the actual needs of operators. The cockpit is reasonably arranged, and the operation interface is clear and easy to understand. The seat is comfortable, which can relieve the operator's fatigue and improve work efficiency. In addition, a series of comprehensive safety protection facilities are installed to ensure the personal safety of operators.
Extensive Environmental Adaptability
- It can adapt to a variety of work environments. Whether it's an indoor warehouse or an outdoor venue, it can demonstrate excellent performance. This pallet truck can easily maneuver through narrow passages and crowded areas, handling various handling challenges with ease.
Convenient Maintenance
- The maintenance of the vehicle is very convenient. Its structural design facilitates inspection and maintenance. Parts replacement is simple and easy, reducing downtime, increasing equipment availability, and saving maintenance costs and time for users.
Emphasis on Environmental Protection Concept
- It emphasizes environmental performance. By employing advanced technology and design, it reduces energy consumption and exhaust emissions. While achieving efficient handling, it also contributes to environmental protection.
Technical Specifications

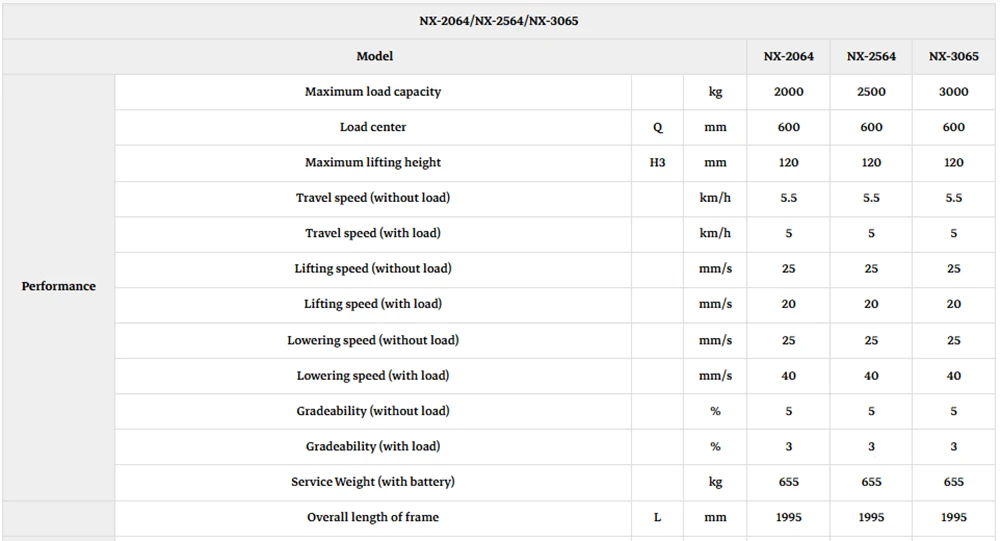

Technical Parameters
| NX-2064/NX-2564/NX-3065 | ||||||
| Model | NX-2064 | NX-2564 | NX-3065 | |||
| Performance | Maximum load capacity | kg | 2000 | 2500 | 3000 | |
| Load center | Q | mm | 600 | 600 | 600 | |
| Maximum lifting height | H3 | mm | 120 | 120 | 120 | |
| Travel speed (without load) | km/h | 5.5 | 5.5 | 5.5 | ||
| Travel speed (with load) | km/h | 5 | 5 | 5 | ||
| Lifting speed (without load) | mm/s | 25 | 25 | 25 | ||
| Lifting speed (with load) | mm/s | 20 | 20 | 20 | ||
| Lowering speed (without load) | mm/s | 25 | 25 | 25 | ||
| Lowering speed (with load) | mm/s | 40 | 40 | 40 | ||
| Gradeability (without load) | % | 5 | 5 | 5 | ||
| Gradeability (with load) | % | 3 | 3 | 3 | ||
| Service Weight (with battery) | kg | 655 | 655 | 655 | ||

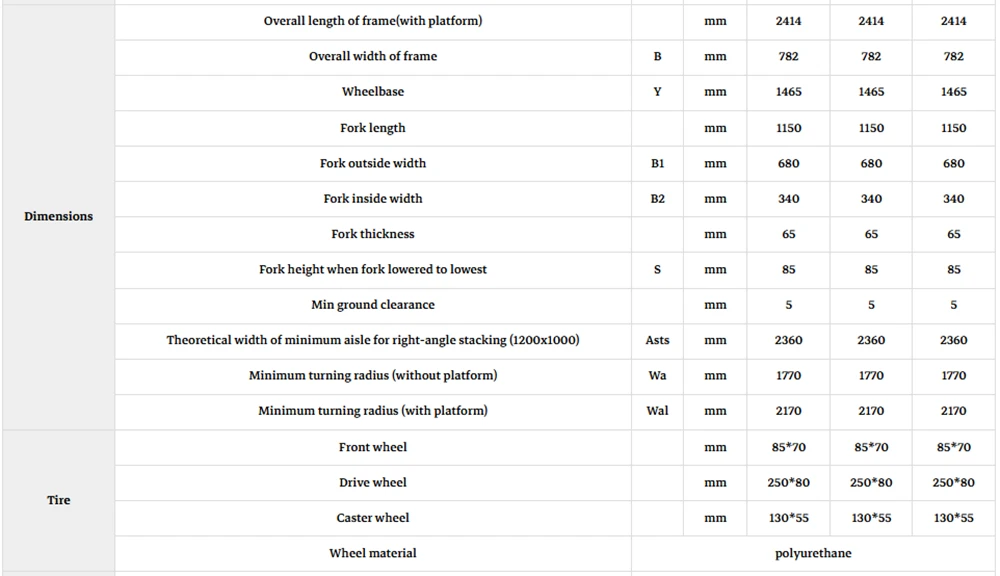

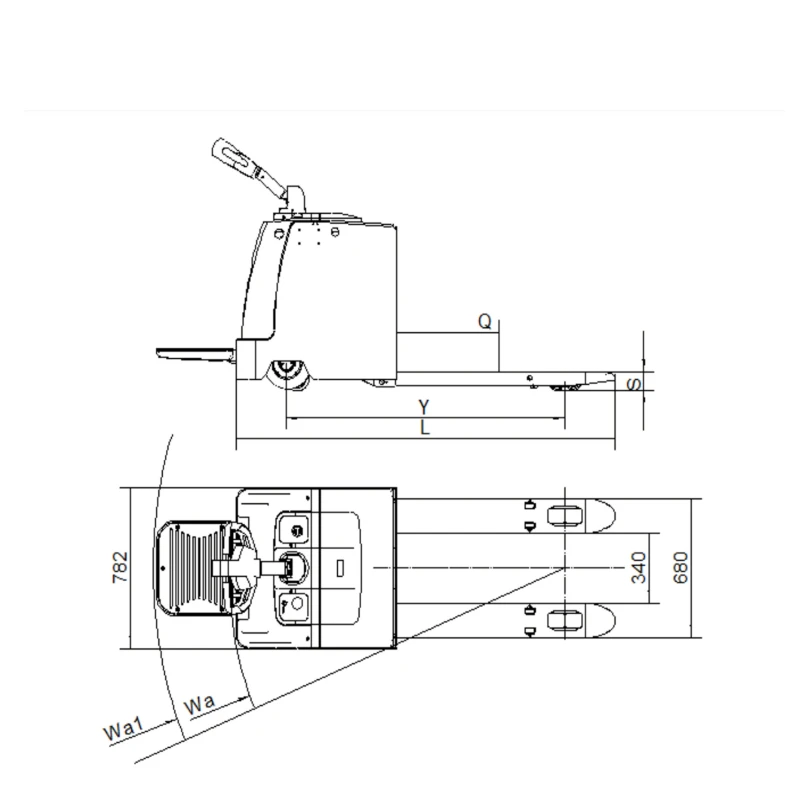

| Overall length of frame | L | mm | 1995 | 1995 | 1995 | |
| Dimensions | Overall length of frame(with platform) | mm | 2414 | 2414 | 2414 | |
| Overall width of frame | B | mm | 782 | 782 | 782 | |
| Wheelbase | Y | mm | 1465 | 1465 | 1465 | |
| Fork length | mm | 1150 | 1150 | 1150 | ||
| Fork outside width | B1 | mm | 680 | 680 | 680 | |
| Fork inside width | B2 | mm | 340 | 340 | 340 | |
| Fork thickness | mm | 65 | 65 | 65 | ||
| Fork height when fork lowered to lowest | S | mm | 85 | 85 | 85 | |
| Min ground clearance | mm | 5 | 5 | 5 | ||
| Theoretical width of minimum aisle for right-angle stacking (1200x1000) | Asts | mm | 2360 | 2360 | 2360 | |
| Minimum turning radius (without platform) | Wa | mm | 1770 | 1770 | 1770 | |
| Minimum turning radius (with platform) | Wal | mm | 2170 | 2170 | 2170 | |
| Tire | Front wheel | mm | 85*70 | 85*70 | 85*70 | |
| Drive wheel | mm | 250*80 | 250*80 | 250*80 | ||
| Caster wheel | mm | 130*55 | 130*55 | 130*55 | ||
| Wheel material | polyurethane | |||||

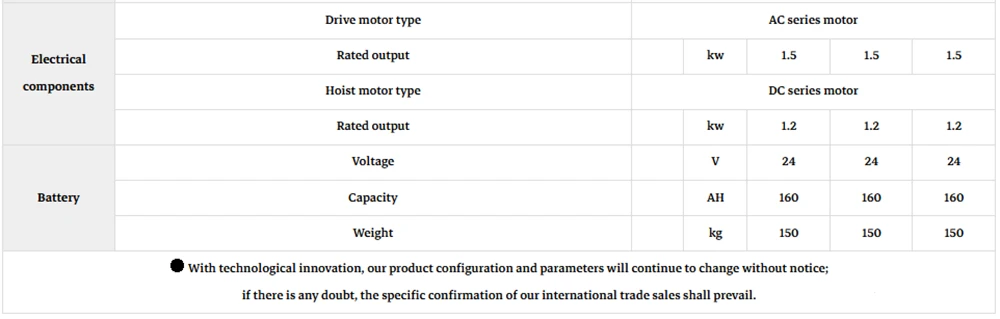

| Electrical components |
Drive motor type | AC series motor | ||||
| Rated output | kw | 1.5 | 1.5 | 1.5 | ||
| Hoist motor type | DC series motor | |||||
| Rated output | kw | 1.2 | 1.2 | 1.2 | ||
| Battery | Voltage | V | 24 | 24 | 24 | |
| Capacity | AH | 160 | 160 | 160 | ||
| Weight | kg | 150 | 150 | 150 | ||
| ● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail. |
||||||
