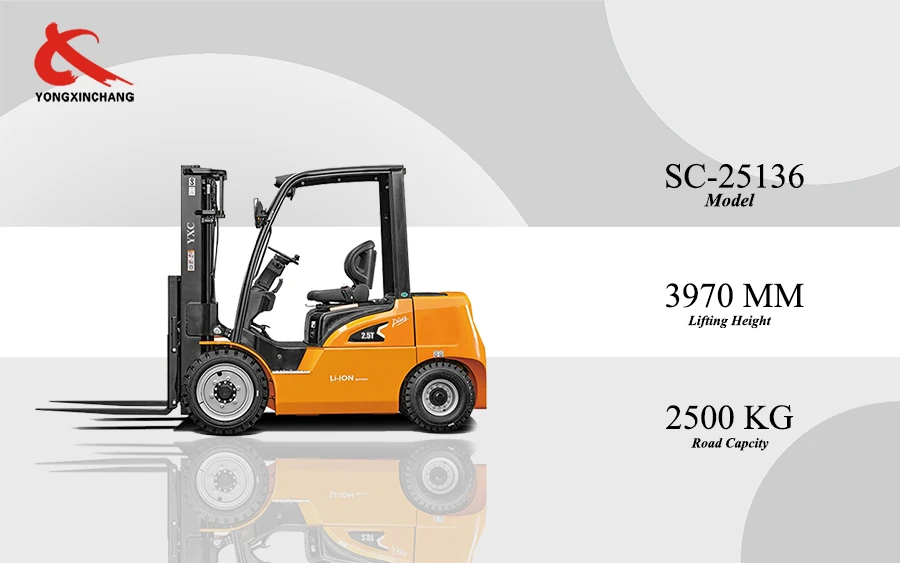

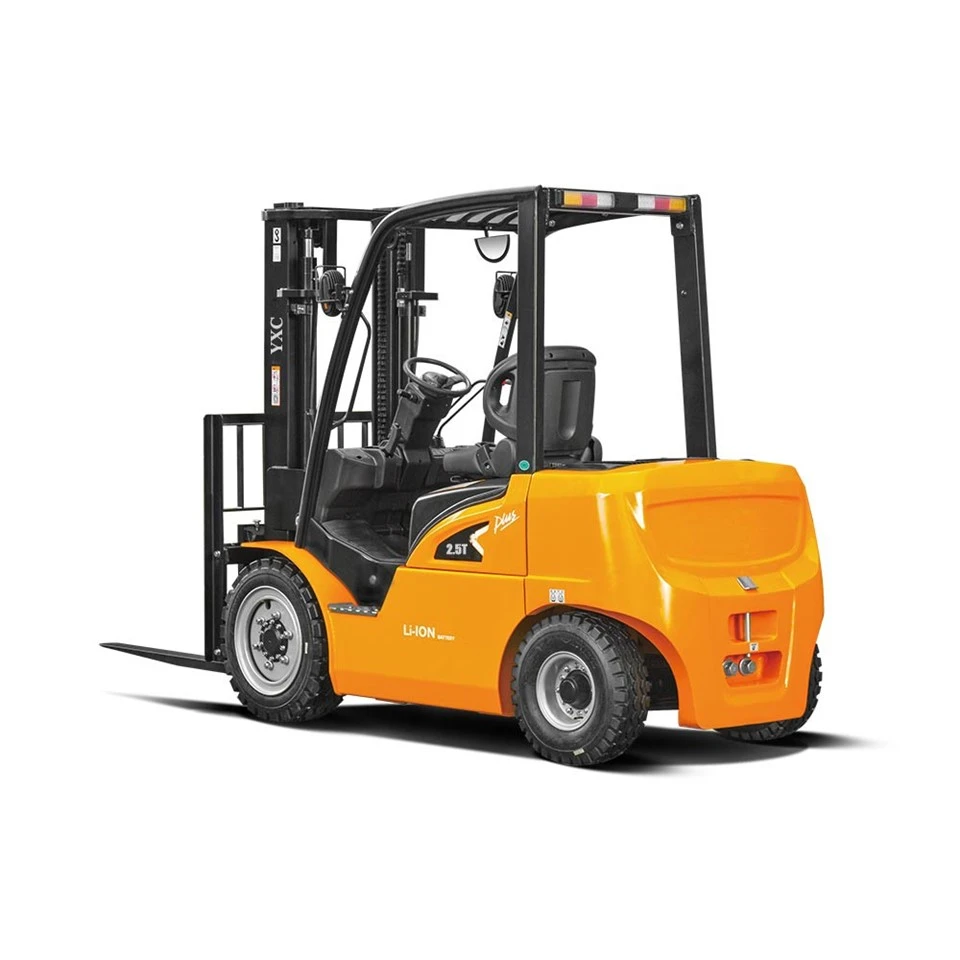

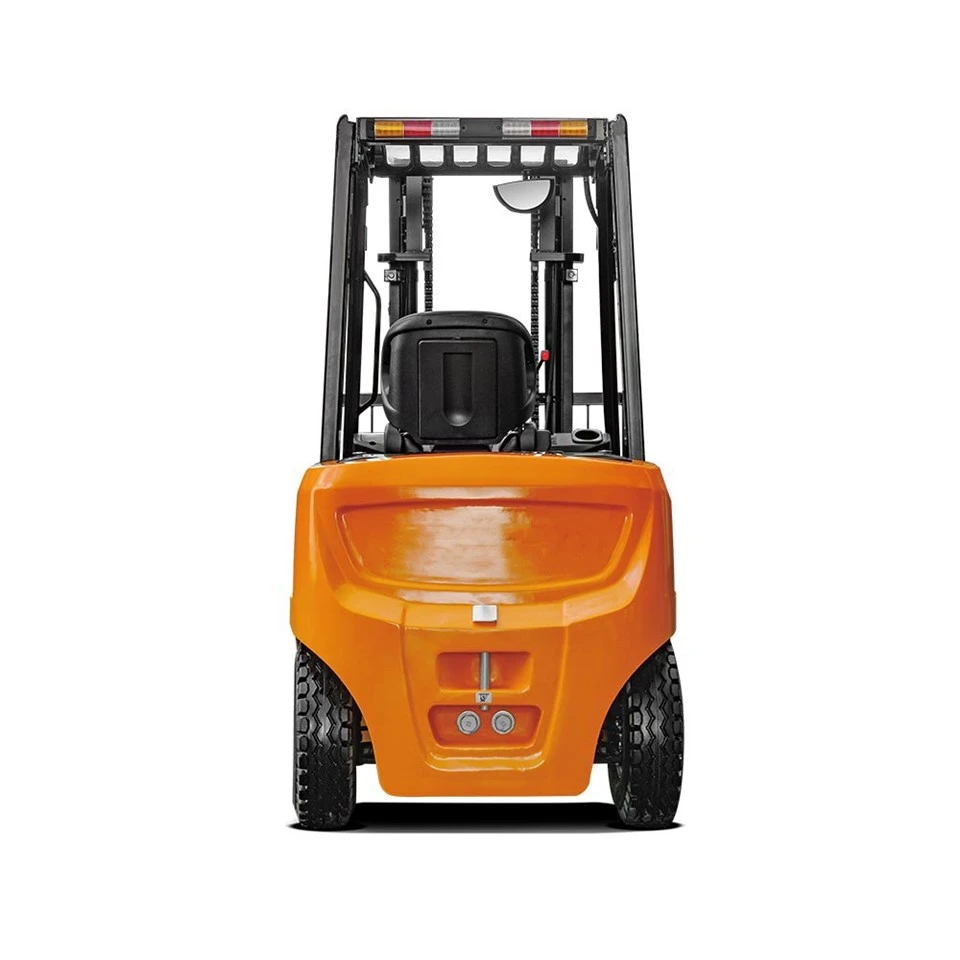

Battery Forklift Lithium

Power and Efficiency

Equipped with a vehicle grade permanent magnet synchronous motor and a high speed ratio gearbox combination, compared to traditional fuel powered forklifts, this solution achieves a 30% increase in traction speed, a maximum climbing slope of 25%, and a shortened acceleration time from 0-20km/h to 5.6 seconds. Its 317V high-voltage lithium battery platform reduces heat loss by lowering current, improves overall endurance by 22%, and supports continuous high-intensity working conditions for 8 hours.

Long - range Endurance and Fast - charging Technology

Standard 80V/404Ah lithium iron phosphate battery pack, supports 1C rate fast charging (fully charged in 1 hour), compatible with national standard electric vehicle charging stations. Actual test data shows that charging for 15 minutes can restore 30% of the battery capacity, meeting the needs of 24-hour multi shift operations.

Intelligent Drive System

The vehicle controller dynamically allocates the power of the traction motor and the walking motor, reducing energy consumption by 18%. At the same time, it supports preset path automatic handling function, improving the efficiency of warehouse operations by 15%.

All - weather Working Condition Adaptation

The operating temperature range covers -20 ℃ to 60 ℃, and it can operate stably in cold storage, rainstorm (IPX4 whole vehicle waterproof) and ponded roads (motor/electronic control IP67 protection). Laboratory verification shows that the battery discharge efficiency still reaches 92% at -20 ℃ low temperature environment.

Heavy - load and High - intensity Operation

Adopting the same level of drive axle (rated load of 8 tons) and steering axle as internal combustion forklifts, combined with 380mm wide tires and 155mm ground clearance, it meets the high-intensity operation requirements of 10 hours/day in ports, metal processing and other scenarios.

Safety Assurance

Integrated high-voltage interlock, insulation monitoring, MSD emergency power-off function, optional electronic fork buffer (reducing cargo damage rate by 35%) and descent locking module (anti misoperation response time<0.3 seconds).

Maintenance Convenience

The modular water tank cover (manual disassembly takes less than 10 seconds), open engine compartment (maintenance space increases by 40%), and maintenance free lithium battery (capacity retention rate ≥ 80% after 3000 cycles) are designed to reduce the entire lifecycle operation and maintenance costs.
