Product Introduction

electric forklift

Product Detail

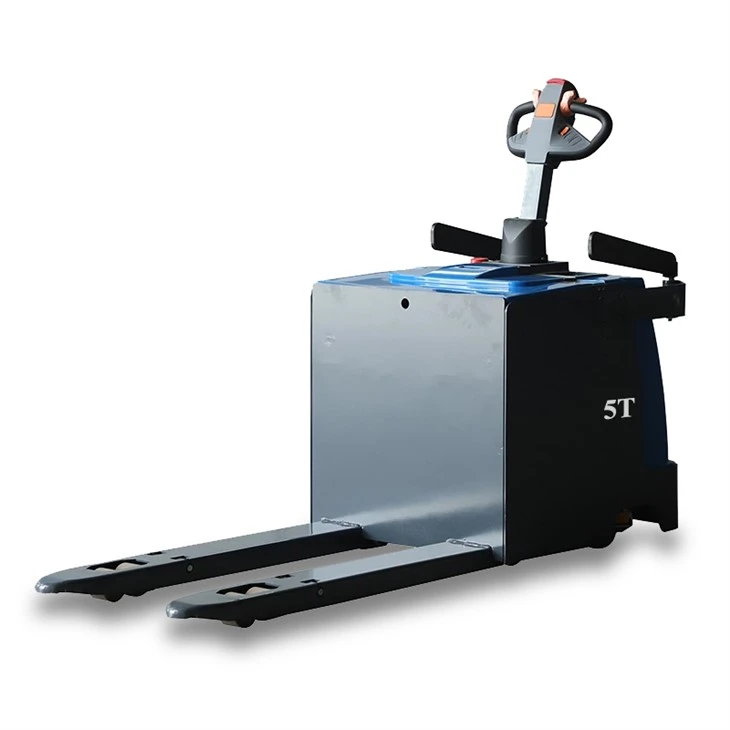

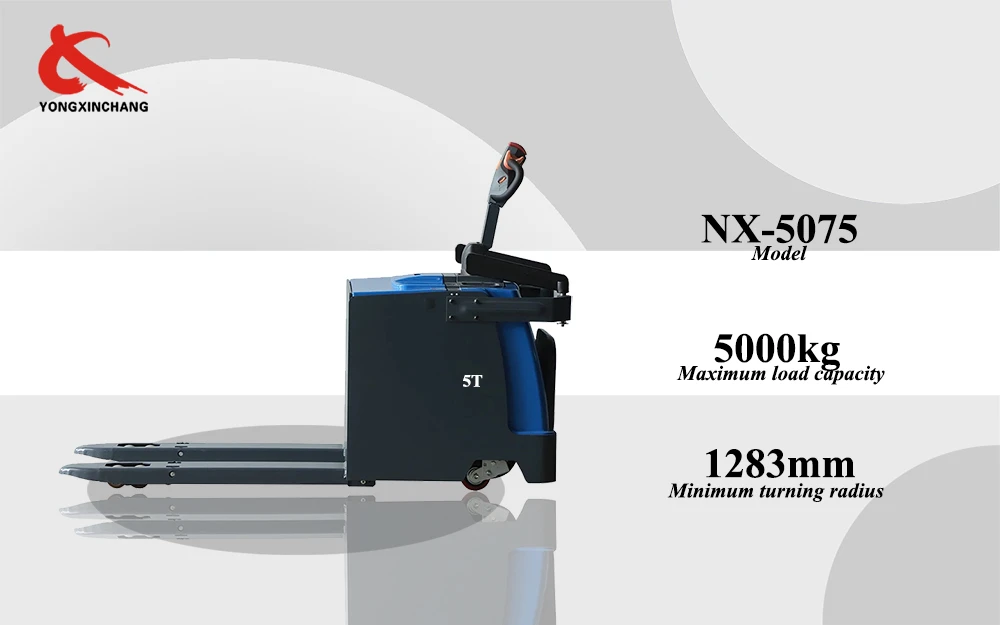

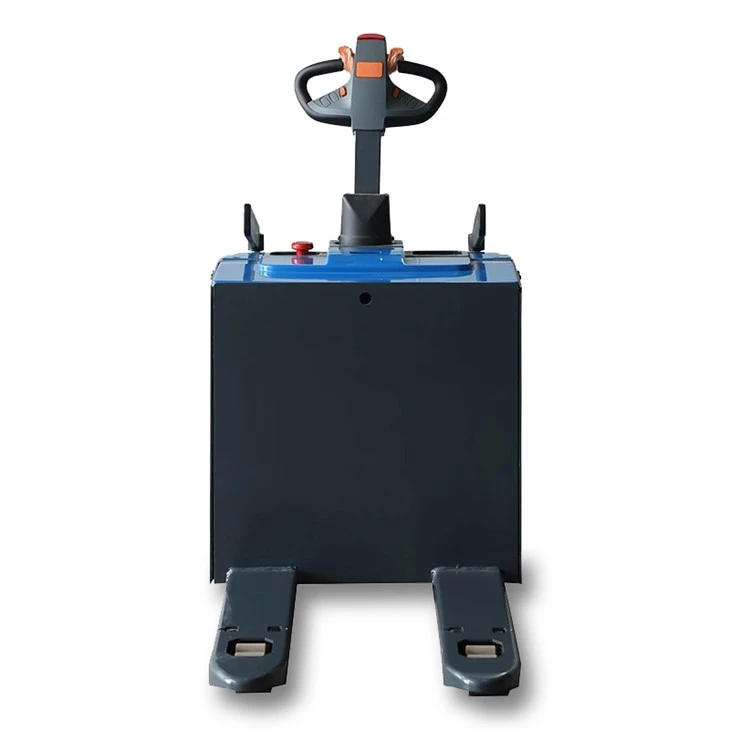

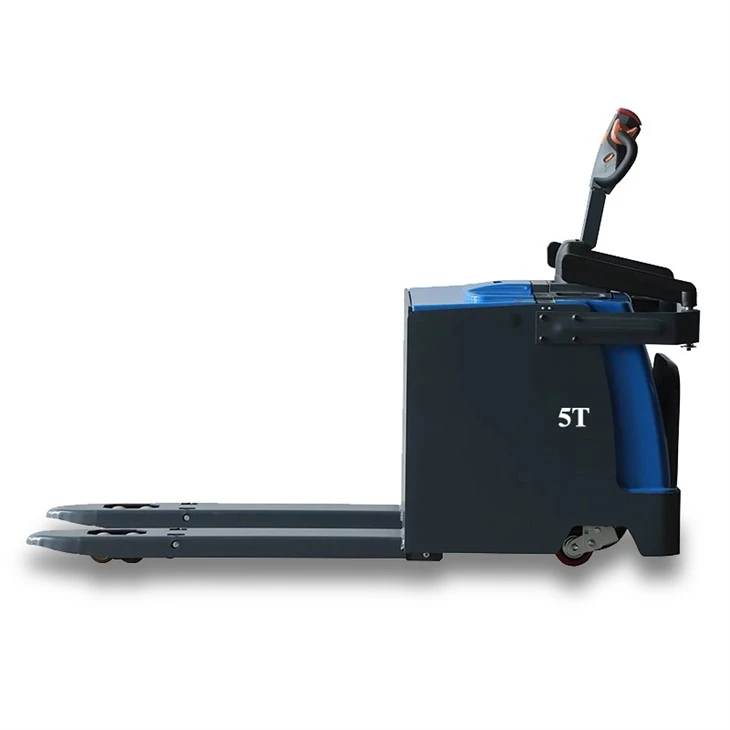

This 5 ton Small tractor is equipped with an advanced power system, which instantly bursts with amazing power.
Accelerating rapidly, it can reach the ideal speed in the shortest time, racing against time for efficient transportation.
Its energy efficiency is at an industry-leading level, significantly reducing operating costs while minimizing environmental impact.
The continuous and stable power output guarantees the continuity of long-term operation and reduces the efficiency loss caused by power fluctuations.

This 5-ton Small Tractor adopts a reinforced steel structure frame and a precision transmission system, achieving a perfect balance between structural stability and dynamic power output. Its excellent traction performance can easily cope with heavy-load transportation tasks in a variety of complex scenarios, from rugged construction sites to large logistics centers. The advanced counterweight system and torque optimization technology ensure that it can maintain stable operation even in steep slopes or muddy environments.

The cockpit design of this electric forklift follows ergonomic principles, adopts a modular space layout and a multi-directional adjustable seat system. During operation, workers can use the smart control panel to improve the intuitiveness of operation through the tactile feedback interface and color-coded instrument group. The panoramic anti-glare glass and multi-angle rearview mirror array work together to form a 270-degree field of view, significantly reducing the visual blind spot during material handling.

Incorporating triple-layer protective mechanisms, the equipment combines hydraulic retardation systems with intelligent load-sensing technology. The energy-absorbing ROPS framework works synergistically with seismic-grade stabilizers to prevent dynamic instability. Proactive collision mitigation is achieved through radar-based proximity alerts and reinforced bumper configurations that effectively dissipate impact forces.

Engineered for operational efficiency, the modular powertrain architecture allows component-level servicing through tool-free access panels. Self-diagnostic interfaces with QR code troubleshooting guides enable rapid fault identification, while standardized replacement units minimize workshop downtime. Corrosion-resistant surface treatments and sealed bearing assemblies significantly extend maintenance intervals under harsh working conditions.

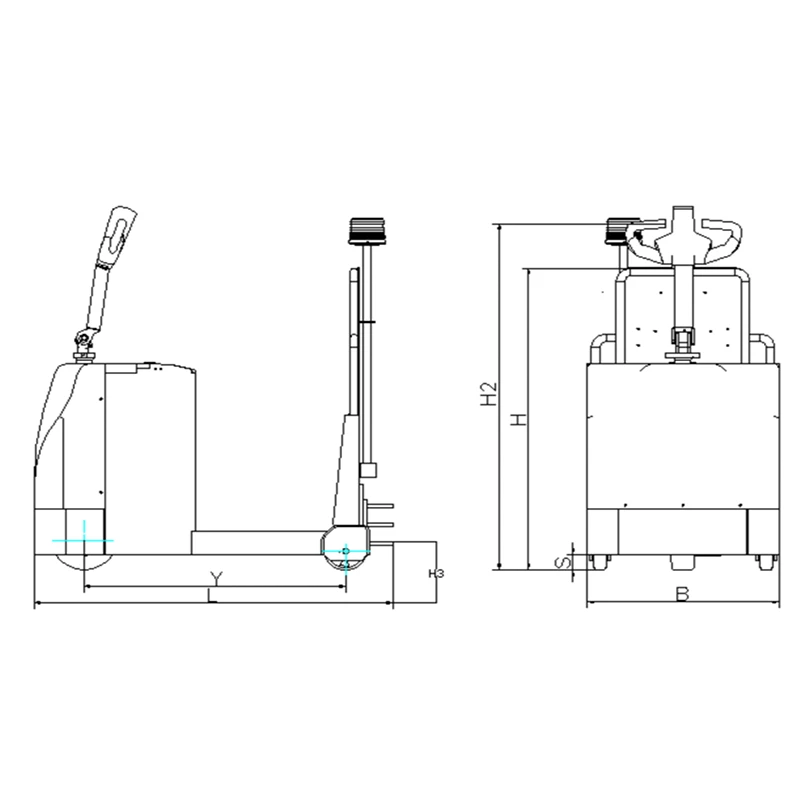

2D Small tractor

NX-2073/NX-3073/NX-4074/NX-5075

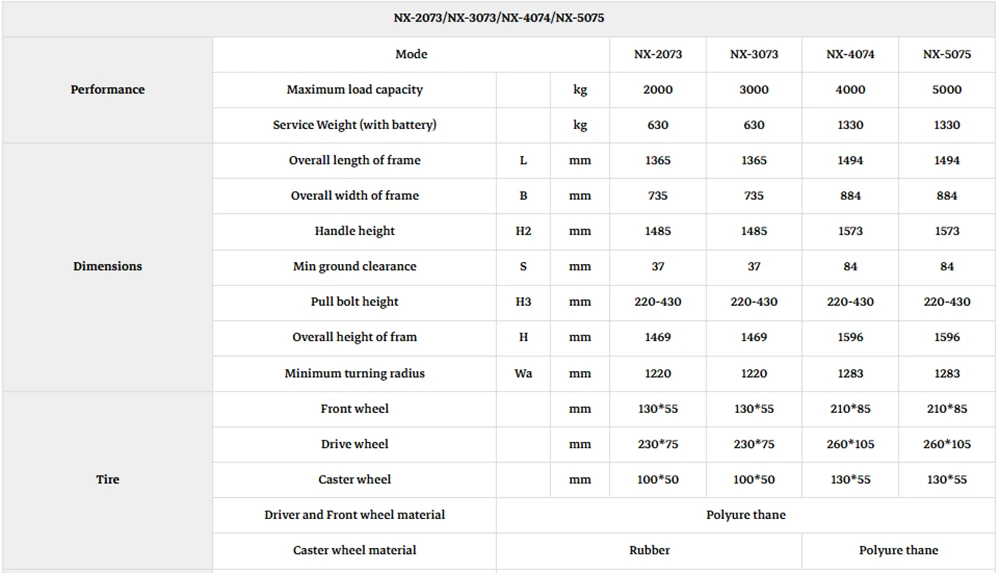

Performance	Mode			NX-2073	NX-3073	NX-4074	NX-5075
	Maximum load capacity		kg	2000	3000	4000	5000
	Service Weight (with battery)		kg	630	630	1330	1330
Dimensions	Overall length of frame	L	mm	1365	1365	1494	1494
	Overall width of frame	B	mm	735	735	884	884
	Handle height	H2	mm	1485	1485	1573	1573
	Min ground clearance	S	mm	37	37	84	84
	Pull bolt height	H3	mm	220-430	220-430	220-430	220-430
	Overall height of fram	H	mm	1469	1469	1596	1596
	Minimum turning radius	Wa	mm	1220	1220	1283	1283
Tire	Front wheel		mm	130*55	130*55	210*85	210*85
	Drive wheel		mm	230*75	230*75	260*105	260*105
	Caster wheel		mm	100*50	100*50	130*55	130*55
	Driver and Front wheel material	Polyure thane
	Caster wheel material	Rubber				Polyure thane

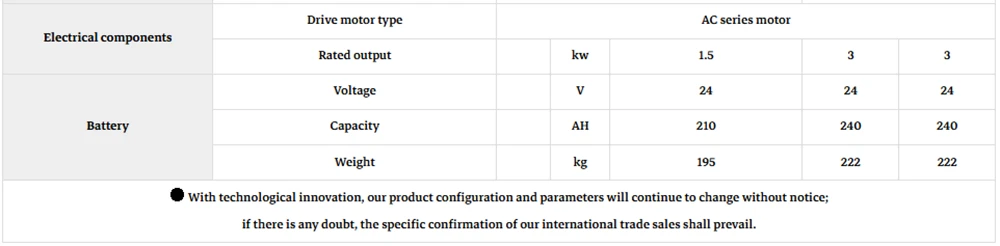

Electrical components	Drive motor type	AC series motor
Electrical components	Rated output		kw	1.5		3	3
Battery	Voltage		V	24		24	24
	Capacity		AH	210		240	240
	Weight		kg	195		222	222
● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail.
