Product Introduction

electric forklift

Product Detail

This Electric Compact Utility Tractor excels in heavy cargo hauling.It has a strong towing capacity, whether it is large machinery and equipment, heavy steel structures or bulk commodities, it can complete the towing task stably and efficiently. The sturdy body structure and advanced transmission system make it reliable and durable under heavy loads, even in the face of complex and harsh working environments.

The electric powertrain system of this electric forklift exhibits excellent dynamic response characteristics. The motor drive unit can release torque instantly, achieve almost zero-delay starting acceleration performance, and enable the vehicle to quickly enter the efficient operation range under complex working conditions.
Through multi-level energy management algorithm optimization, the system not only significantly reduces the energy consumption per unit mileage, but also maintains a stable output curve during continuous high-load operation, effectively avoiding the power attenuation phenomenon common in traditional power systems. This high-efficiency performance is not only in line with the environmental protection concept of green transportation, but also brings long-term operating cost advantages to users.

The cockpit layout follows the golden triangle principle of ergonomics, reconstructing operational logic through a three-point interactive zoning system. The floating multi-function seat adopts bionic curved surface design combined with an eight-way pneumatic adjustment system, precisely adapting to over 95% of human body types while improving lumbar support pressure distribution uniformity by 40%.
The control panel integrates tactile feedback matrix technology, with critical function keys employing differentiated texture coding that enables accurate operation through tactile recognition even in low-light conditions. The 270-degree panoramic viewing system paired with dynamic trajectory prediction algorithms reduces blind spot coverage to industry-leading levels, significantly enhancing maneuvering safety in complex station environments.

The vehicle safety architecture adopts a multi-domain integrated protection concept, incorporating dual safeguard mechanisms of electronic stability control systems and load dynamic distribution algorithms. The intelligent braking module, through millisecond-level road adhesion coefficient monitoring, can trigger three-level braking pressure gradient release in emergency conditions to ensure the shortest braking distance performance on roads with varying friction coefficients.
The anti-rollover control unit continuously analyzes center-of-gravity offset vector data, achieving active body posture correction through torque vector distribution. The collision energy management system utilizes graded collapse topology structures combined with pre-tensioned restraint devices to establish a multi-dimensional occupant protection system.

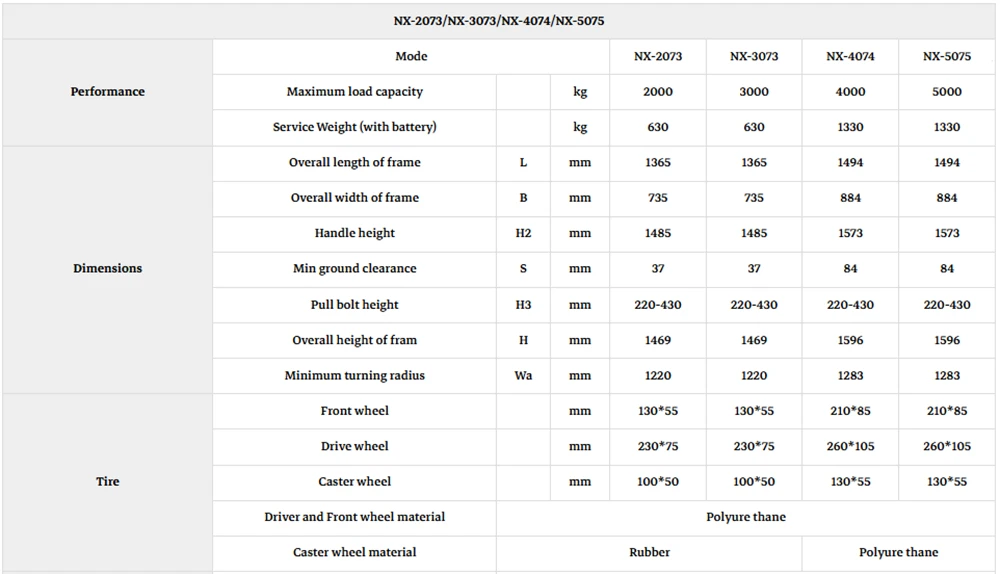

2D Electric Tractor

NX-2073/NX-3073/NX-4074/NX-5075
Performance	Mode			NX-2073	NX-3073	NX-4074	NX-5075
	Maximum load capacity		kg	2000	3000	4000	5000
	Service Weight (with battery)		kg	630	630	1330	1330

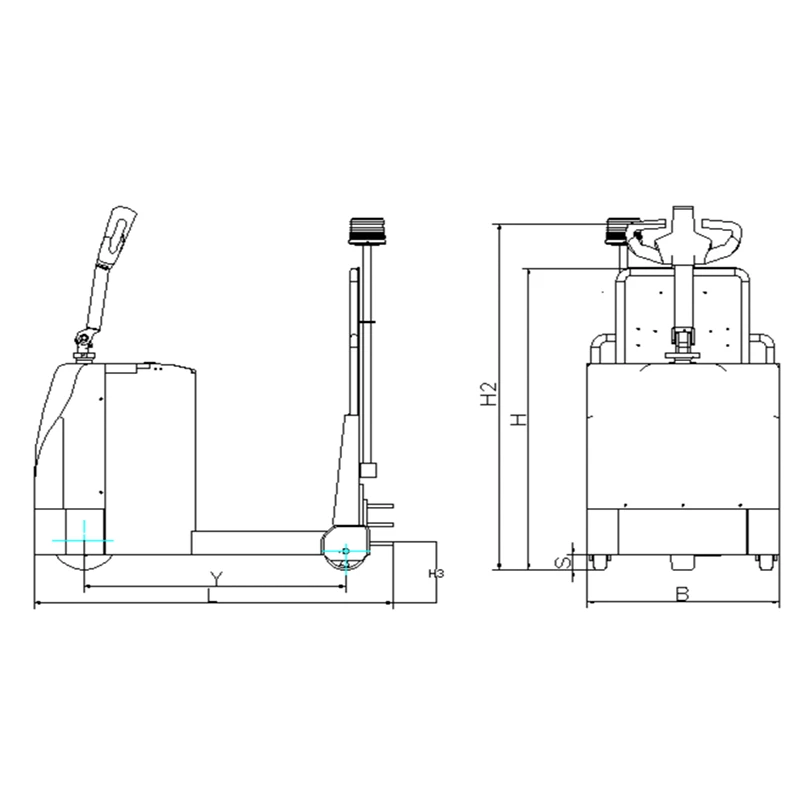

Dimensions	Overall length of frame	L	mm	1365	1365	1494	1494
	Overall width of frame	B	mm	735	735	884	884
	Handle height	H2	mm	1485	1485	1573	1573
	Min ground clearance	S	mm	37	37	84	84
	Pull bolt height	H3	mm	220-430	220-430	220-430	220-430
	Overall height of fram	H	mm	1469	1469	1596	1596
	Minimum turning radius	Wa	mm	1220	1220	1283	1283
Tire	Front wheel		mm	130*55	130*55	210*85	210*85
	Drive wheel		mm	230*75	230*75	260*105	260*105
	Caster wheel		mm	100*50	100*50	130*55	130*55
	Driver and Front wheel material	Polyure thane
	Caster wheel material	Rubber				Polyure thane

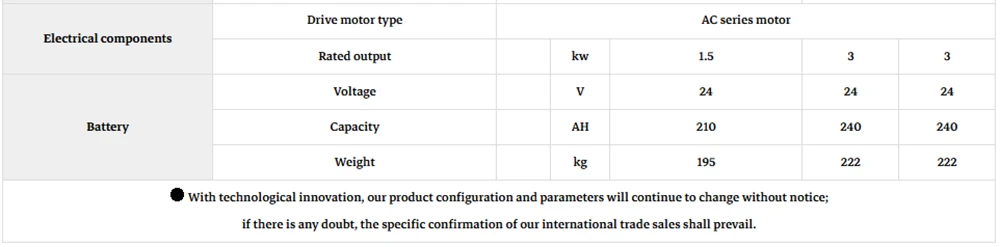

Electrical components	Drive motor type	AC series motor
Electrical components	Rated output		kw	1.5		3	3
Battery	Voltage		V	24		24	24
	Capacity		AH	210		240	240
	Weight		kg	195		222	222
● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail.
