Description
Technical Parameters
Product Introduction
|
Item |
Electric tractor |
|
Maximum load capacity |
3000kg |
|
Handle height |
1410mm |
|
Maximum lifting height |
280mm |

Product Detail

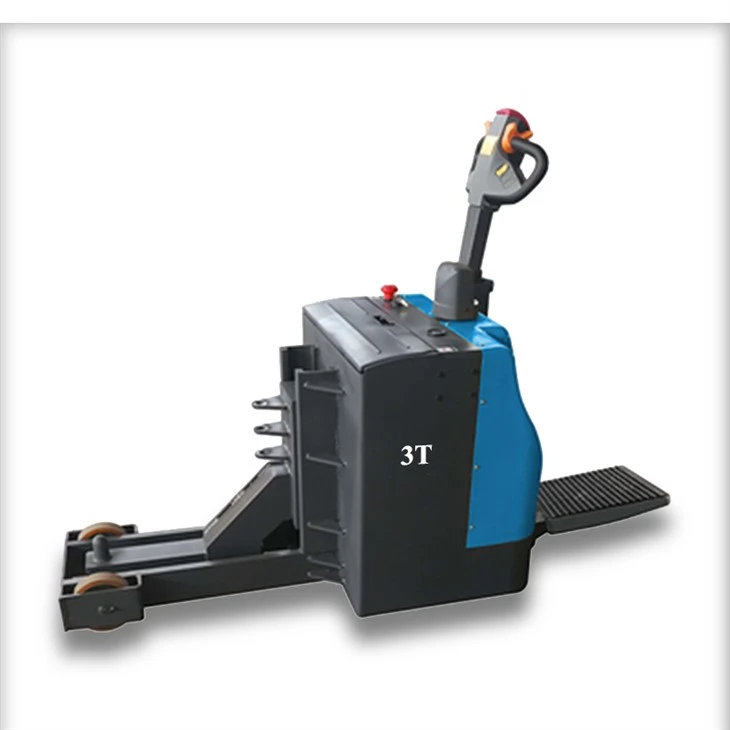

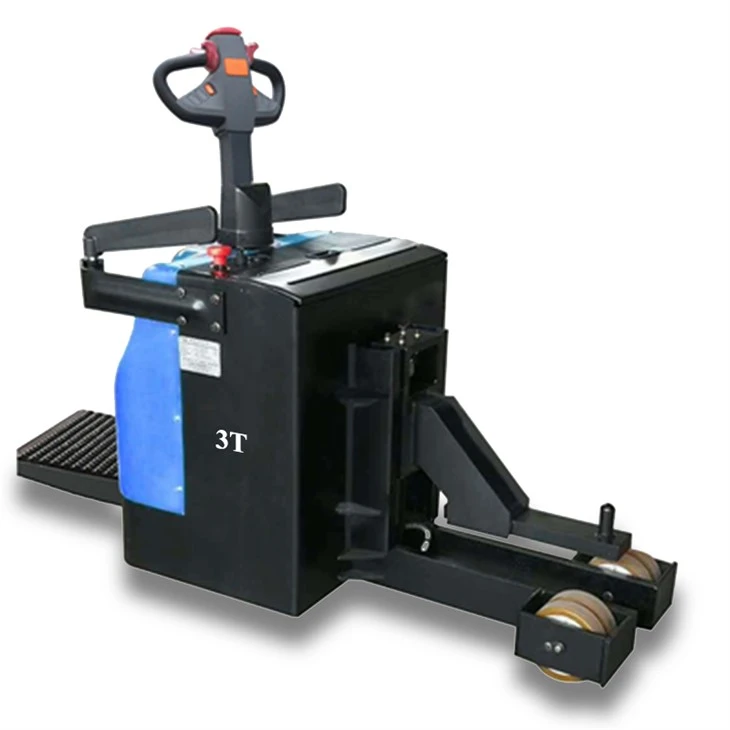

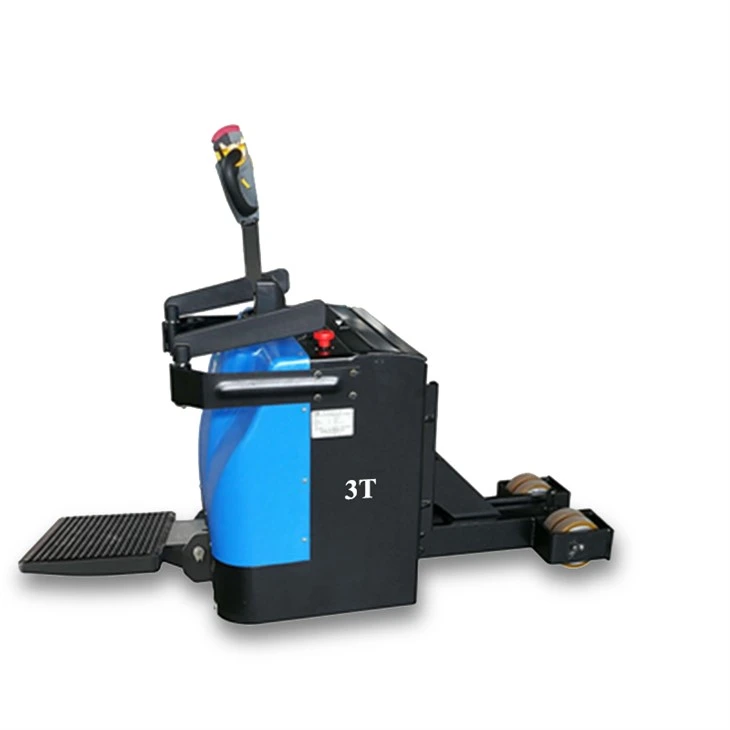

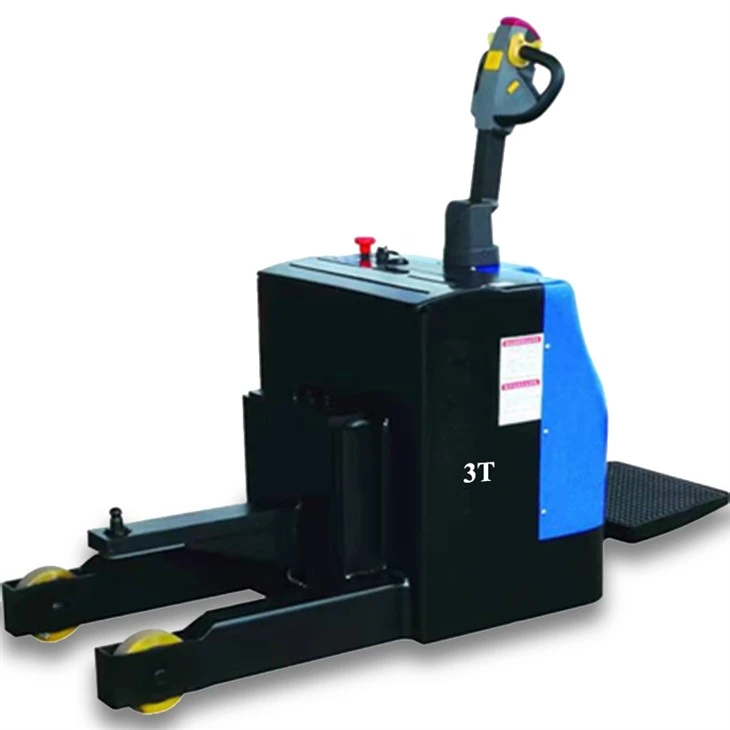

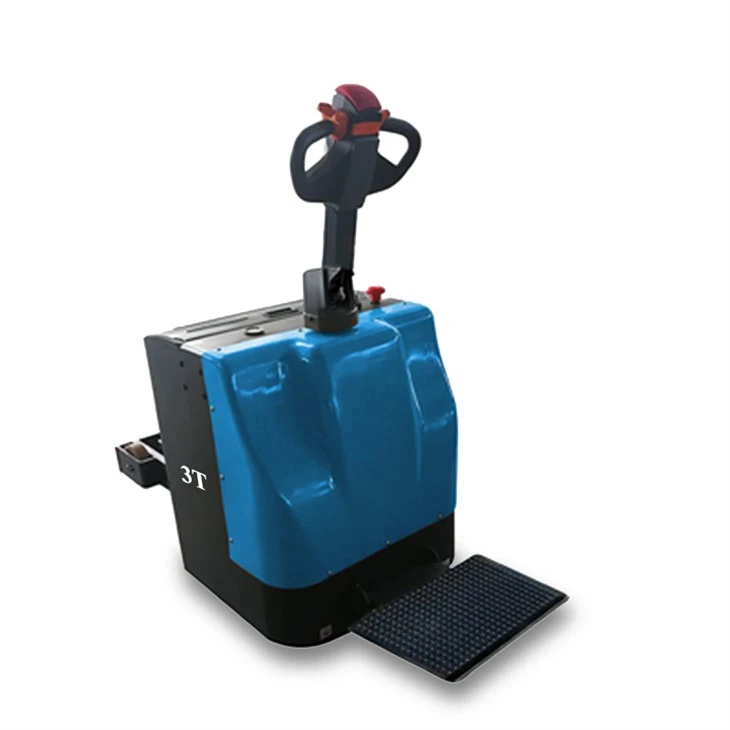

- This 3 ton stand-up Small tractor has an impressive towing capacity, whether it is the handling of large machinery or the transfer of bulk commodities, it can easily handle it.
- Its sturdy body structure is made of high-strength materials to ensure stability under heavy loads.
- The advanced transmission system is carefully tuned to efficiently transfer power to the wheels, resulting in stable and powerful traction.
- Even in complex and harsh working environments, such as rough road surfaces or extreme climate conditions, tractors demonstrate outstanding reliability and durability.
Key Features
Efficient power system
- The 3 ton stand-up Small tractor is equipped with a high-performance power unit that provides a powerful power output for the tractor.
- Start quickly and instantly release powerful torque, enabling the vehicle to reach the desired driving speed in a short time.
- The acceleration process is powerful and can easily handle various road conditions and towing tasks. At the same time, the energy efficiency of the power system is extremely high, effectively reducing operating costs.
- Advanced electric drive technology or fuel optimization system makes electric tractors more environmentally friendly and energy-saving while providing powerful power.
Humanized design
- This electric tractor fully considers the driver's operating experience and comfort. The cockpit layout is reasonable and the space is spacious, providing the driver with a comfortable working environment.
- The seat can be adjusted to meet the physical needs of different drivers, reducing the fatigue caused by long-term driving.
- The operation interface is simple and clear, and various control buttons and dashboards are designed scientifically, making them easy to operate and read.
- A good vision system allows the driver to clearly observe the surrounding environment, enhancing the safety of operation.
Reliable safety performance
- Safety is an important consideration for tractors, and tractors perform well in terms of safety performance.
- It is equipped with a reliable braking system with fast braking response and short braking distance, enabling it to stop quickly in an emergency to ensure the safety of personnel and goods.
- Vehicles are also equipped with a variety of safety devices, such as crash barriers and seat belts, to provide comprehensive protection for drivers and passengers.
- In addition, the stability and handling of the vehicle have been carefully designed and rigorously tested to effectively prevent the occurrence of dangerous situations such as rollover and loss of control.
Low maintenance costs
- This 3 ton stand-up Small tractor is designed to reduce maintenance costs. The power system is simple in structure, reducing wear and failure of mechanical components.
- Easy to maintain and maintain, reducing maintenance costs and downtime. At the same time, the car's accessories are easy to obtain, and the after-sales services system is perfect, providing users with convenient maintenance protection.
- In the process of using tractors, enterprises can effectively reduce operating costs and improve production efficiency.

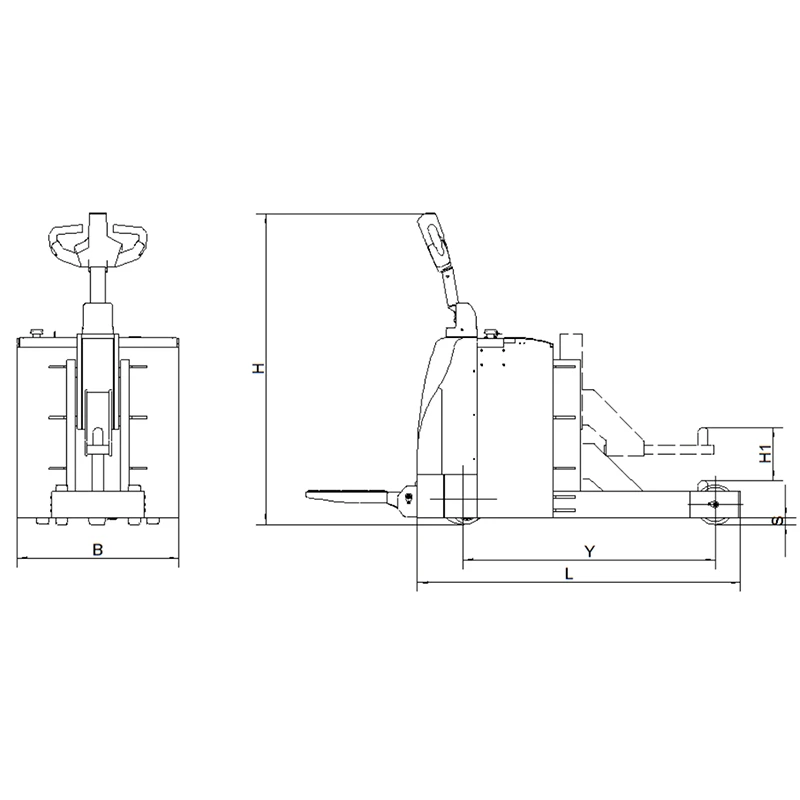

Technical Specifications

| Performance | Model | NX-3077 | ||
| Maximum load capacity | kg | 3000 | ||
| Maximum lifting height | H1 | mm | 280 | |
| service Weight (with battery) | kg | 670 | ||
| Dimensions | Overall length of frame | L | mm | 1467 |
| Overallwidth of frame | B | mm | 735 | |
| Handle height | H | mm | 1410 | |
| Min ground clearance | S | mm | 30 | |
| Wheelbase | Y | mm | 1145 | |
| Minimum turning radius (without platform) | Wa | mm | 1370 | |
| Minimum turning radius (with platform) | Wa1 | mm | 1880 | |
| Tire | Front wheel | mm | 180*55 | |
| Drive wheel | mm | 230*75 | ||
| Caster wheel | mm | 130*55 | ||
| Wheel material | Polyure thane | |||
| Electrical components | Drive motor type | AC series motor | ||
| Rated output | kw | 1.5 | ||
| Battery | Voltage | V | 24 | |
| capacity | AH | 210 | ||
| Weight | kg | 195 | ||
| ● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail. |
||||
