Description
Technical Parameters
Product Introduction
|
Item |
Pallet Trucks |
|
load center |
600mm |
|
Maximum lifting height |
120mm |
|
Overall length of frame |
1995mm |
Product Detail

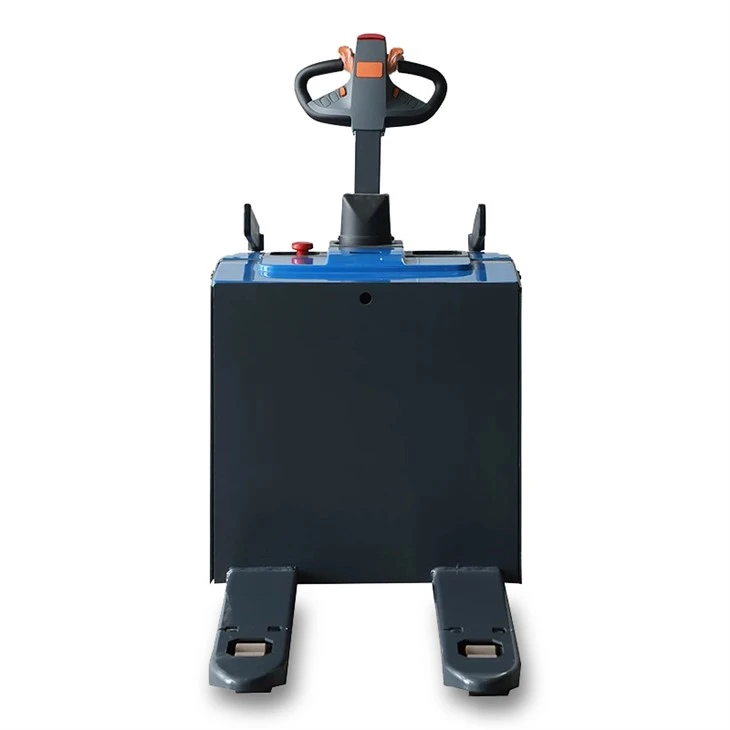

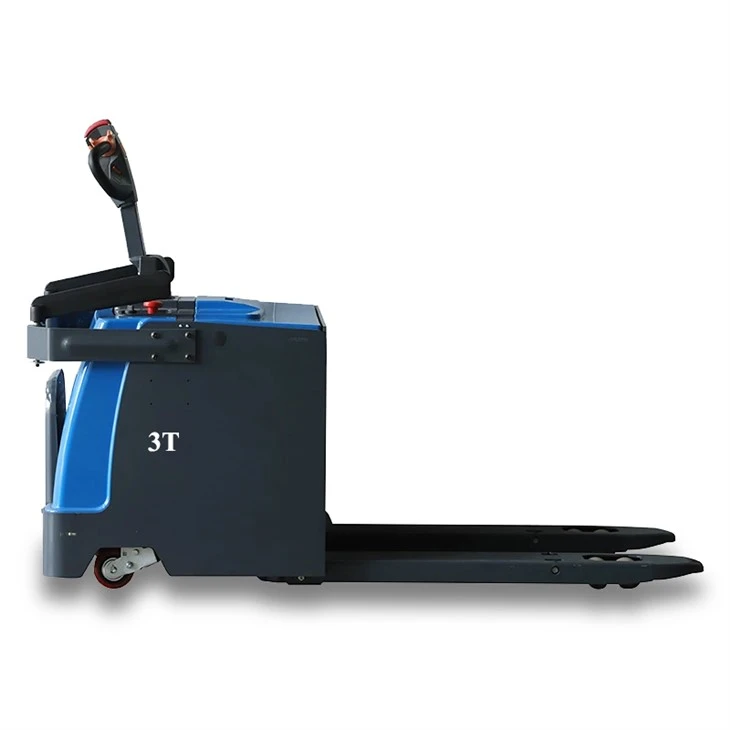

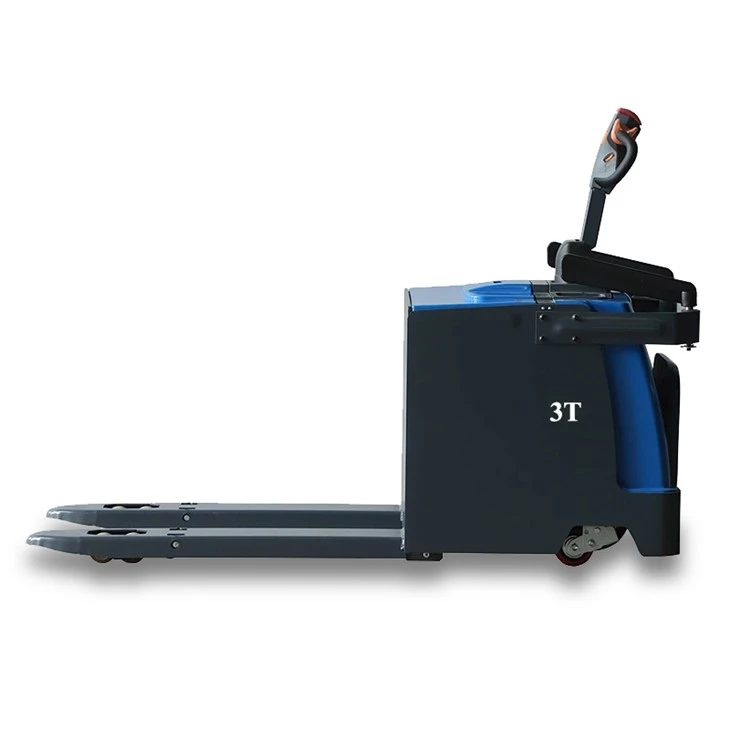

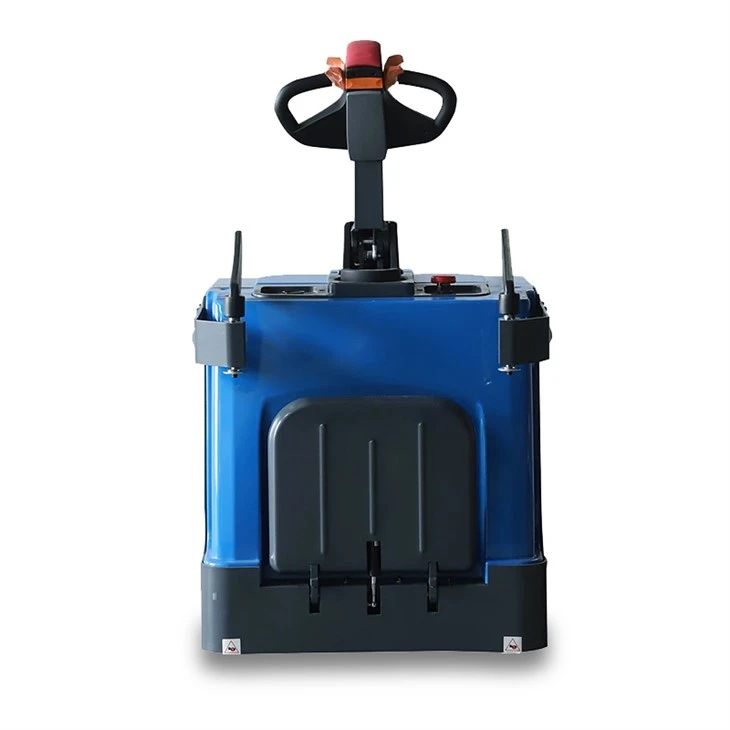

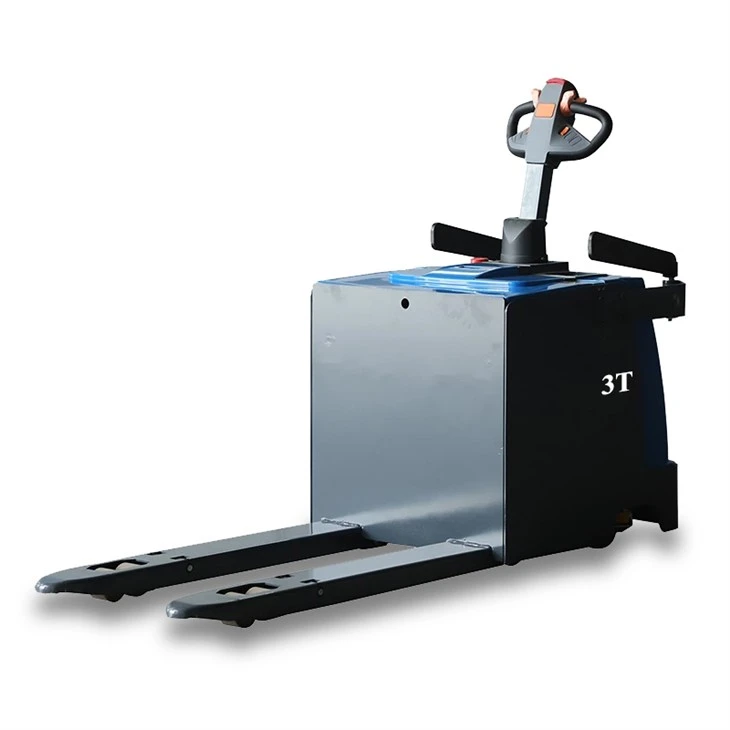

- This pallet jack stand up is equipped with a high-power motor, which provides sufficient power support for it, enabling it to easily cope with various heavy-load handling tasks.
- Whether in a warehouse, factory or logistics center, the forklift can demonstrate excellent working efficiency and complete the cargo handling quickly and stably.
Precise Control and Flexible Steering
- Operation Coordination: Through ergonomic optimization, it ensures smooth coordination between operational commands and mechanical responses. The user - friendly control system aids operators in intuitively controlling movement in confined spaces, such as warehouse racks and narrow passages.
- Structural Design: Adopting a modular design, its key load - bearing components are specially processed to handle high - frequency operations. Systemic quality checks ensure stable performance under harsh environmental conditions.
- Operator Comfort: The ergonomic cockpit layout reduces fatigue during long - term use. The visual control panel and functional keys create an ideal operation area, and multi - dimensional shock absorption ensures comfort in all weather.
Function and Usability
- The seamless coordination between operational commands and mechanical responses enhances the efficiency of the equipment. Operators can quickly adapt to the control system, which is especially important in spaces where precise maneuvering is crucial like warehouses. The ability to conduct multi - angle steering in confined areas enables it to access hard - to - reach spots and carry out operations effectively.
Humanized design
- In modern industrial operations, operator well - being is a significant focus. The ergonomic cockpit layout directly addresses this by reducing fatigue, which can improve work quality and reduce the risk of human - error - based accidents. The well - designed triangular operation zone and shock absorption systems contribute to a more comfortable and less strenuous working environment for the operators, especially during long shifts.
Intelligent Technology and Advanced Features
- The integration of IoT technology makes the equipment "smart". Real - time data on equipment status and maintenance needs can prevent unexpected breakdowns and reduce downtime. The dynamic energy - consumption adjustment shows the equipment's alignment with the global trend towards sustainable and green logistics, which can also lead to cost savings in the long run.
Technical Specifications
Technical Parameters

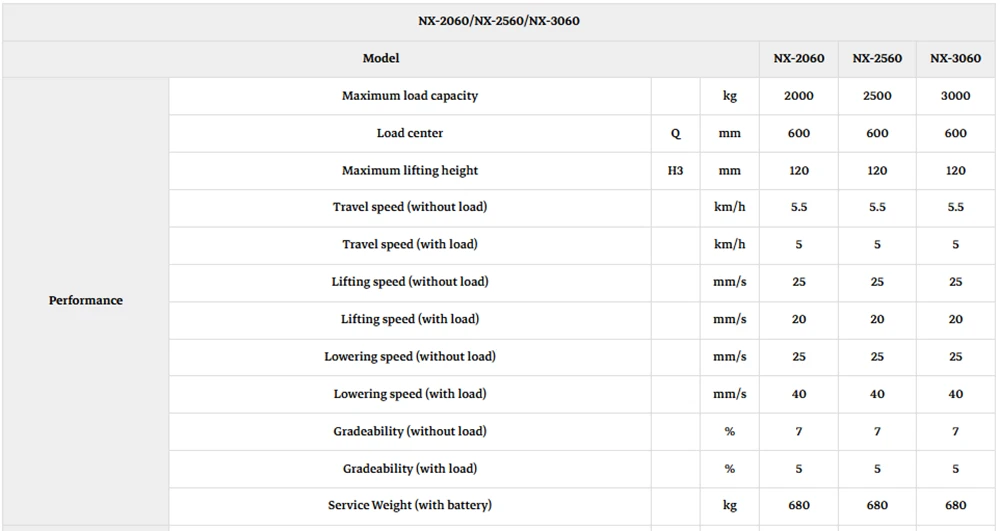

| NX-2060/NX-2560/NX-3060 | ||||||
| Model | NX-2060 | NX-2560 | NX-3060 | |||
| Performance | Maximum load capacity | kg | 2000 | 2500 | 3000 | |
| Load center | Q | mm | 600 | 600 | 600 | |
| Maximum lifting height | H3 | mm | 120 | 120 | 120 | |
| Travel speed (without load) | km/h | 5.5 | 5.5 | 5.5 | ||
| Travel speed (with load) | km/h | 5 | 5 | 5 | ||
| Lifting speed (without load) | mm/s | 25 | 25 | 25 | ||
| Lifting speed (with load) | mm/s | 20 | 20 | 20 | ||
| Lowering speed (without load) | mm/s | 25 | 25 | 25 | ||
| Lowering speed (with load) | mm/s | 40 | 40 | 40 | ||
| Gradeability (without load) | % | 7 | 7 | 7 | ||
| Gradeability (with load) | % | 5 | 5 | 5 | ||
| Service Weight (with battery) | kg | 680 | 680 | 680 | ||

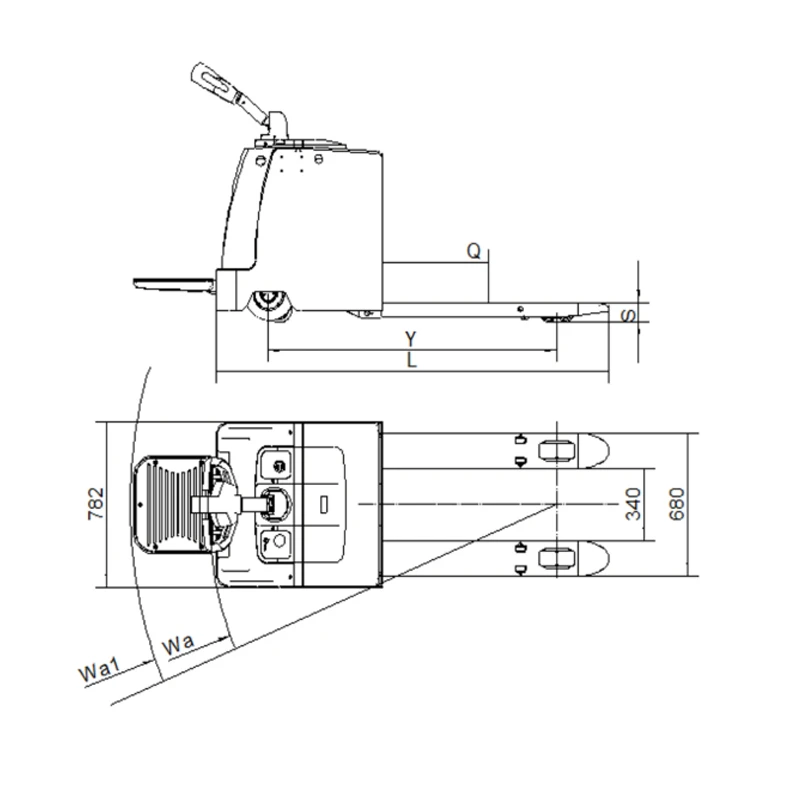

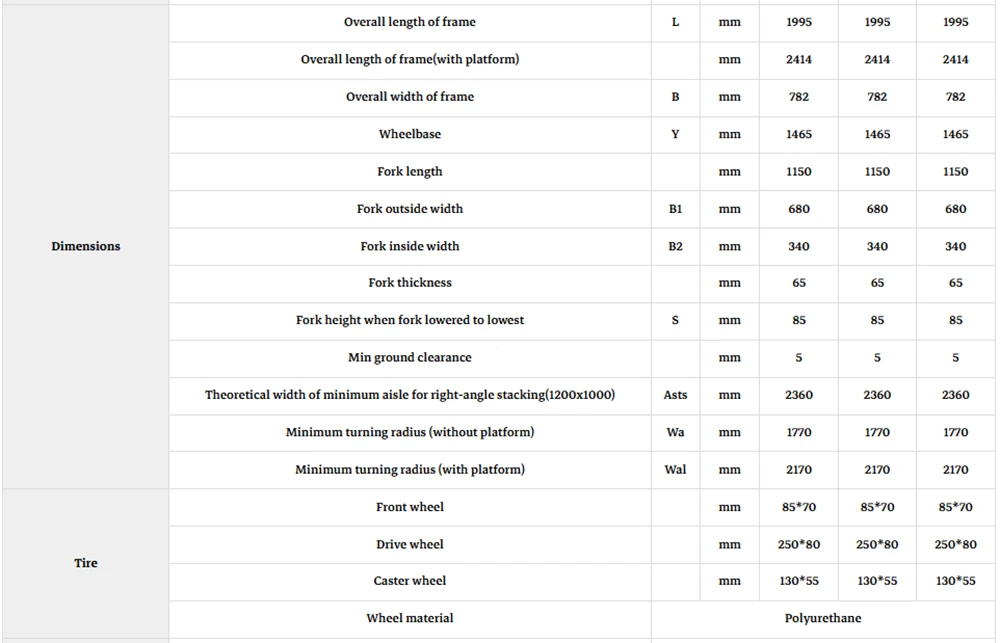

| Dimensions | Overall length of frame | L | mm | 1995 | 1995 | 1995 |
| Overall length of frame(with platform) | mm | 2414 | 2414 | 2414 | ||
| Overall width of frame | B | mm | 782 | 782 | 782 | |
| Wheelbase | Y | mm | 1465 | 1465 | 1465 | |
| Fork length | mm | 1150 | 1150 | 1150 | ||
| Fork outside width | B1 | mm | 680 | 680 | 680 | |
| Fork inside width | B2 | mm | 340 | 340 | 340 | |
| Fork thickness | mm | 65 | 65 | 65 | ||
| Fork height when fork lowered to lowest | S | mm | 85 | 85 | 85 | |
| Min ground clearance | mm | 5 | 5 | 5 | ||
| Theoretical width of minimum aisle for right-angle stacking(1200x1000) | Asts | mm | 2360 | 2360 | 2360 | |
| Minimum turning radius (without platform) | Wa | mm | 1770 | 1770 | 1770 | |
| Minimum turning radius (with platform) | Wal | mm | 2170 | 2170 | 2170 | |
| Tire | Front wheel | mm | 85*70 | 85*70 | 85*70 | |
| Drive wheel | mm | 250*80 | 250*80 | 250*80 | ||
| Caster wheel | mm | 130*55 | 130*55 | 130*55 | ||
| Wheel material | Polyurethane | |||||

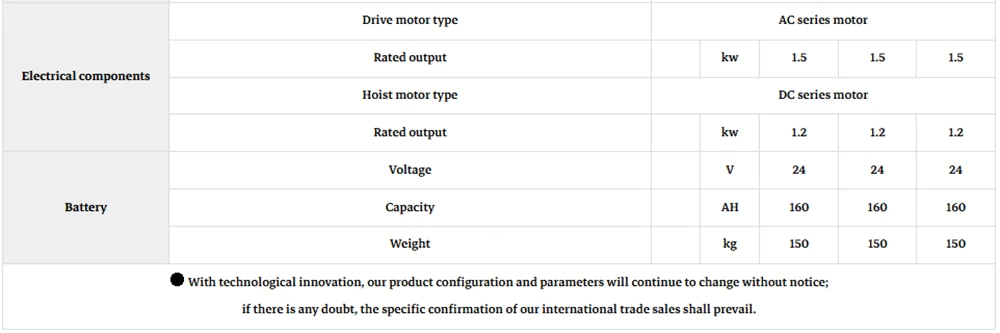

| Electrical components | Drive motor type | AC series motor | ||||
| Rated output | kw | 1.5 | 1.5 | 1.5 | ||
| Hoist motor type | DC series motor | |||||
| Rated output | kw | 1.2 | 1.2 | 1.2 | ||
| Battery | Voltage | V | 24 | 24 | 24 | |
| Capacity | AH | 160 | 160 | 160 | ||
| Weight | kg | 150 | 150 | 150 | ||
| ● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail. |
||||||
