Product Introduction

Electric forklift

Product Detail

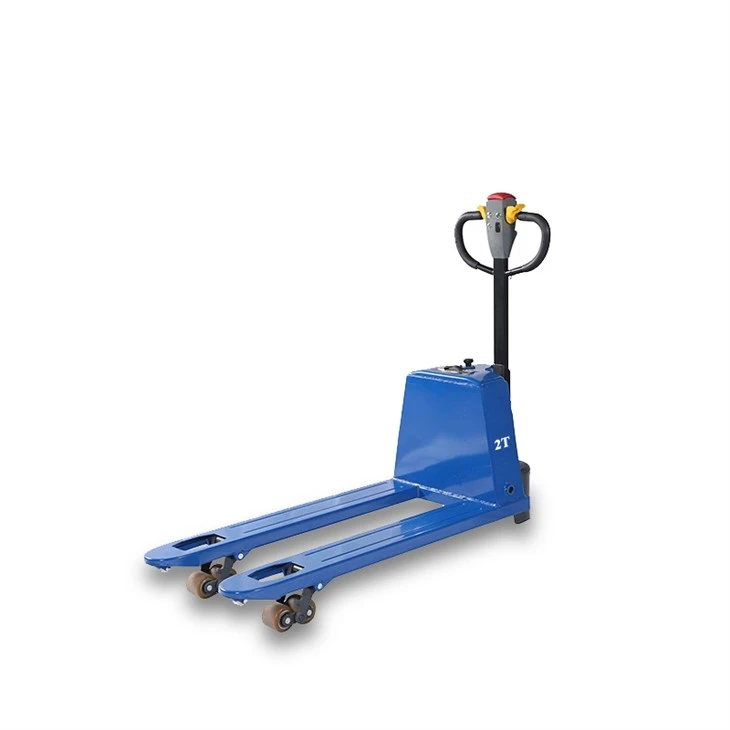

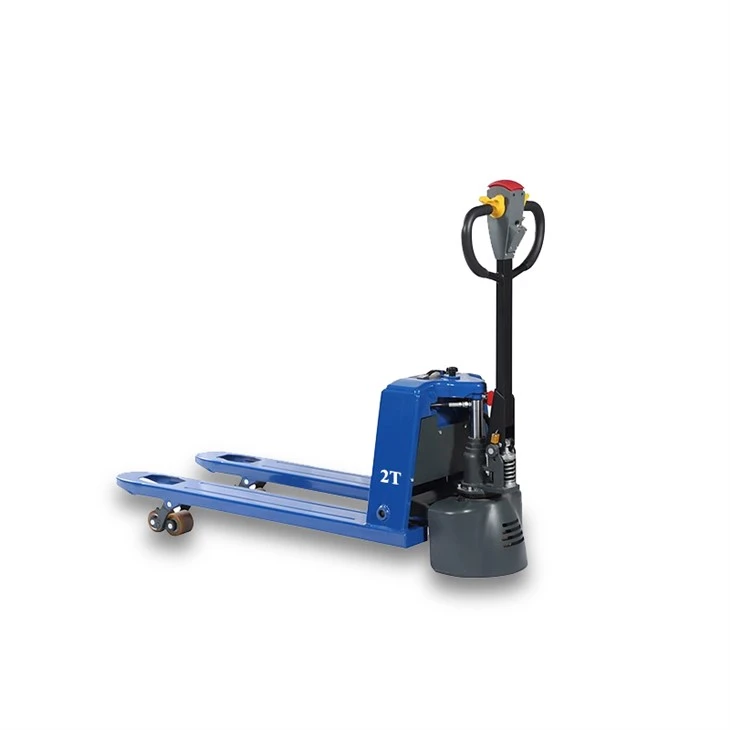

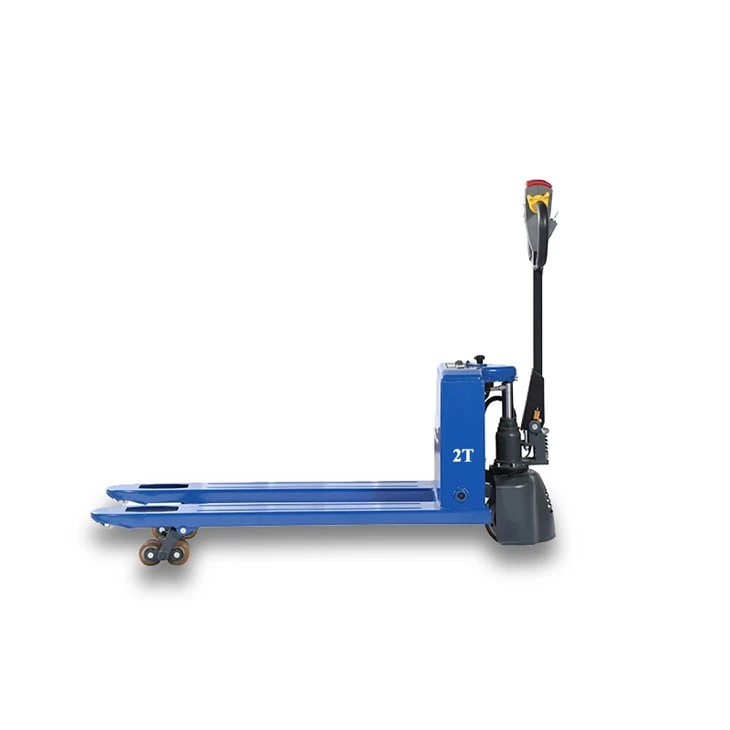

This walk behind electric pallet jack is equipped with a high-power motor, which provides strong and sufficient power support for the forklift, enabling it to calmly deal with various heavy-load handling tasks.
It has excellent acceleration performance. During the start and operation, it shows extremely fast acceleration ability, significantly shortening the time of handling operations and greatly improving work efficiency.Moreover, it can maintain a stable running state, and even when it is fully loaded, it can ensure stable running, effectively ensuring the safety and reliability of the goods handling process.

High - Sensitivity Joystick: Meticulously crafted, the joystick boasts outstanding responsiveness, allowing for precise control of direction and speed to ensure smooth and efficient operation.
Outstanding Steering System: Fitted with an advanced steering system, it can maneuver flexibly even in tight spaces and easily adapt to various complex working environments.
Adaptable to Diverse Terrains: Whether on flat ground or slightly uneven fields, the truck can operate stably and smoothly, showing excellent passability and handling performance.

High - Strength Materials: The walk - behind electric pallet jack is made of high - strength structural materials, which significantly enhance its overall durability and stability, making it highly suitable for long - term, high - intensity operations.
Rigorous Quality Testing: Every unit undergoes a comprehensive and strict series of quality inspections and validations to ensure stable and reliable performance under harsh conditions.
Low Failure Rate: The combination of careful design and precise manufacturing results in an extremely low failure rate, reducing maintenance downtime and operating costs while improving work continuity.

Exceptional Load Capacity: Engineered to handle large loads with ease, it meets the strict requirements of various industrial applications.
Optimized for Heavy Loads: Specially designed for heavy - duty applications, it ensures stable performance under high - load conditions while maintaining safety and operational efficiency.

Enhanced Operating Environment: Designed with the operator's comfort in mind, it offers a spacious and ergonomically optimized operating space to minimize fatigue during long - term operations.
Intuitive Interface: The control panel has a clear and concise layout, enabling operators to quickly adapt and work efficiently.
Maintenance - Friendly Design: The thoughtfully designed structure ensures efficient and convenient maintenance, significantly reducing maintenance time and effort.

Smart Control System: Fitted with a cutting - edge intelligent control system, it provides real - time monitoring of the vehicle's status, enabling efficient and streamlined operation management.
Energy - Saving Technologies: Advanced energy - saving technologies reduce energy consumption while maintaining excellent performance, supporting the goals of sustainable development.

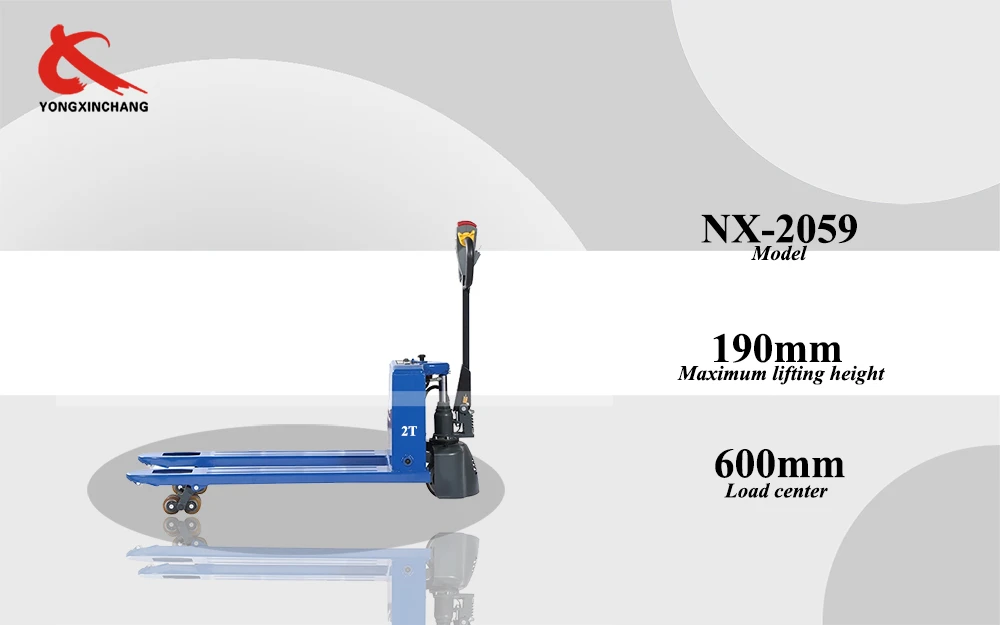

Model		NX-1558	NX-2059
Drive		Battery/Electric	Battery/Electric
Operator Type		Pedestrian/walking	Pedestrian/walking
Capacity	kg	1500	2000
Load centre	mm	600	600
Wheelbase	mm	1220	1220
Net Weight	kg	128	138
Wheel material		Pu/ steel core	Pu/ steel core
Drive Wheel size, number	mm	φ190*70/1	φ190*70/1
Load roller size, number	mm	φ80*70/4	φ80*70/4
Lifting height	mm	75-190/85-190	75-190/85-190
Height of tiller in drive position Min/ max	mm	1200	1200
Min fork height	mm	85	85
Totally length	mm	1540	1540
Totally Width	mm	560/680	560/680
single fork dimensions	mm	160* 1150/160* 1220	1601150/1601220
Ground clearance	mm	30	30
Min. Right-angle channel width, (pallet size 1000x1200, 1200 placed along cargo fork)	mm	1500	1500
Turning Radius	mm	1350	1350
Drive Speed with/ without loading	km/h	4.5	4.5
Lifting speed with/ without loading	mm/s	22/17	22/17
Lowering speed with/ without loading	mm/s	26/30	26/30
Gradient	%	6/10	6/10
Brake		Electromagnetic brake	Electromagnetic brake
Power of Drive motor	W	750w	800w
Power of lifting motor	w	500w	600w
Battery capacity	V/AH	48v/12ah	48v/15ah
Battery weight	kg	4.5kg	4.5kg
Charging time	H	2h	2.5h
Working time after full charge	H	>2h	>2h
● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail.
