Product Introduction

Product Detail

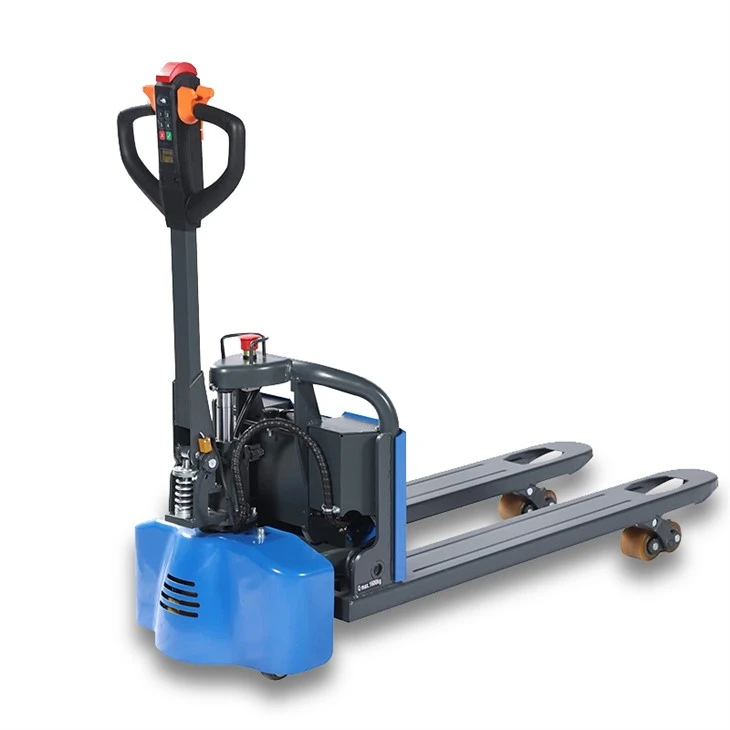

This Electric Walk-Behind Pallet Truck adopts advanced lithium battery technology. Compared with traditional lead-acid batteries, it has significant advantages such as high energy density, strong endurance, and short charging time. This enables the forklift to maintain a stable power output during long-term continuous operation, greatly improving work efficiency and reducing the impact of frequent charging on the progress of the operation.

electric forklift

The control panel is designed with the user in mind, and the operating handle conforms to ergonomic standards. This allows operators, even those new to the task, to quickly get the hang of it. They can effortlessly perform forward and backward movements, steering, and lifting operations with precision.
Thanks to its nimble steering and a tight turning radius, this equipment can smoothly maneuver through narrow warehouse aisles and complex working zones. As a result, it helps maximize the use of storage areas and minimizes the chances of goods getting damaged in collisions.

This Electric Walk - Behind Pallet Truck is outfitted with a dependable braking system. It responds promptly and ensures the truck can come to a halt in emergencies, averting potential accidents. Moreover, it features multiple safety safeguards, like protection against overloading and prevention of battery overcharging and overdischarging. These measures not only prolong the equipment's lifespan but also safeguard the well - being of operators and the integrity of the goods.

The driver's seat is both cozy and adjustable. It can be customized to fit the physical requirements of different operators, alleviating fatigue from extended work periods. The well - thought - out vision design enables the driver to have a clear view of the surrounding environment during operation. This further boosts the safety and accuracy of the work being done.

Powered by lithium batteries, this truck achieves zero emissions. It aligns perfectly with contemporary environmental protection concepts, helping businesses create a green logistics environment. Its low - energy operation not only cuts down on operating costs but also lessens the adverse impact on the environment.

The Electric Walk-Behind Pallet Truck has a straightforward structural design. Key components are easily accessible for inspection and upkeep. The modular design streamlines the process of troubleshooting and repair. It reduces equipment downtime, enhances overall equipment availability, and saves both maintenance costs and time for businesses.

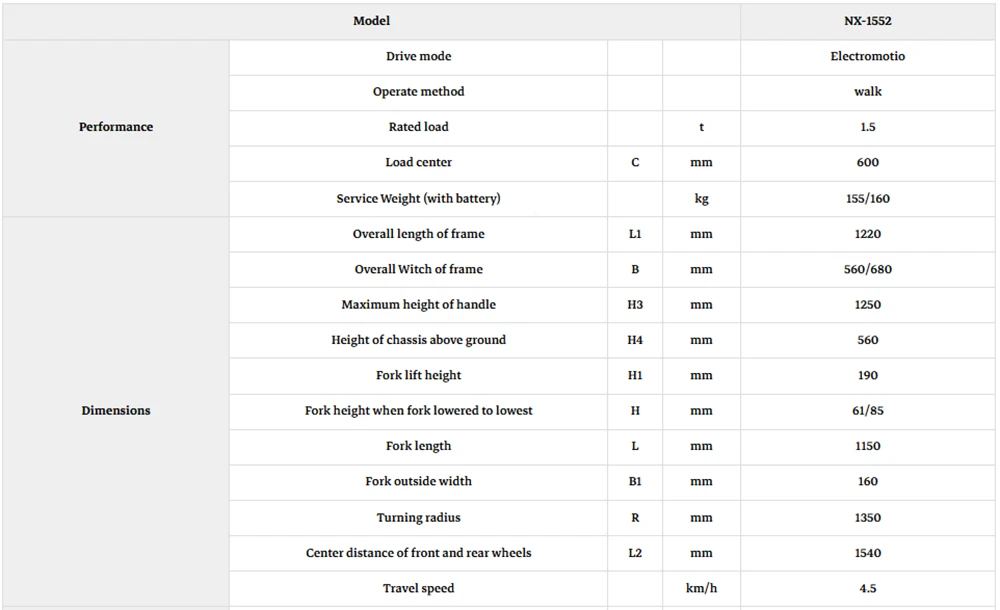

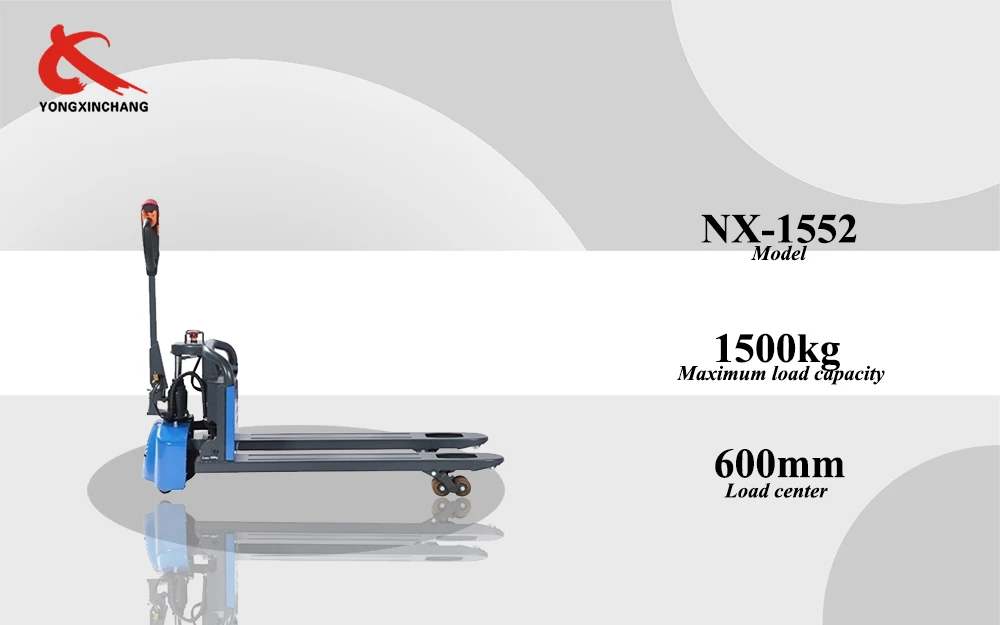

Model				NX-1552
Performance	Drive mode			Electromotio
	Operate method			walk
	Rated load		t	1.5
	Load center	C	mm	600
	Service Weight (with battery)		kg	155/160
Dimensions	Overall length of frame	L1	mm	1220
	Overall Witch of frame	B	mm	560/680
	Maximum height of handle	H3	mm	1250
	Height of chassis above ground	H4	mm	560
	Fork lift height	H1	mm	190
	Fork height when fork lowered to lowest	H	mm	61/85
	Fork length	L	mm	1150
	Fork outside width	B1	mm	160
	Turning radius	R	mm	1350
	Center distance of front and rear wheels	L2	mm	1540
	Travel speed		km/h	4.5

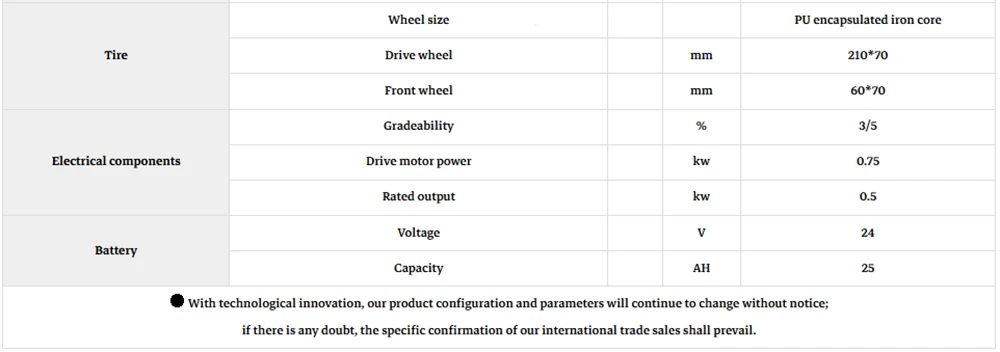

Tire	Wheel size			PU encapsulated iron core
	Drive wheel		mm	210*70
	Front wheel		mm	60*70
Electrical components	Gradeability		%	3/5
	Drive motor power		kw	0.75
	Rated output		kw	0.5
Battery	Voltage		V	24
Battery	Capacity		AH	25
● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail.
