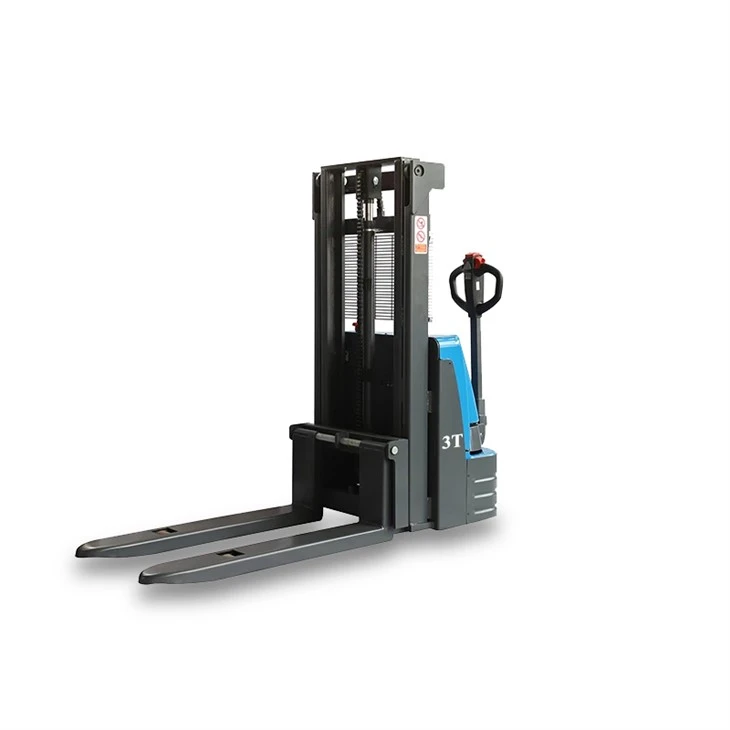

Electric Walk-behind Pallet Truck 3 Tons



Item	Pallet Trucks
Load centre	600mm
Wheelbase	1358mm
Maximum lifting height	120mm



• This Electric Walk-behind pallet truck 3 tons is equipped with powerful power and high efficiency, capable of quickly responding to operating instructions and easily handling all kinds of heavy objects.
• Its efficient operating speed greatly shortens the handling time and increases work efficiency.





Flexible control and precise positioning

• This truck has excellent handling and can steer flexibly in a small space, easily handling various complex road conditions.
• The accurate positioning function ensures the accuracy and safety of cargo handling.



Durable and reliable quality

• Made of high-strength materials, the body structure is sturdy and stable, capable of withstanding high-intensity workloads
• After rigorous quality inspection, we ensure that it maintains excellent performance during long-term use.



Humanized design and comfortable experience

• Fully considering the needs of the operator, a comfortable operating environment is designed. The control interface is simple and clear, and the operations are convenient and fast, making the operator feel at ease in the work.





Model				NX-2056	NX-3057
Performance	Maximum load capacity		kg	2500	3000
	Load center	Q	mm	600	600
	Maximum lifting height	H3	mm	120	120
	Travel speed		km/h	5.5	5.5
	Travel speed		km/h	5	5
	Lifting speed		mm/s	25	25
	Lifting speed		mm/s	20	20
	Lowering speed		mm/s	25	25
	Lowering speed		mm/s	40	40
	Gradeability		%	7	7
	Gradeability		%	5	5
	Service Weight		kg	365	365
Dimensions	Overall length of frame	L	mm	1780	1780
	Overall length of frame		mm	\	\
	Overall width of frame	B	mm	680	680
	Wheelbase	Y	mm	1358	1358
	Fork length		mm	1150	1150
	Fork outside width	B1	mm	680	680
	Fork inside width	B2	mm	340	340
	Fork thickness		mm	50	50
	Fork height when fork lowered to lowest	S	mm	85	85
	Min ground clearance		mm	5	5
	Theoretical width of minimum aisle for right-angle stacking (1200x1000)	Asts	mm	2150	2150
	Minimum turning radius	Wa	mm	1570	1570
	Minimum turning radius	Wa1	mm	\	\
Tire	Front wheel		mm	80*70	80*70
	Drive wheel		mm	210*75	210*75
	Caster wheel		mm	75*50	75*50
	Wheel material	polyurethane
Electrical components	Drive motor type	DC series motor
	Rated output		kw	1.2	1.2
	Hoist motor type	DC series motor
	Rated output		kw	1.2	1.2
Battery	Voltage		V	48	48
	Capacity		AH	50	50
	Weight		kg	15	15
● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail.





Advanced hydraulic system

• Adopting advanced hydraulic technology makes the movement of the truck more smooth and smooth, enhancing the efficiency and safety of handling.



Intelligent control system

• Through the intelligent control system equipped with the vehicle, managers can monitor the latest status of the vehicle in real time, realize the intelligent operation and management of the truck, and provide users with a more convenient experience.



Energy saving and environmental protection

• This Electric Walk-behind pallet truck 3 tons not only guarantees performance, but also focuses on energy conservation and environmental protection, reducing energy consumption and reducing environmental impact.





• Widely used in factories, warehouses, logistics centers and other places. Whether loading and unloading goods, transporting materials or sorting goods in warehouses, trucks can play their excellent performance to meet the needs of different users.
