Description
Technical Parameters
Product Introduction
|
Item |
Pallet Truck |
|
Load center |
600mm |
|
Min ground clearance |
5mm |
|
Maximum lifting height |
120mm |
Product Detail

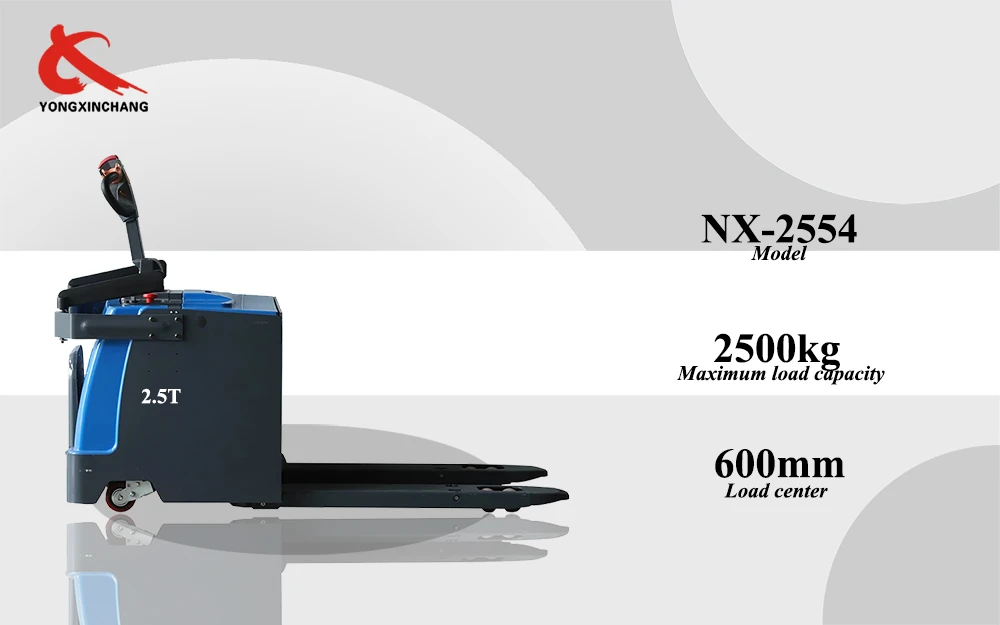

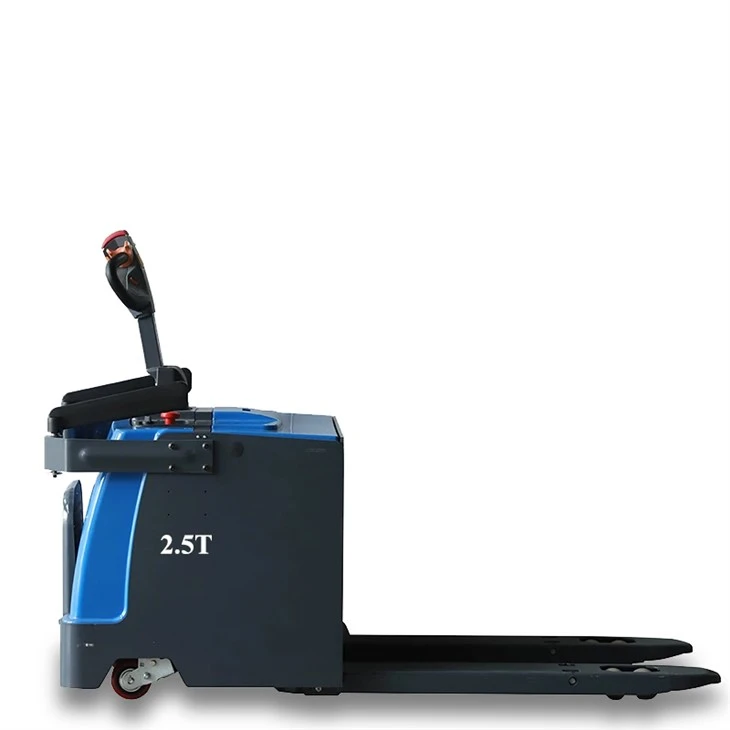

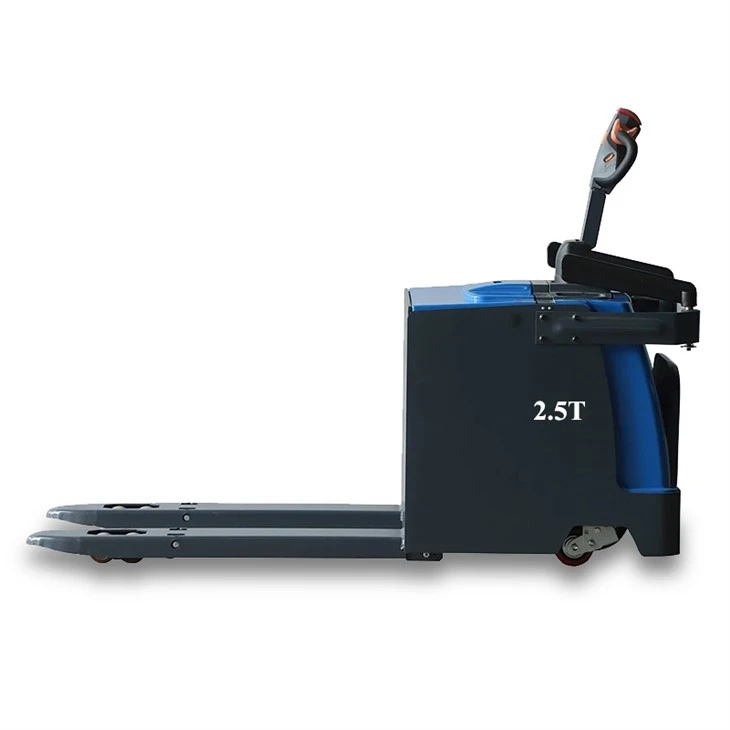

- This 2.5 ton Pallet Truck has a powerful power system and can easily handle various handling tasks.
- Its advanced electric drive technology ensures smooth and efficient operation during operation, providing users with a smooth operating experience.
- Whether in narrow warehouse aisles or in spacious logistics centers, it can move freely and show extraordinary flexibility.
Precise Control
- The control system of this pallet truck is meticulously engineered to offer effortless handling for the operator. With a straightforward and intuitive operation interface, all functions are clearly visible at a glance, facilitating swift and convenient operation settings. Whether it's lifting, lowering, or driving, precise control is achievable, guaranteeing the accuracy and safety of cargo handling. Operators can relish its convenience and comfort during operation, significantly enhancing work efficiency.
Sturdy and Durable
- Constructed from high - strength materials, this pallet truck features a robust and stable structure. Through strict quality inspections and optimized design, it can endure extended periods of intense use without being easily damaged. Its excellent durability helps companies save on maintenance and replacement costs, while ensuring the continuity and stability of handling operations. In various complex working environments, it consistently delivers reliable performance, providing solid support for operators.
Humanized Design
- In the design process, this 2.5 Ton Pallet Truck fully considers the needs of the operator. It is equipped with a comfortable operating handle and ample driving space, enabling the operator to work with peace of mind and reducing fatigue. Moreover, it comes with a series of safety protection devices, such as emergency stop buttons and anti - lock braking systems, to ensure the safety of the operator. The low - noise operation also provides a better working experience.
Energy Conservation and Environmental Protection
- In line with contemporary requirements, this electric pallet truck is powered by environmentally - friendly electricity, producing no exhaust emissions and being environmentally sustainable. While creating value for the enterprise, it also actively assumes social responsibility and contributes to sustainable development. Compared with traditional fuel - powered trucks, it consumes less energy, effectively reducing the operating costs of enterprises and achieving a win - win situation for both economic and environmental benefits.
High - quality Service
- We not only offer high - quality products but also provide users with comprehensive service support. A professional after - sales team is always available to address the problems and difficulties encountered by users. We are dedicated to ensuring that every user enjoys a satisfactory service experience and can use the pallet truck with complete peace of mind.
Technical Specifications

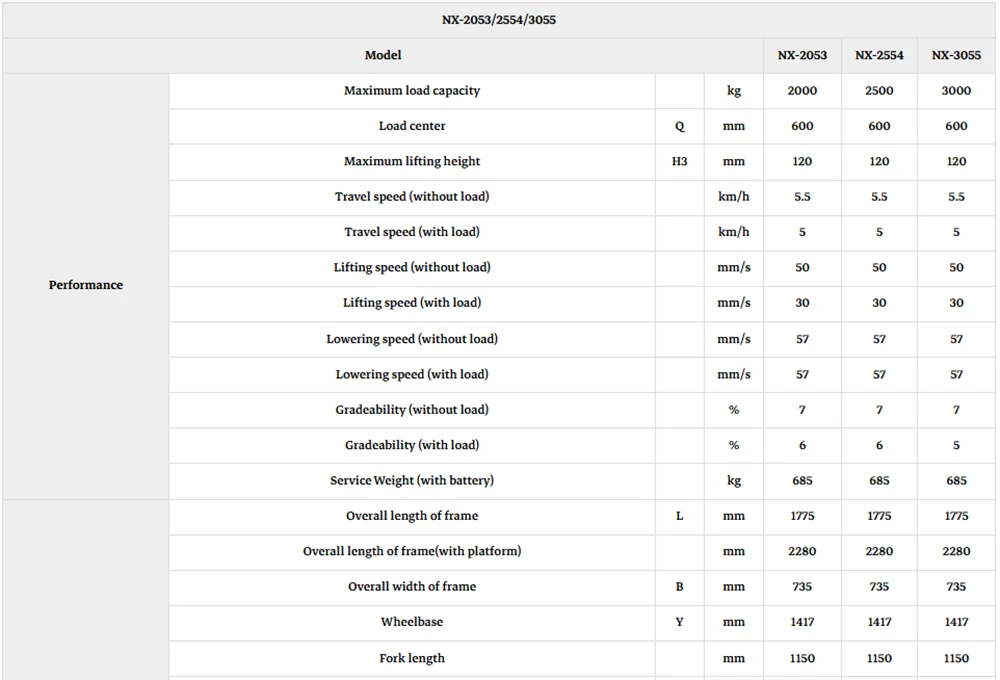

Technical Parameters
| NX-2053/2554/3055 | ||||||
| Model | NX-2053 | NX-2554 | NX-3055 | |||
| Performance | Maximum load capacity | kg | 2000 | 2500 | 3000 | |
| Load center | Q | mm | 600 | 600 | 600 | |
| Maximum lifting height | H3 | mm | 120 | 120 | 120 | |
| Travel speed (without load) | km/h | 5.5 | 5.5 | 5.5 | ||
| Travel speed (with load) | km/h | 5 | 5 | 5 | ||
| Lifting speed (without load) | mm/s | 50 | 50 | 50 | ||
| Lifting speed (with load) | mm/s | 30 | 30 | 30 | ||
| Lowering speed (without load) | mm/s | 57 | 57 | 57 | ||
| Lowering speed (with load) | mm/s | 57 | 57 | 57 | ||
| Gradeability (without load) | % | 7 | 7 | 7 | ||
| Gradeability (with load) | % | 6 | 6 | 5 | ||
| Service Weight (with battery) | kg | 685 | 685 | 685 | ||

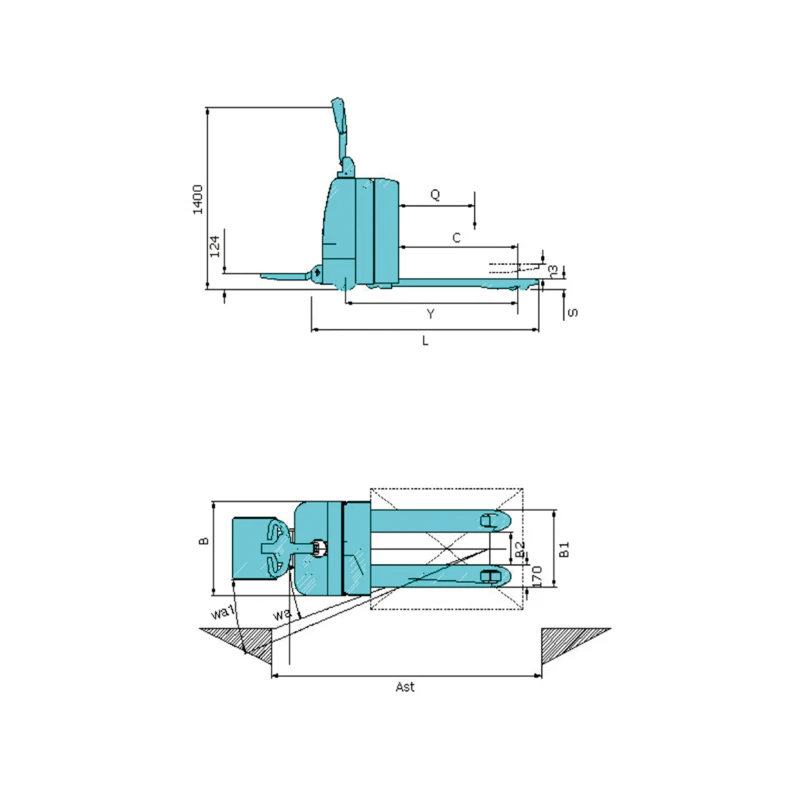

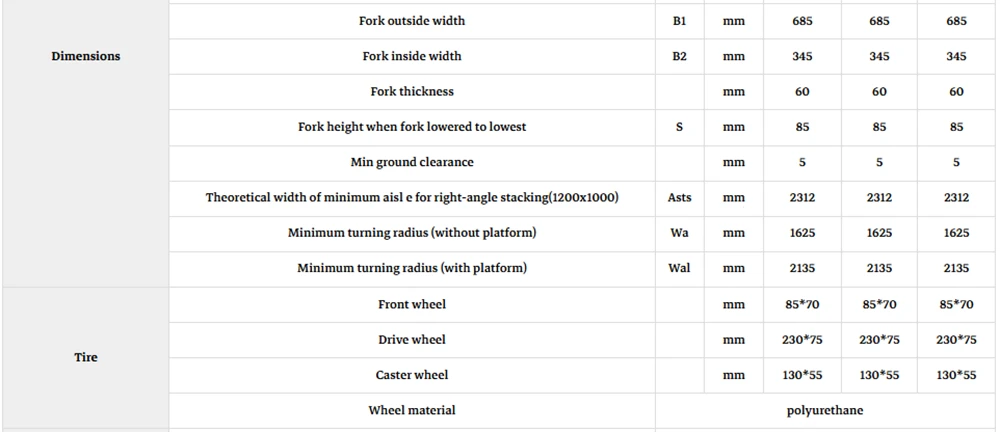

| Dimensions | Overall length of frame | L | mm | 1775 | 1775 | 1775 |
| Overall length of frame(with platform) | mm | 2280 | 2280 | 2280 | ||
| Overall width of frame | B | mm | 735 | 735 | 735 | |
| Wheelbase | Y | mm | 1417 | 1417 | 1417 | |
| Fork length | mm | 1150 | 1150 | 1150 | ||
| Fork outside width | B1 | mm | 685 | 685 | 685 | |
| Fork inside width | B2 | mm | 345 | 345 | 345 | |
| Fork thickness | mm | 60 | 60 | 60 | ||
| Fork height when fork lowered to lowest | S | mm | 85 | 85 | 85 | |
| Min ground clearance | mm | 5 | 5 | 5 | ||
| Theoretical width of minimum aisl e for right-angle stacking(1200x1000) | Asts | mm | 2312 | 2312 | 2312 | |
| Minimum turning radius (without platform) | Wa | mm | 1625 | 1625 | 1625 | |
| Minimum turning radius (with platform) | Wal | mm | 2135 | 2135 | 2135 | |
| Tire | Front wheel | mm | 85*70 | 85*70 | 85*70 | |
| Drive wheel | mm | 230*75 | 230*75 | 230*75 | ||
| Caster wheel | mm | 130*55 | 130*55 | 130*55 | ||
| Wheel material | polyurethane | |||||

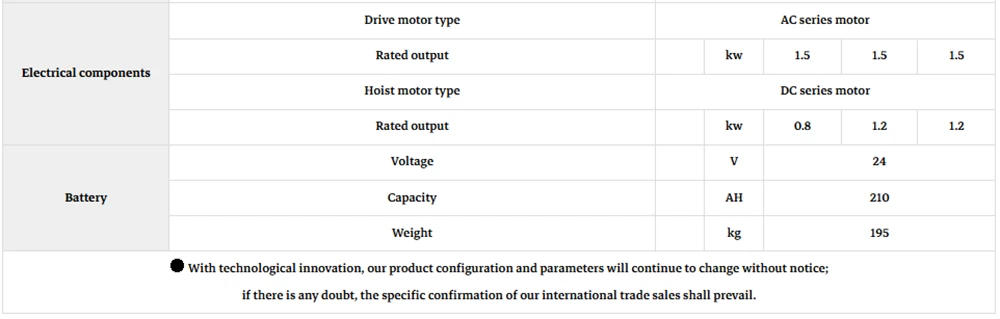

| Electrical components | Drive motor type | AC series motor | ||||
| Rated output | kw | 1.5 | 1.5 | 1.5 | ||
| Hoist motor type | DC series motor | |||||
| Rated output | kw | 0.8 | 1.2 | 1.2 | ||
| Battery | Voltage | V | 24 | |||
| Capacity | AH | 210 | ||||
| Weight | kg | 195 | ||||
| ● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail. |
||||||
