Product Introduction

Product Detail

The Electric Stacker Truck Economical is capable of handling a large number of small and medium-sized warehouses and logistics locations.
Whether it is handling general cargo or conducting moderate stacking operations, it can perform well and provide reliable support for the logistics operation of the enterprise.

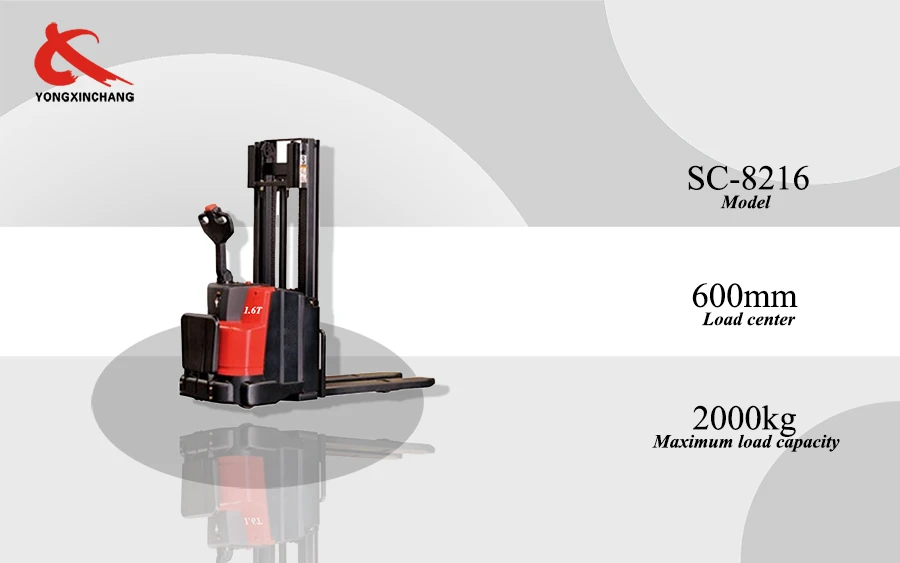

Electric Stacker Truck Economical introduction

This equipment is equipped with an efficient electric drive system featuring stable power output. It can quickly respond to operation instructions, enabling efficient cargo handling and stacking.
The battery has excellent endurance, capable of meeting the power requirements for daily work. Meanwhile, the electrical system boasts the advantages of low noise and zero emissions, bringing tranquility and cleanliness to the working environment.

The control system is meticulously designed and easy to operate. The lifting, lowering, and driving speeds of the economical electric stacker truck can be precisely adjusted to ensure that the goods can be accurately placed at the target position. The flexible steering system allows the vehicle to be easily maneuvered in tight spaces, enhancing the utilization of warehouse space.

This equipment attaches great importance to safety performance and is equipped with multiple safety protection measures. For example, emergency braking devices and anti - tipping structures are installed to effectively safeguard the safety of operators and goods.
The sturdy body structure can withstand a certain amount of working pressure, ensuring stability in various working environments.

From the perspective of operators, a user - friendly design has been implemented. The operating handle conforms to ergonomic principles, offering a comfortable grip and reducing fatigue during long - term operation.
The driving space is rationally laid out, and the seat is adjustable, providing a comfortable working environment for operators.

As an economical model, its low energy consumption and low maintenance costs further reduce the usage cost for enterprises. On the premise of ensuring performance, it provides a cost - effective logistics handling solution for enterprises.

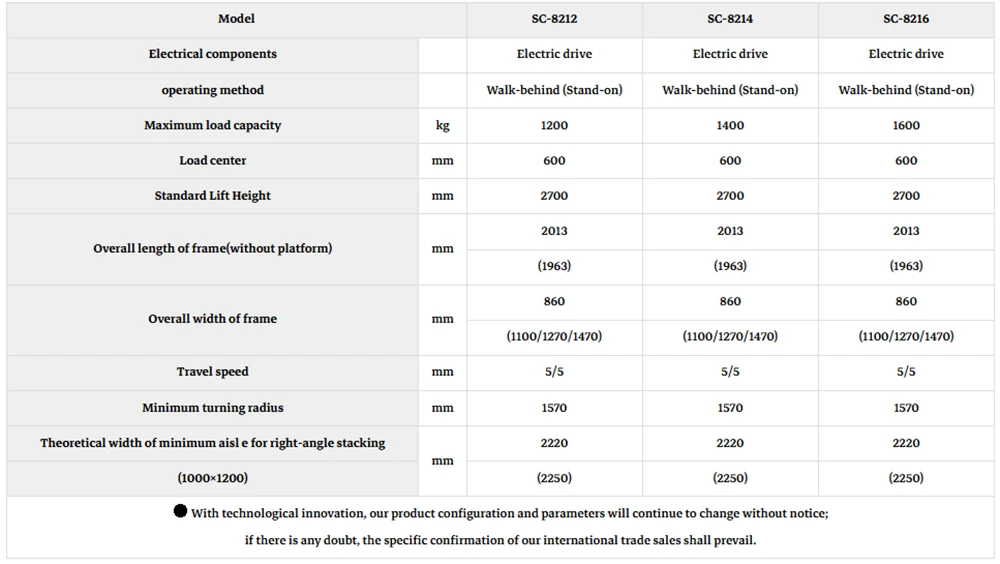

Model		SC-8212	SC-8214	SC-8216
Electrical components		Electric drive	Electric drive	Electric drive
operating method		Walk-behind (Stand-on)	Walk-behind (Stand-on)	Walk-behind (Stand-on)
Maximum load capacity	kg	1200	1400	1600
Load center	mm	600	600	600
Standard Lift Height	mm	2700	2700	2700
Overall length of frame(without platform)	mm	2013	2013	2013
Overall length of frame(without platform)	mm	(1963)	(1963)	(1963)
Overall width of frame	mm	860	860	860
Overall width of frame	mm	(1100/1270/1470)	(1100/1270/1470)	(1100/1270/1470)
Travel speed	mm	5/5	5/5	5/5
Minimum turning radius	mm	1570	1570	1570
Theoretical width of minimum aisl e for right-angle stacking	mm	2220	2220	2220
(1000×1200)	mm	(2250)	(2250)	(2250)
● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail.
