Product Introduction

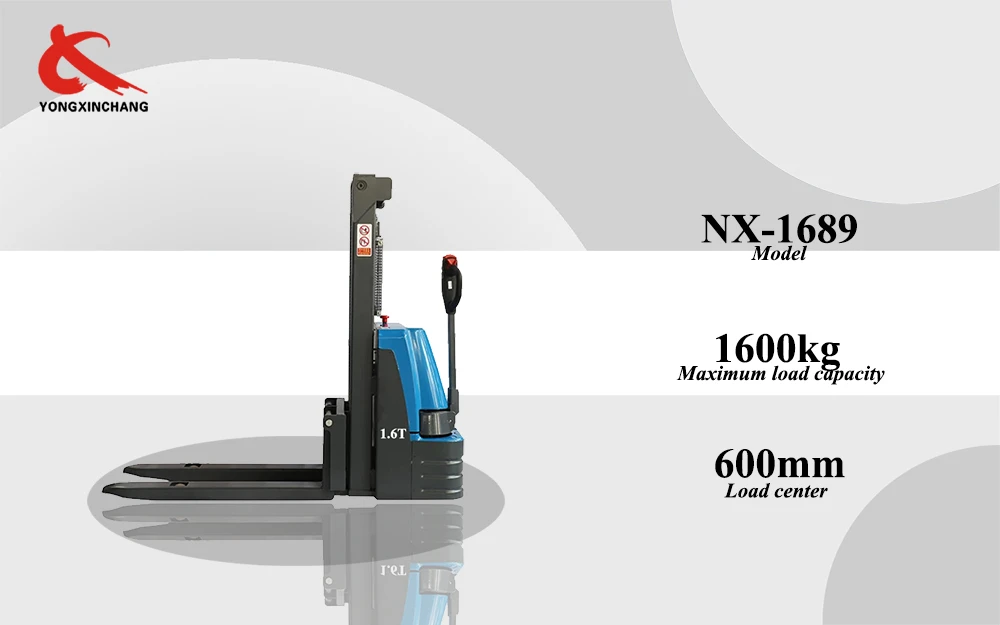

electric forklift

Product Detail

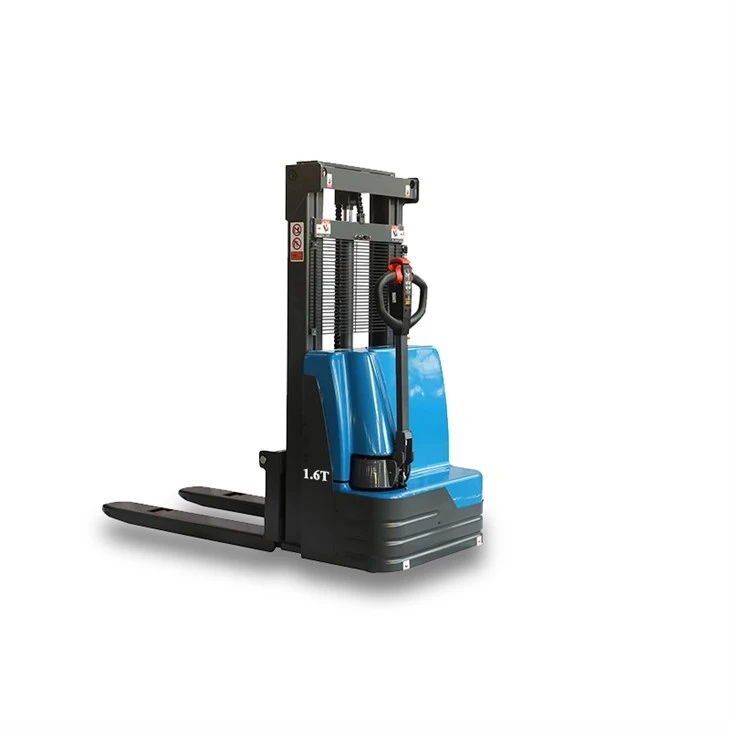

This walk behind pallet stacker is equipped with a high-performance electric motor, providing reliable and powerful power output. It can easily handle the stacking tasks of various weights, whether it is light or medium-sized cargo, and can quickly complete lifting and handling operations.

Agile response mechanism：The drive module features instantaneous feedback capability, achieving seamless transition from standby to full-load operation to minimize task cycles.
Smart energy circulation：Adaptive power distribution technology enables dynamic load adjustment, effectively extending operational endurance while reducing long-term costs

Omnidirectional mobility：The multi-axis steering system empowers the equipment to perform intricate maneuvers in high-density storage areas, ensuring collision-free navigation.
Self-adaptive clamping：Micrometer-level sensors automatically calibrate fork angles according to cargo profiles, achieving millimeter-precision stacking alignment.
Ergonomic command interface：The biomechanically optimized control panel integrates scenario presets, allowing tri-finger operation for complex commands with minimal fatigue.

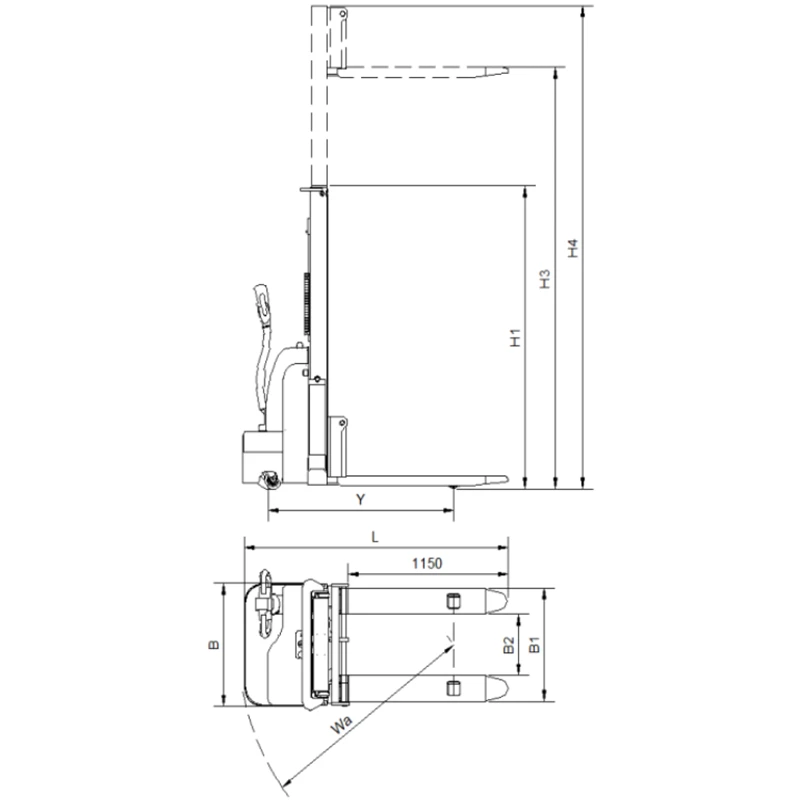

2D electric pallet stacker

Triple protection protocol：Integrated dynamic balance monitoring and emergency braking activate auto-lock within 0.3 seconds upon detecting instability.
Aerospace-grade frame：The topological honeycomb structure absorbs impact energy, maintaining stability even on 15° inclined surfaces.
Panoramic visibility：The sunken control station with wide-angle observation window eliminates 12 traditional blind spots, enabling 270° real-time monitoring.

Emission-free solution：Zero carbon footprint throughout the lifecycle helps enterprises obtain green supply chain certifications.
Whisper-level operation：Magnetic levitation drive technology reduces noise pollution by 60% compared to conventional models, creating library-quiet environments.

Tool-free servicing：Lego-style component architecture enables core module replacement using 5 basic tools.
Durable transmission：Key components withstand 2,000-hour endurance testing with 100,000-cycle design lifespan.

NX-1689

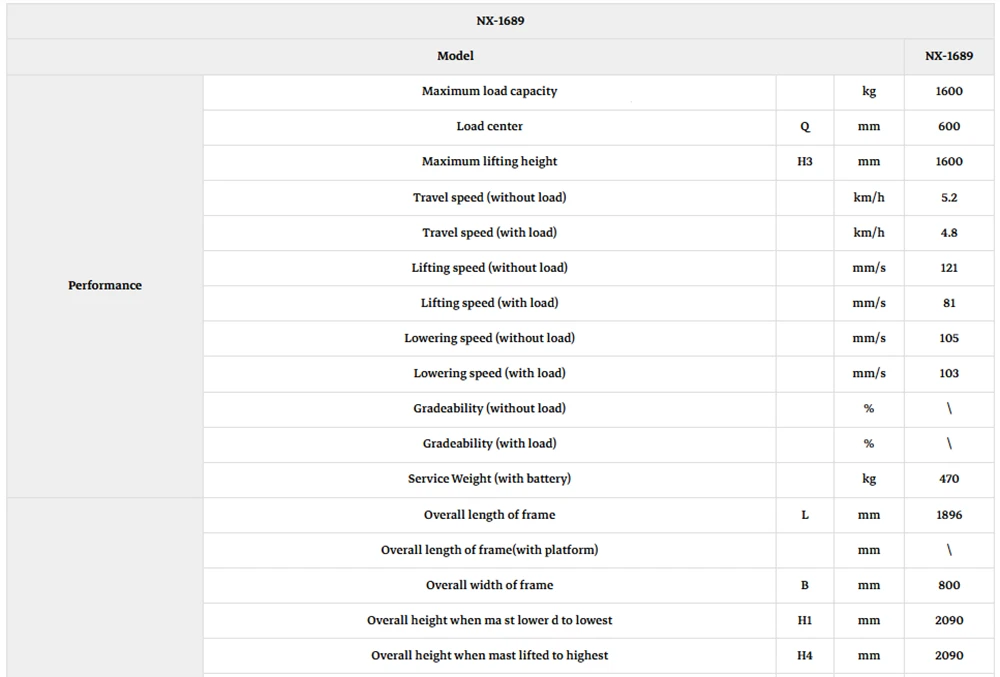

Model				NX-1689
Performance	Maximum load capacity		kg	1600
	Load center	Q	mm	600
	Maximum lifting height	H3	mm	1600
	Travel speed (without load)		km/h	5.2
	Travel speed (with load)		km/h	4.8
	Lifting speed (without load)		mm/s	121
	Lifting speed (with load)		mm/s	81
	Lowering speed (without load)		mm/s	105
	Lowering speed (with load)		mm/s	103
	Gradeability (without load)		%	\
	Gradeability (with load)		%	\
	Service Weight (with battery)		kg	470
Dimensions	Overall length of frame	L	mm	1896
	Overall length of frame(with platform)		mm	\
	Overall width of frame	B	mm	800
	Overall height when ma st lower d to lowest	H1	mm	2090
	Overall height when mast lifted to highest	H4	mm	2090

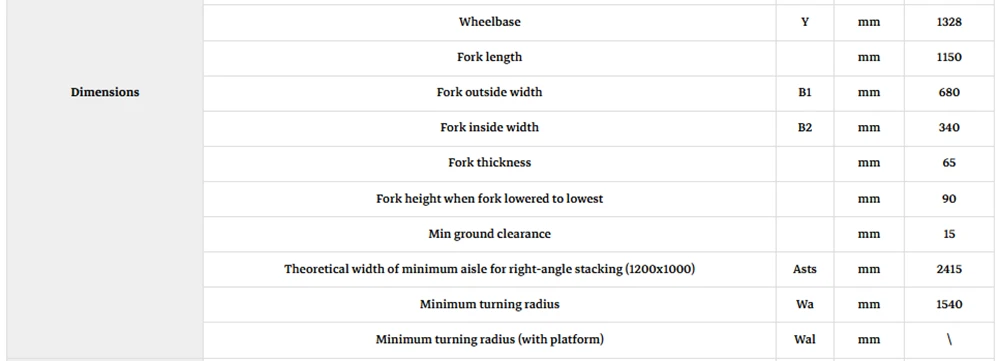

	Wheelbase	Y	mm	1328
	Fork length		mm	1150
	Fork outside width	B1	mm	680
	Fork inside width	B2	mm	340
	Fork thickness		mm	65
	Fork height when fork lowered to lowest		mm	90
	Min ground clearance		mm	15
	Theoretical width of minimum aisle for right-angle stacking (1200x1000)	Asts	mm	2415
	Minimum turning radius	Wa	mm	1540
	Minimum turning radius (with platform)	Wal	mm	\

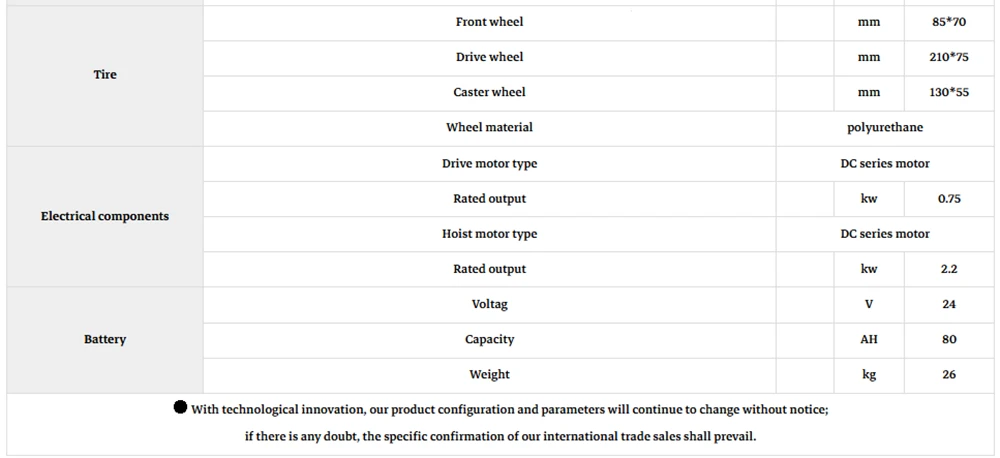

Tire	Front wheel		mm	85*70
	Drive wheel		mm	210*75
	Caster wheel		mm	130*55
	Wheel material	polyurethane
Electrical components	Drive motor type	DC series motor
	Rated output		kw	0.75
	Hoist motor type	DC series motor
	Rated output		kw	2.2
Battery	Voltag		V	24
	Capacity		AH	80
	Weight		kg	26
● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail.
