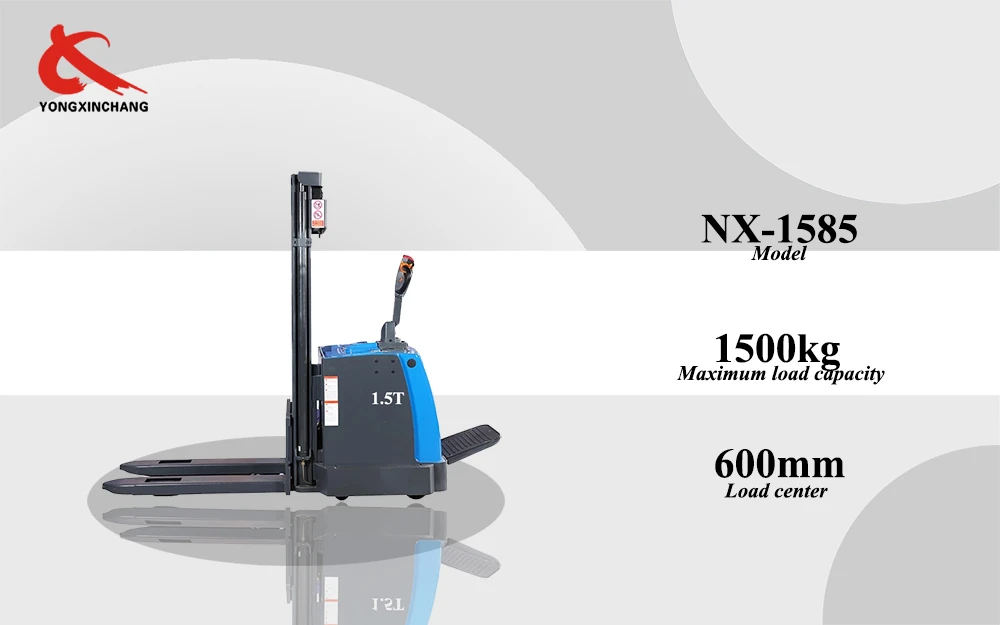

1.5 Ton Electric Stacker Truck



Item	Stacker
Load center	600mm
Maximum load capacity	1500kg
Maximum lifting height	2500mm





• This 1.5 ton Electric Stacker Truck can stably handle a variety of heavy goods, suitable for common logistics operation scenarios, to meet the needs of pallet cargo handling and warehousing and stacking.
• The maximum lifting height is designed rationally to effectively expand the vertical storage space of the warehouse, optimize the storage layout, and improve the utilization rate of storage capacity.





Advanced Drive System

• The electric drive system is advanced, the power output is strong and stable, and the acceleration response is fast, which significantly shortens the handling time and improves the operation efficiency.
• This 1.5 ton Electric Stacker Truck has low noise during operation, creating a relatively quiet working environment and reducing the impact of noise pollution on operators.



Precise operation

• The operator can precisely control the vehicle's speed, steering angle, and cargo lifting movements.
• Flexible steering allows for accurate shuttling in narrow passages and complex warehouse environments, reducing the risk of collisions and ensuring safe operation.





Safety performance

• Safety design, equipped with emergency braking, anti-tipping and overload protection and other multiple devices.
• Emergency braking ensures that the vehicle stops quickly in emergencies; anti-rollover devices enhance vehicle stability;
• Overload protection effectively prevents overload damage and protects the safety of personnel and goods in an all-round way.



Humanized design

• The operation comfort is good, the operation space layout is reasonable, and the ergonomic operation handle is convenient for accurate operation, reducing the operator's hand fatigue.
• The adjustable seat helps the operator maintain a good working posture, reducing physical fatigue, thus improving work efficiency and reducing operational errors.





Mast type	Max fork height	Mast lowered		Mast extended
	NX-1585/NX-2086	NX-1585/NX-2086		NX-1585/NX-2086
Simplex or Duplex mast (2Stage)	2500	1734		2976
	3000	1984		3476
	3500	2234		3976
	4000	2484		4476
Triplex mast (3Stage)	4000	1814		4496
	4500	1984		4966
	5000	2154		5476
	5500	2314		5956
	6000	2484		6436



NX-1585/NX-2086
Model				NX-1585	NX-2086
Performance	Maximum load capacity		kg	1500	2000
	Load center	Q	mm	600	600
	Maximum lifting height	H3	mm	2500	2500
	Travel speed (without load)		km/h	5.5	5.5
	Travel speed (with load)		km/h	5	5
	Lifting speed (without load)		mm/s	180	180
	Lifting speed (with load)		mm/s	120	120
	Lowering speed (without load)		mm/s	140	140
	Lowering speed (with load)		mm/s	114	114
	Gradeability (without load)		%	7	7
	Gradeability (with load)		%	6	6
	Service Weight (with battery)		kg	1354	1354

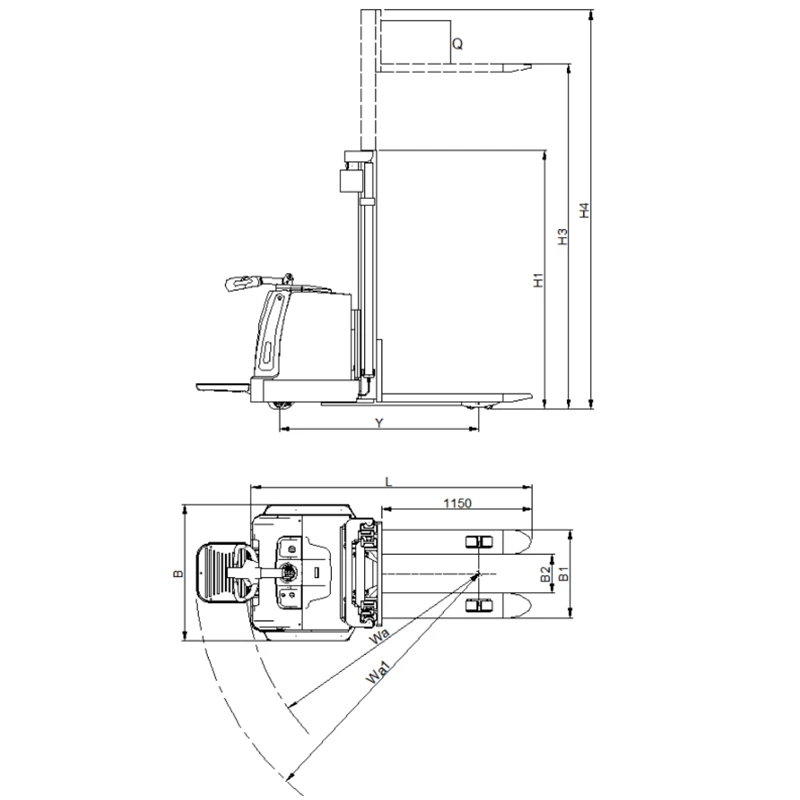

Dimensions	Overall length of frame	L	mm	2138	2138
	Overall length of frame(with platform)		mm	2555	2555
	Overall width of frame	B	mm	1046	1046
	Overall height when most lower d to lowest	H1	mm	1734	1734
	Overall height when ma st lifted to highest	H4	mm	2976	2976
	Wheelbase	Y	mm	1508	1508
	Fork length		mm	1150	1150
	Fork outside width	B1	mm	680	680
	Fork inside width	B2	mm	300	300
	Fork thickness		mm	65	65
	Fork height when fork lowered to lowest		mm	90	90
	Min ground clearance		mm	20	20
	Theoretical width of minimum aisl e for right-angle stacking(1200×1000)	Asts	mm	2470	2470
	Minimum turning radius (without platform)	Wa	mm	1800	1800
	Minimum turning radius (with platform)	Wal	mm	2175	2175
Tire	Front wheel		mm	85*70	85*70
	Drive wheel		mm	230*75	230*75
	Caster whee1		mm	130*55	130*55
	Wheel material	polyurethane
Electrical components	Drive motor type	AC series motor
	Rated output		kw	1.5	1.5
	Hoist motor type	DC series motor
	Rated output		kw	3	3
Battery	Voltag		V	24
	Capacity		AH	210
	Weight		kg	195
● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail.
