Electric Stacker Pallet Jack



Item	Stacker
Load center	600mm
Maximum lifting height	2500mm
Maximum load capacity	2000kg



• The electric stacker pallet jack has a rated load of 2 tons, showing a strong bearing capacity. In industrial production and logistics warehousing, it can easily handle heavy goods, such as metal products, large equipment parts, etc. Its stability is still excellent when fully loaded, effectively reducing the shaking and risk during handling, greatly improving the handling efficiency and reducing the cost of manpower and material resources.





Precision Operation

• This electric stacker has excellent performance at maximum lifting height and can accurately adapt to the needs of high-rise storage shelves.
• The advantages in space utilization are significant, which can significantly increase the storage capacity of the warehouse, optimize the storage layout, and achieve efficient storage and fast access of goods. In the automated logistics center, it can perfectly cooperate with the high-level shelf system to accelerate the turnover of goods.



Advanced Drive

• The electric drive system uses advanced technology, resulting in a strong and stable power output.
• The high efficiency of the motor ensures that the vehicle can run smoothly under different operating conditions, and the acceleration and driving performance remain reliable when fully loaded.
• The energy utilization rate is high, the energy consumption is low, and the operating cost can be effectively controlled.
• Operating noise is extremely low, meeting the requirements of environmentally friendly operating environments, reducing noise interference to operators and enhancing work comfort.





Humanized design

• The handle design is ergonomic, allowing the operator to precisely control the vehicle's driving speed, steering angle, and the lifting action of the cargo.
• The steering system is flexible, the minimum turning radius is small, and it can drive freely in narrow passages, effectively avoiding collisions with shelves and goods, improving warehouse space utilization, and ensuring operation safety.





Security

• The emergency braking system of the electric stacker pallet jack responds quickly and can stop instantly in an emergency.
• The anti-tipping device provides reliable stability support for the vehicle during operation and lifting of cargo.
• Overload protection function real-time monitoring, once overweight immediately alarm and limit operation, to prevent equipment damage, all-round protection of personnel and goods safety.



Comfortable operation

• The operating space is spacious, and the seat can be adjusted flexibly, in line with ergonomic principles.
• Operators can work in a comfortable state, reducing fatigue, thus improving work efficiency and operation accuracy.





Mast type	Max fork height	Mast lowered	Mast extended
	NX-1585/NX-2086	NX-1585/NX-2086	NX-1585/NX-2086
Simplex or Duplex mast (2Stage)	2500	1734	2976
	3000	1984	3476
	3500	2234	3976
	4000	2484	4476
Triplex mast (3Stage)	4000	1814	4496
	4500	1984	4966
	5000	2154	5476
	5500	2314	5956
	6000	2484	6436



NX-1585/NX-2086

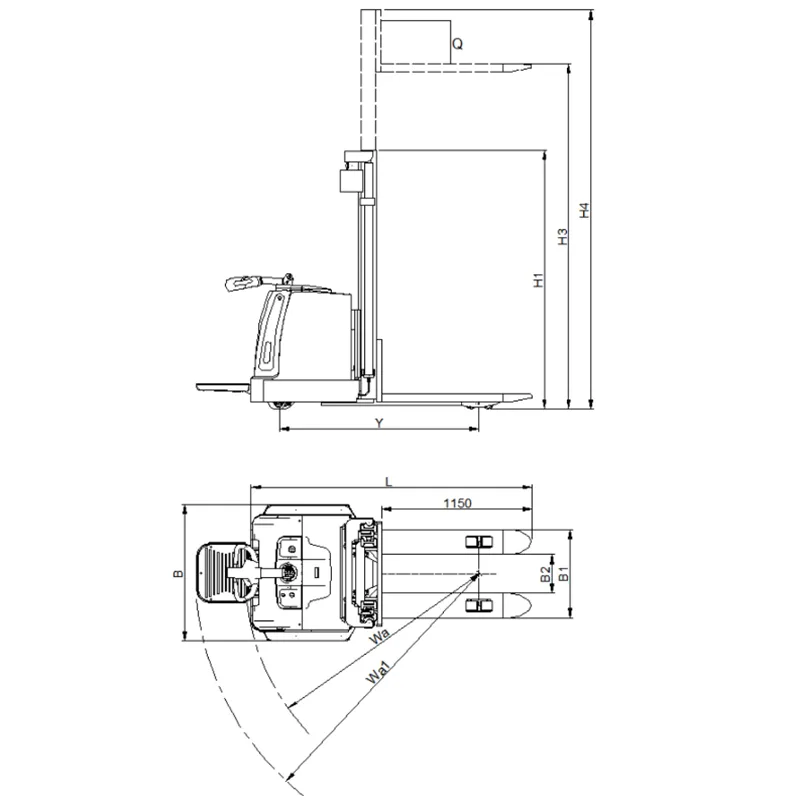

Model				NX-1585	NX-2086
Performance	Maximum load capacity		kg	1500	2000
	Load center	Q	mm	600	600
	Maximum lifting height	H3	mm	2500	2500
	Travel speed (without load)		km/h	5.5	5.5
	Travel speed (with load)		km/h	5	5
	Lifting speed (without load)		mm/s	180	180
	Lifting speed (with load)		mm/s	120	120
	Lowering speed (without load)		mm/s	140	140
	Lowering speed (with load)		mm/s	114	114
	Gradeability (without load)		%	7	7
	Gradeability (with load)		%	6	6
	Service Weight (with battery)		kg	1354	1354
Dimensions	Overall length of frame	L	mm	2138	2138
	Overall length of frame(with platform)		mm	2555	2555
	Overall width of frame	B	mm	1046	1046
	Overall height when most lower d to lowest	H1	mm	1734	1734
	Overall height when ma st lifted to highest	H4	mm	2976	2976
	Wheelbase	Y	mm	1508	1508
	Fork length		mm	1150	1150
	Fork outside width	B1	mm	680	680
	Fork inside width	B2	mm	300	300
	Fork thickness		mm	65	65
	Fork height when fork lowered to lowest		mm	90	90
	Min ground clearance		mm	20	20
	Theoretical width of minimum aisl e for right-angle stacking(1200×1000)	Asts	mm	2470	2470
	Minimum turning radius (without platform)	Wa	mm	1800	1800
	Minimum turning radius (with platform)	Wal	mm	2175	2175
Tire	Front wheel		mm	85*70	85*70
	Drive wheel		mm	230*75	230*75
	Caster whee1		mm	130*55	130*55
	Wheel material	polyurethane
Electrical components	Drive motor type	AC series motor
	Rated output		kw	1.5	1.5
	Hoist motor type	DC series motor
	Rated output		kw	3	3
Battery	Voltag		V	24
	Capacity		AH	210
	Weight		kg	195
● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail.
