Product Introduction

Item	Stacker
Load center	600mm
Standard mast lifting height	3000mm
Other Maximum load capacity	1ton; 1.2ton;
Minimum turning radius	1466mm

Product Detail

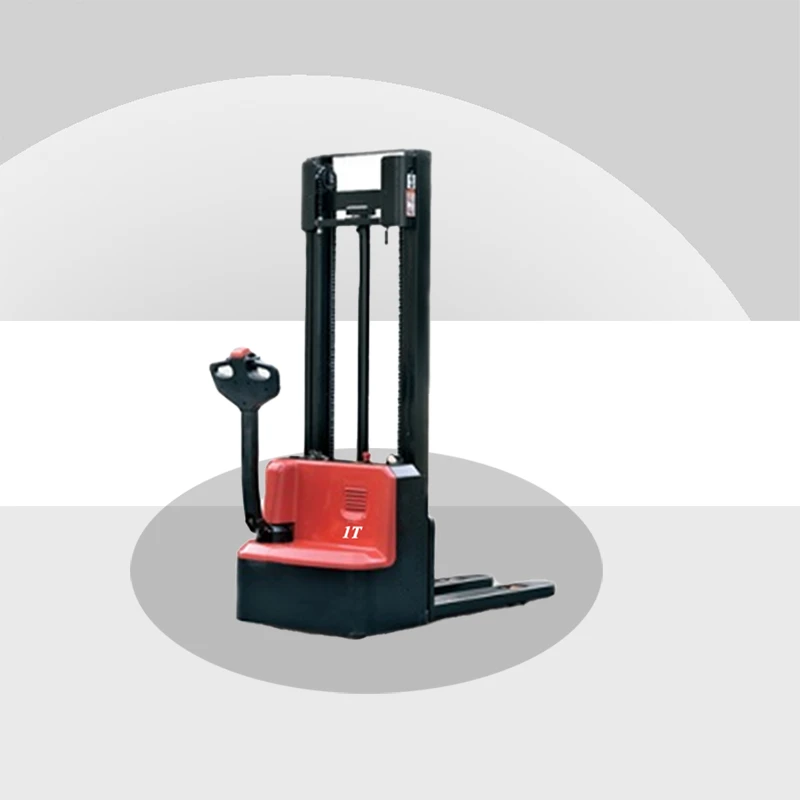

This 1 ton Double column mini Electric Stacker Truck features a double column mini design with a compact body that allows it to travel freely in narrow passages and limited spaces.
No matter whether it is a small warehouse, a supermarket shelf or a workshop corner, it can be easily reached, greatly improving space utilization.
Even in space-constrained environments, it can efficiently handle and stack goods. Powerful power, efficient operation. Despite its small size, it is very powerful.

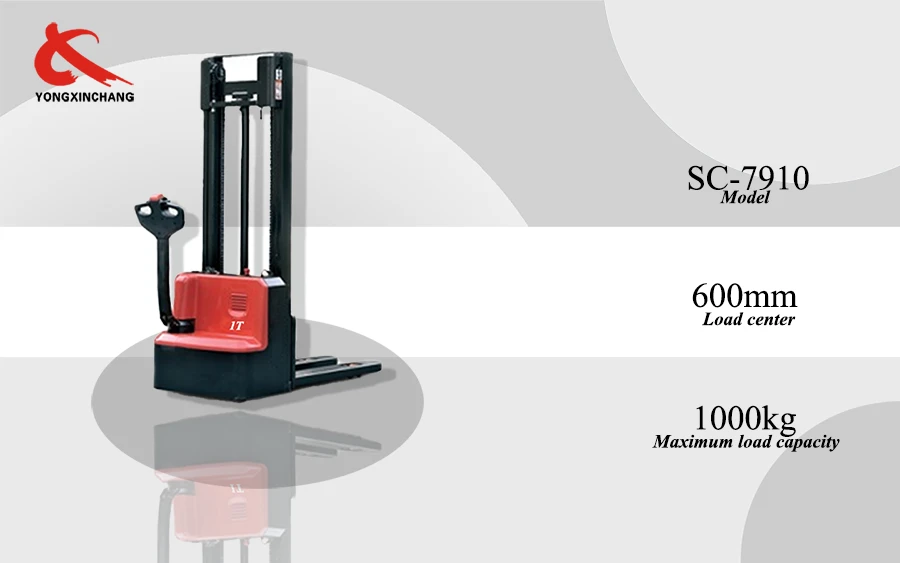

1 ton Double column mini Electric Stacker Truck introduction

The operation experience and stability have been upgraded simultaneously, redefining the interaction logic of industrial equipment. With smooth operation at your fingertips, the ergonomic streamlined control grip features a non - slip texture design. A single - hand palm press can accurately trigger lifting and traveling commands, and the control feedback is as delicate as the touch of an electronic device. The column - type support structure, combined with the chassis gravity balance system, demonstrates excellent anti - overturning performance when operating in narrow spaces, providing all - weather safety protection for high - frequency logistics scenarios.

It integrates multi - dimensional active defense mechanisms, including an emergency stop response module, a dynamic load monitoring unit, and an adaptive anti - slip system, to build a three - dimensional protection network. The independently developed AI pre - diagnosis system can analyze the equipment operation data stream in real - time, warn of abnormal states through sound and light coding, significantly shorten the fault troubleshooting response cycle, and achieve a closed - loop preventive maintenance management.

The clean energy drive system breaks through the energy consumption bottleneck of traditional equipment, with the power consumption during the working cycle reduced by more than 40% compared to internal combustion models. The silent drive module effectively controls the sound wave radiation value, creating a green working environment that meets ISO noise standards, and is particularly suitable for sound - sensitive scenarios such as medical warehouses and libraries.

This 1 Ton Double Column Mini Electric Stacker Truck adopts a quick-disassembly component layout and color-coded interface design, and key functional units are equipped with independent maintenance windows. Maintenance personnel can achieve five-minute spare parts replacement through a visual guidance system, significantly shortening the offline maintenance time of the equipment and ensuring continuous operation capacity.

Model		SC-7910	SC-8010	SC-7912	SC-8012
Electrical components		Electrical	Electrical	Electrical	Electrical
Operate mode		Walk	Walk	Walk	Walk
Maximum load capacity	kg	1000	1200	1000	1200
Load center	mm	600	600	600	600
Standard mast lifting height	mm	3000	3000	3000	3000
Overall length of frame (Pedal retracted)	mm	1800	1800	1836	1836
Overall width of frame	mm	800	800	1100/1270/1470	1100/1270/1470
Travel speed (full load/empty load)	Km/h	4/4.5	4/4.5	4/4.5	4/4.5
Minimum turning radius (without platform)	mm	1466	1466	1466	1466
Theoretical width of minimum aisle for right-angle stacking (1000X1200)	mm	2016	2016	1901	1901
	mm	2016	2016	1901	1901
● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail.
