Rubber Tire Mini Excavator

Rubber Tire Mini Excavator

Item: Wheel excavator
Maximum excavation radius: 6550mm
Maximum digging depth: 3200mm
Maximum digging height: 6640mm
Send Inquiry
Description
Technical Parameters

Product Introduction



Item

Wheel excavator

Maximum excavation radius

6550mm

Maximum digging depth

3200mm

Maximum digging height

6640mm



Product Detail



  • This rubber tire mini excavator is meticulously equipped with a high-performance engine that is powerful and runs extremely smoothly. It not only excels in hardware performance but also features high intelligence. Its advanced intelligent control system can precisely handle various complex working conditions. Whether it's excavating hard rock or undertaking large-scale earthwork, it can complete tasks with excellent precision and efficiency. The perfect combination of a powerful engine and intelligent technology ensures highly efficient work efficiency and provides a solid guarantee for the smooth progress of projects. It is truly an intelligent tool for modern engineering operations.

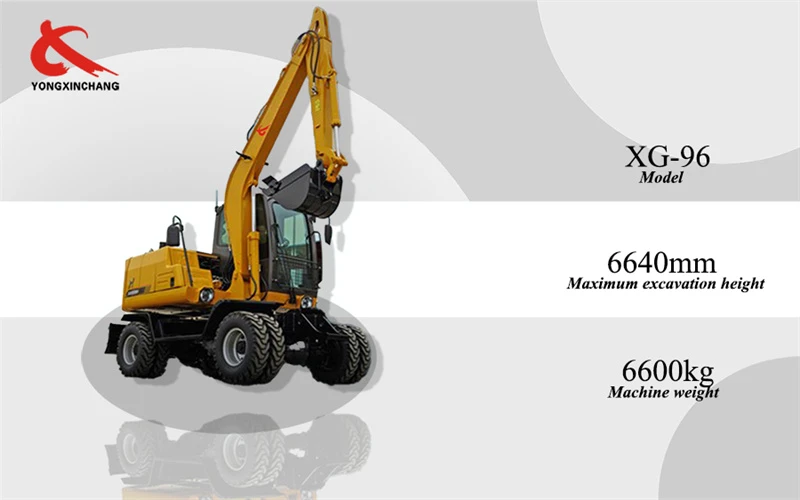

rubber tire mini excavator introduction



Key Features



Flexible Travel System

  • The wheeled design offers excellent mobility and flexibility. Quick transfer between job sites and adaptation to complex terrains. Small turning radius for easy movement in narrow spaces, boosting efficiency. Handles narrow urban streets and rugged mountain paths with ease.

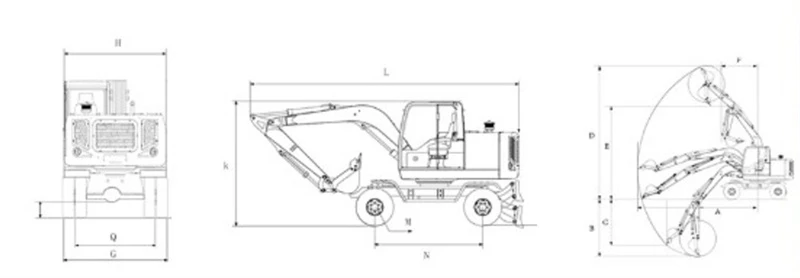

2D Wheel excavator

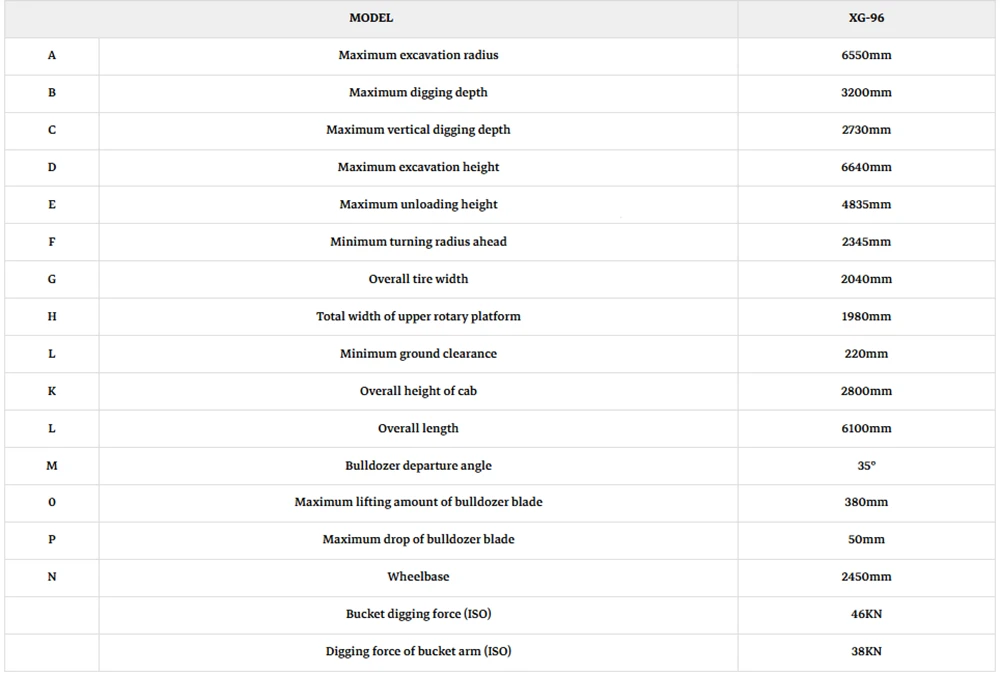

Mini wheel excavator

Wide range of applicable scenarios

  • Urban construction: In urban road construction and municipal engineering construction, wheeled excavators, with their flexible wheeled walking system and compact size, can freely shuttle through narrow streets and crowded construction sites to carry out excavation, crushing, loading, and other operations, providing efficient solutions for urban construction.
  • Rural construction: In rural road construction, farmland water conservancy construction and other projects, the wheeled excavator can adapt to different topographies, easily cope with various complex operating environments, and contribute to rural revitalization.

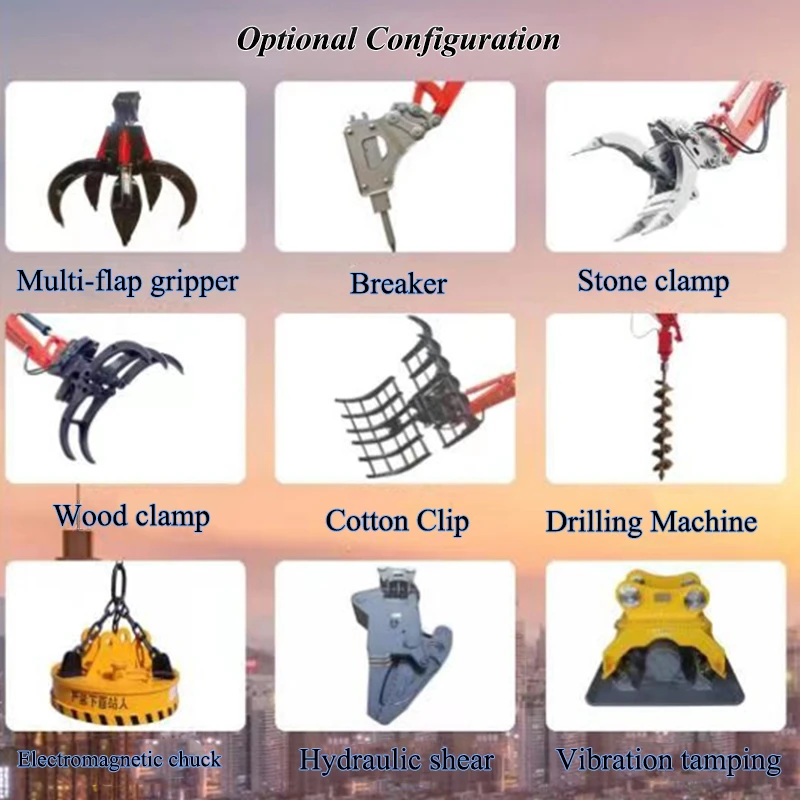

Wheel excavator optional configuration



  • Mining: For small-scale mining operations, wheeled excavators can move flexibly within the mine to excavate and transport ore, thus improving mining efficiency.
  • Landscaping: In parks, gardens, and other landscaping projects, The rubber tire mini excavator can perform earthwork modeling, tree transplanting, and other operations, providing assistance for creating a beautiful urban landscape.



Intelligent Control System

  • Advanced control manages engine and hydraulic system precisely. Operators monitor via HD display, adjust parameters and diagnose faults. Energy-saving mode adjusts engine power by workload, reducing fuel consumption for eco-friendly ops.



Comfortable and Safe Operating Environment

  • Spacious cab for good view. Ergonomic adjustable seat reduces fatigue. Equipped with safety devices for operator safety. Comfortable and reassuring to work on.



Technical Specifications

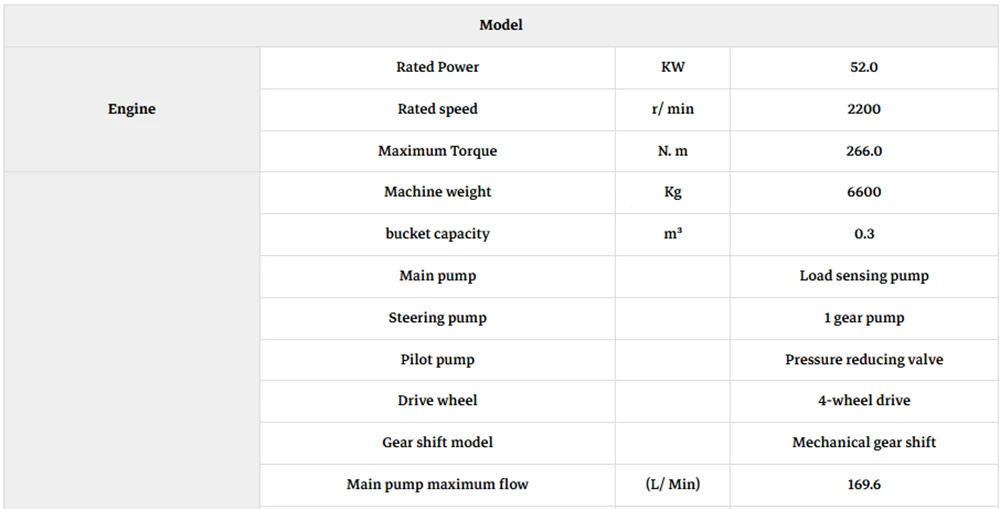

Mini Excavator

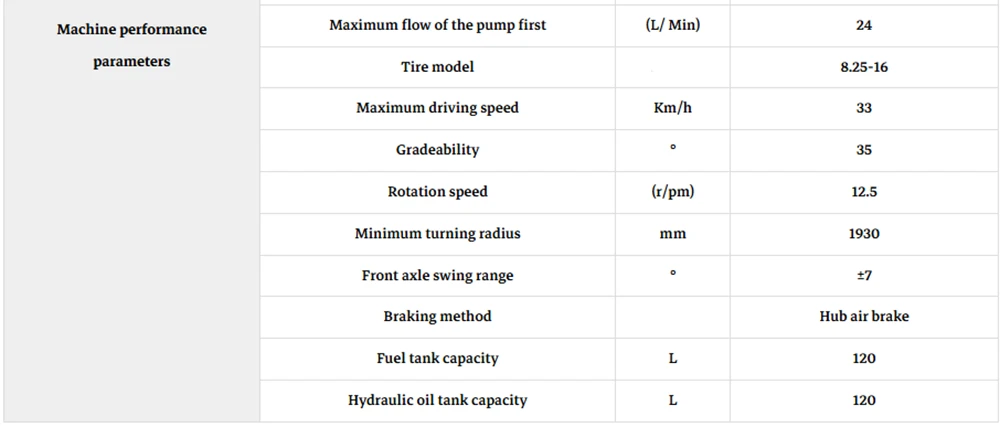

Mini fast wheel excavator

Hot Tags: rubber tire mini excavator, China rubber tire mini excavator manufacturers, suppliers, factory, Digging Wheel Excavator, Small Wheeled Excavator, Wheel Excavator Digger, 4 Wheel Excavator, Heavy Duty Excavator, wheel excavator

Technical Parameters



Model
Engine Rated Power KW 52.0
Rated speed r/ min 2200
Maximum Torque N. m 266.0
Machine performance
parameters
Machine weight Kg 6600
bucket capacity 0.3
Main pump   Load sensing pump
Steering pump   1 gear pump
Pilot pump   Pressure reducing valve
Drive wheel   4-wheel drive
Gear shift model   Mechanical gear shift
Main pump maximum flow (L/ Min) 169.6
Maximum flow of the pump first (L/ Min) 24
Tire model   8.25-16
Maximum driving speed Km/h 33
Gradeability ° 35
Rotation speed (r/pm) 12.5
Minimum turning radius mm 1930
Front axle swing range ° ±7
Braking method   Hub air brake
Fuel tank capacity L 120
Hydraulic oil tank capacity L 120
