Description
Technical Parameters
Product Introduction
|

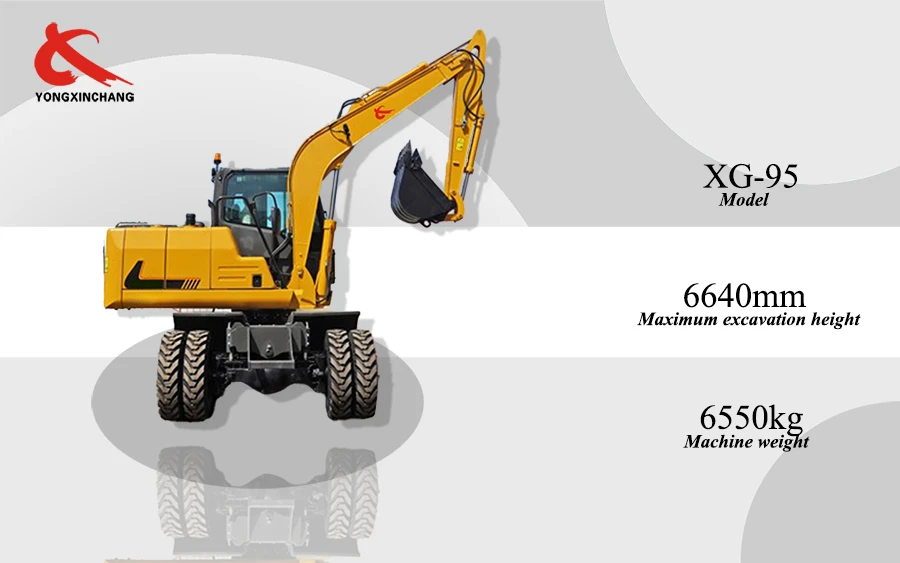

Item |
Wheel excavator |
|
Maximum excavation height |
6640mm |
|
Maximum digging radius |
6550mm |
|
Machine weight |
6550kg |

Product Detail
- The 4 wheel excavator is equipped with a high performance engine, with strong and stable power output, like a powerful engine.
- In the face of a variety of complex excavation tasks, whether it is hard rock excavation or large-scale earthmoving operations, it can demonstrate outstanding performance.
- Its hydraulic system has been carefully designed and optimized, and the response speed is extremely fast, like lightning agility. The operation accuracy is extremely high, like a precise robotic arm, every movement is clean and accurate.
- It can easily access various working areas to meet the needs of different working conditions.

Key Features
Intelligent control system
- This 4 wheel excavator is equipped with an advanced intelligent control system, enabling precise control of key components such as engines and hydraulic systems.
- Operators can understand the operating status of the equipment in real time through the high-resolution display, adjust parameters and diagnose faults, as if they have a pair of discerning eyes.
- The intelligent control system is also equipped with an energy-saving mode, which can automatically adjust the engine power according to the workload, reduce fuel consumption, and improve the economy of the equipment, just like a shrewd housekeeper, saving costs for users.

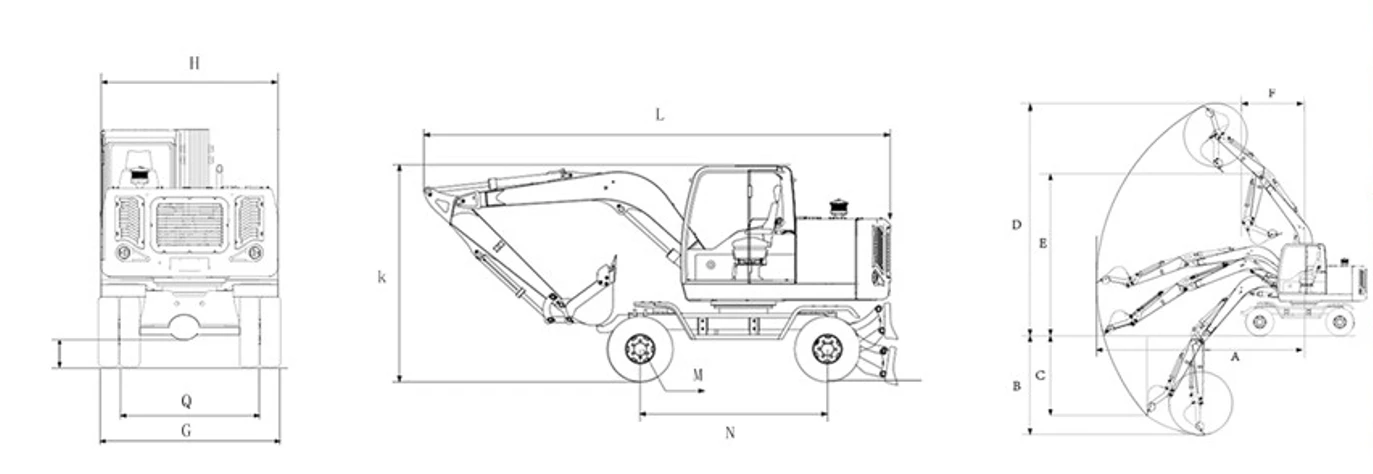

| MODEL | XG-95 | |
| A | Maximum digging radius | 6550mm |
| B | Maximum digging depth | 3200mm |
| C | Maximum vertical digging depth | 2730mm |
| D | Maximum excavation height | 6640mm |
| E | Maximum unloading height | 4835mm |
| F | Minimum turning radius ahead | 2345mm |
| G | Overall tire width | 1980mm |
| H | Total width of upper rotary platform | 1980mm |
| I | Minimum ground clearance | 220mm |
| K | Overall height of cab | 2800mm |
| L | Overall length | 6100mm |
| M | Bulldozer departure angle | 35° |
| 0 | Maximum lifting amount of bulldozer blade | 380mm |
| P | Maximum drop of bulldozer blade | 50mm |
| N | Wheelbase | 1505mm |
| Bucket digging force (ISO) | 46KN | |
| Digging force of bucket arm (ISO) | 38.1KN | |
| ● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail. |
||
Comfortable and safe operating environment
- The cab of wheel excavator is designed to be spacious and comfortable, with a wide field of vision, providing a good working environment for the operator.
- The seat is ergonomic and can be adjusted in multiple directions, effectively reducing the fatigue of the operator.
- Equipped with a number of safety devices, such as seat belts, emergency braking devices, etc., it provides a solid guarantee for the safety of the operator, like a safe fortress, allowing the operator to control this powerful construction machinery with peace of mind.
Reliable quality and excellent service
- The 4 wheel excavator uses high quality parts and advanced manufacturing technology to ensure the stability and durability of the equipment. After strict quality inspection, the average trouble-free working time is long.
Technical Specifications
| Model | XG-95 | ||
| Engine | Rated Power | KW | 48.0 |
| Rated speed | r/ min | 2200 | |
| Maximum Torque | N. m | 266.0 | |
| Machine performance parameters |
Machine weight | Kg | 6550 |
| bucket capacity | m³ | 0.30 | |
| Main pump | 2 piston pumps | ||
| Steering pump | 1 gear pump | ||
| Pilot pump | 1 gear pump | ||
| Drive wheel | 4-wheel drive | ||
| Gear shift model | Mechanical gear shift | ||
| Main pump maximum flow | (L/ Min) | 2×60.5 | |
| Maximum flow of the pump first | (L/ Min) | 10 | |
| Tire model | 8.25-16 | ||
| Maximum driving speed | Km/h | 30 | |
| Gradeability | ° | (35) | |
| Rotation speed | (r/pm) | 11.0 | |
| Minimum turning radius | mm | 1930 | |
| Front axle swing range | ° | ±7 | |
| Braking method | Hub air brake | ||
| Fuel tank capacity | L | 120 | |
| Hydraulic oil tank capacity | L | 120 | |
| ● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail. |
|||
Technical Parameters
| Model | XG-95 | ||
| Engine | Rated Power | KW | 48.0 |
| Rated speed | r/ min | 2200 | |
| Maximum Torque | N. m | 266.0 | |
| Machine performance parameters |
Machine weight | Kg | 6550 |
| bucket capacity | m³ | 0.30 | |
| Main pump | 2 piston pumps | ||
| Steering pump | 1 gear pump | ||
| Pilot pump | 1 gear pump | ||
| Drive wheel | 4-wheel drive | ||
| Gear shift model | Mechanical gear shift | ||
| Main pump maximum flow | (L/ Min) | 2×60.5 | |
| Maximum flow of the pump first | (L/ Min) | 10 | |
| Tire model | 8.25-16 | ||
| Maximum driving speed | Km/h | 30 | |
| Gradeability | ° | (35) | |
| Rotation speed | (r/pm) | 11.0 | |
| Minimum turning radius | mm | 1930 | |
| Front axle swing range | ° | ±7 | |
| Braking method | Hub air brake | ||
| Fuel tank capacity | L | 120 | |
| Hydraulic oil tank capacity | L | 120 | |
| ● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail. |
|||
