Description
Technical Parameters
Product Introduction
|
Item |
Lurking car |
|
Maximum load capacity |
500mm |
|
Dual lane width |
2000mm |
Product Detail

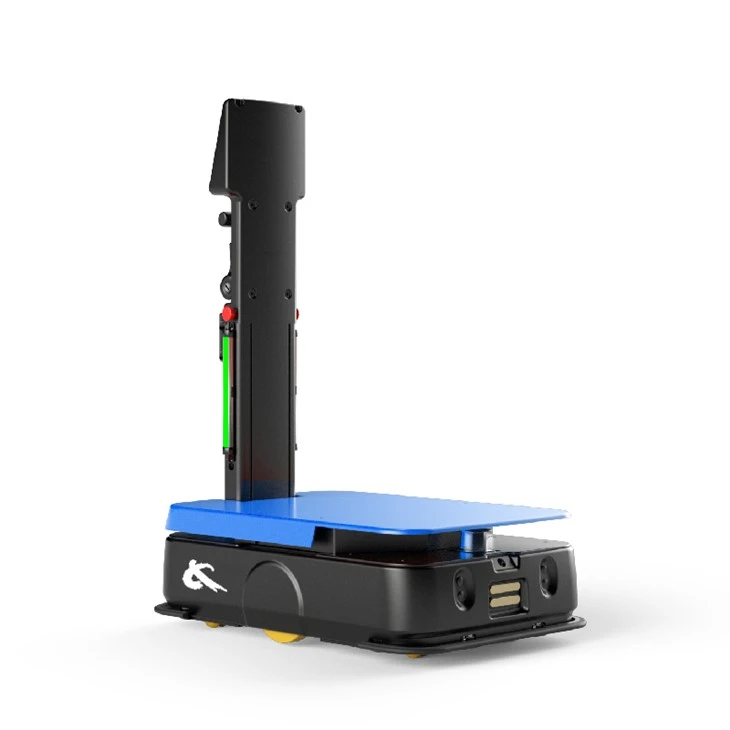

- This type of robots used in transportation can flexibly perform cargo lifting, handling, and multi-point operations between multiple points, and is suitable for application in a variety of scenarios such as modern logistics and manufacturing.

Highly automated
- Unmanned operation: The handling robot can independently complete the lifting and handling tasks of goods without human intervention.
- Intelligent interaction: It supports seamless docking with other equipment (such as conveyor lines and robotic arms) to build a highly automated logistics system.
Adaptable to multi-scenario operations
- Strong environmental adaptability: The robots used in transportation is suitable for a variety of scenarios such as warehousing, manufacturing, and distribution centers. It can be flexibly operated and operated in complex terrain or narrow spaces.
- Multi-functional expansion: The handling robot can be equipped with additional functional modules (such as scanners, RFID devices, etc.) according to needs to adapt to different task work arrangements.
High operational safety
- Multiple protections: The robots used in transportation is equipped with a variety of safety devices such as laser sensors, ultrasonic waves, infrared rays, etc. to ensure safety during human-machine collaboration.
- Emergency stop function: The Point-to-point Automated Guided Vehicle can stop running immediately in an emergency to reduce accidents.
Energy saving and environmental protection
- Battery drive: The handling robot uses high-efficiency batteries as a power source, with strong endurance and reduced carbon emissions.
- Low noise: The electric drive system makes the operation noise low and is suitable for use in a quiet environment.
Technical Specifications

| Model | AC-104 | AC-105 | |||
| Basic parameters | Operation type | handheld remote control | handheld remote control | ||
| Dead weight | kg | 80 | 225 | ||
| Maximum load capacity | Q | kg | 200 | 500 | |
| Navigation method | Laser SLAM | Laser SLAM | |||
| Means of communication | Wireless Wi-Fi | Wireless Wi-Fi | |||
| Positioning accuracy | mm | ±10 | ±10 | ||
| Battery specifications | Battery Voltage/Nominal Capacity | V/ Ah | 24/30Ah | 48/30 | |
| Battery type | lithium iron phosphate (LiFePO4) | lithium iron phosphate (LiFePO4) | |||
| Battery weight | kg | 10 | 18 | ||
| Battery life | h | 6-8 | 6-8 | ||

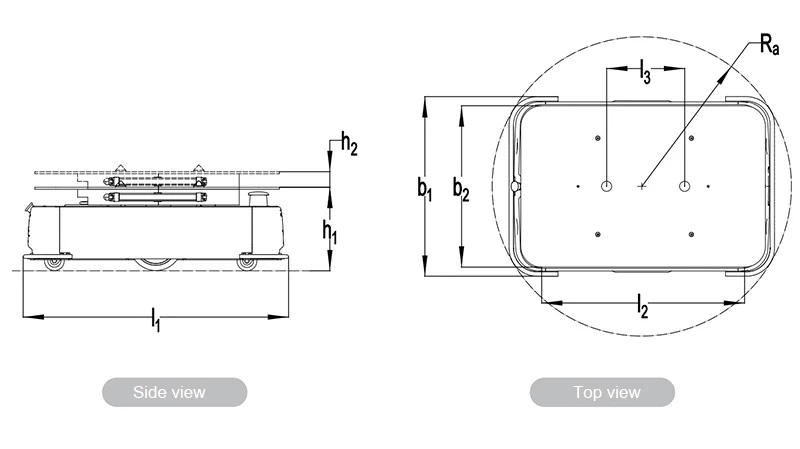

| Vehicle dimensions | Overall length/width/height | L1/b1/h1 | mm | 690/500/320 | 1050/700/325 |
| Effective bearing surface length/width | L2/b2 | mm | 640/450 | 780/620 | |
| Lifting height | h2 | mm | 60 | 60 | |
| Standard top cover locating pin spacing | I3 | mm | 170 | 300 | |
| Sports performance | Travel speed, loaded/unloaded | m/s | 1/1.5 | 1/1.5 | |
| Maximum grade, loaded/unloaded | % | 5/10 | 5/10 | ||
| Ability to cross the trench | mm | ≤15 | ≤35 | ||
| Minimum turning radius | Ra | mm | 395 | 575 | |
| Channel requirements | Front and rear straight ahead widths | mm | 650 | 900 | |
| Right Angle Turning Width | mm | 1000 | 1200 | ||
| Dual lane width | mm | 1800 | 2000 | ||
| Minimum shelf width | mm | 620 | 800 | ||
| Driving safety | Full-time emergency stop button | both sides | far behind the front line | ||
| Audible and visual warnings | Voice Module/Warning Light | Voice module + warning light | |||
| Forward security | Bottom 240° obstacle avoidance radar | Bottom 240° obstacle avoidance radar | |||
| Mechanical contact crash bar | Bottom Front + Bottom Rear | Bottom Front + Bottom Rear | |||
| option list | batteries |
Note: ● Standard ○ Optional |
● 24V/30Ah | ● 48V/30Ah | |
| battery level | ● 24V-15A External Charger | ● 48V-15AExternal Charger | |||
| Automatic charging post | ○ 48V-20A automatic charging post | ○ 48V-20Aautomatic charging post | |||
| The above content for the product introduction, the chart shown may contain non-standard configuration, if there is the appearance, technical parameters or configuration of the improvement, we will try to update the information in a timely manner, but in individual cases these information may still be different from the latest situation, please contact the business manager to confirm before placing an order. | |||||
