Product introduction

Item	autonomous robots in manufacturing
Maximum load capacity	1200kg
Load center	600mm
Lifting height	2700mm

Product detail

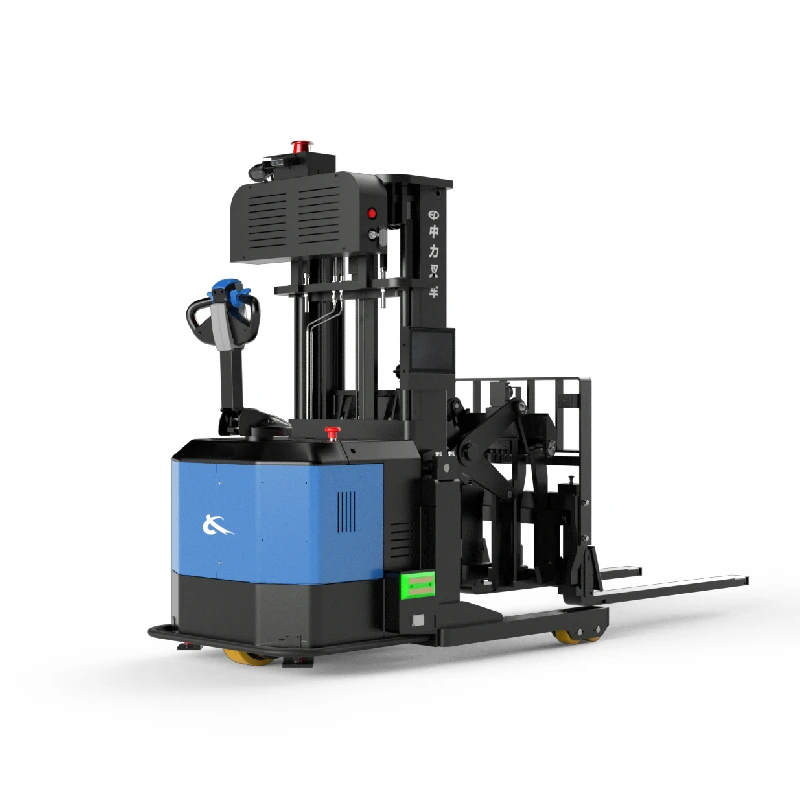

Autonomous robots in manufacturing is an automated handling device designed for warehousing and logistics scenarios. Its forward-moving fork design and flexibility enable it to efficiently perform various tasks such as cargo handling and stacking, especially suitable for indoor medium and high-level shelf operations.

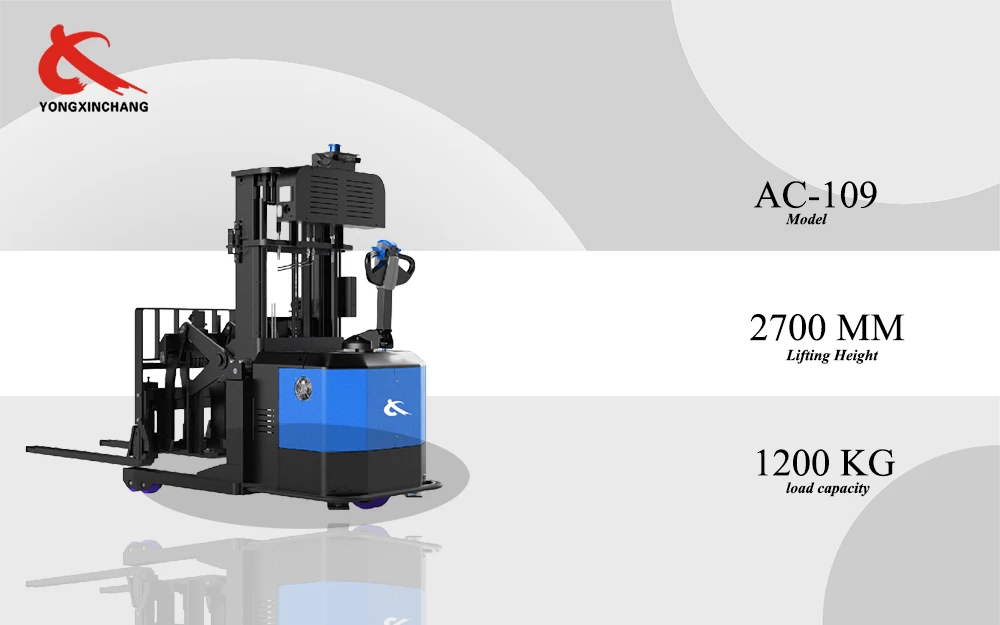

Reach-Type Intelligent Handling Equipment introduction

Key Features

Forward-moving fork design

Fork forward movement function: The autonomous robots in manufacturinge can be extended and retracted forward and backward, which is convenient for handling goods close to the shelf or deep position, reducing the moving distance of the machine body and improving the operation efficiency.
High stacking flexibility: Supports accurate handling and stacking of different types of pallet goods, and adapts to the application of various shelf designs in actual scenarios.

High-precision stacking capacity

Precision lifting device: The fork lifting positioning accuracy of the indoor intelligent forward-moving robot is high, which can meet the operation requirements of high shelves and intensive warehousing.
High-position operation capability: The maximum stacking height of the indoor intelligent robot can usually reach more than several meters, which is suitable for the storage and retrieval of high-position goods.

Highly intelligent

Multiple navigation technologies: The autonomous robots in manufacturing can support laser navigation, visual navigation or QR code navigation, which enables the machine to achieve accurate path planning operations in complex environments.
Automated operation: Intelligent forward-moving robots realize full automation of cargo handling and stacking, greatly reducing manual intervention.
Intelligent scheduling system: Managers can optimize task allocation through the background system to ensure that multiple devices work efficiently and improve efficiency.

Excellent spatial adaptability

Compact body design: The robot has a compact body structure and can operate flexibly in narrow channel environments.
Adaptable to a variety of scenarios: Especially suitable for indoor warehousing, logistics centers, e-commerce sorting centers and other environments that require high-density operations, greatly saving labor costs.

Technical Specifications

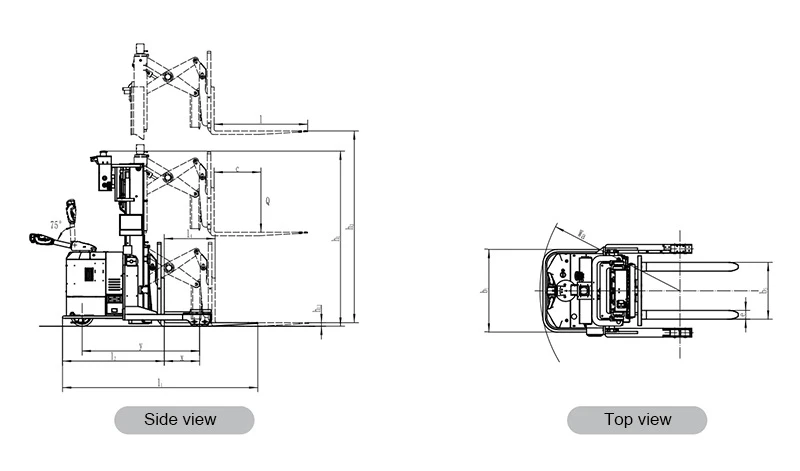

2D Smart Reach Stacker

Model				AC-109
Basic parameters	Operation type			Walk
	Dead weight		kg	1710
	Maximum load capacity	Q	kg	1200
	Navigation method			Laser SLAM/Reflector
	Means of communication			Wireless Wi-Fi
	Positioning accuracy		mm	±10
Battery specifications	Battery Voltage/Nominal Capacity		V/ Ah	24/205
	Battery type			lithium iron phosphate (LiFePO4)
	Battery weight		kg	62
	Battery life		h	4-5
Vehicle dimensions	Overall length/width/height	L1/b1/h1	mm	2234/1060/2003
	Load center	C	mm	600
	Bearing length	x	mm	404
	Wheelbase	y	mm	1343
	Length to the vertical plane of the forks	l2	mm	1164
	Fork dimensions	s/e/l	mm	40/100/1070
	Fork outer width	b5	mm	350-780
	Height with forks lowered	h13	mm	60
	Lifting height	h3	mm	2700
	Forward distance	L4	mm	590
Sports performance	Travel speed, loaded/unloaded		m/s	1/1
	Maximum grade, loaded/unloaded		%	3/5
	Ability to cross the trench		mm	≤20
	Turning radius	Wa	mm	1602
Channel requirements	Front and rear straight aisle widths(1200×1000)	Ast	mm	1260
	Right Angle Turning Aisle Width(1200×1000)	Ast	mm	2216
	Width of unilateral pickup and unloading aisle(1200×1000)	Ast	mm	3348
Driving safety	Full-time emergency stop button			Both sides
	Audible and visual warnings			Voice module/clearance lights
	Forward security			Bottom 270° obstacle avoidance laser + top downward 3D camera
	Rear security protection			Fork tip photoelectric + mechanical anti-collision
	Side Safety Protection			Ultrasound
	Mechanical contact crash bar			Bottom front + bottom side
	Pallet in place detection			Rear fork root
Option list	Batteries	Note: ● Standard ○ Optional		● 24V/205Ah
	Battery level			● 24V-50A External Charger ○ 24V-100A External Charger
	Automatic charging post			○ 24V-100A Automatic charging post
	Warning light			● Area warning lights ● Turn signal
	Forward security			● Dual laser, 270° range ● 3D Camera
	Rear Fork Tip Recognition			● Fork Tip Optoelectronics ○ Fork Root Camera ○ Fork Root Camera
	Interaction method			● Car screen ○ Car button
The above content for the product introduction, the chart shown may contain non-standard configuration, if there is the appearance, technical parameters or configuration of the improvement, we will try to update the information in a timely manner, but in individual cases these information may still be different from the latest situation, please contact the business manager to confirm before placing an order.
