Product introduction

Item	Smart Reach Truck and tractor
Load center	600mm
Maximum Load capacity	1500kg
Turning radius	1641mm

Product detail

This autonomous robots outdoor is an intelligent handling device designed for complex outdoor environments. It combines the forward fork design and outdoor operation capabilities, and can efficiently handle multi-scenario handling and stacking tasks of heavy goods, and is suitable for a variety of outdoor scene operations.

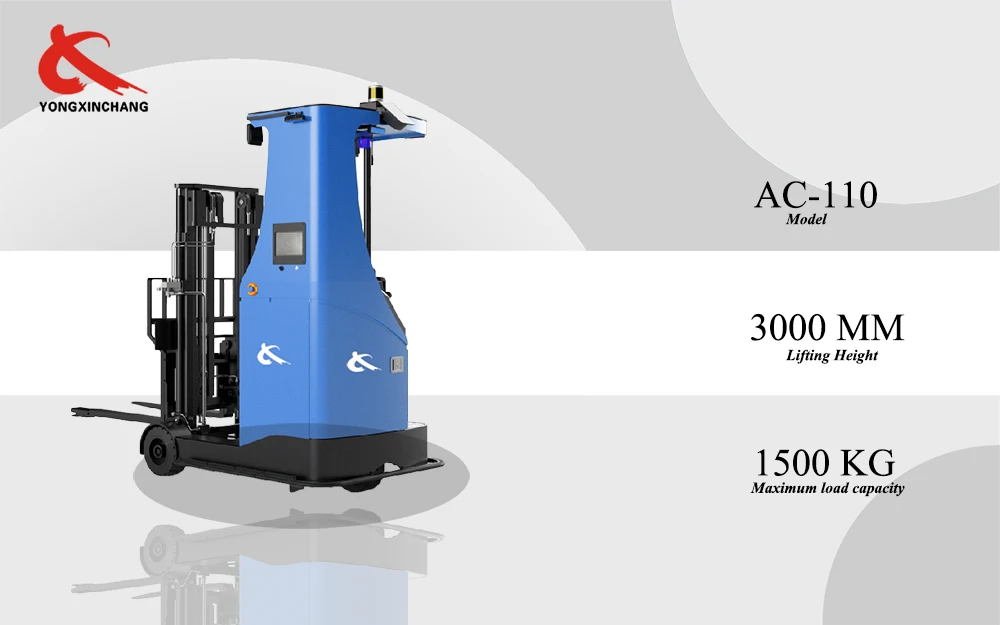

Outdoor Heavy-Duty Reach Handling Equipment introduction

Adaptability to outdoor operations

High passability design: This outdoor intelligent forward-moving robot is equipped with durable large-size tires and a high chassis design, which can adapt to complex road conditions such as uneven ground, slopes and gravel roads.
All-weather operation: The outdoor intelligent robot is also waterproof and dustproof, and can adapt to various complex weather conditions (such as rainy days or high temperature environments).

Powerful load-bearing capacity

High load-bearing performance: The autonomous robots outdoor is designed to carry and stack heavy goods, meet the handling needs of large outdoor goods, and improve production efficiency.
Sturdy and stable structure: The machine uses high-strength materials and optimized center of gravity design to ensure continuous stability and safety under heavy loads.

Intelligent navigation and obstacle avoidance

Multiple navigation technologies: The intelligent autonomous robots outdoor laser navigation, inertial navigation and visual navigation, and can accurately plan the forward path in complex environments to ensure safe operation.
Dynamic obstacle avoidance function: At the same time, it also has multiple sensors built in to perceive the environment in real time and avoid obstacles and personnel to ensure safe operation.

High efficiency, energy saving and environmental protection

New energy drive: It also adopts lithium battery or hybrid design, with low energy consumption and environmental protection and safety, supporting the long-term operation needs of intelligent robots.
Fast charging function: Adapt to high-intensity operation scenarios, shorten equipment downtime, and improve operation efficiency.

Multi-scenario applicability

Wharf and cargo yard: Outdoor intelligent forward-moving robots are suitable for cargo loading and unloading and stacking at outdoor docks and container sites.
Construction site: It can handle the handling and stacking of construction materials and adapt to the changing road conditions of the construction site.
Outdoor warehousing: In an open warehousing environment, it can independently complete the efficient storage and management of goods.

Technical Specifications

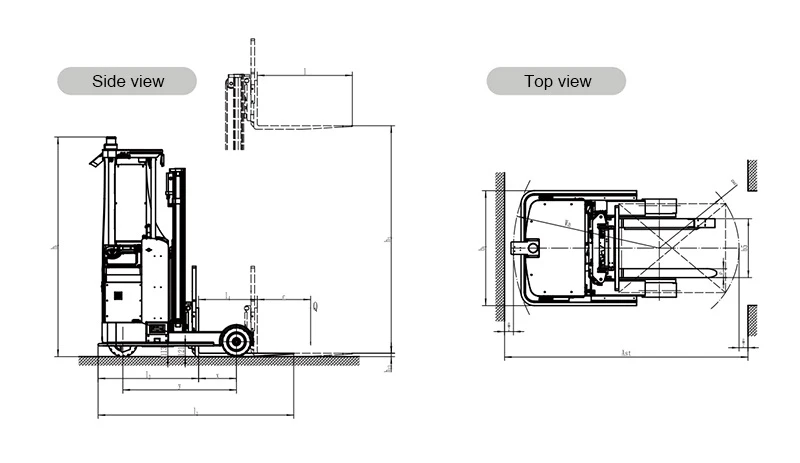

2D All-Weather Reach Robot

Model				AC-110
Basic parameters	Operation type			Standing Driving Style
	Dead weight		kg	2675
	Maximum load capacity	Q	kg	1500
	Navigation method			3D Laser SLAM
	Means of communication			Wireless Wi-Fi/5G
	Positioning accuracy		mm	±30
Battery specifications	Battery Voltage/Nominal Capacity		V/ Ah	48/280
	Battery type			lithium iron phosphate (LiFePO4)
	Battery weight		kg	138
	Battery life		h	6-8
Vehicle dimensions	Overall length/width/height	l1/b1/h1	mm	2200/1294/2472
	Load center	c	mm	600
	Bearing length	x	mm	426
	Wheelbase	y	mm	1278
	Length to the vertical plane of the forks	12	mm	1130
	Fork dimensions	s/e/l	mm	40/100/1070
	Fork outer width	b5	mm	350-660
	Height with forks lowered	h13	mm	60
	Lifting height	h3	mm	3000
	Forward distance	14	mm	660
Sports performance	Travel speed, loaded/unloaded		m/s	1.5/2
	Maximum grade, loaded/unloaded		%	6/10
	Ability to cross the trench		mm	≤20
	Turning radius	Wa	mm	1641
Channel requirements	Front and rear straight aisle widths(1200×1000)	Ast	mm	1800
	Right Angle Turning Aisle Width(1200×1000)	Ast	mm	2381
	Width of unilateral pickup and unloading aisle(1200×1000)	Ast	mm	3357
Driving safety	Full-time emergency stop button			Both sides
	Audible and visual warnings			Voice module/area warning light
	Forward security			Multi-beam blind spot laser
	Rear security protection			Fork tip photoelectric/shelf obstacle avoidance laser
	Side Safety Protection			Multi-beam blind spot laser
	Mechanical contact crash bar			Bottom front + bottom side
	Pallet in place detection			Rear fork root
Option list	Batteries	Note: ● Standard ○ Optional		● 48V/280Ah
	Battery level			● 48V-200A External charger
	Automatic charging post			-
	Warning light			● Turn signal ● Area warning lights
	Forward security			● Multi-beam blind spot laser
	Rear Fork Tip Recognition			● Fork tip photoelectric/shelf obstacle avoidance laser
	Interaction method			● Car screen
The above content for the product introduction, the chart shown may contain non-standard configuration, if there is the appearance, technical parameters or configuration of the improvement, we will try to update the information in a timely manner, but in individual cases these information may still be different from the latest situation, please contact the business manager to confirm before placing an order.
