Internal Combustion Forklift Tires



Item	Pneumatic tires
Type	TT
Wheel rim	3.5D
Inflation pressure	790-1000kPa



• This type of internal combustion forklift tires is more suitable for scenarios that require stronger grip and complex road conditions. The tires have very strong puncture resistance, very good wear resistance, and a very long service life. They are suitable for transport personnel to carry out long-distance transportation and heavy-load work transportation, etc.





Wear-resistant and durable

• Heavy-duty tires use high-strength rubber formula to provide good tire wear resistance, greatly extending the service life of the tire, and are suitable for drivers to carry out long-distance freight and heavy-load transportation.



Strong puncture resistance of the tire

• In terms of structure, the parts of the sidewall and tread structure are strengthened to effectively resist puncture or cutting by external sharp objects, ensuring the safety of drivers and vehicles.



Fuel economy

• When the vehicle is transporting and other operations, the rolling resistance is low during driving, which can effectively reduce vehicle energy consumption and improve vehicle operation efficiency.



Applicable to a variety of road conditions

• This tire is also specially designed for drivers to use in complex environments such as mountainous areas and mining areas. At the same time, the performance of the tire on the highway is also very stable.



Excellent heat dissipation performance

• Internal combustion forklift tires have unique carcass materials and designs, which improve heat dissipation performance and are more suitable for operations in high temperature environments.

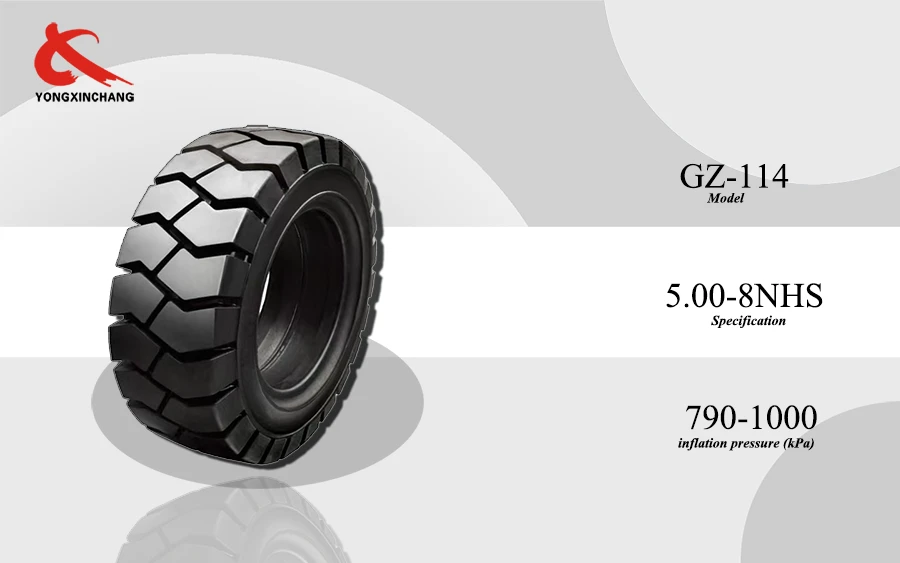

Enhance block patterns, standard for internal combustion forklifts.			GZ-114
Spec.	Hierarchy	Type	Wheel rim	New tire inflation size		inflation pressure (kPa)	Maximum load per tire at different maximum speeds/kg								Valve stem size
							Counterbalanced forklift				Other industrial vehicles
				Outer diameter (mm)	Cross-section width (mm)		25km/h		35km/h		10km/h	25km/h	40km/h	50km/h
							Drive wheel	Steering wheel	Drive wheels	Steering wheel
5.00-8NHS	8	TT	3.50D	470	137	790	1000	845	930	745	845	625	555	535	Z1-01-1
	10	TT				1000	1150	970	1065	850	-	-	-	-
6.00-9NHS	10	TT	4.00E	540	160	860	1505	1275	1400	1120	1275	940	835	805	Z1-01-1
	12	TT				1030	1675	1415	1560	1245	1415	1045	930	895
6.50-10NHS	10	TT	5.00F	590	175	790	1655	1400	1540	1230	1400	1030	920	885	Z1-01-1
	12	TT				1000	1895	1600	1765	1410	-	-	-	-
	14*	TT				1000	2340	1800	2250	1665	2340	1800	1605	1515
7.00-9NHS	10	TT	5.00S	590	190	860	1995	1685	1850	1480	1685	1240	1105	1065	Z1-01-1
7.00-12NHS	12	TT	5.00S	676	190	860	2375	2005	2205	1765	2005	1480	1320	1265	Z1-01-1
	14	TT				1000	2590	2190	2405	1925	2190	1610	1440	1380
	16*	TT				1000	2910	2240	2800	2070	2910	2240	1995	1880
7.00-15NHS	12	TT	5.5	750	200	860	2870	2420	2665	2130	2420	1785	1595	1530	Z1-01-3
	14	TT				1000	3140	2655	2920	2330	2655	1955	1745	1675
7.50-15NHS	12	TT	6.00	780	215	790	3075	2680	2860	2285	2680	1915	1710	1640	Z1-01-3
	14	TT				925	3375	2840	3150	2485	2840	2095	1870	1795
	16	TT				1000	3550	2980	3300	2665	2975	2190	1960	1880
7.50-16NHS	12	TT	6.00G	805	215	790	3195	2700	2970	2370	2700	1990	1775	1705	Z1-01-4
8.25-12NHS	12	TT	5.00S	728	210	700	2000(15km/h驱动轮)								Z1-01-2
8.25-15NHS	14	TT	6.5	840	235	830	3775	3185	3505	2800	3185	2350	2095	2010	Z1-01-5
	16	TT				925	4050	3450	3600	3010	3450	2520	2250	2160
9.00-16NHS	14	TT	6.50H	890	255	760	4495	3795	4175	3335	3795	2800	2500	2400	Z1-01-4
9.00-20NHS	14	TT	7	1018	259	760	5195	4385	4825	3855	4385	3230	2885	2770	Z1-01-6
	16	TT				860	5595	4725	5200	4155	4725	3480	3110	2985
16*6-8NHS	10	TT	4.33R	425	152	860	1085	920	1010	805	-	-	-	-	Z1-01-1
	16*	TT				1000	1495	1150	1440	1065	1495	1150	1025	965
18*7-8NHS	14	TT	4.33R	465	173	970	1505	1270	1400	1120	-	-	-	-	JS1
	16	TT				1000	1695	1450	1640	1260	1450	1055	940	905
21*8-9NHS	14	TT	6.00E	535	200	1000	2040	1725	1895	1515	1725	1270	1135	1090	Z1-01-4
	16*	TT				1000	2755	2120	2650	1960	2755	2120	1885	1780
23*9-10NHS	14	TT	6.50F	595	225	900	2585	2185	2405	1920	2185	1610	1435	1380	Z1-01-4
	16	TT				1030	2810	2370	2610	2085	2370	1750	1560	1500
	18*	TT				900	3160	2430	3040	2250	3160	2430	2165	2040
23*10-12NHS	16	TT	8.00G	597	254	970	3220	2720	2870	2395	2720	2005	1795	1725	JS2
27*10-12NHS	14	TT	8.00G	690	255	860	3285	2775	3050	2440	2775	2045	1825	1750	Z1-01-5
28*8-15NHS	12	TT	6.50T	706	203	760	2355	1985	2185	1745	1985	1465	1305	1255	Z1-01-5
28*9-15NHS	14	TT	7	710	220	970	3050	2575	2835	2265	2575	1900	1695	1625	Z1-01-5
	16	TT				1000	3115	2630	2895	2310	2630	1940	1730	1660
32*12.1-15NHS	24*	TT	9.75	826	305	1000	7800	6000	7500	5550	7800	6000	5340	5040	Z1-01-3
250-15NHS	16	TT	7.5	735	250	930	3865	3265	3500	2870	3265	2405	2145	2060	Z1-01-7
	18	TT				1030	4110	3470	3820	3050	3470	2555	2285	2190
300-15NHS	18	TT	8.0	840	300	830	5530	4870	5135	4105	4870	3440	3070	2950	Z1-01-7
	20	TT				930	5940	4990	5485	4375	4990	3675	3290	3155
355/65-15NHS	24*	TT/TL	9.75	843	354	1000	7800	6000	7500	5550	7800	6000	5340	5040	Z1-01-7
	26*	TT/TL				1200	8970	6900	8625	6385	8970	6900	6140	5795
The above content for the product introduction, the chart shown may contain non-standard configuration, if there is the appearance, technical parameters or configuration of the improvement, we will try to update the information in a timely manner, but in individual cases these information may still be different from the latest situation, please contact the business manager to confirm before placing an order.
