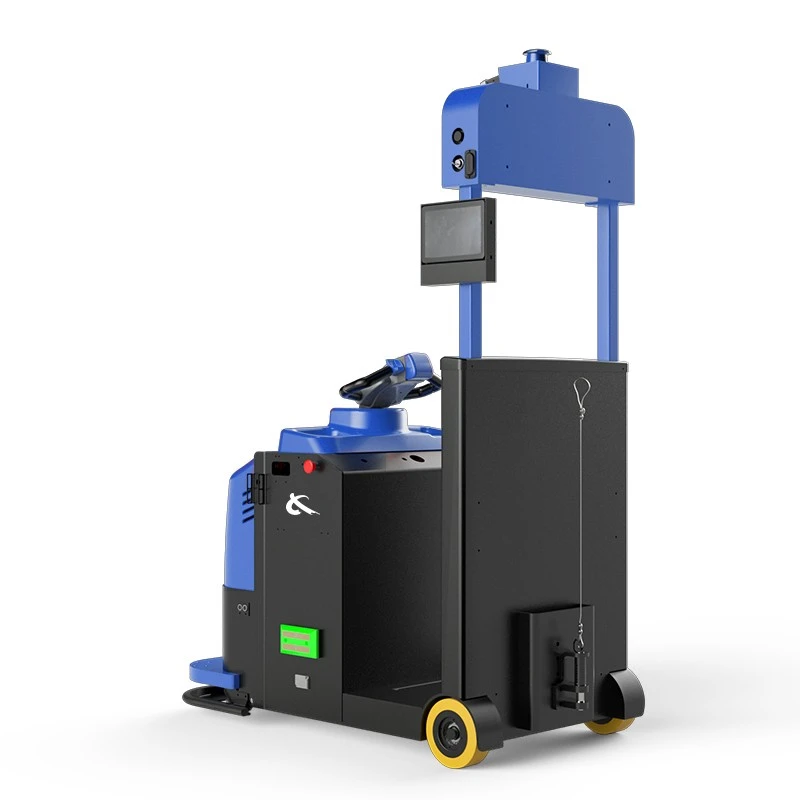

Automated Tractor Indoor

Automated Tractor Indoor

Item: Smart Reach Truck and tractor
Maximum load capacity: 4000kg
Battery weight: 260kg
Turning radius: 1345kg
Send Inquiry
Description
Technical Parameters

Product introduction



Item

Smart Reach Truck and tractor

Maximum load capacity

4000kg

Battery weight

260kg

Turning radius

1345kg



Product detail

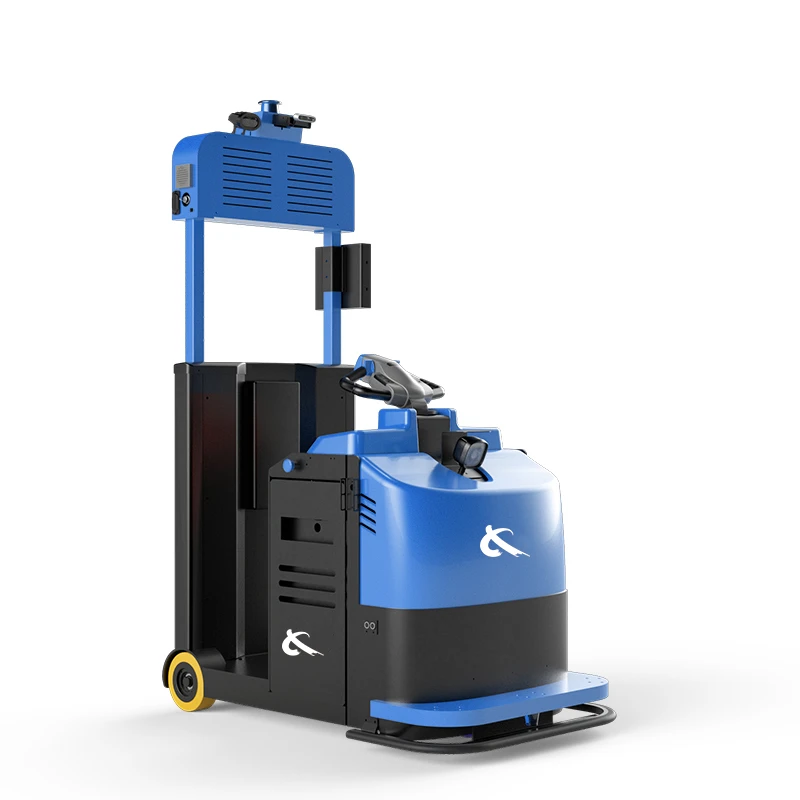

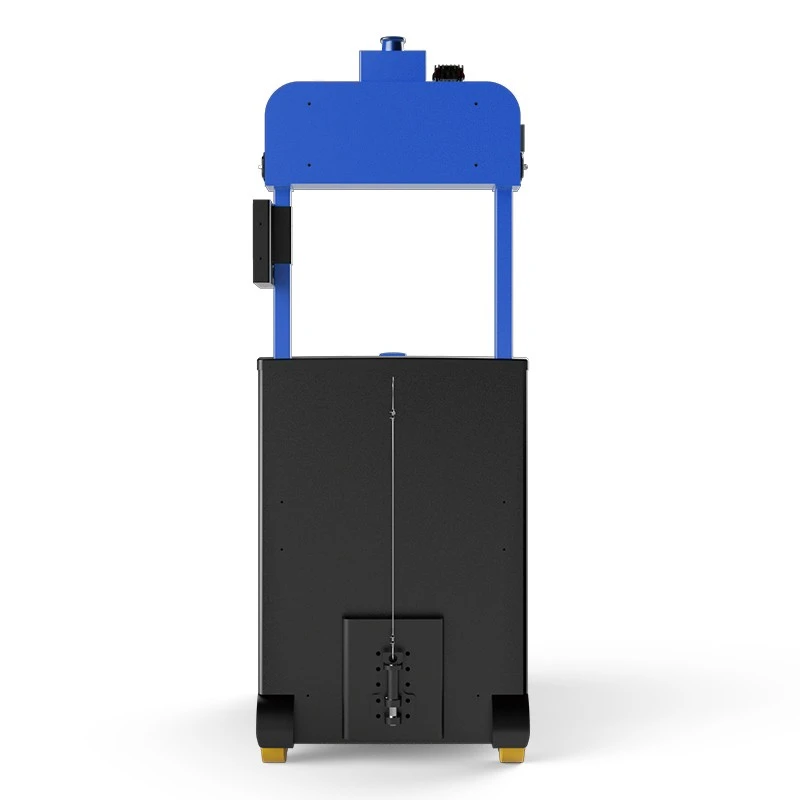

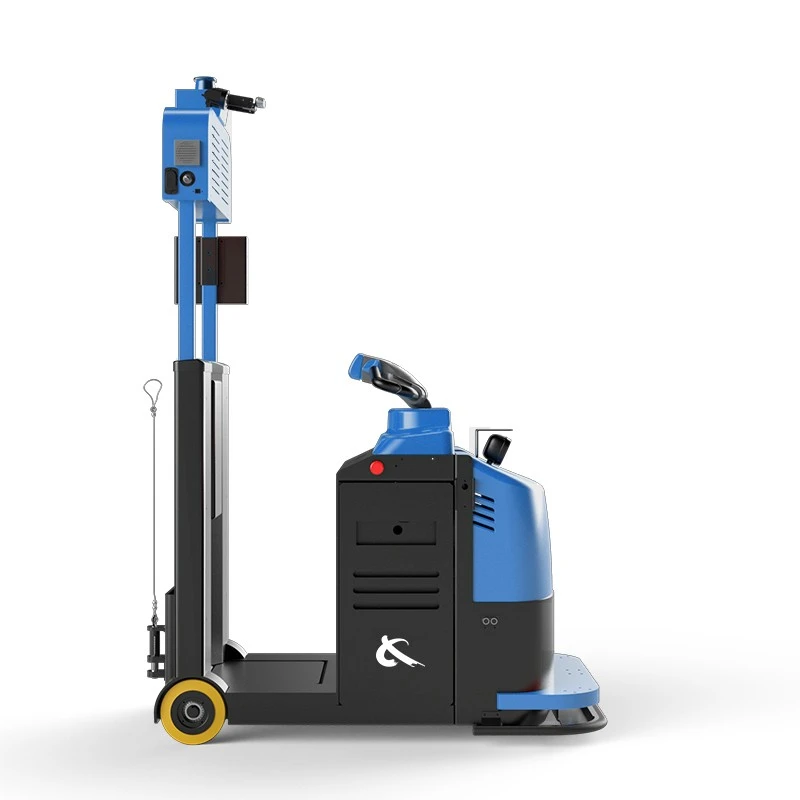

  • The automated tractor indoor is an intelligent handling device designed specifically for tractor cargo. It can efficiently complete a variety of indoor logistics tasks, such as material transfer, cargo sorting, and production line docking.

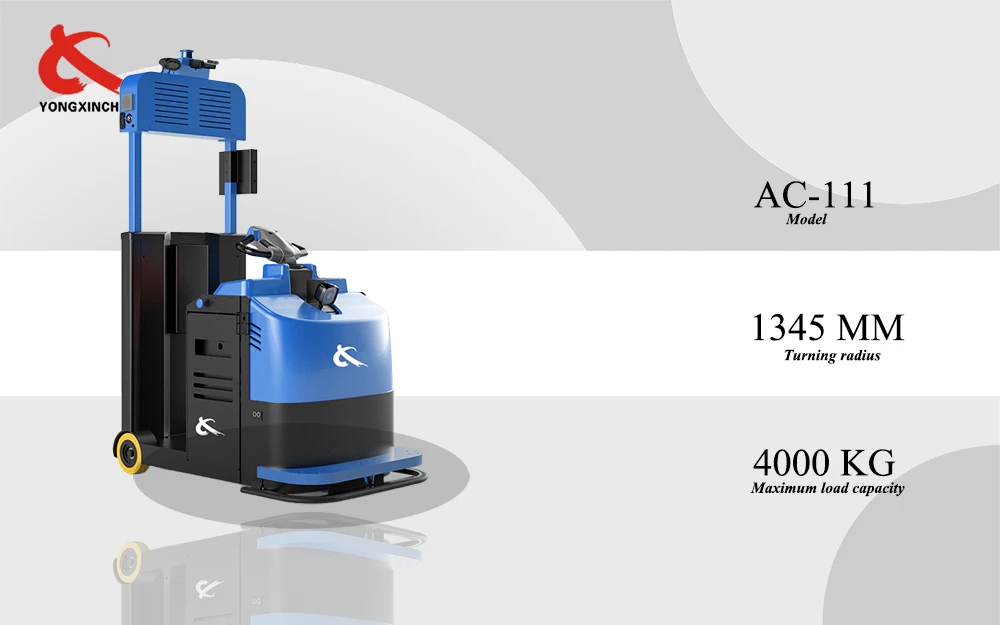

Smart Towing Handling Robot introduction



Key Features



Efficient traction capability

  • Strong traction: The indoor traction robot is suitable for traction of cargoes with various loads, supports single-vehicle or multi-vehicle connection traction, and significantly improves handling efficiency.
  • Strong stability: The optimized power system of this automated tractor indoor ensures smooth movement of cargo during traction, reducing the risk of cargo tilting or damage.



Intelligent operation

  • Multiple navigation technologies: It supports precision guidance such as laser navigation, magnetic strip navigation and visual navigation, and can achieve accurate path planning in complex environments.
  • Automatic scheduling system: Managers assign tasks through the background system to achieve collaborative operation of multiple devices and optimize logistics efficiency.
  • Multitasking: The automated tractor indoor can handle multiple traction tasks at the same time and adapt to busy logistics scenarios.



Excellent flexibility

  • Small turning radius: In daily work scenarios, its compact design enables it to turn flexibly in a small space and adapt to a variety of indoor scenarios.
  • Adapt to multiple scenarios: The working environment can be used in production workshops, storage areas and sorting centers to meet different logistics needs.

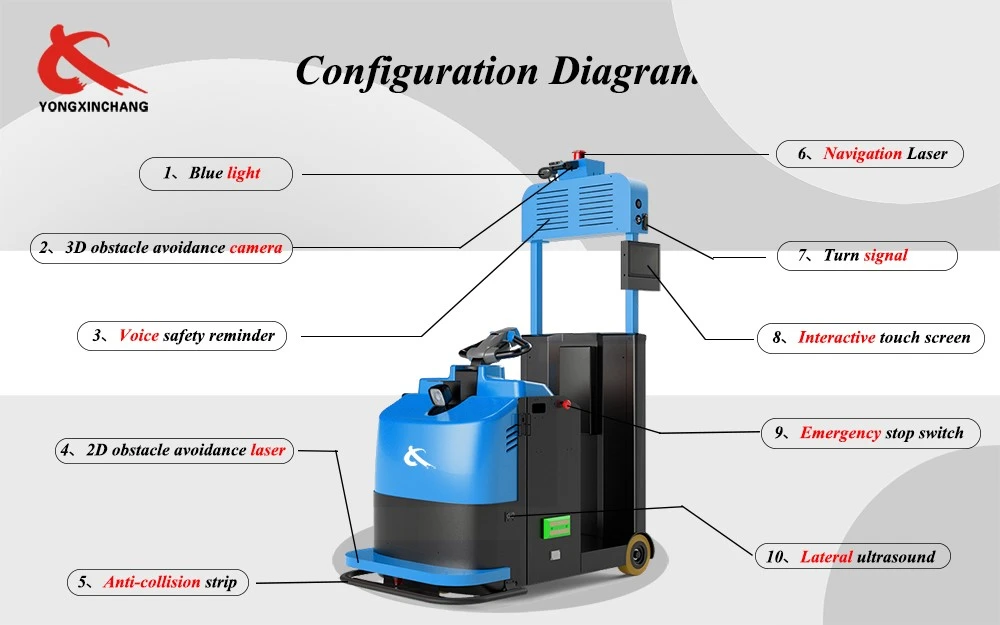

AC-111



Excellent safety performance

  • Real-time obstacle avoidance function: It is equipped with a variety of sensors (such as laser radar, ultrasonic and other high-tech sensing instruments) to detect the surrounding environment and avoid collisions with obstacles or pedestrians.
  • Multiple safety protections: In order to improve safety, emergency braking, anti-collision functions and overload alarms are designed to ensure safe operation.



Energy saving and environmental protection

  • Low energy consumption design: The intelligent towing and handling equipment is driven by high-efficiency batteries, with long battery life, low operating energy consumption, and support for fast charging and battery replacement.
  • Low noise: Suitable for indoor environments with high noise requirements, such as factories, hospitals or logistics centers.



Convenient operation

  • Friendly human-computer interaction: The towing robot can be controlled by touch screen, mobile terminal or background system, and the operation is simple and intuitive.
  • Low maintenance cost: The modular design of the indoor towing navigation vehicle is easy to maintain and reduces operating costs.



Technical Specifications

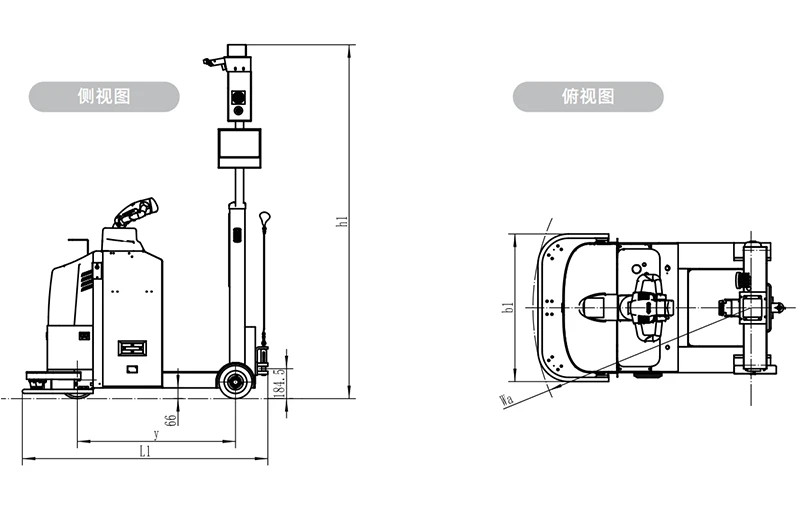

2D Towing Automated Guided Vehicle



automated forkliftforklift

agv forklift

electric forklift

Hot Tags: automated tractor indoor, China automated tractor indoor manufacturers, suppliers, factory, Autonomous Robots Outdoor, Automated Tractor Indoor, smart reach and tractor, Autonomous Robots in Manufacturing, Automated Tractor

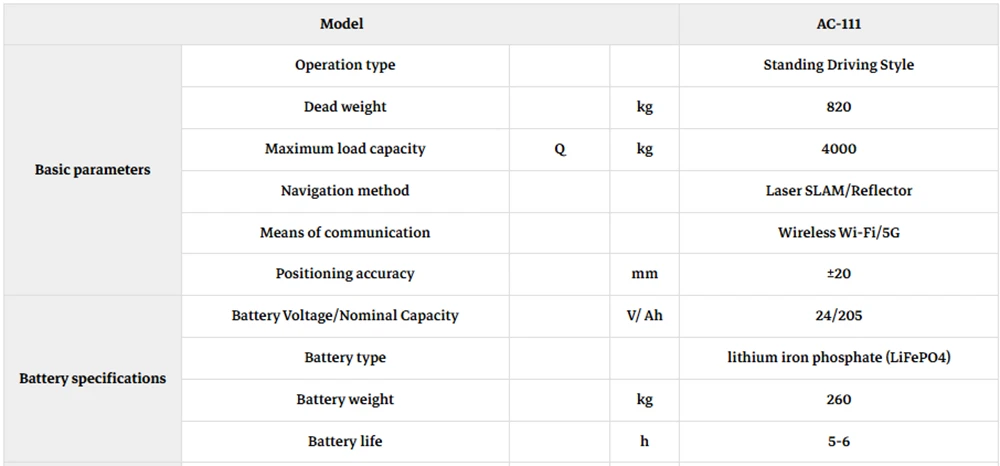

Technical Parameters



Model AC-111
Basic parameters Operation type     Standing Driving Style
Dead weight   kg 820
Maximum load capacity Q kg 4000
Navigation method     Laser SLAM/Reflector
Means of communication     Wireless Wi-Fi/5G
Positioning accuracy   mm ±20
Battery specifications Battery Voltage/Nominal Capacity   V/ Ah 24/205
Battery type     lithium iron phosphate (LiFePO4)
Battery weight   kg 260
Battery life   h 5-6

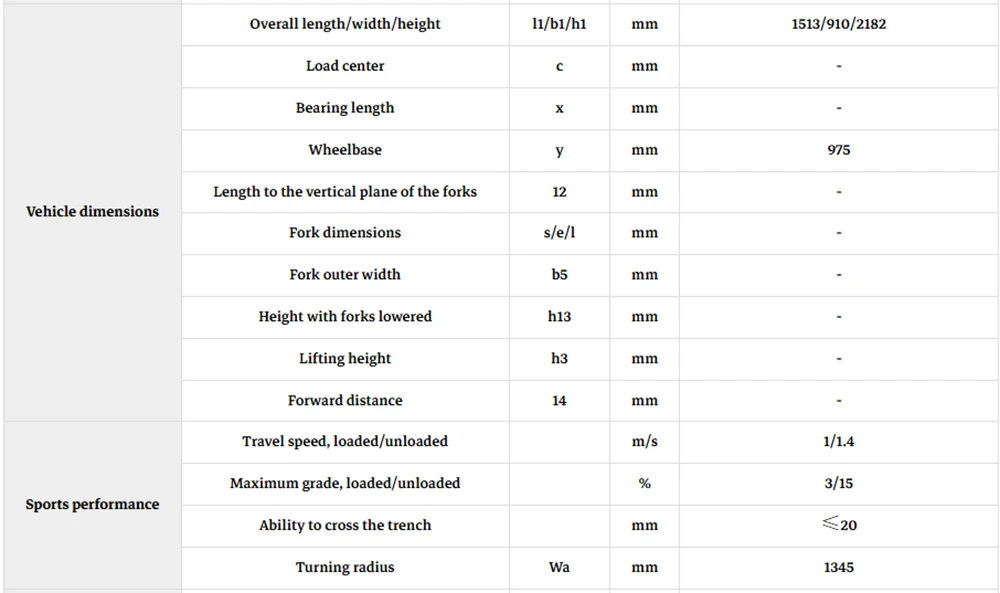

Vehicle dimensions Overall length/width/height l1/b1/h1 mm 1513/910/2182
Load center c mm -
Bearing length x mm -
Wheelbase y mm 975
Length to the vertical plane of the forks 12 mm -
Fork dimensions s/e/l mm -
Fork outer width b5 mm -
Height with forks lowered h13 mm -
Lifting height h3 mm -
Forward distance 14 mm -
Sports performance Travel speed, loaded/unloaded   m/s 1/1.4
Maximum grade, loaded/unloaded   % 3/15
Ability to cross the trench   mm ≤20
Turning radius Wa mm 1345

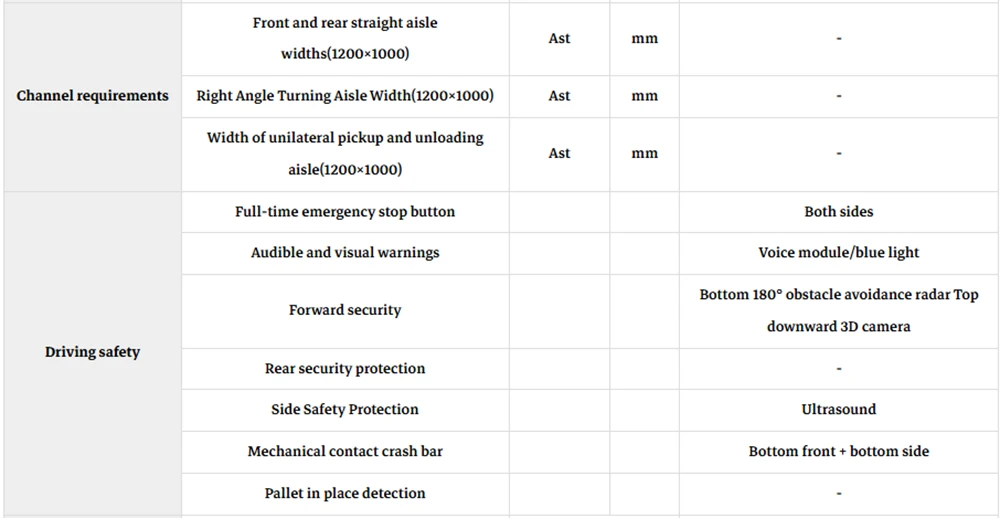

Channel requirements Front and rear straight aisle widths (1200×1000) Ast mm -
Right Angle Turning Aisle Width (1200×1000) Ast mm -
Width of unilateral pickup and unloading aisle (1200×1000) Ast mm -
Driving safety Full-time emergency stop button     Both sides
Audible and visual warnings     Voice module/blue light
Forward security     Bottom 180° obstacle avoidance radar Top downward 3D camera
Rear security protection     -
Side Safety Protection     Ultrasound
Mechanical contact crash bar     Bottom front + bottom side
Pallet in place detection     -

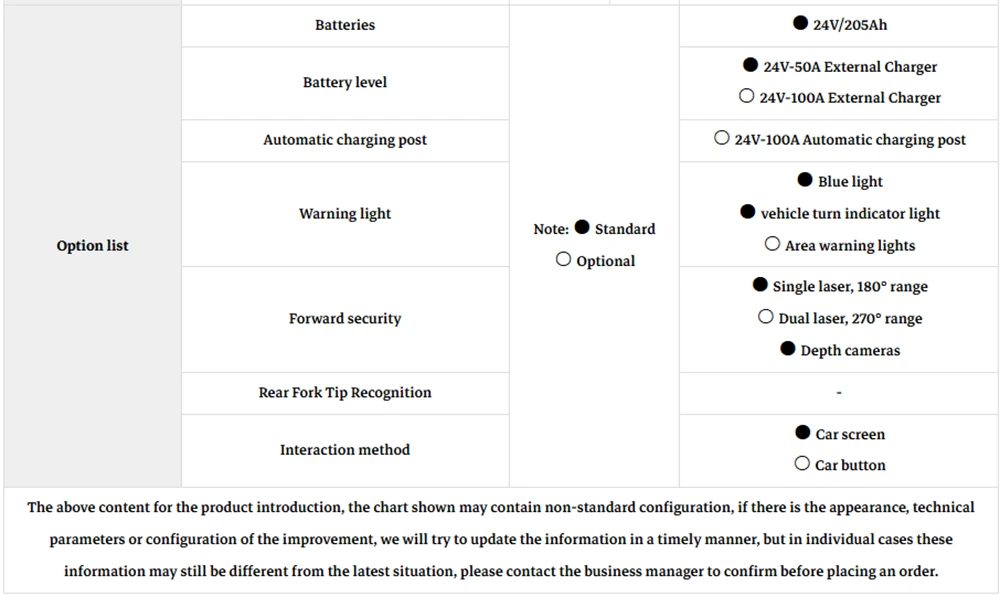

Option list Batteries

Note: ● Standard

○ Optional

● 24V/205Ah
Battery level ● 24V-50A External Charger
○ 24V-100A External Charger
Automatic charging post ○ 24V-100A Automatic charging post
Warning light ● Blue light
● vehicle turn indicator light
○ Area warning lights
Forward security ● Single laser, 180° range
○ Dual laser, 270° range
● Depth cameras
Rear Fork Tip Recognition -
Interaction method ● Car screen
○ Car button
The above content for the product introduction, the chart shown may contain non-standard configuration, if there is the appearance, technical parameters or configuration of the improvement, we will try to update the information in a timely manner, but in individual cases these information may still be different from the latest situation, please contact the business manager to confirm before placing an order.
