Product Introduction

electric forklift

Product detail

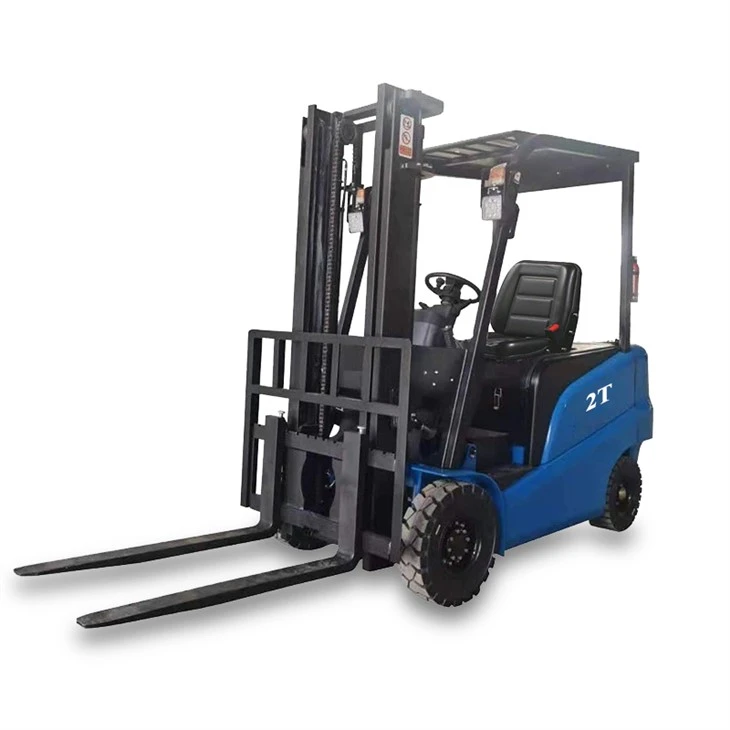

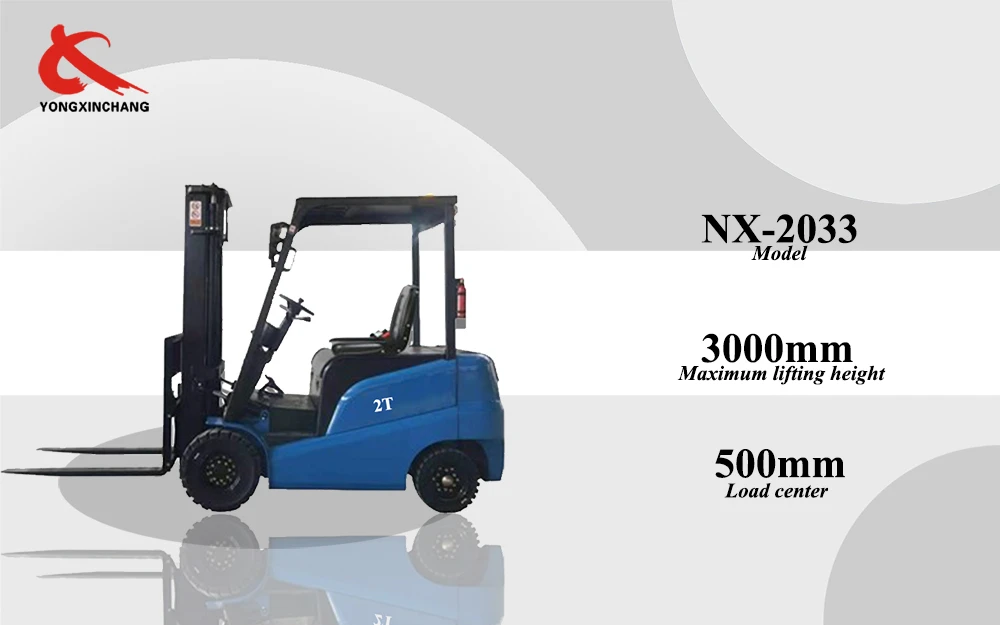

The 2 ton Counter Balance Forklift uses advanced electrical components, an original imported brand controller, and is professionally tuned to provide precise and efficient travel and lifting control, excellent performance, and features such functions as regenerative braking, ramp braking, and fault self-diagnosis.
The dynamic load sensing limited steering system makes the steering response faster, the turning radius smaller, and the driving smoother.
The ergonomic all-round operating space layout optimization creates a good, comfortable and convenient driving experience for the operator.

Adaptive Material Handling Solutions:

The electric forklift adopts a compact structural design, which can adapt to the cargo dispatch needs of warehousing scenarios of different sizes and demonstrate long-lasting and stable working performance in long-term and high-frequency operations.

Eco-Friendly Electric Drive:

This 2-ton CounterBalance forklift is equipped with a silent power system and uses energy recycling technology to achieve a clean operation process, meeting the environmentally friendly handling requirements in closed spaces and sound-controlled areas.

Advanced Battery Technology:

The electric forklift features an intuitive visual interface combined with a dynamic suspension seat, which increases precision in tight spaces while minimizing physical strain.

User-Centric Ergonomics:

The intuitive control layout and ergonomic design prioritize operator comfort, reducing fatigue during prolonged use and ensuring seamless maneuverability in confined spaces.

Comprehensive Safety Mechanisms:

The integrated sensor network and terrain-responsive traction system establish comprehensive protection covering load management and navigation safety.

Warehousing & Logistics

Inventory Management: Streamlines stacking, retrieval, and rearrangement of palletized goods, boxes, and bulk items across shelving systems or floor storage areas.
Transport Optimization: Facilitates rapid loading/unloading of trucks and containers, ensuring efficient material flow between storage zones and transportation hubs.

Manufacturing & Industrial Operations

Production Line Support: Transports raw materials, components, and tools to assembly stations, maintaining uninterrupted workflow in high-demand environments.
Finished Goods Handling: Safely relocates packaged products from manufacturing units to dispatch zones or temporary staging areas.

Construction & Heavy-Duty Sites

Material Distribution: Manages on-site movement of construction supplies like steel beams, timber, and cement bags, replacing labor-intensive manual handling.
Logistical Coordination: Unloads bulk deliveries from transporters and strategically positions materials for easy access during building phases.

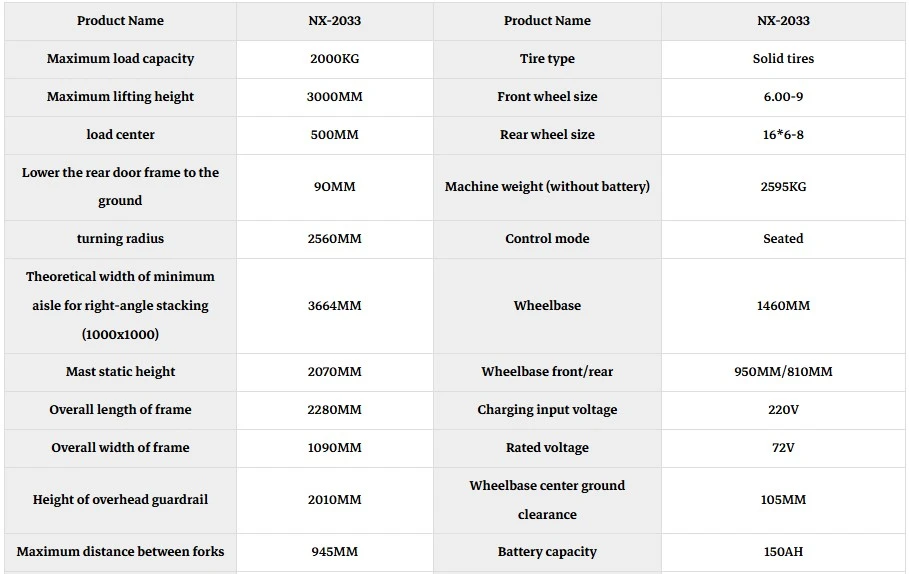

Product Name	NX-20-30-33	Product Name	NX-20-30-33
Maximum load capacity	2000KG	Tire type	Solid tires
Maximum lifting height	3000MM	Front wheel size	6.00-9
load center	500MM	Rear wheel size	16*6-8
Lower the rear door frame to the ground	9OMM	Machine weight (without battery)	2595KG
turning radius	2560MM	Control mode	Seated
Theoretical width of minimum aisle for right-angle stacking (1000x1000)	3664MM	Wheelbase	1460MM
Mast static height	2070MM	Wheelbase front/rear	950MM/810MM
Overall length of frame	2280MM	Charging input voltage	220V
Overall width of frame	1090MM	Rated voltage	72V
Height of overhead guardrail	2010MM	Wheelbase center ground clearance	105MM
Maximum distance between forks	945MM	Battery capacity	150AH

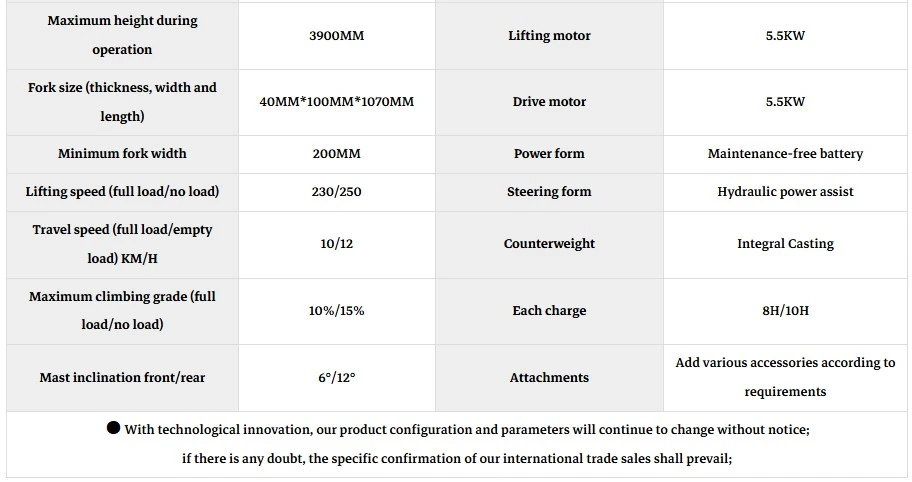

Maximum height during operation	3900MM	Lifting motor	5.5KW
Fork size (thickness, width and length)	40MM100MM1070MM	Drive motor	5.5KW
Minimum fork width	200MM	Power form	Maintenance-free battery
Lifting speed (full load/no load)	230/250	Steering form	Hydraulic power assist
Travel speed (full load/empty load) KM/H	10/12	Counterweight	Integral Casting
Maximum climbing grade (full load/no load)	10%/15%	Each charge	8H/10H
Mast inclination front/rear	6°/12°	Attachments	Add various accessories according to requirements
● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail;
