Description
Technical Parameters
Product introduction
|
Item |
Counterbalance Stacker |
|
Load center |
500mm |
|
Maximum lifting height |
1600mm |
|
Overall width of frame |
1034mm |
Key Features
- The 1.5 ton Counterbalance Pallet Stacker has an EPS electronic power steering system that can reduce the operating force, increase sensitivity, improve the steering return characteristics, and automatically slow down in corners, making it easier and safer to use.
Multi-Environment Adaptability
Space-Efficient Engineering
- The compact structural configuration combined with rear-wheel steering technology achieves an ultra-tight turning radius, delivering exceptional navigation performance in high-density storage areas or narrow aisles, particularly suited for intensive operations in space-constrained environments.
Versatile Operational Capacity
- Innovative counterweight distribution and reinforced chassis design enable stable performance across diverse settings – from indoor facilities like warehouses to outdoor applications such as construction sites – maintaining reliable operation on concrete floors, gravel surfaces, and other challenging terrains.
Ergonomic Optimization
- The human-centric control interface integrates multi-functional modules, complemented by a low center of gravity that minimizes tilt risks. This synergy allows operators to maintain precise load handling during extended operations while significantly reducing physical strain.
Intelligent Control System
- Equipped with Electronic Power Steering (EPS) technology, the system employs advanced algorithms to optimize steering responsiveness, substantially reducing operational effort while enhancing control precision. With automatic cornering recognition capabilities, it dynamically adjusts travel speed and steering feedback, ensuring both agile maneuverability in confined spaces and reinforced stability during transit.

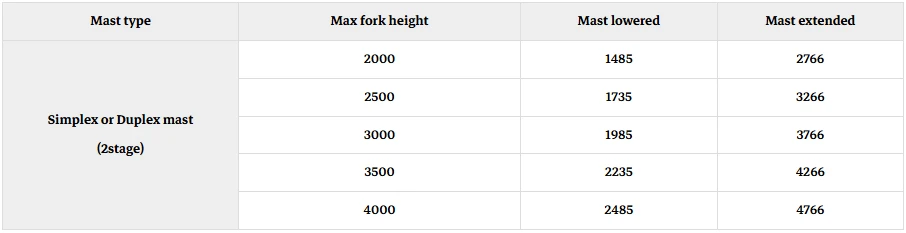

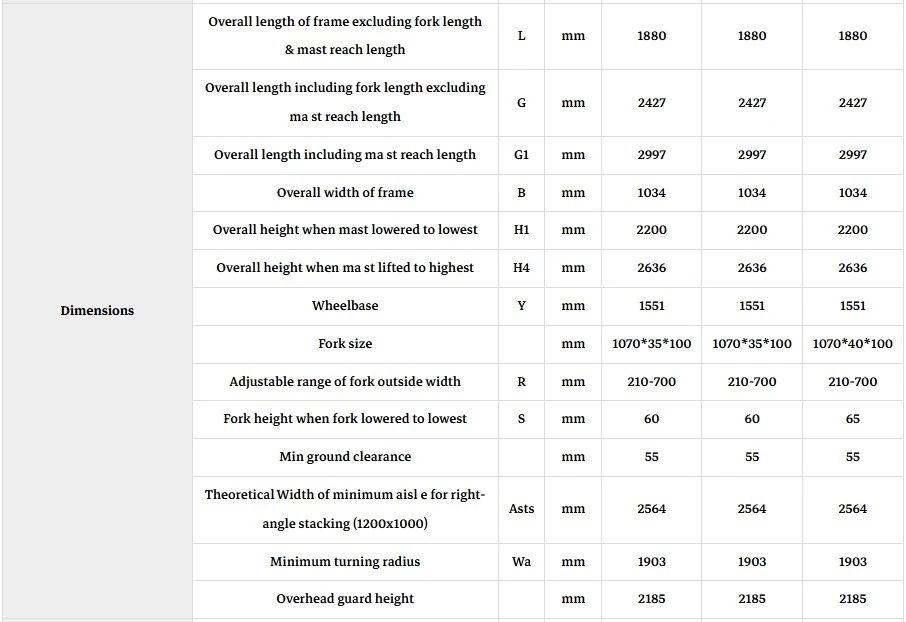

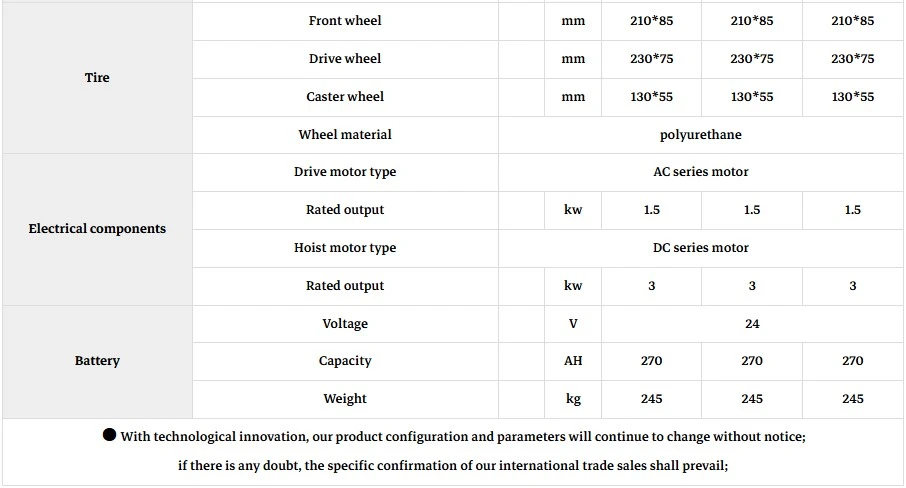

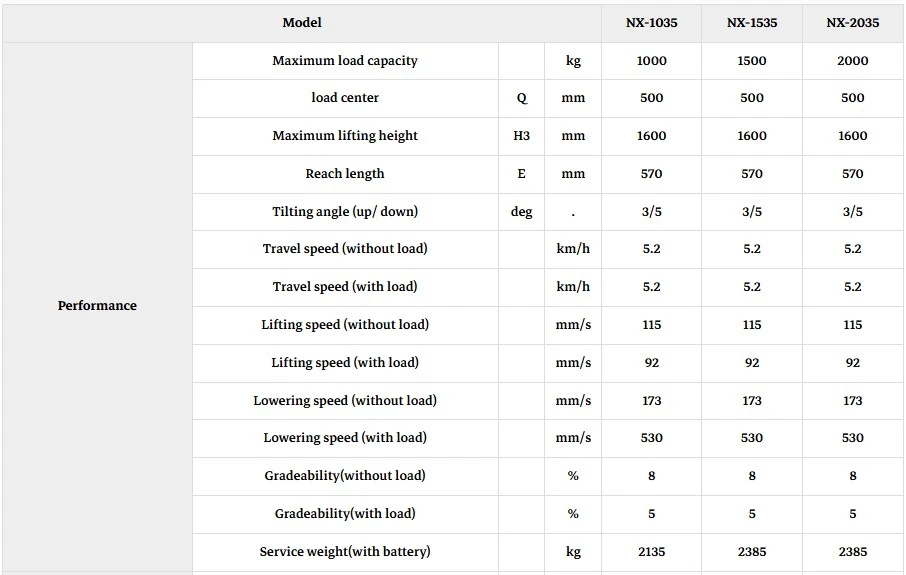

Technical Specifications
Technical Parameters
