Description
Technical Parameters
Product Introduction

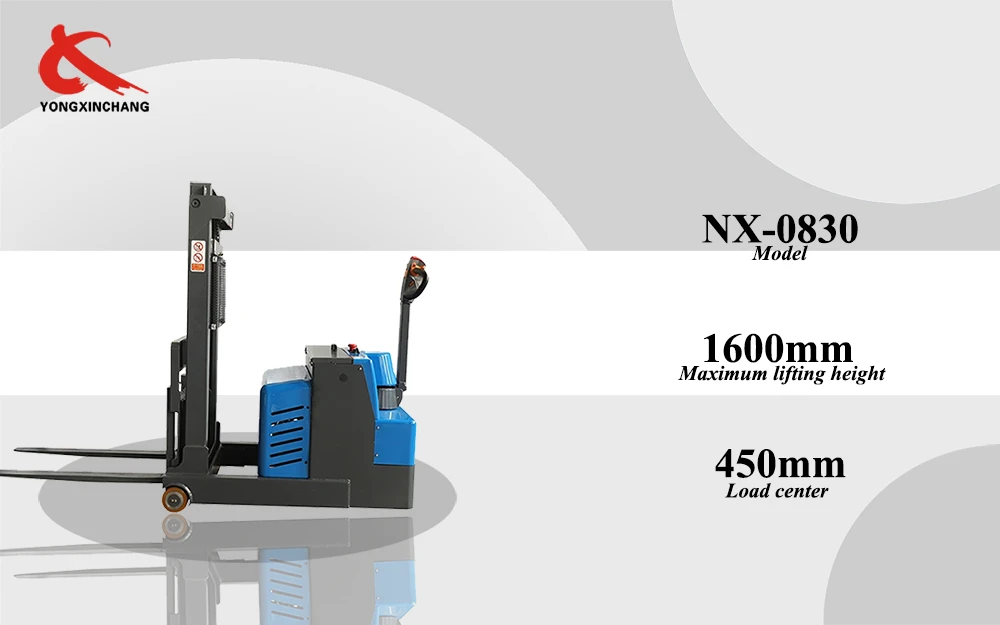

| Item | Counterbalance Stacker |
| Other Maximum load center capacity | 800kg, 1000kg, 1200kg. |
| Load center | 450mm |
| Maximum lifting height | 1600mm |

Product Detail
- Walkie Counterbalanced Stacker adopts the forkless counterweight type. It can be used for mechanical steering for single-sided or double-sided pallet cargo. It has a handlebar-operated short wheelbase and lightweight design. It is particularly suitable for floor operations and short-distance stacking horizontal drive. The drive wheel is detachable and it is very convenient to replace the wheel.
Key Features
The Counterbalance Stacker is a forklift designed for efficient handling and stacking. Its main features include:
- High load capacity: Walkie Counterbalanced Stacker usually has a high load capacity and can handle goods weighing several tons, suitable for the handling of heavy materials.
- Counterbalanced weight design: The counterbalanced weight design ensures the stability of the forklift when lifting heavy objects, reduces the risk of overturning and improves safety.
- Flexibility and maneuverability: The compact design makes it easy to operate in narrow spaces and is suitable for the complex environment of warehouses and logistics centers.
- Electric drive: The electric drive system makes operation easier, reduces the intensity of manual labor, and also reduces noise and emissions.
- Lifting system: Equipped with an efficient lifting system, it can lift goods to higher shelves and support multi-layer stacking operations.
- Humanized design: The operating handle and control system are designed in accordance with ergonomics, simple and comfortable to operate, and suitable for long-term use.
- Safety: Equipped with multiple safety features, such as overload protection, emergency brake device and good vision to ensure the safety of operators.
- Durability: The structure is strong and suitable for use in heavy load and high frequency operation environment, with a long service life.
- Versatility: It can adapt to a variety of operation requirements, including handling, stacking and loading and unloading, and is widely used in warehousing, logistics, manufacturing and other industries.

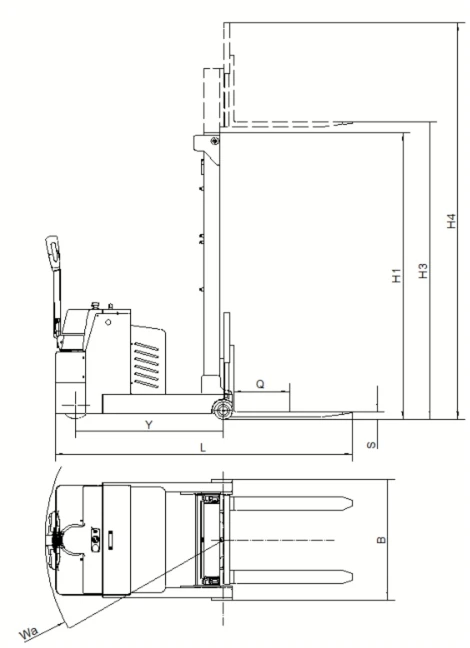

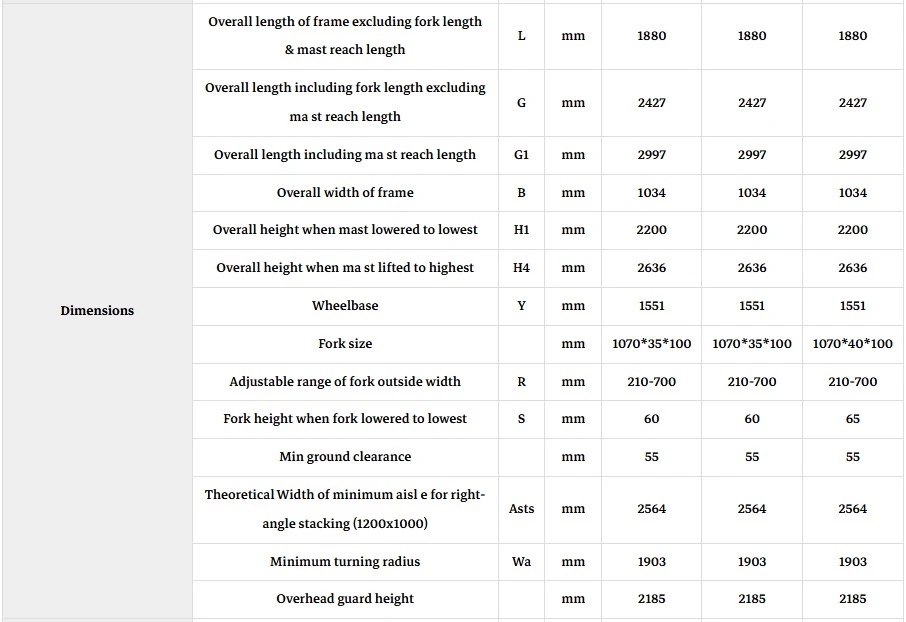

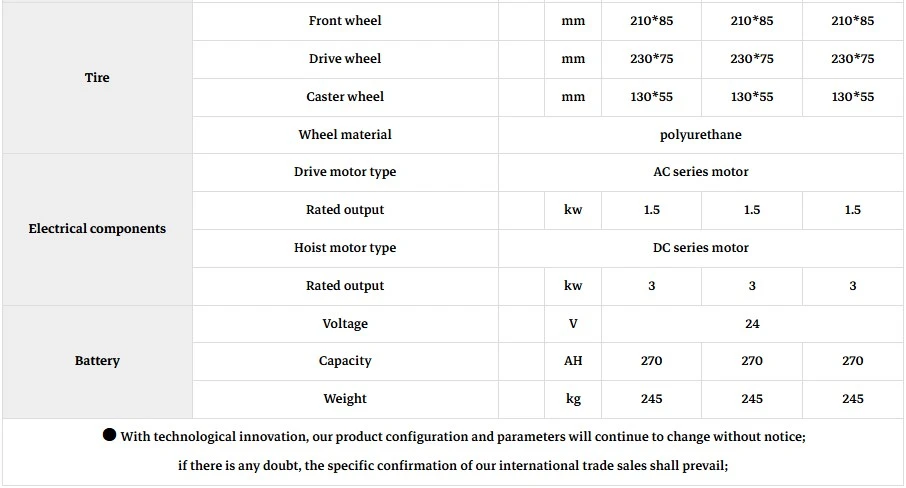

Technical Specifications

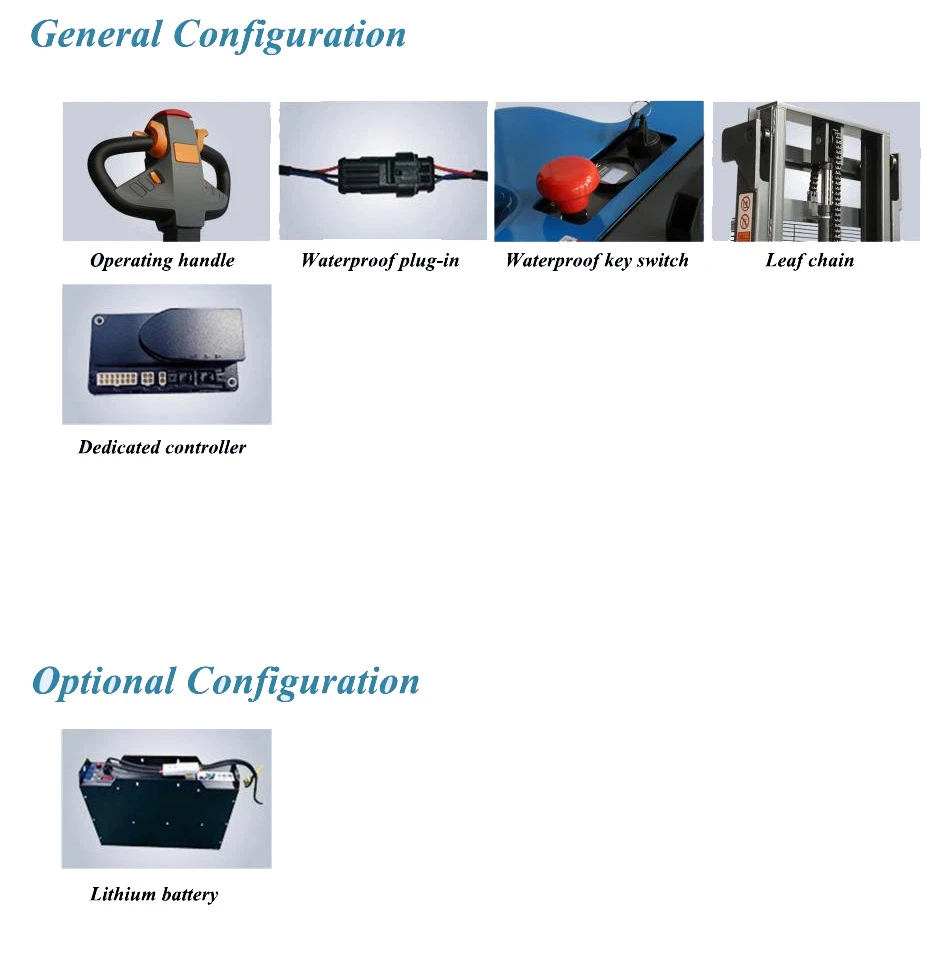

Optional configuration

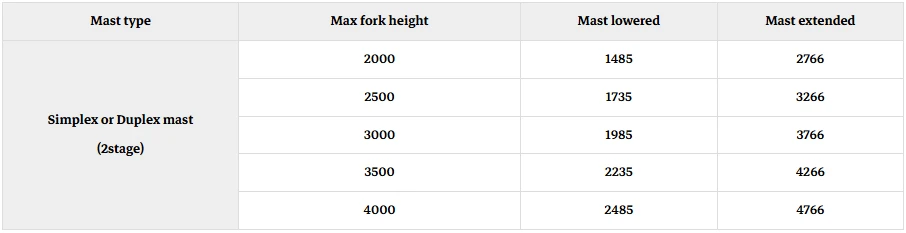

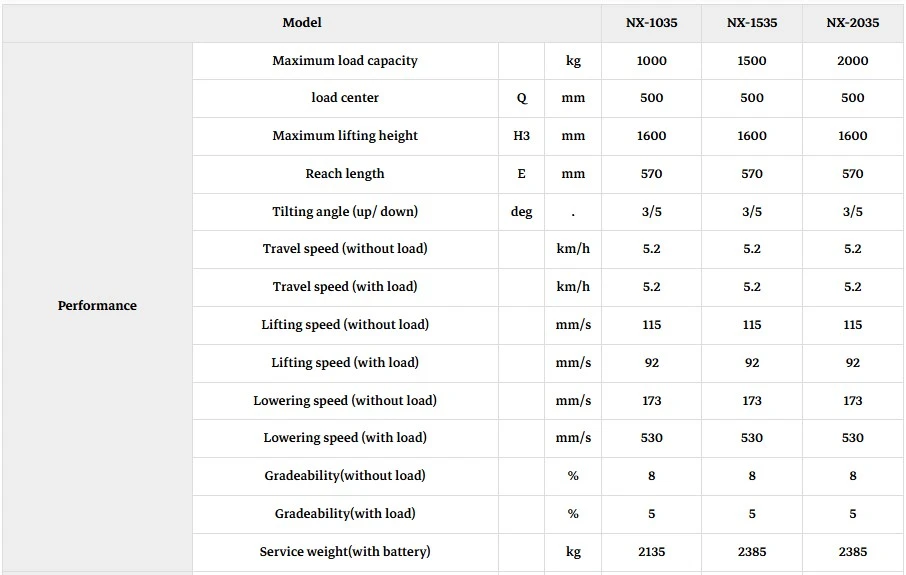

Technical Parameters
