Description
Technical Parameters
Product Introduction
|
Item |
unterbalance Stacker |
|
Other Maximum load center capacity |
600kg, 800kg, 1200kg. |
|
Load center |
500mm |
|
Fork width |
100mm |
Product Detail
- Electric Counter Balance uses a vertical drive AC motor, which does not require replacement of carbon brushes. It has better ramp start performance and regenerative braking function, which can effectively improve the working efficiency and service life of the motor and save more energy.
Key Features
- This electric forklift adopts an innovative shock absorption system - a unique drive damping structure, which can significantly improve the load stability during high-frequency operations while personnel are working, and optimize the wheelbase design to achieve excellent obstacle crossing performance in narrow aisle environments.
- Chain Safety Upgrade - Replaces conventional roller chains with national-standard plate link configuration, featuring reinforced joint structures and anti-skid grooves that comprehensively improve lifting safety factors.
- Intelligent Safety Protocol - Integrated safety mechanisms including foldable damping brackets, automatic power cutoff upon pedal release, and three-dimensional anti-tipping sensors form multi-layer protection for operators.
Design Features
- This Electric Counter Balance adopts an ergonomic control system - a 360° rotating handle, a fatigue-reducing curvature design, and a shock-proof control panel to ensure comfort during long-term operation.
- Modular Safety Architecture - Integrated overload warning module, emergency braking unit, and 270° panoramic vision window create visual-mechanical-electrical triple protection.
- Adaptive Lifting Mechanism - The telescopic mast system supports customized height configurations, enabling efficient multi-layer stacking operations across diverse warehouse scenarios.

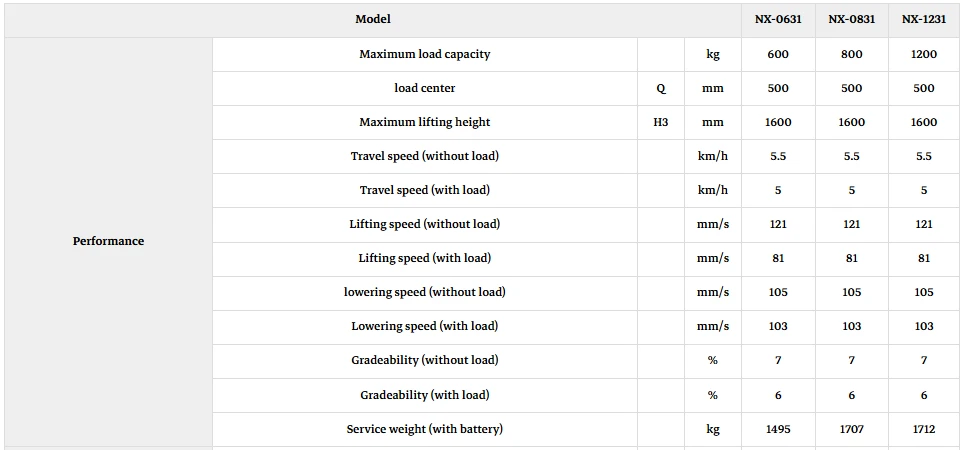

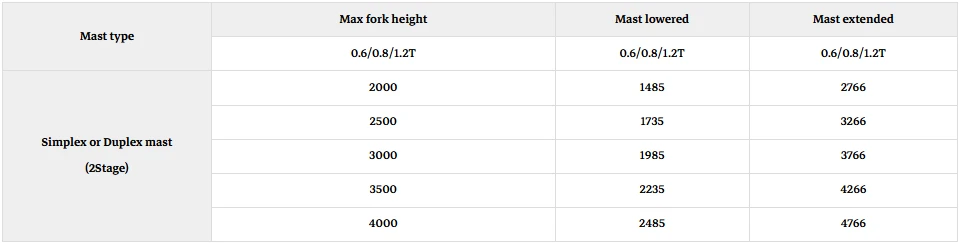

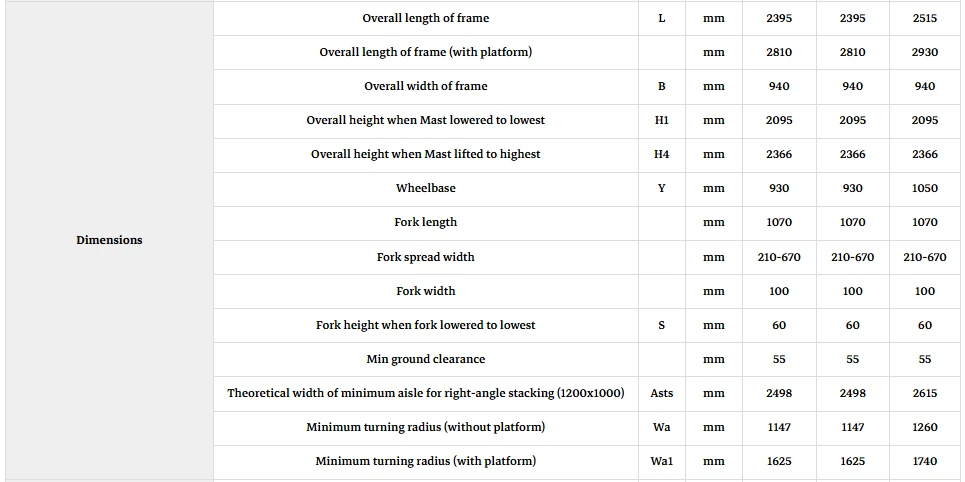

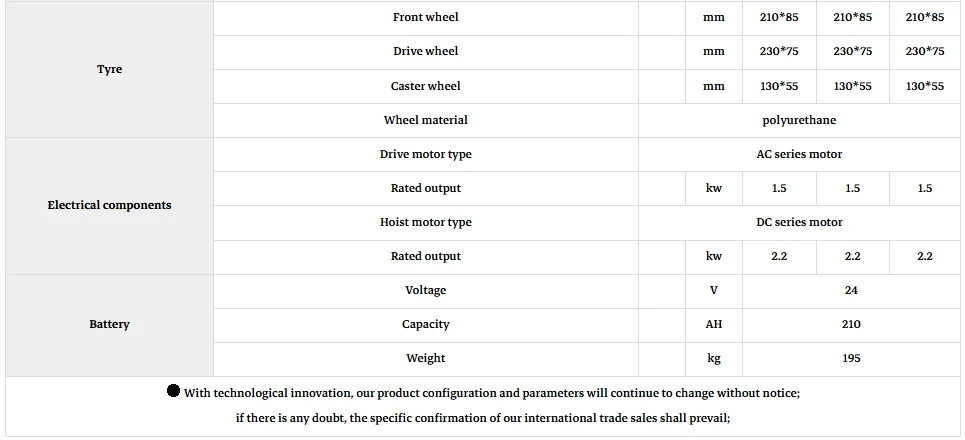

Technical Specifications

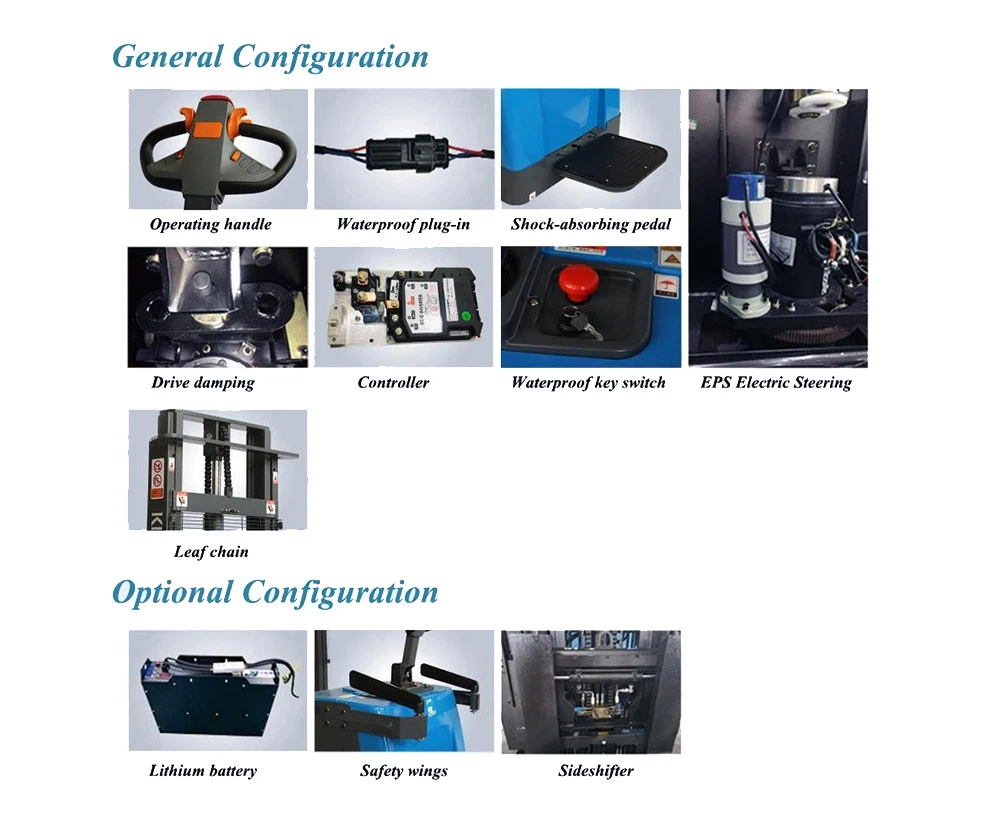

Optional configuration
Operational Advantages
- The electric forklift adopts a high-strength chassis design - an impact-resistant coated reinforced steel frame, which not only ensures the structural integrity under heavy-load conditions, but also makes modular components simplify the maintenance process.
- Intelligent Power Management - Real-time battery monitoring system with self-diagnostic functions guides users through optimized charging cycles and tire maintenance schedules.
- Cross-Industry Adaptability - Through customizable accessory interfaces (e.g., clamp attachments, telescopic forks), the equipment demonstrates exceptional compatibility with manufacturing, logistics, and retail sectors.
Technical Parameters
