Abb Robot Transport Position

Abb Robot Transport Position

Item: Lurking car
Minimum shelf width: 620mm
Other Maximum load capacity: 200kg; 500kg
Send Inquiry
Description
Technical Parameters

Product introduction



Item

Lurking car

Minimum shelf width

620mm

Other Maximum load capacity

200kg; 500kg



Product detail

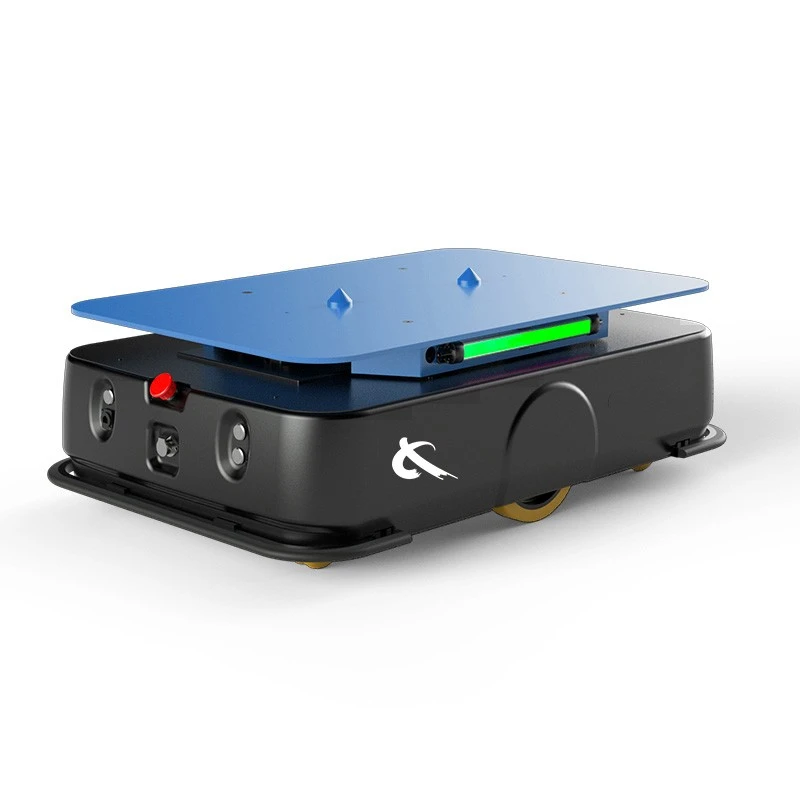

  • The Abb robot transport position is an intelligent logistics handling equipment that can flexibly perform lifting, handling and conveying operations of goods between multiple points. It is suitable for various complex industrial and logistics scenarios, and can ensure safe operation and guarantee operation.

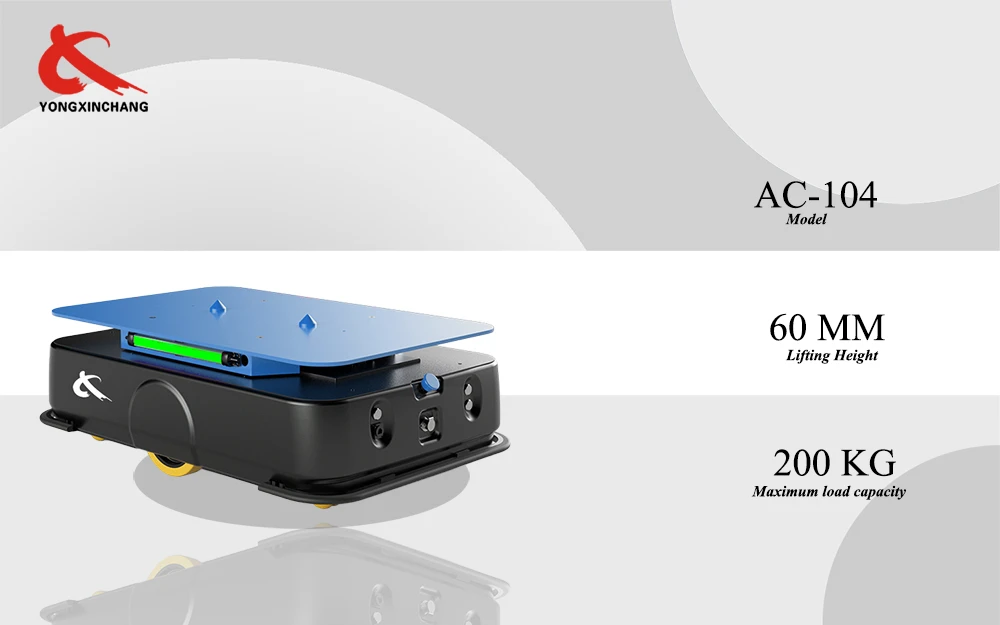

Smart Lifting Vehicle introduction



Flexible multi-point operation capability

  • Multi-point docking: The automatic robot can realize the handling tasks between multiple sites, flexibly switch between different loading and unloading points to perform operations, and meet the complex logistics needs.
  • Precise lifting: In addition, it is equipped with a high-precision lifting device, which can stably lift the goods and is suitable for handling different types of goods such as pallets and boxes.



High-precision automatic navigation

  • Multiple navigation technologies: The Abb robot transport position uses laser navigation, visual navigation or QR code navigation to ensure accurate path planning and adapt to changing working environments.
  • Dynamic obstacle avoidance: The built-in sensor perceives the environment in real time, can flexibly avoid obstacles, ensure safe operation, and ensure continuous operation.

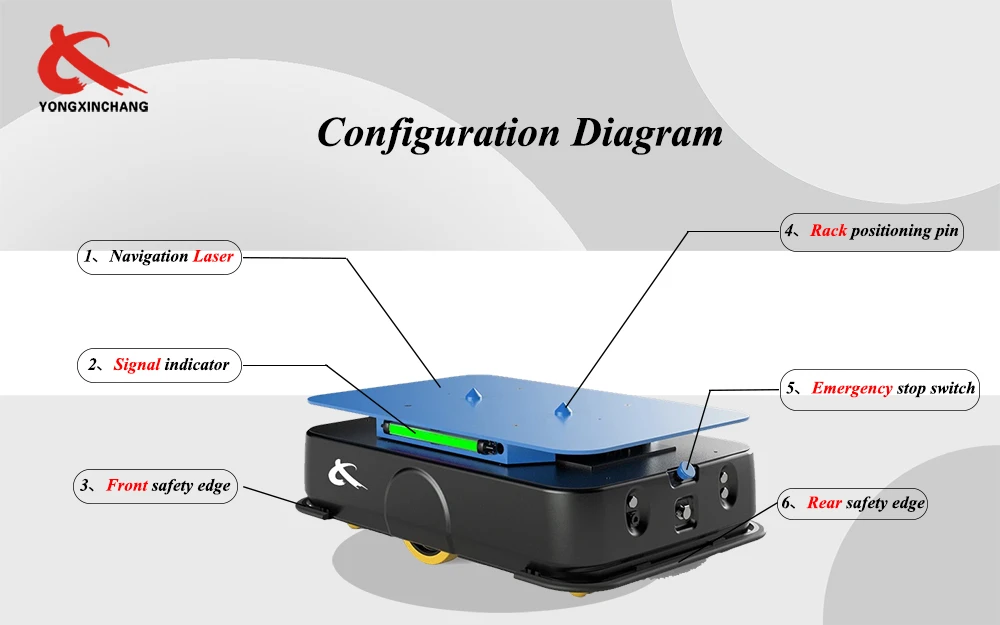

AC-104



Efficient and intelligent scheduling

  • Task parallel processing: The Abb robot transport position supports simultaneous execution of multiple tasks to improve work efficiency.
  • Intelligent scheduling system: Managers can realize automatic task allocation and path optimization through the central scheduling system, reduce empty driving and waiting time, and improve the utilization rate of handling machines.



Powerful load capacity

  • Suitable for heavy loads: The Abb robot transport position is designed to carry heavy weights of goods and is suitable for heavy-load handling tasks in logistics centers, large warehouses and production workshops.
  • Strong stability: The chassis structure is stable, ensuring the stability and safety of the goods during the handling process.



Technical Specifications



2D Pallet Transport AGV

Robot Transport Position

forklift

agv forklift

Hot Tags: abb robot transport position, China abb robot transport position manufacturers, suppliers, factory, undetected concealed vehicle, private trailing vehicle, covert vehicle for surveillance, incognito vehicle, undetected stealth vehicle, unmarked stealth car

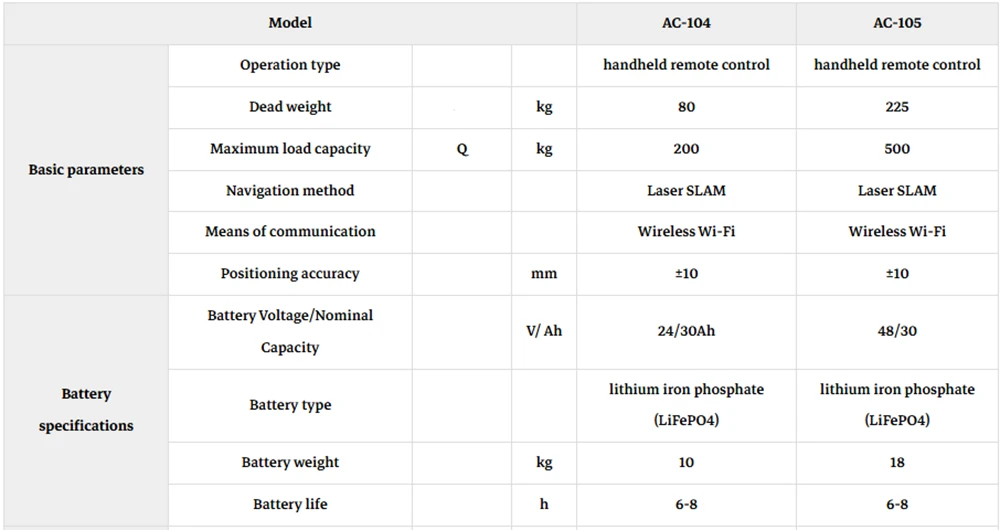

Technical Parameters



Model AC-104 AC-105
Basic parameters Operation type     handheld remote control handheld remote control
Dead weight   kg 80 225
Maximum load capacity Q kg 200 500
Navigation method     Laser SLAM Laser SLAM
Means of communication     Wireless Wi-Fi Wireless Wi-Fi
Positioning accuracy   mm ±10 ±10
Battery specifications Battery Voltage/Nominal Capacity   V/ Ah 24/30Ah 48/30
Battery type     lithium iron phosphate (LiFePO4) lithium iron phosphate (LiFePO4)
Battery weight   kg 10 18
Battery life   h 6-8 6-8

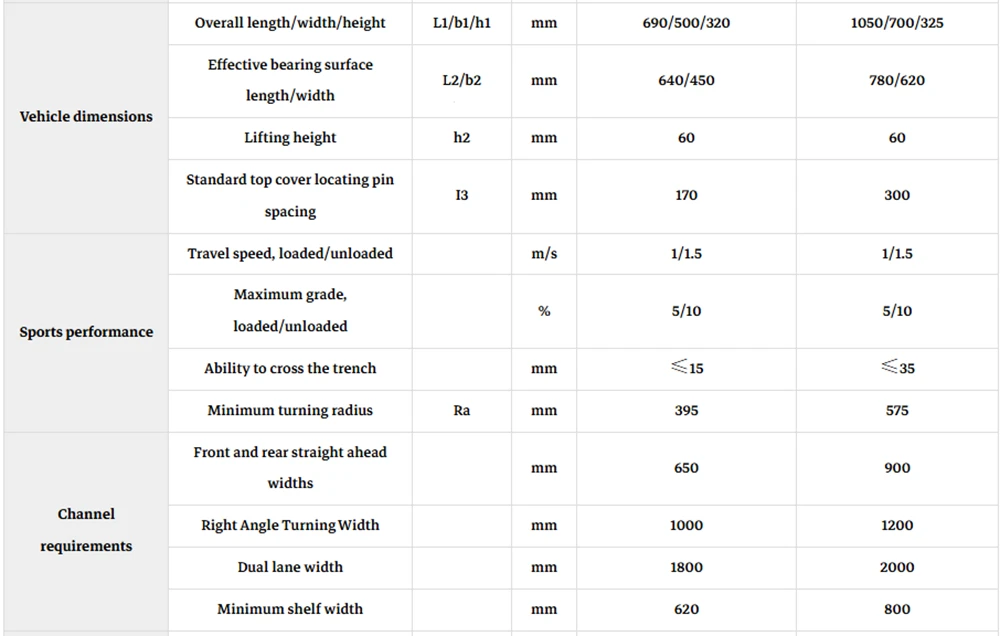

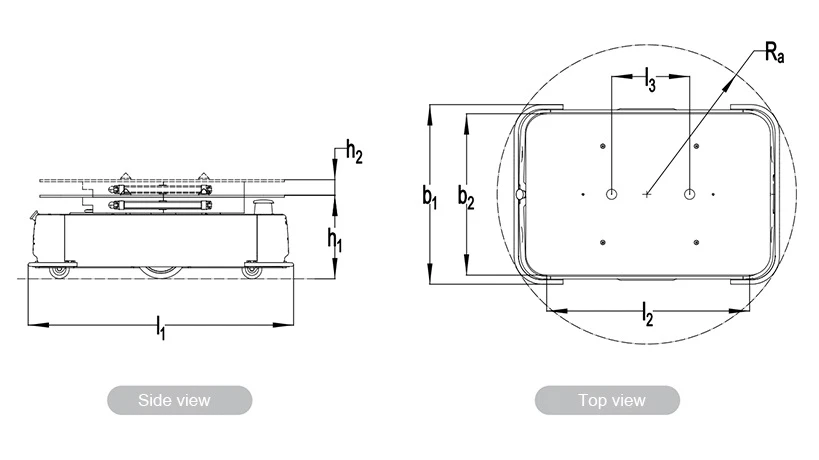

Vehicle dimensions Overall length/width/height L1/b1/h1 mm 690/500/320 1050/700/325
Effective bearing surface length/width L2/b2 mm 640/450 780/620
Lifting height h2 mm 60 60
Standard top cover locating pin spacing I3 mm 170 300
Sports performance Travel speed, loaded/unloaded   m/s 1/1.5 1/1.5
Maximum grade, loaded/unloaded   % 5/10 5/10
Ability to cross the trench   mm ≤15 ≤35
Minimum turning radius Ra mm 395 575
Channel requirements Front and rear straight ahead widths   mm 650 900
Right Angle Turning Width   mm 1000 1200
Dual lane width   mm 1800 2000
Minimum shelf width   mm 620 800

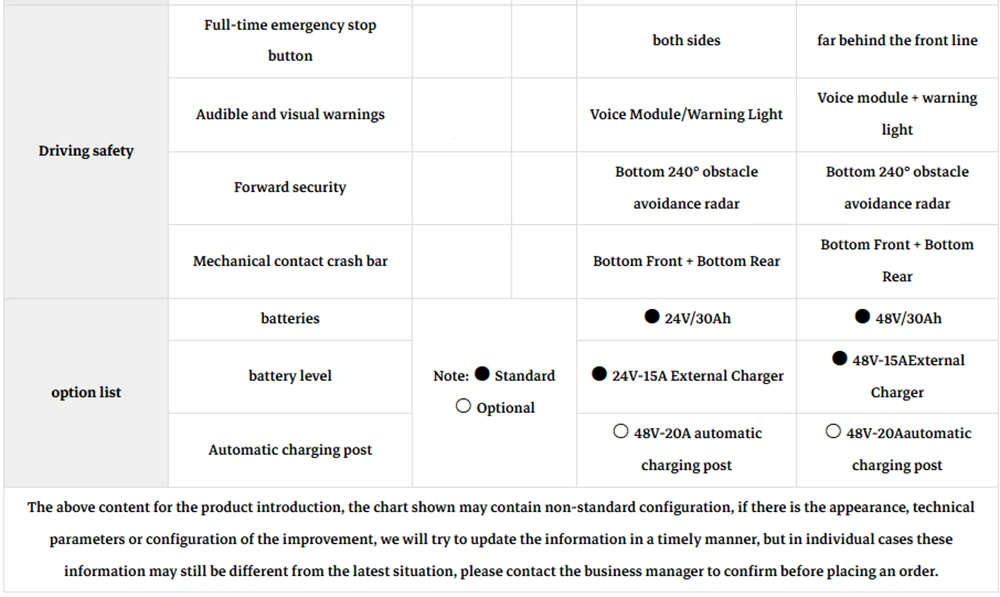

Driving safety Full-time emergency stop button     both sides far behind the front line
Audible and visual warnings     Voice Module/Warning Light Voice module + warning light
Forward security     Bottom 240° obstacle avoidance radar Bottom 240° obstacle avoidance radar
Mechanical contact crash bar     Bottom Front + Bottom Rear Bottom Front + Bottom Rear
option list batteries

Note: ● Standard

○ Optional

 ● 24V/30Ah ● 48V/30Ah
battery level ● 24V-15A External Charger ● 48V-15AExternal Charger
Automatic charging post ○ 48V-20A automatic charging post ○ 48V-20Aautomatic charging post
The above content for the product introduction, the chart shown may contain non-standard configuration, if there is the appearance, technical parameters or configuration of the improvement, we will try to update the information in a timely manner, but in individual cases these information may still be different from the latest situation, please contact the business manager to confirm before placing an order.
