Product introduction
|
Item |
Automatic transport vehicle |
|
Load center |
600mm |
|
Maximum load capacity |
2000kg |
|
Bearing length |
980mm |
Product Detail
This Robots for logistics design combines high load capacity, high-speed operation, intelligent navigation, and automated operation, and can perform well in various complex environments: high-intensity, long-term, and efficient material handling tasks. Its intelligent design concept not only improves operating efficiency, but also ensures high-precision handling and operational safety. The machine is widely used in complex industrial environments such as large warehouses, production lines, and logistics distribution, greatly improving production and handling efficiency.

Efficient task execution and scheduling
- Automatic scheduling system: Through the intelligent scheduling system, when the robot is working, it can automatically receive tasks, optimize paths, and collaborate with other equipment or robots to achieve efficient material handling.
- Task priority management: The robot can reasonably arrange the order of work according to factors such as the urgency of the task and the route conditions to improve work efficiency.
Strong adaptability
- Adapt to complex environments: The Robots for logistics can adapt to different working environments, such as warehouses, production lines, factory workshops and other complex environments, and can freely move on uneven ground, narrow passages or special working areas.
- Multiple cargo handling capabilities: It can adapt to the handling of cargo of various sizes and shapes, and provide flexible solutions.
Highly automated and intelligent
- Autonomous operation: High-speed heavy-duty intelligent handling robots can independently complete the entire process from material reception, transportation to unloading at work without manual intervention, greatly saving manpower.
- Intelligent perception and decision-making: The Robots for logistics is equipped with a highly intelligent perception system, which can monitor its working status in real time during machine operation, perform self-diagnosis, and adjust work strategies in time to cope with different situations.
Technical Specifications

| Model | AC-102 | |||
| Basic parameters | Operation type | Standing Driving Style | ||
| Dead weight | kg | 625 | ||
| Maximum load capacity | Q | kg | 2000 | |
| Navigation method | Laser SLAM/Reflector | |||
| Means of communication | Wireless Wi-Fi/5G | |||
| Positioning accuracy | mm | ±10 | ||
| Battery specifications | Battery Voltage/Nominal Capacity | V/ Ah | 24/150 | |
| Battery type | lithium iron phosphate (LiFePO4) | |||
| Battery weight | kg | 50 | ||
| Battery life | h | 6-8 | ||

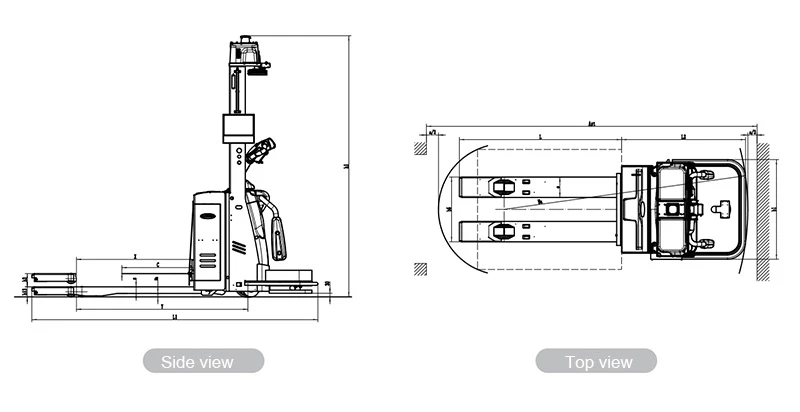

| Vehicle dimensions | Overall length/width/height | L1/b1/h1 | mm | 2385/830/2175 |
| Load center | c | mm | 600 | |
| Bearing length | x | mm | 980 | |
| Wheelbase | y | mm | 1430 | |
| Length to the vertical plane of the forks | l2 | mm | 1033 | |
| Fork dimensions | s/e/l | mm | 55/170/1350 | |
| Fork outer width | b5 | mm | 540/600/685 | |
| Height with forks lowered | h13 | mm | 90 | |
| Lifting height | h3 | mm | 110 | |
| Forward distance | L4 | mm | - | |
| Sports performance | Travel speed, loaded/unloaded | m/s | 1.5/3 | |
| Maximum grade, loaded/unloaded | % | 8/16 | ||
| Ability to cross the trench | mm | ≤20 | ||
| Turning radius | Wa | mm | 2030 | |
| Channel requirements | Front and rear straight aisle widths (1200×1000) | Ast | mm | 1200 |
| Right Angle Turning Aisle Width (1200×1000) | Ast | mm | 2068 | |
| Width of unilateral pickup and unloading aisle (1200×1000) | Ast | mm | 3236 | |
| Driving safety | Full-time emergency stop button | Both sides | ||
| Audible and visual warnings | Voice Module + Red One-Light | |||
| Forward security | Bottom 180° Obstacle Avoidance Laser + Top Down 3D Camera | |||
| Rear security protection | Fork Tip Camera | |||
| Side Safety Protection | Echocardiography | |||
| Mechanical contact crash bar | Bottom front + bottom side | |||
| Pallet in place detection | Rear Fork Roots | |||
| Option list | Batteries |
Note: ● Standard ○ Optional |
● 24V/150Ah ○ 24V/205Ah |
|
| Battery level | ● 24V-50A External Charger ○ 24V-100A External Charger |
|||
| Automatic charging post | ○ 24V-100A Automatic charging post | |||
| Warning light | ● Red One-Light ● vehicle turn indicator light |
|||
| Forward security | ● Single laser, 180° range ● 3D camera ○ dual laser |
|||
| Rear Fork Tip Recognition | ● Fork Tip Dual Camera ○ Fork Tip Camera + Fork Tip Laser |
|||
| Interaction method | ● Car Screen ○ Car Buttons |
|||
| The above content for the product introduction, the chart shown may contain non-standard configuration, if there is the appearance, technical parameters or configuration of the improvement, we will try to update the information in a timely manner, but in individual cases these information may still be different from the latest situation, please contact the business manager to confirm before placing an order. | ||||
