Multi-scenario Intelligent Robot

Multi-scenario Intelligent Robot

Item: Automatic transport vehicle
Load center: 600mm
Maximum load capacity: 2000kg
Send Inquiry
Description
Technical Parameters

Product introduction



Item

Automatic transport vehicle

Load center

600mm

Maximum load capacity

2000kg



Product detail



  • This Multi-scenario intelligent robot is an automated handling device that can operate flexibly in different working environments.
  • They can work efficiently in indoor warehouses, production workshops, office environments, and outdoor logistics, and have certain adaptability, intelligent operation, and high autonomy.

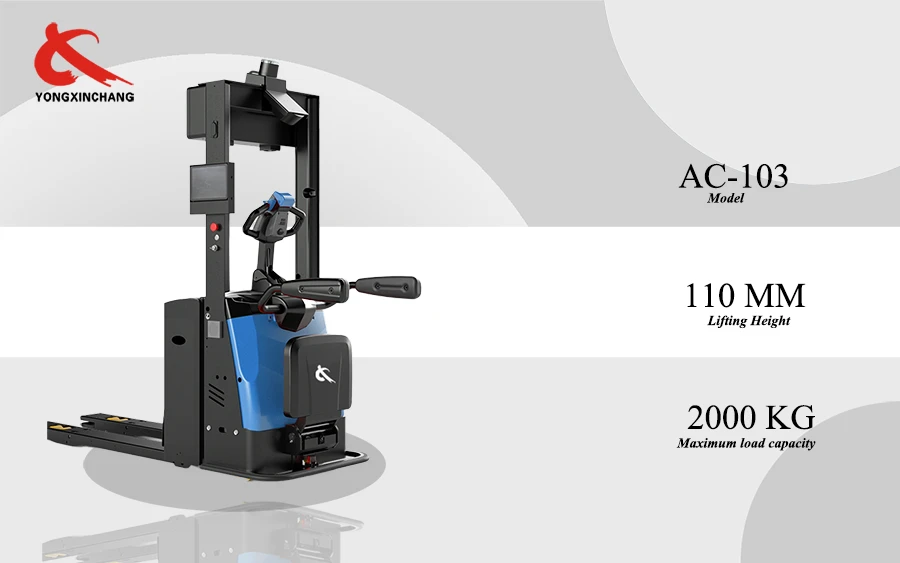

Intelligent Handling Vehicle introduction



Key Features



Strong environmental adaptability

  • Compatible with indoor and outdoor environments: This Multi-scenario intelligent robot can work in a variety of environments, including flat indoor warehouse floors, workshops, and various outdoor floors (such as concrete, asphalt, dirt roads, etc.), with strong adaptability.
  • Ground adaptability: It can adapt to different types of ground conditions, including smooth floors, rough roads, and may even cross uneven or obstacle-filled environments to ensure efficient operation.



Strong stability and durability

  • All-weather operation capability: Some high-end multi-scenario intelligent handling robots are designed for all-weather operation,and can perform outdoor handling tasks in bad weather (such as rain, snow, strong winds, etc.) and maintain stable working performance.
  • Anti-interference ability: It has strong anti-interference ability and can operate stably in a changing environment,especially in outdoor environments, it can effectively deal with factors such as strong light, dust, and obstacles.



Real-time collaboration and scheduling

  • Working in collaboration with other robots: Multi-scenario intelligent robot can work together in the same environment,coordinate handling tasks, and jointly complete large-scale logistics, handling, and distribution tasks.
  • Automatic task allocation: The system can automatically assign different tasks to each robot,improve overall operation efficiency and optimize resource allocation.



Technical Specifications

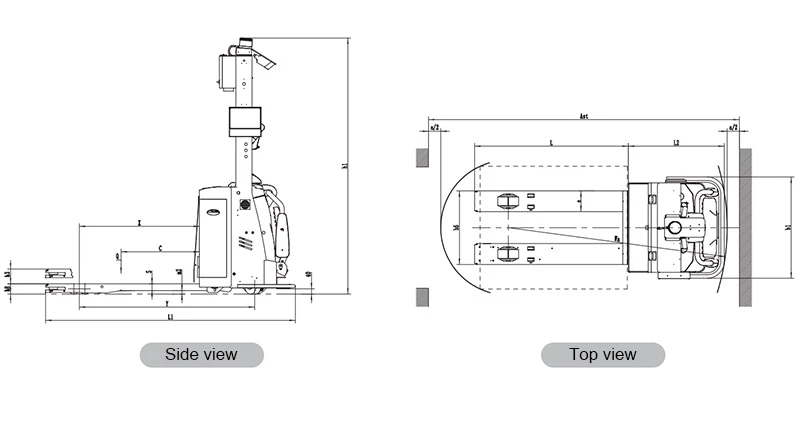

2D Intelligent Handling Vehicle



Model AC-103
Basic parameters Operation type     Standing Driving Style
Dead weight   kg 630
Maximum load capacity Q kg 2000
Navigation method     Laser SLAM/Reflector
Means of communication     Wireless Wi-Fi/5G
Positioning accuracy   mm ±10
Battery specifications Battery Voltage/Nominal Capacity   V/ Ah 24/150
Battery type     lithium iron phosphate (LiFePO4)
Battery weight   kg 50
Battery life   h 6-8
Vehicle dimensions Overall length/width/height I1/b1/h1 mm 2035/825/2090
Load center C mm 600
Bearing length x mm 980
Wheelbase y mm 1484
Length to the vertical plane of the forks l2 mm 780
Fork dimensions s/e/l mm 55/170/1150
Fork outer width b5 mm 540/600/685
Height with forks lowered h13 mm 90
Lifting height h3 mm 110
Sports performance Travel speed, loaded/unloaded   m/s 1.5/2
Maximum grade, loaded/unloaded   % 8/16
Ability to cross the trench   mm ≤20
Turning radius Wa mm 1785
Channel requirements Front and rear straight aisle widths (1200×1000) Ast mm 1500
Right Angle Turning Aisle Width (1200×1000) Ast mm 2150
Width of unilateral pickup and unloading aisle (1200×1000) Ast mm 3000
Driving safety Full-time emergency stop button     Both sides
Audible and visual warnings     Voice module + blue light
Forward security     Literacy Laser
Rear security protection     Fork tip radar
Mechanical contact crash bar     Bottom front + bottom side
Pallet in place detection     Rear fork root
Option list Batteries

Note: ● Standard

○ Optional

 ● 24V/150Ah
○ 24V/205Ah
Battery level ● 24V-50A External Charger
○ 24V-100A External Charger
Automatic charging post ○ 24V-100A Automatic charging post
Warning light ● Blue light
● Turn signal
○ Area warning lights
Forward security ● 180 degree, 3D laser scanner
Rear Fork Tip Recognition ○ Fork Tip Optoelectronics
○ Fork tip camera
● Fork tip radar
Interaction method ● Car screen
○ Car button
The above content for the product introduction, the chart shown may contain non-standard configuration, if there is the appearance, technical parameters or configuration of the improvement, we will try to update the information in a timely manner, but in individual cases these information may still be different from the latest situation, please contact the business manager to confirm before placing an order.
