Product introduction

Item	Automatic transport vehicle
Maximum load capacity	1500kg
Load center	600mm
Bearing length	980mm
Wheelbase	1210mm

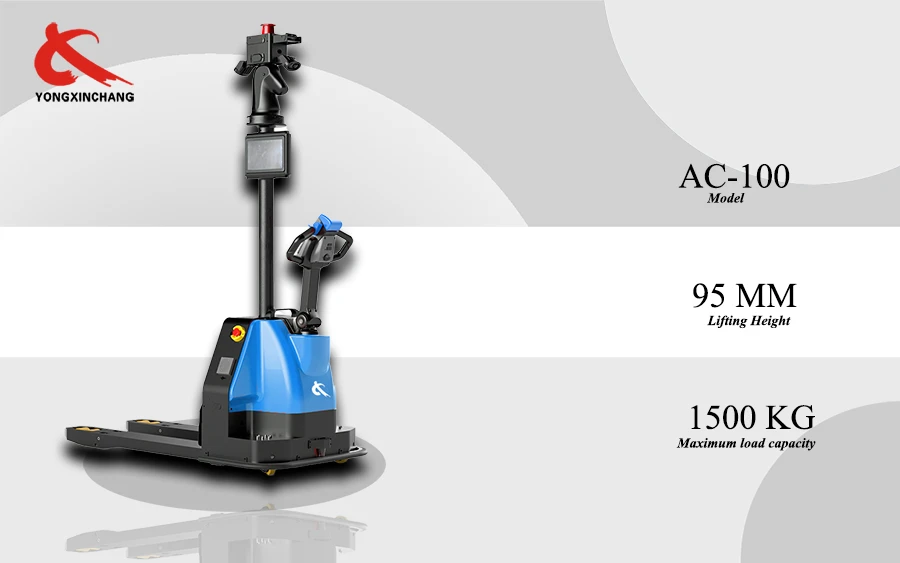

Automated Transport Robot introduction

Product Detail

This Point-to-Point Intelligent Automatic transport vehicle is a robot that can navigate autonomously and can automatically transport materials, goods, and products in complex industrial environments.
Compared with traditional automation equipment, the point-to-point intelligent transport robot has higher flexibility, efficiency, and intelligence, and has better handling efficiency.

Autonomous navigation and positioning

LiDAR, visual navigation:

Point-to-Point Intelligent Automatic transport vehicle use technologies such as LiDAR, visual systems or magnetic tapes, QR codes, etc. for navigation and positioning. They can autonomously identify paths, avoid obstacles and accurately reach their destinations.

High-precision positioning:

The robot can achieve high-precision positioning and path planning during operation, ensuring that each movement can accurately reach the predetermined location for operation, avoiding errors caused by manual operation.

Real-time positioning and scheduling:

Through communication with the central control system, the robot can obtain environmental information in real time and dynamically adjust the route to adapt to environmental changes.

Efficient handling

Automatic loading and unloading:

Point-to-point intelligent handling robots can automatically load and unload materials, greatly improving handling efficiency, reducing the workload of operators, and greatly improving efficiency.

Adapt to a variety of material handling:

The Point-to-Point Intelligent Automatic transport vehicle are designed to adapt to the handling of goods of different shapes and sizes, and can be equipped with different types of pallets, shelves or containers to meet diverse handling needs.

Long-term operation capability:

Modern point-to-point intelligent handling robots are usually equipped with high-efficiency battery systems, which can achieve long-term continuous operation and maintain stable performance in long-term operations and environments.

Technical Specifications

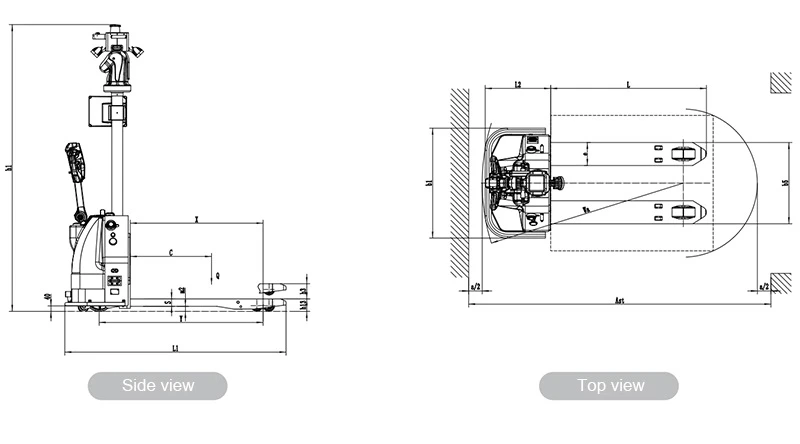

2D Automatic transport vehicle

Model				AC-100
Basic parameters	Operation type			Walk
	Self-weight		kg	335
	Maximum load capacity	Q	kg	1500
	Navigation method			Laser SLAM/Reflector
	Means of communication			Wireless Wi-Fi/5G
	Positioning accuracy		mm	±10
Battery specifications	Battery Voltage/Nominal Capacity		V/ Ah	24/60
	Battery type			lithium iron phosphate (LiFePO4)
	Battery weight		kg	14
	Battery life		h	4-5 (switchable)
Vehicle dimensions	Overall length/width/height	L1/b1/h1	mm	1635/812/2118
	Load center	c	mm	600
	Bearing length	x	mm	980
	Wheelbase	y	mm	1210
	Length to the vertical plane of the forks	l2	mm	485
	Fork dimensions	s/e/l	mm	55/170/1150
	Fork outer width	b5	mm	540/600/685
	Height with forks lowered	h13	mm	90
	Lifting height	h3	mm	95
Sports performance	Travel speed, loaded/unloaded		m/s	1/1.5
	Maximum grade, loaded/unloaded		%	5/10
	Ability to cross the trench		mm	≤20
	Minimum turning radius	Wa	mm	1500
Channel requirements	Front and rear straight aisle widths (1200*1000)	Ast	mm	1200
	Right Angle Turning Aisle Width (1200×1000)	Ast	mm	2200
	Width of unilateral pickup and unloading aisle (1200×1000)	Ast	mm	2400
Driving safety	Full-time emergency stop button			both sides
	Audible and visual warnings			Voice module + blue light
	Forward security			Bottom 180° Obstacle Avoidance Laser + Top Down 3D Camera
	Rear security protection			Fork Tip Optoelectronics
	Side Safety Protection			echocardiography
	Mechanical contact crash bar			Bottom front + bottom side
	Pallet in place detection			Rear Fork Roots
Option list	Batteries	Note: ● Standard ○ Optional		● 24V/60Ah
	Battery level			● 24V-20A External Charger
	Automatic charging post			○ 24V-20A automatic charging post
	Warning light			● blue light ● vehicle turn indicator light Area warning lights
	Forward security			● Single laser, 180° range ○ Dual laser, 270° range ● 3D camera
	Rear Fork Tip Recognition			● Fork Tip Optoelectronics ○ Fork tip camera ○ Fork tip radar
	Interaction method			● Car screen ○ Car button
The above content for the product introduction, the chart shown may contain non-standard configuration, if there is the appearance, technical parameters or configuration of the improvement, we will try to update the information in a timely manner, but in individual cases these information may still be different from the latest situation, please contact the business manager to confirm before placing an order.

Hot Tags: point-to-point intelligent automatic transport vehicle, China point-to-point intelligent automatic transport vehicle manufacturers, suppliers, factory, automatic transport function, industrial automated transport system, automated delivery transport, automated industrial delivery vehicle, automatic cargo module, automatic delivery design

Technical Parameters

Model				AC-100
Basic parameters	Operation type			Walk
	Self-weight		kg	335
	Maximum load capacity	Q	kg	1500
	Navigation method			Laser SLAM/Reflector
	Means of communication			Wireless Wi-Fi/5G
	Positioning accuracy		mm	±10
Battery specifications	Battery Voltage/Nominal Capacity		V/ Ah	24/60
	Battery type			lithium iron phosphate (LiFePO4)
	Battery weight		kg	14
	Battery life		h	4-5 (switchable)
Vehicle dimensions	Overall length/width/height	L1/b1/h1	mm	1635/812/2118
	Load center	c	mm	600
	Bearing length	x	mm	980
	Wheelbase	y	mm	1210
	Length to the vertical plane of the forks	l2	mm	485
	Fork dimensions	s/e/l	mm	55/170/1150
	Fork outer width	b5	mm	540/600/685
	Height with forks lowered	h13	mm	90
	Lifting height	h3	mm	95
Sports performance	Travel speed, loaded/unloaded		m/s	1/1.5
	Maximum grade, loaded/unloaded		%	5/10
	Ability to cross the trench		mm	≤20
	Minimum turning radius	Wa	mm	1500
Channel requirements	Front and rear straight aisle widths (1200*1000)	Ast	mm	1200
	Right Angle Turning Aisle Width (1200×1000)	Ast	mm	2200
	Width of unilateral pickup and unloading aisle (1200×1000)	Ast	mm	2400
Driving safety	Full-time emergency stop button			both sides
	Audible and visual warnings			Voice module + blue light
	Forward security			Bottom 180° Obstacle Avoidance Laser + Top Down 3D Camera
	Rear security protection			Fork Tip Optoelectronics
	Side Safety Protection			echocardiography
	Mechanical contact crash bar			Bottom front + bottom side
	Pallet in place detection			Rear Fork Roots
Option list	Batteries	Note: ● Standard ○ Optional		● 24V/60Ah
	Battery level			● 24V-20A External Charger
	Automatic charging post			○ 24V-20A automatic charging post
	Warning light			● blue light ● vehicle turn indicator light Area warning lights
	Forward security			● Single laser, 180° range ○ Dual laser, 270° range ● 3D camera
	Rear Fork Tip Recognition			● Fork Tip Optoelectronics ○ Fork tip camera ○ Fork tip radar
	Interaction method			● Car screen ○ Car button
The above content for the product introduction, the chart shown may contain non-standard configuration, if there is the appearance, technical parameters or configuration of the improvement, we will try to update the information in a timely manner, but in individual cases these information may still be different from the latest situation, please contact the business manager to confirm before placing an order.

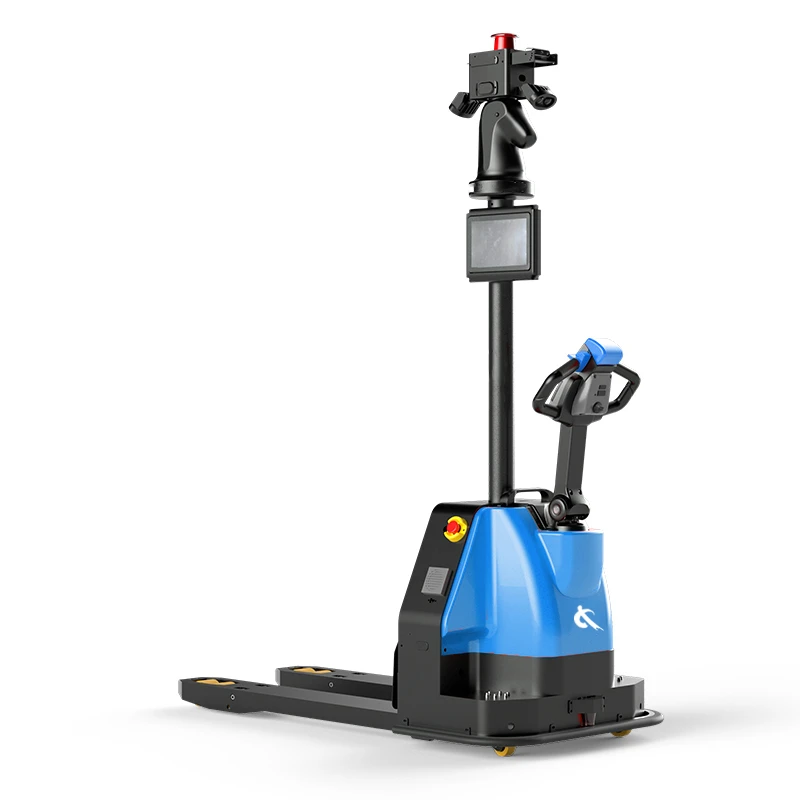

Point-to-Point Intelligent Automatic Transport Vehicle
