Product introduction

Item	Automatic transport vehicle
Maximum load capacity	2000kg
Load center	600mm
Bearing length	980mm

Product Detail

The Pedal type automated guided vehicle can carry out cross-workshop, cross-floor, long-distance and point-to-multipoint transportation, and is equipped with ceiling vision navigation/reflective panels.

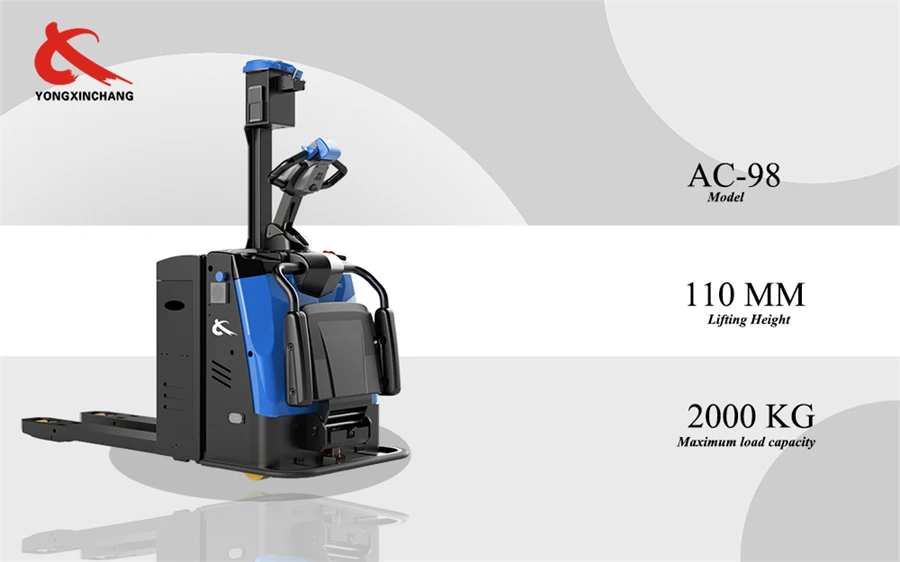

Automated Guided Vehicle introduction

Human-machine combined operation

Combination of manual driving and automatic guidance: The Pedal type automated guided vehicle is operated by the operator standing to perform operations and can be quickly manually controlled when needed; when the operator does not intervene, the vehicle will automatically perform the preset tasks.
High flexibility: The operator can perform flexible operations through the pedal or handle, such as adjusting the direction or speed, so that the robot can quickly adapt to different work needs.

Efficient material handling capabilities

Adapt to a variety of handling needs: This type of transporter can carry goods of various sizes and shapes during operation, and is suitable for working in warehousing, production lines, workshops, and other environments.
Fast handling: The Pedal type automated guided vehicle can complete material handling tasks efficiently and quickly and is very suitable for short-distance transportation and high-frequency handling operations.
Flexible loading: The transporter can be equipped with different types of loading platforms such as pallets and shelves to adapt to a variety of handling needs.

Data collection and remote monitoring

Data recording and analysis: Operators or engineers can use built-in sensors and intelligent systems, and the automatic transporter can record operating data, working status, location and other information in real time to provide data support for scheduling and management.
Remote control and monitoring: Managers can remotely monitor and operate through computers or mobile devices, making it easier for managers to schedule and manage the status of the transporter.

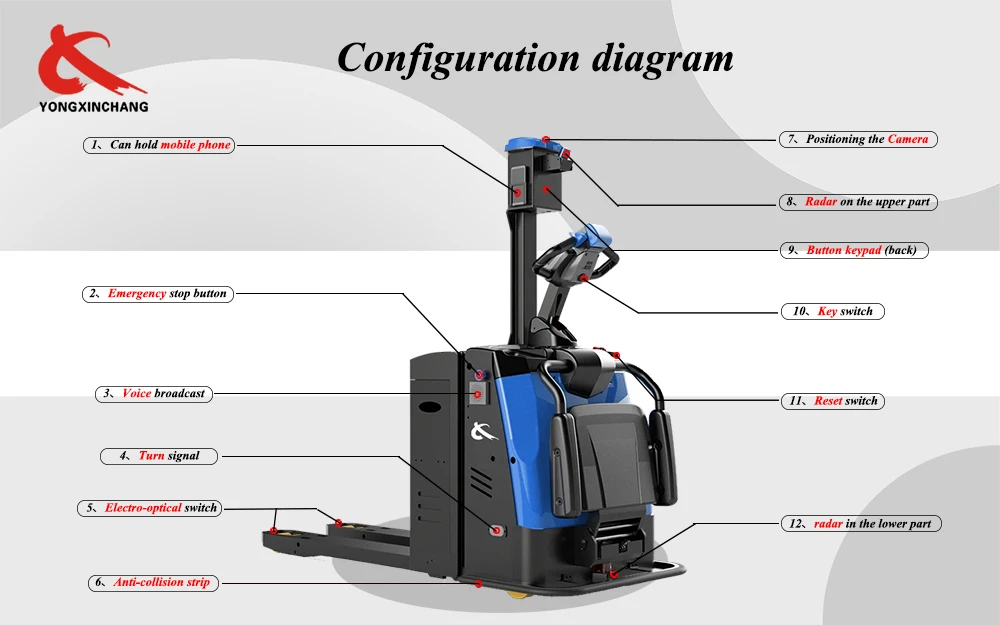

AC-98

Energy saving and environmental protection

Battery drive: This Pedal type automated guided vehicle is battery-driven, reducing dependence on traditional fuels, contributing to energy saving and environmental protection.
Low noise: The electric drive system equipped with this transporter makes the transporter run with low noise, suitable for use in a quiet working environment.

Technical Specifications

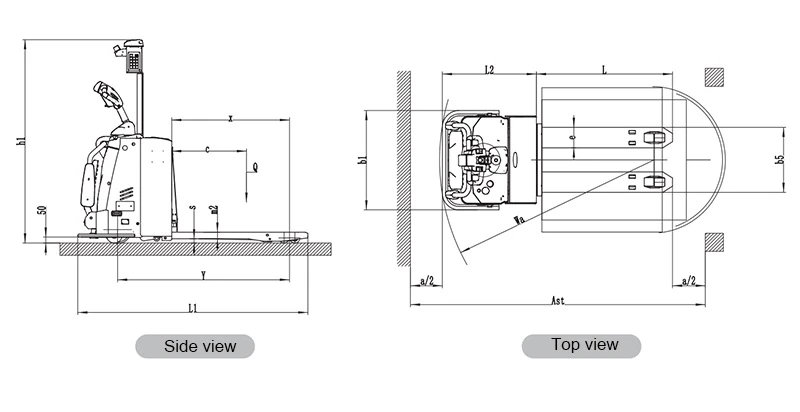

2D Pedestrian-type Automated Guided Vehicle

Automated Guided Vehicle

electric forklift

electric forklift agv

electric forklift show

Hot Tags: pedal type automated guided vehicle, China pedal type automated guided vehicle manufacturers, suppliers, factory, automated transport vehicle, automatic freight module, automatic transport robot, automated cargo function, automatic material performance, automatic industrial transport vehicle

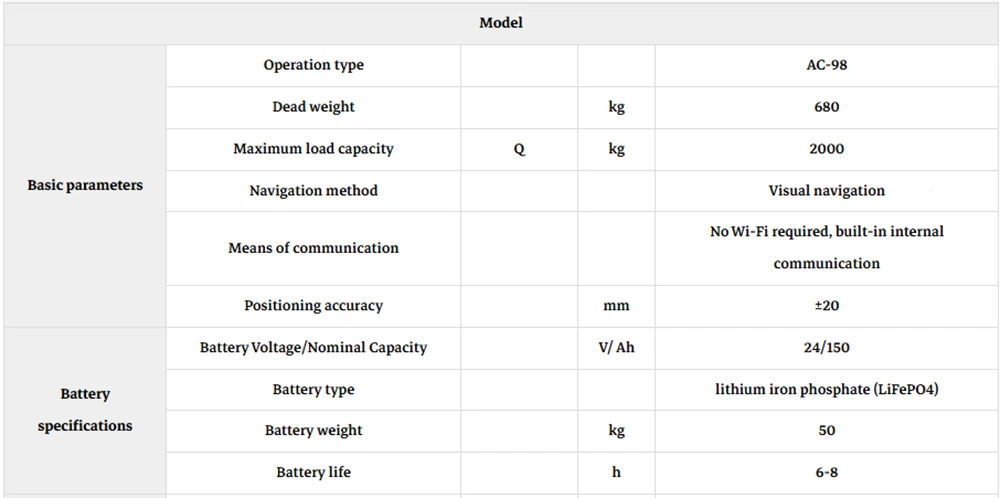

Technical Parameters

Model
Basic parameters	Operation type			AC-98
	Dead weight		kg	680
	Maximum load capacity	Q	kg	2000
	Navigation method			Visual navigation
	Means of communication			No Wi-Fi required, built-in internal communication
	Positioning accuracy		mm	±20
Battery specifications	Battery Voltage/Nominal Capacity		V/ Ah	24/150
	Battery type			lithium iron phosphate (LiFePO4)
	Battery weight		kg	50
	Battery life		h	6-8

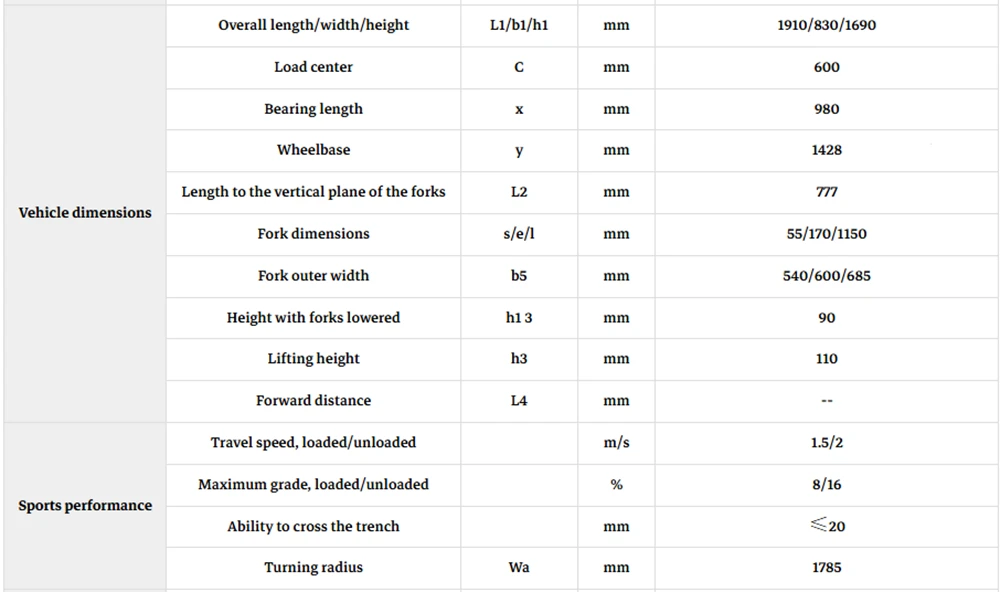

Vehicle dimensions	Overall length/width/height	L1/b1/h1	mm	1910/830/1690
	Load center	C	mm	600
	Bearing length	x	mm	980
	Wheelbase	y	mm	1428
	Length to the vertical plane of the forks	L2	mm	777
	Fork dimensions	s/e/l	mm	55/170/1150
	Fork outer width	b5	mm	540/600/685
	Height with forks lowered	h1 3	mm	90
	Lifting height	h3	mm	110
	Forward distance	L4	mm	--
Sports performance	Travel speed, loaded/unloaded		m/s	1.5/2
	Maximum grade, loaded/unloaded		%	8/16
	Ability to cross the trench		mm	≤20
	Turning radius	Wa	mm	1785

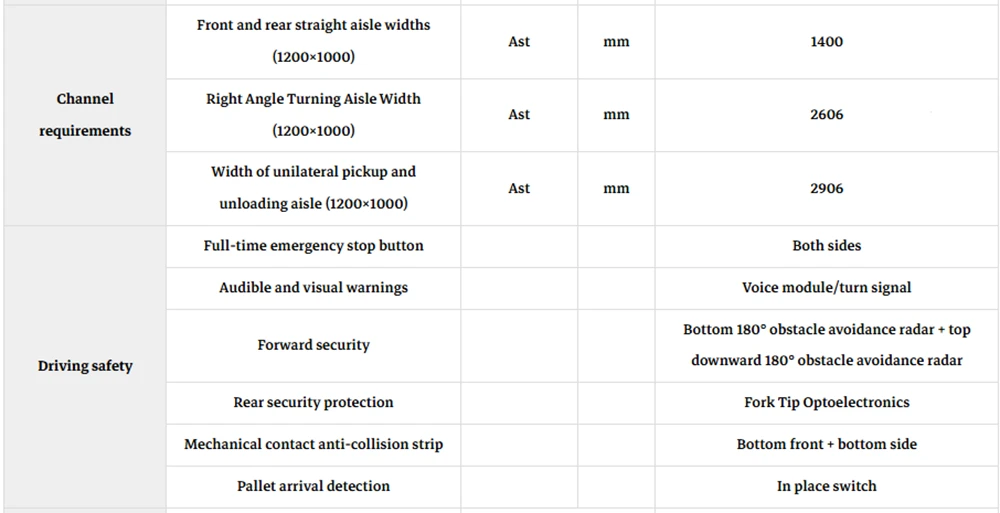

Channel requirements	Front and rear straight aisle widths (1200×1000)	Ast	mm	1400
	Right Angle Turning Aisle Width (1200×1000)	Ast	mm	2606
	Width of unilateral pickup and unloading aisle (1200×1000)	Ast	mm	2906
Driving safety	Full-time emergency stop button			Both sides
	Audible and visual warnings			Voice module/turn signal
	Forward security			Bottom 180° obstacle avoidance radar + top downward 180° obstacle avoidance radar
	Rear security protection			Fork Tip Optoelectronics
	Mechanical contact anti-collision strip			Bottom front + bottom side
	Pallet arrival detection			In place switch

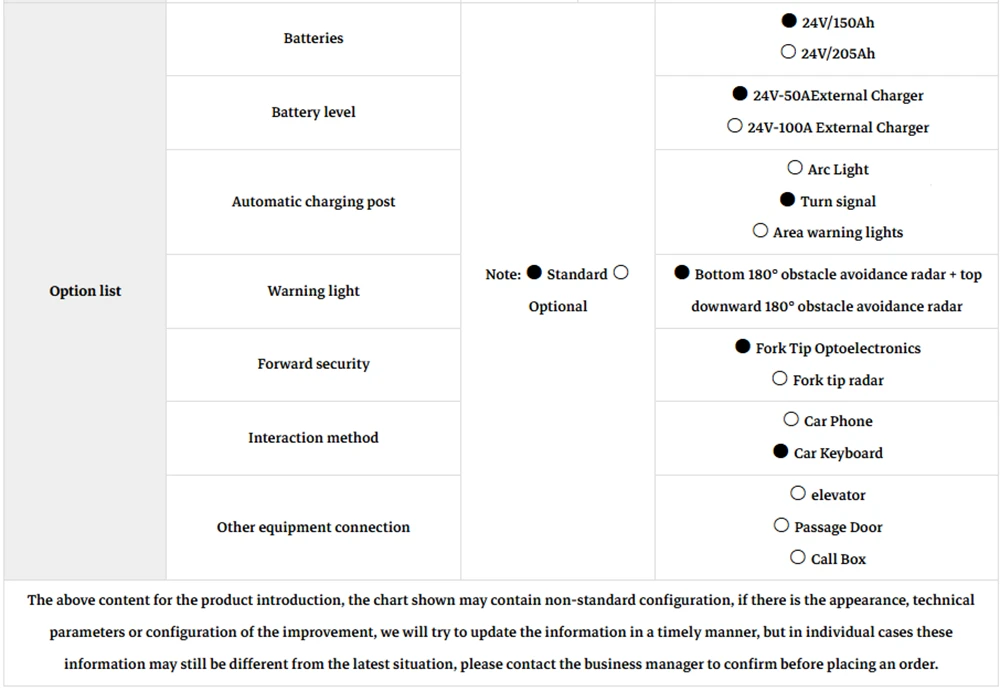

Option list	Batteries	Note: ● Standard ○ Optional		● 24V/150Ah ○ 24V/205Ah
	Battery level			● 24V-50AExternal Charger ○ 24V-100A External Charger
	Automatic charging post			○ Arc Light ● Turn signal ○ Area warning lights
	Warning light			● Bottom 180° obstacle avoidance radar + top downward 180° obstacle avoidance radar
	Forward security			● Fork Tip Optoelectronics ○ Fork tip radar
	Interaction method			○ Car Phone ● Car Keyboard
	Other equipment connection			○ elevator ○ Passage Door ○ Call Box
The above content for the product introduction, the chart shown may contain non-standard configuration, if there is the appearance, technical parameters or configuration of the improvement, we will try to update the information in a timely manner, but in individual cases these information may still be different from the latest situation, please contact the business manager to confirm before placing an order.

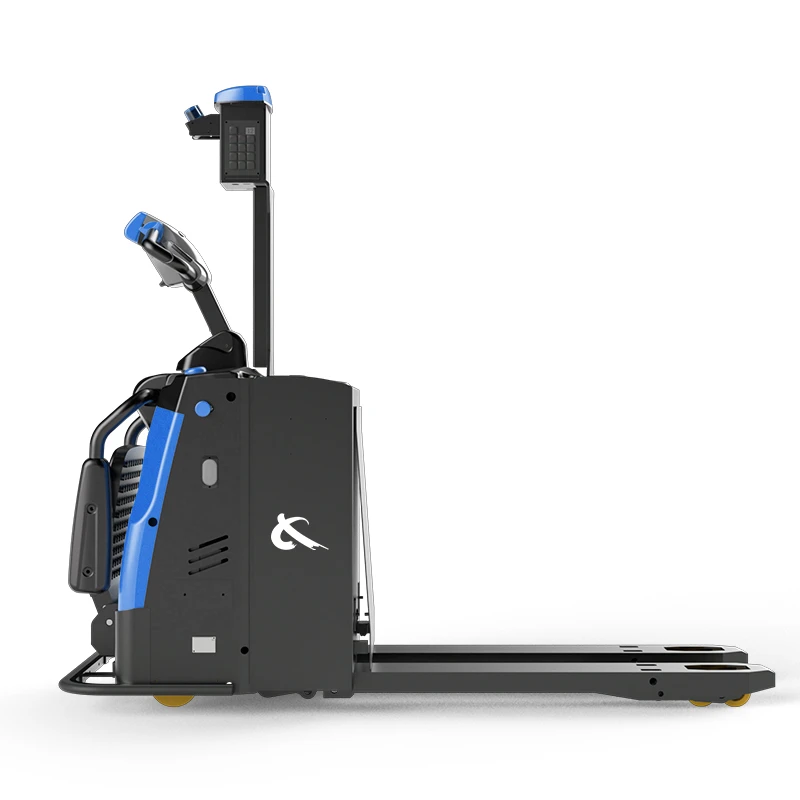

Pedal Type Automated Guided Vehicle
