Product Introduction

Items	Electric counterbalance forklift
Other maximum load capacity	2ton; 2.5ton; 3ton;
Load center	500mm
Maximum lifting height	4135mm

Product detail

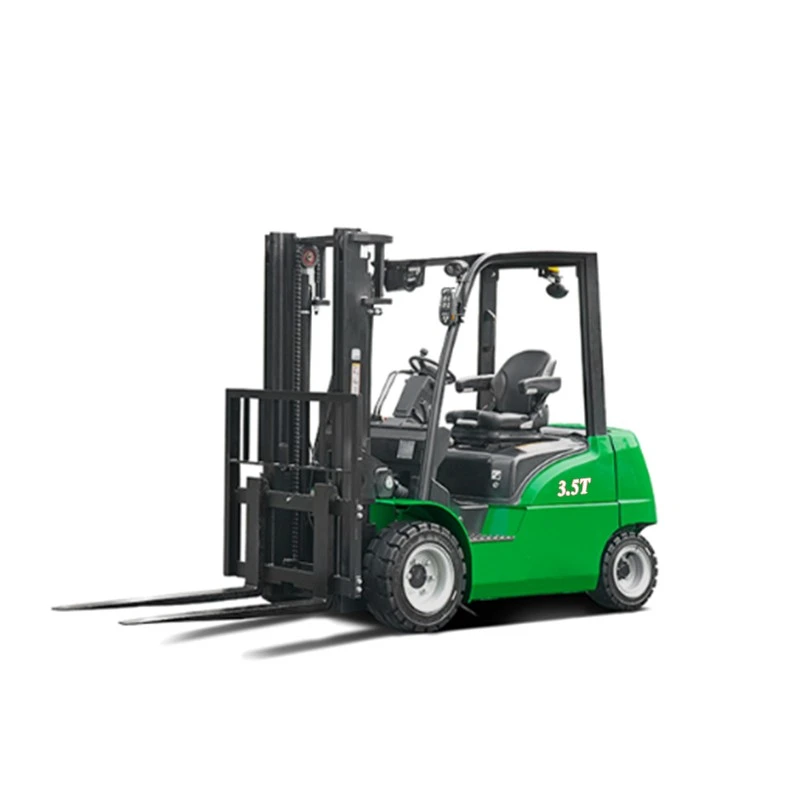

This 3.5 ton Electric Forklift High Speed is equipped with a powerful power system, which has the ability to effortlessly handle various heavy-load working conditions. The lithium battery technology it adopts provides a persistent and stable power output, allowing the forklift to exhibit excellent performance in its work. Whether it is for hoisting goods or traveling, it can respond promptly, greatly increasing the work efficiency. In addition, the charging speed is fast, reducing the waiting time and further enhancing the continuity of operations.

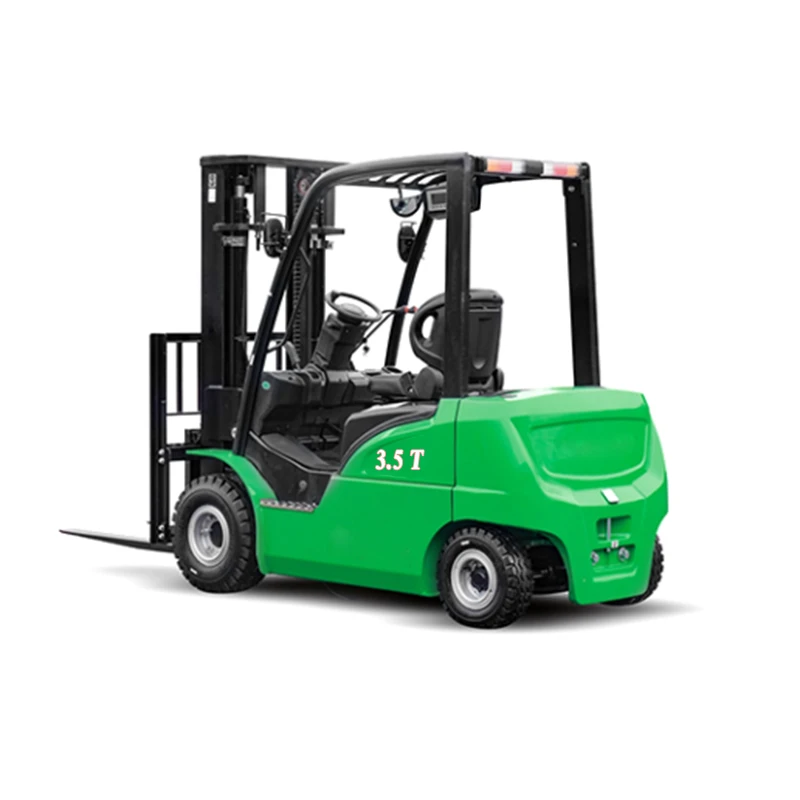

Counterbalance Forklift introduction

The core competitiveness of this 3.5 Ton Electric Forklift High Speed lies in its exceptional control system design. The steering mechanism features millimeter-level response accuracy and sensitive feedback characteristics, enabling operators to achieve high-precision cargo positioning in compact working scenarios.
The power transmission system undergoes specialized calibration, effectively suppressing vibrations during vehicle movement to ensure zero material loss during transportation. This solution that pushes the engineering machinery control performance to the extreme significantly enhances operational fluency and safety in complex working conditions.

The main frame adopts aerospace-grade alloy materials and modular load-bearing design, with ultra-long service life verified through extreme load testing. The chassis structure optimized for high-intensity logistics scenarios maintains load capacity while substantially reducing failure rates. The application of a full lifecycle quality management system ensures stable performance output even under harsh operating conditions.

The integrated multi-layer active protection mechanism, including emergency stop response devices and posture stabilization modules, constructs a 360-degree safe operating environment. The intelligent warning system utilizes a sensor matrix to monitor equipment parameters in real-time, proactively identifying potential risks and triggering tiered alarms. This forward-looking protection strategy allows operators to focus on workflows without concerns about sudden equipment anomalies.

Equipped with a self-learning AI diagnostic platform, it synchronously analyzes over 200 sets of operational parameters, automatically generating maintenance recommendations and spare parts replacement cycle predictions.
The cloud-linked collaborative system supports remote equipment status monitoring and program updates, achieving global optimization of operation and maintenance resources. The implementation of a digital management system markedly improves comprehensive equipment utilization efficiency.

The cockpit layout, based on big data analysis of ergonomics, incorporates adaptive suspension seats and intelligent environmental adjustment modules. The control panel employs multimodal interaction design, reducing operational fatigue through tactile feedback and voice commands.
This design philosophy deeply aligned with human sensory perception transforms the equipment from a mere production tool into an intelligent partner capable of perceiving user needs.

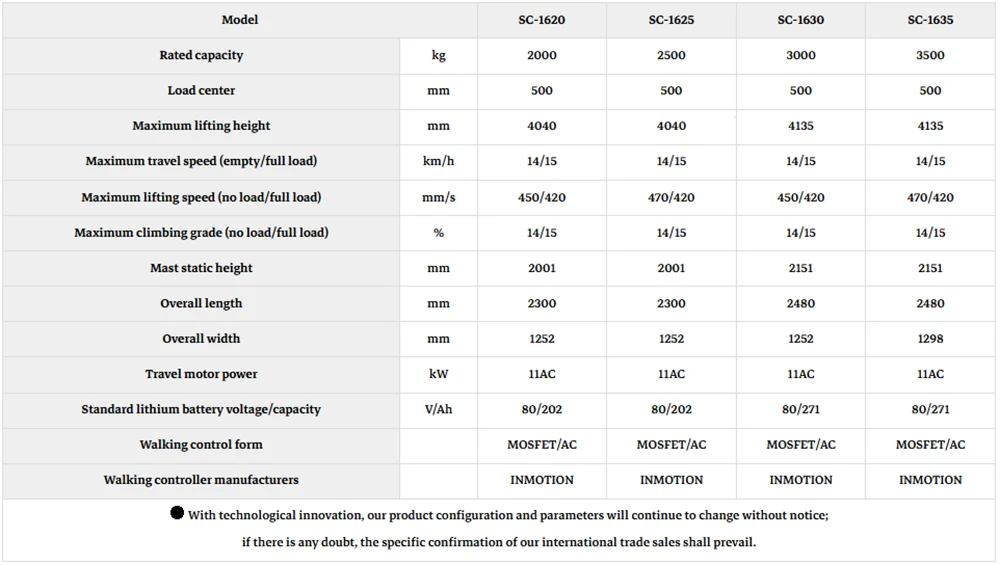

Model		SC-1620	SC-1625	SC-1630	SC-1635
Rated capacity	kg	2000	2500	3000	3500
Load center	mm	500	500	500	500
Maximum lifting height	mm	4040	4040	4135	4135
Maximum travel speed (empty/full load)	km/h	14/15	14/15	14/15	14/15
Maximum lifting speed (no load/full load)	mm/s	450/420	470/420	450/420	470/420
Maximum climbing grade (no load/full load)	%	14/15	14/15	14/15	14/15
Mast static height	mm	2001	2001	2151	2151
Overall length	mm	2300	2300	2480	2480
Overall width	mm	1252	1252	1252	1298
Travel motor power	kW	11AC	11AC	11AC	11AC
Standard lithium battery voltage/capacity	V/Ah	80/202	80/202	80/271	80/271
Walking control form		MOSFET/AC	MOSFET/AC	MOSFET/AC	MOSFET/AC
Walking controller manufacturers		INMOTION	INMOTION	INMOTION	INMOTION
● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail.
