Description
Technical Parameters

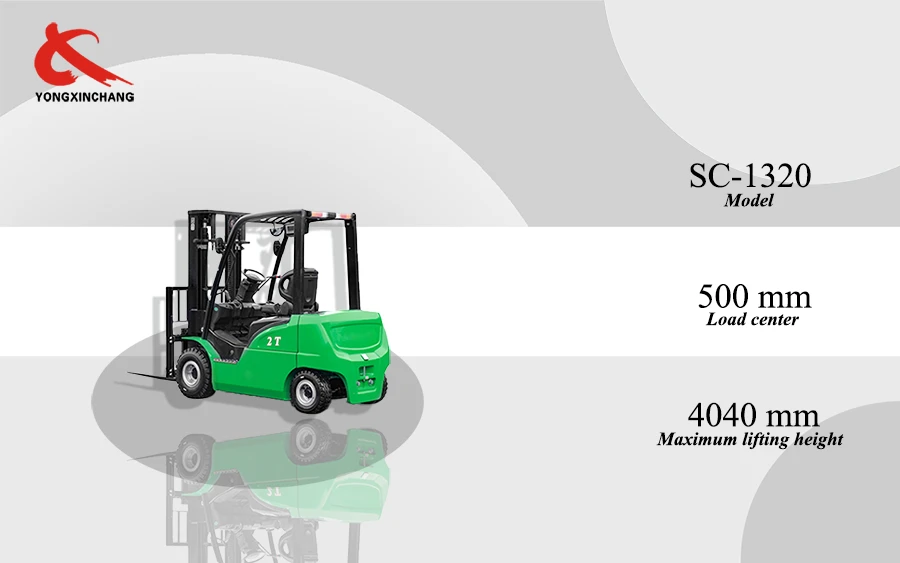

Product Introduction
|
Items |
Electric counterbalance forklift |
|
Other maximum load capacity |
2.5ton; 3ton; 3.5ton; |
|
Load center |
500mm |
Product Detail
- This 2 ton electric forklift employs high-performance lithium batteries, which exhibit the attributes of high energy density, rapid charging rate, and strong endurance capability. Compared with traditional lead-acid batteries, it can significantly boost work efficiency.
- In addition, it is also equipped with an intelligent energy management system, which is able to precisely manage the utilization and recycling of energy, minimizing energy consumption to the utmost extent, prolonging the battery's service life, and simultaneously reducing operating costs.

Key Features
Outstanding Performance
- Enhanced Drive Dynamics: This 2-Ton Electric Forklift is equipped with a high - performance motor unit. It can output strong kinetic energy and meet the operational requirements of various tasks like cargo lifting, stacking, and transportation in complex scenarios.
- Refined Operation System: By combining sensitive steering with stable traction, operators can accurately control the displacement of the equipment. This greatly enhances the smoothness of operations and reduces safety risks.
Safety and Reliability
- Reinforced Chassis Construction: Engineered with industrial-grade alloys, the framework demonstrates exceptional load-bearing resilience even in extreme operational conditions involving massive payloads and abrasive surroundings.
- Multi-Layered Safeguards: Integrated emergency intervention modules including instant halt triggers and restraint harnesses establish comprehensive protection protocols for both personnel and cargo integrity.
- Predictive Braking Technology: Advanced deceleration mechanisms enable rapid response to unexpected scenarios, ensuring motion termination within controlled parameters.
Intelligent Technology
- Smart Diagnostics Interface: Continuously tracks operational metrics and autonomously generates maintenance alerts, streamlining troubleshooting procedures to maximize equipment uptime.
- Cloud-Based Fleet Tracking: Wireless connectivity allows centralized monitoring of machinery performance metrics, empowering proactive anomaly detection and resolution for optimized asset utilization.
Humanized Design
- Ergonomic Command Hub: The intelligently configured operator zone features expansive legroom, contoured seating, and intuitive control panels designed to minimize physical strain during extended shifts.
- Modular Component Design: Simplified assembly architecture allows rapid replacement of wear-prone elements through tool-free access points, accelerating service workflows.
Green and Environmental Protection
- Zero-Emission Lithium-Ion Architecture: Energy supply derived from rechargeable battery packs eliminates particulate emissions, aligning with circular economy principles and stringent ecological compliance standards.
- Whisper-Quiet Operation: Noise suppression engineering ensures acoustic output below 65dB, fostering harmonious coexistence between industrial activities and ambient communities
Technical Specifications

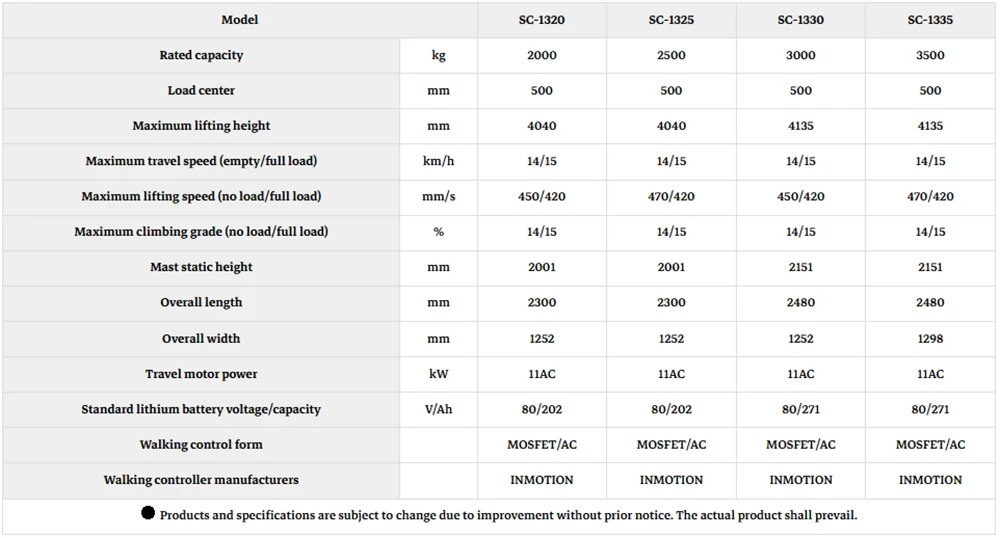

Technical Parameters
| Model | SC-1320 | SC-1325 | SC-1330 | SC-1335 | |
| Rated capacity | kg | 2000 | 2500 | 3000 | 3500 |
| Load center | mm | 500 | 500 | 500 | 500 |
| Maximum lifting height | mm | 4040 | 4040 | 4135 | 4135 |
| Maximum travel speed (empty/full load) | km/h | 14/15 | 14/15 | 14/15 | 14/15 |
| Maximum lifting speed (no load/full load) | mm/s | 450/420 | 470/420 | 450/420 | 470/420 |
| Maximum climbing grade (no load/full load) | % | 14/15 | 14/15 | 14/15 | 14/15 |
| Mast static height | mm | 2001 | 2001 | 2151 | 2151 |
| Overall length | mm | 2300 | 2300 | 2480 | 2480 |
| Overall width | mm | 1252 | 1252 | 1252 | 1298 |
| Travel motor power | kW | 11AC | 11AC | 11AC | 11AC |
| Standard lithium battery voltage/capacity | V/Ah | 80/202 | 80/202 | 80/271 | 80/271 |
| Walking control form | MOSFET/AC | MOSFET/AC | MOSFET/AC | MOSFET/AC | |
| Walking controller manufacturers | INMOTION | INMOTION | INMOTION | INMOTION | |
| ● Products and specifications are subject to change due to improvement without prior notice. The actual product shall prevail. | |||||
