Description
Technical Parameters
Product Introduction
|
Items |
Electric counterbalance forklift |
|
Other maximum load capacity |
1ton; 1.5ton; 1.75ton; 2ton; 2.5ton; 3ton; 3.5ton; |
|
Load center |
500mm |
|
Standard lifting height |
3000mm |
Product Detail

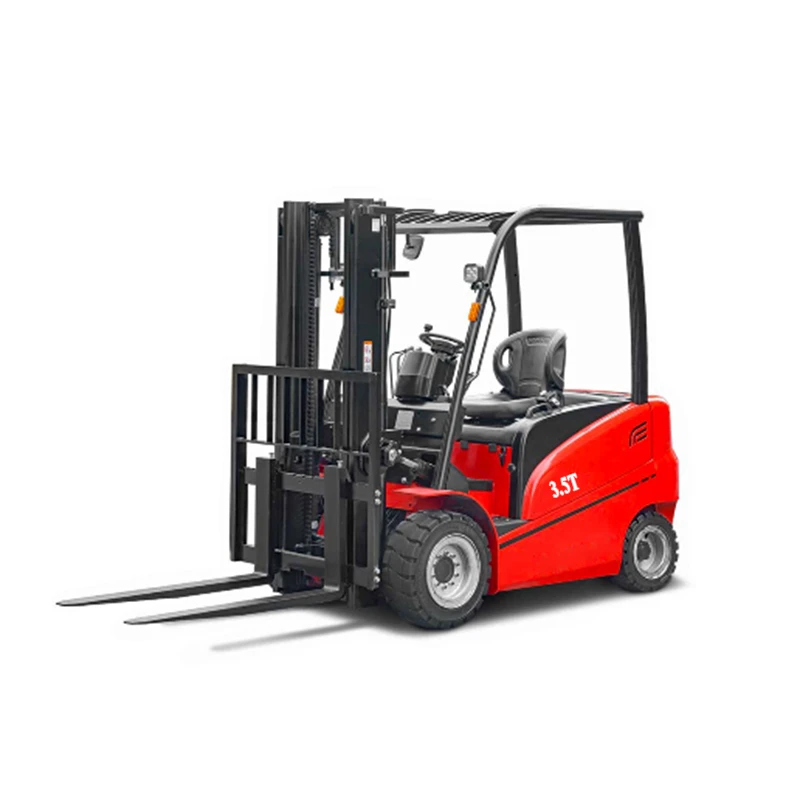

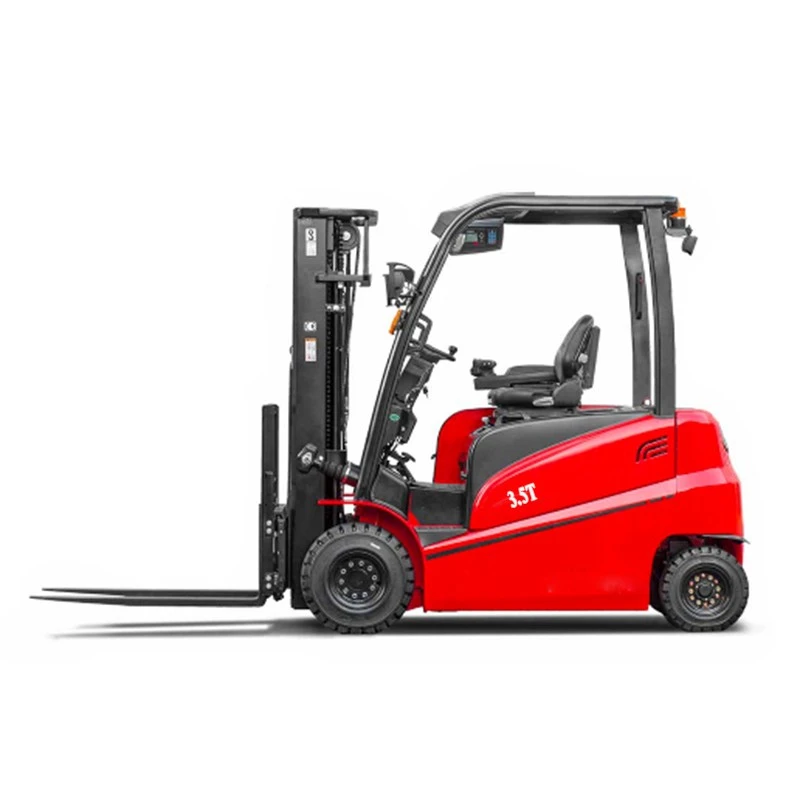

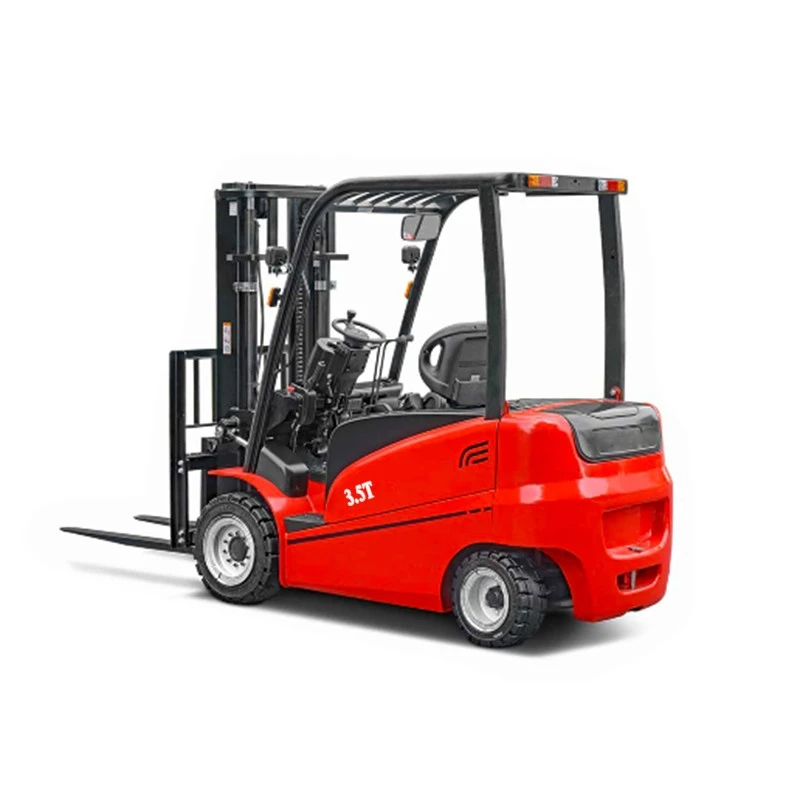

- This 3.5 ton High Performance Electric Forklift is furnished with a high-power motor, which offers robust traction and lifting power, and is capable of effortlessly coping with various heavy-load operation assignments. It adopts advanced transmission technology to ensure smooth, efficient power transmission and minimize energy dissipation.

Key Features
Optimized Handling Performance
- Accurate directional control mechanism: Equipped with responsive steering feedback, enhancing operational ease and positioning accuracy for improved workflow efficiency.
- Human-machine interface design: Ergonomically optimized control handles and pedal arrangements minimize operator fatigue while maximizing comfort.
Enhanced Safety Protocols
- Advanced braking solutions: Multi-scenario adaptive braking technology ensures reliable emergency stopping and operational stability.
- Comprehensive protection systems: Integrated collision absorption structures and overhead safeguards protect operators and surrounding personnel.
Intelligent Electrical Architecture
- Unified control module: Digital management systems enable synchronized equipment functions and dynamic adjustments.
- Sustainable energy management: Optimized power circulation extends energy system longevity, maintaining continuous high-efficiency operation.
Operational Efficiency Boost
- Rapid lifting technology: Streamlined cargo transfer processes significantly reduce loading/unloading cycles.
- Extended-capacity components: Increased single-trip load capacity effectively minimizes empty return trips.
Durable Structural Engineering
- High-resistance framework: Deformation-resistant alloy construction enhances overall equipment stability.
- Premium component selection: Industrial-grade durable parts ensure long-term operational reliability.
Eco-Friendly Characteristics
- Clean propulsion system: Zero-emission drive technology achieves environmental neutrality.
- Low-consumption operation: Enhanced energy conversion efficiency aligns with sustainable production standards.
Smart Maintenance Features
- Real-time status monitoring: Built-in equipment health alerts enable rapid fault diagnosis.
- Operational analytics platform: Comprehensive performance data logging supports efficiency optimization decisions.
Technical Specifications

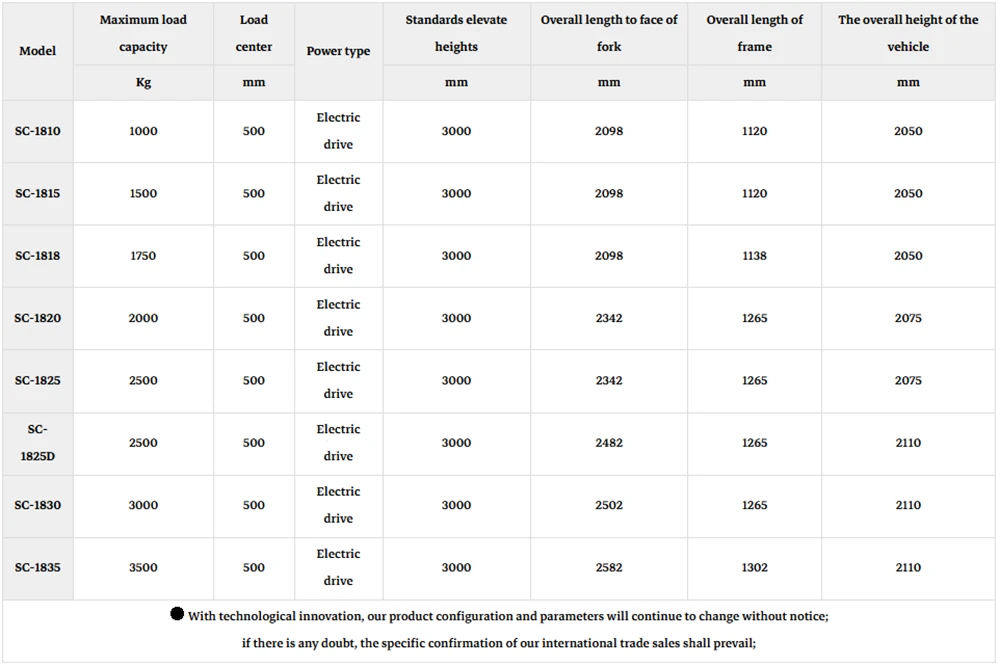

Technical Parameters
| Model | Maximum load capacity | Load center | Power type | Standards elevate heights | Overall length to face of fork | Overall length of frame | The overall height of the vehicle |
| Kg | mm | mm | mm | mm | mm | ||
| SC-1810 | 1000 | 500 | Electric drive | 3000 | 2098 | 1120 | 2050 |
| SC-1815 | 1500 | 500 | Electric drive | 3000 | 2098 | 1120 | 2050 |
| SC-1818 | 1750 | 500 | Electric drive | 3000 | 2098 | 1138 | 2050 |
| SC-1820 | 2000 | 500 | Electric drive | 3000 | 2342 | 1265 | 2075 |
| SC-1825 | 2500 | 500 | Electric drive | 3000 | 2342 | 1265 | 2075 |
| SC-1825D | 2500 | 500 | Electric drive | 3000 | 2482 | 1265 | 2110 |
| SC-1830 | 3000 | 500 | Electric drive | 3000 | 2502 | 1265 | 2110 |
| SC-1835 | 3500 | 500 | Electric drive | 3000 | 2582 | 1302 | 2110 |
| ● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail; |
|||||||
