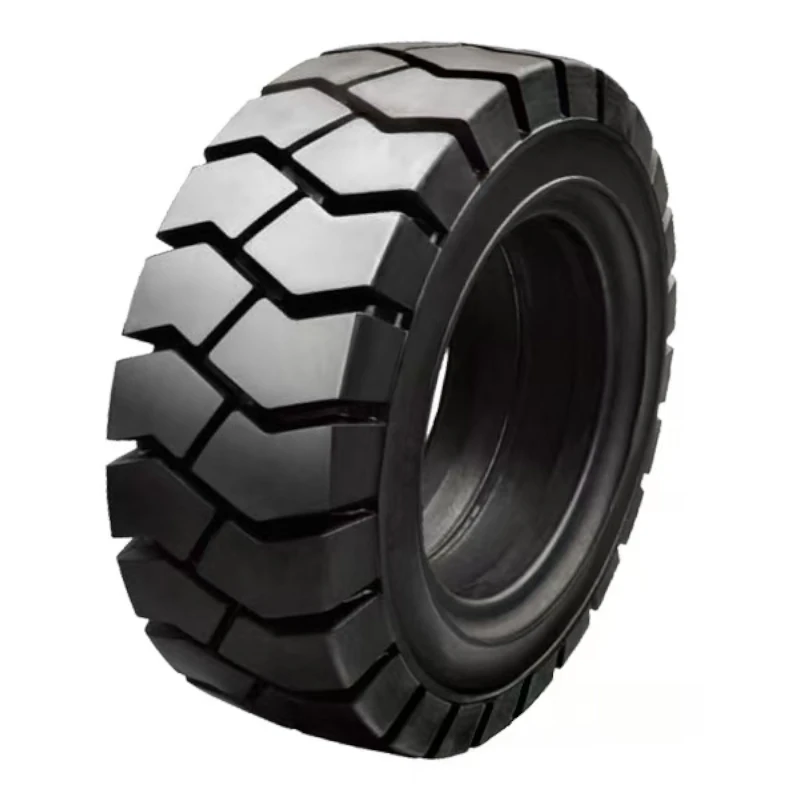

Tires with Raised Rim Protector



Item	Solid tires
Outer diameter	454mm
Cross-section width	124mm





• This tire with raised rim protector uses high-strength rubber and has an optimized tread structure design, which greatly improves the wear resistance of the tire in the use environment.
• The durability of the tire makes it very suitable for driving vehicles for long-distance transportation and heavy-loaded vehicles, which can significantly reduce the replacement frequency of this tire and reduce the corresponding operating costs.





Fuel Economy

• The tires with raised rim protector are designed with optimized rolling resistance to reduce energy consumption during vehicle operation, thereby reducing operating costs for long-distance transportation.



Noise reduction comfort

• The high-load tire incorporates a noise-reduction optimization design that mitigates vehicular noise during operation, enhancing driver comfort and proving especially apt for long-haul freight vehicle operations.



Abrasion resistance

• The high-strength rubber composition and meticulously optimized tread structure of this high-load tire synergistically enhance its wear resistance, ensuring exceptional performance in diverse usage scenarios.



Pattern Design

• Longitudinal Groove Innovation: The tread pattern features a generously wide longitudinal groove configuration, which not only optimizes water evacuation but also precludes vehicle slippage on wet surfaces with remarkable efficacy.
• Transverse Pattern Enhancement: The tire with a raised rim protector is engineered to augment lateral grip and driving stability, ensuring seamless operation across diverse road conditions, from highways to rural byways.



Puncture resistance

• The carcass structure of the heavy-duty truck tires has undergone continuous fortification, with the sidewall and tread fabricated from specialized puncture-resistant materials. This design not only thwarts sharp object penetration but also accommodates complex road terrains, notably gravel and potholed surfaces.

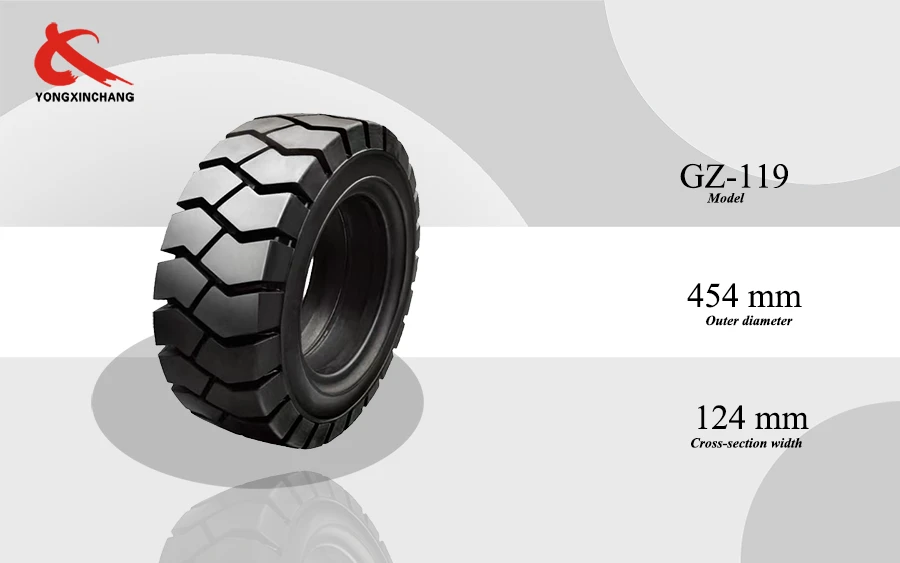

Super deep block pattern, rim protection function, essential for internal combustion forklifts			GZ-119
Spec.	Wheel rim	New tire size/ mm		Maximum load of tires at different maximum speeds / kg
				Counterbalanced forklift		Other industrial vehicles
		Outer diameter	Cross-section width	25km/h		6km/h	10km/h	25km/h
				Drive wheel	Steering wheel
5.00-8/3.00	3.00D-8	454	124	1415	1090	1415	1285	1090
5.00-8/3.50	3.50D-8
6.00-9/4.00	4.00E-9	532	145	1885	1450	1885	1710	1450
6.50-10/5.00	5.00F-10	578	165	2340	1800	2340	2125	1800
7.00-12/5.00	5.00S-12	655	168	2920	2240	2920	2645	2240
6.00-15/4.50	4.50E-15	690	158	2370	1820	2370	2145	1820
7.00-15/5.50	5.5-15	725	188	3545	2725	3545	3215	2725
7.50-15/5.50	5.5-15	746	204	3900	3000	3900	3540	3000
7.50-15/6.50	6.5-15
8.25-12/5.00	5.00S-12	719	202	3360	2585	3360	3050	2585
8.25-15/6.50	6.5-15	814	208	4750	3650	4750	4300	3650
7.50-16/6.00	6.00G-16	790	200	3965	3050	3965	3600	3050
7.50-16/6.50	6.50H-16
9.00-16/6.50	6.50H-16	870	220	4355	3350	4355	3955	3350
9.00-20/7.0	7.0-20	1009	247	5400	4500	5850	4905	4500
15×4.5-8/3.00	3.00D-8	380	114	1040	800	1040	945	800
16×6-8/4.33	4.33R-8	417	161	1270	975	1270	1150	975
18×7-8/4.33	4.33R-8	456	156	2145	1650	2145	1945	1650
21×8-9/6.00	6.00E-9	530	182	2755	2120	2755	2500	2120
23×9-10/6.50	6.50F-10	590	195	3160	2430	3160	2865	2430
23×10-12/8.00	8.00G-12	587	239	3770	2900	3770	3420	2900
27×10-12/8.00	8.00G-12	675	235	3900	3000	3900	3540	3000
28×9-15/7.0	7.0-15	698	220	3445	2650	3445	3125	2650
250-15/7.0	7.0-15	725	230	4745	3650	4745	4310	3650
250-15/7.5	7.5-15
300-15/8.0	8.0-15	825	259	5850	4500	5850	5310	4500
200/50-10/6.50	6.50F-10	458	196	2470	1900	2470	2240	1900
315/45-12/10.00	10.00G-12	576	285	4485	3450	4485	4070	3450
355/65-15/9.75	9.75-15	842	311	7800	6000	7085	6430	5450
355/50-20/10.0	10.0-20	843	323	8970	6900	8970	8140	6900
The above content for the product introduction, the chart shown may contain non-standard configuration, if there is the appearance, technical parameters or configuration of the improvement, we will try to update the information in a timely manner, but in individual cases these information may still be different from the latest situation, please contact the business manager to confirm before placing an order.
