Description
Technical Parameters
Product introduction
| Item: | Reach Truck |
| Load center: | 600mm |
| Standard Lift Height: | 3000mm |
| Overall length to fork face: | 1802mm |
Product detail

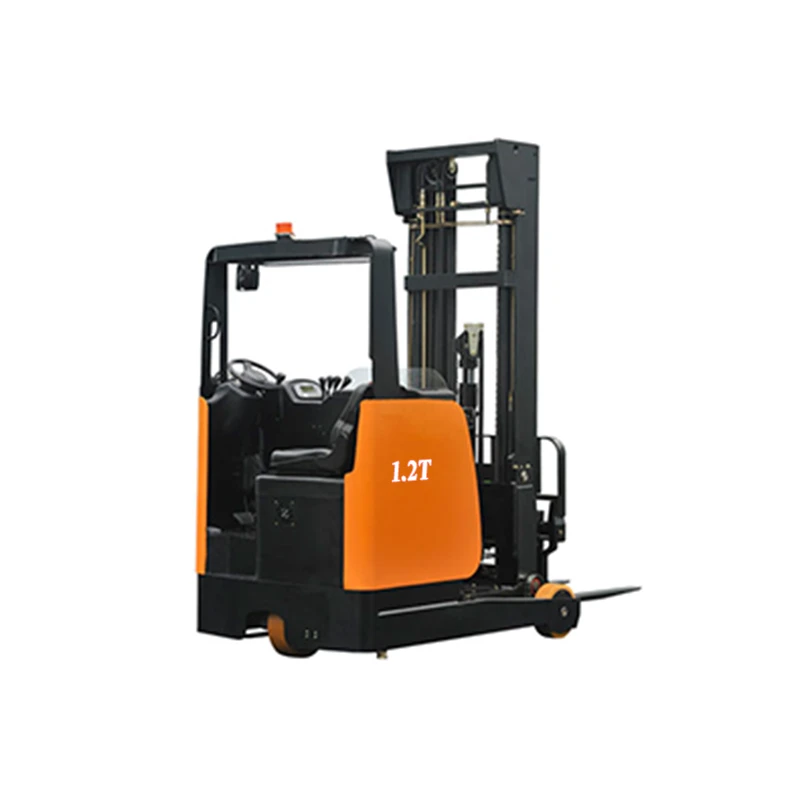

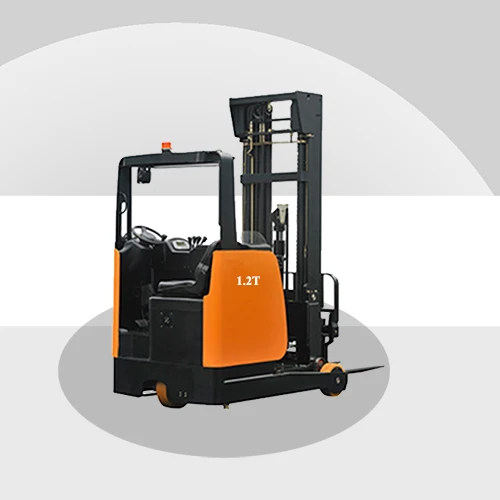

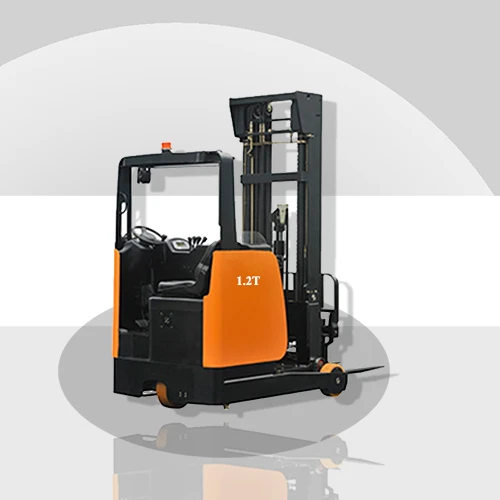

- This Reach truck 1.2 ton is equipped with a powerful electric drive system, with strong and stable power output, performing excellently in various cargo handling tasks.
- The standard lifting height reaches 3000mm, which can meet the access requirements of most conventional shelves. Combined with the precise hydraulic control system, it realizes the smooth and rapid lifting of goods, effectively improving the operation efficiency.

Key Features
Precise Operation Experience
- This electric forklift adopts advanced control technology. The seated driving design provides a comfortable operating environment for the driver. The layout of the operating handle is reasonable, and the control actions conform to the principles of ergonomics.
- The driver can easily realize the forward, backward, steering, lifting and other actions of the forklift. The steering is flexible, and the minimum turning radius is small, enabling it to move freely in narrow aisles and limited spaces, and accurately park, load and unload goods.
Safety Guarantee Measures
- Safety performance is the top priority in the design of this forklift. It is equipped with a reliable braking system, including service braking and parking braking. The braking is sensitive and effective, and it can stop quickly in emergency situations to prevent accidents. At the same time, there are multiple safety warning devices, such as overload alarm and low battery alarm, to remind the driver to handle abnormal situations in time.
Comfortable Driving and Riding Environment
- The spacious and comfortable driver's seat is adjustable to adapt to the body shapes and operating habits of different drivers, effectively reducing the fatigue of long-term operation.
- The good vision design ensures that the driver can clearly observe the surrounding environment and the status of the goods during the operation process, further improving the safety and accuracy of the operation.
Energy-saving and Environmental Protection Advantages
- This forklift adopts an electric drive mode with zero emissions and low noise, conforming to the modern environmental protection concept and creating a green logistics environment for enterprises.
- At the same time, the lower energy consumption cost helps enterprises reduce operating costs and achieve sustainable development.
Convenient and Worry-free Maintenance
- The structure design of the forklift is reasonable, and the key components are easy to access and maintain.
- The modular design makes fault troubleshooting and repair simpler and faster, reduces equipment downtime, improves the overall service life of the equipment, and saves maintenance costs and time for enterprises.

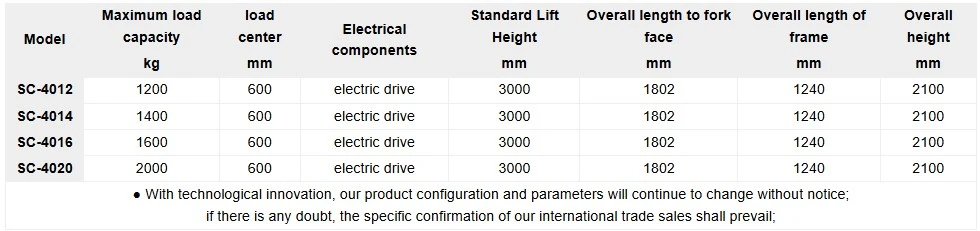

Technical Specifications

Technical Parameters
| Model | Maximum load capacity | load center | Electrical components | Standard Lift Height | Overall length to fork face | Overall length of frame | Overall height |
| kg | mm | mm | mm | mm | mm | ||
| SC-4012 | 1200 | 600 | electric drive | 3000 | 1802 | 1240 | 2100 |
| SC-4014 | 1400 | 600 | electric drive | 3000 | 1802 | 1240 | 2100 |
| SC-4016 | 1600 | 600 | electric drive | 3000 | 1802 | 1240 | 2100 |
| SC-4020 | 2000 | 600 | electric drive | 3000 | 1802 | 1240 | 2100 |
| ● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail; |
|||||||
