Description
Technical Parameters

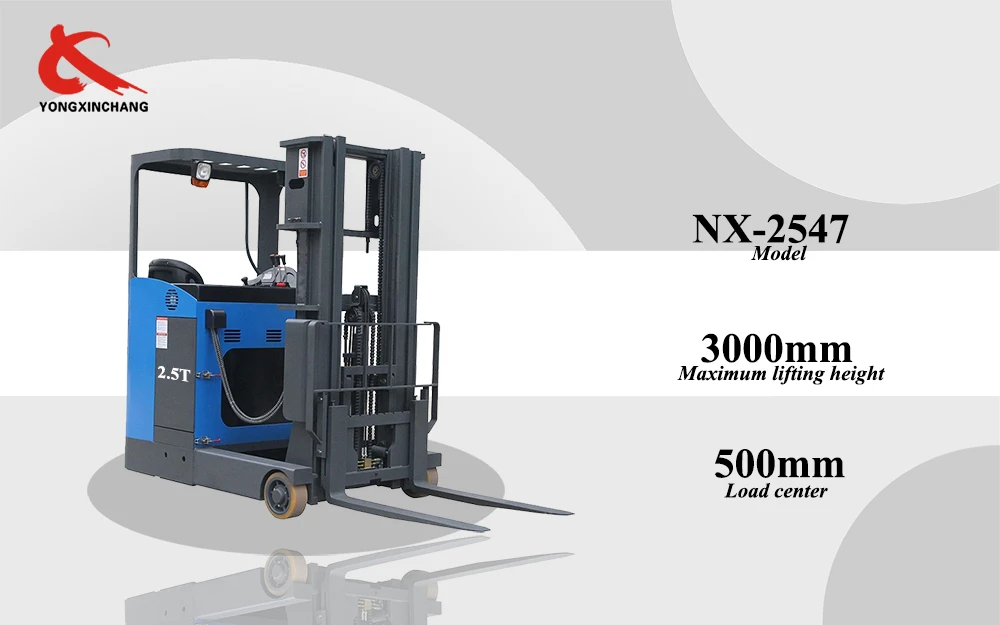

Product introduction
|
Item |
Reach Truck |
|
load center |
500mm |
|
Wheelbase |
1510mm |
|
Maximum lifting height |
3000mm |
|
Overall width of frame |
1270mm |
Product detail

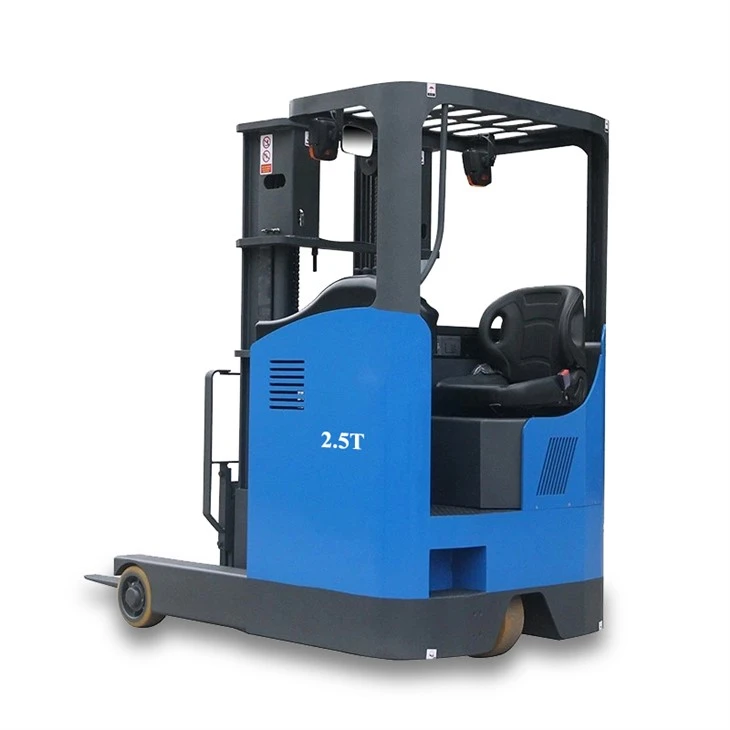

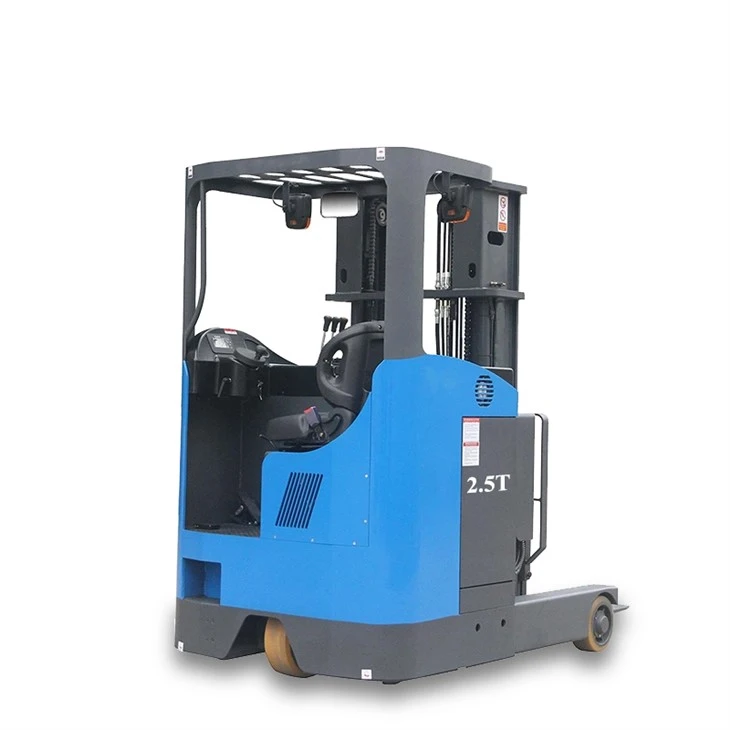

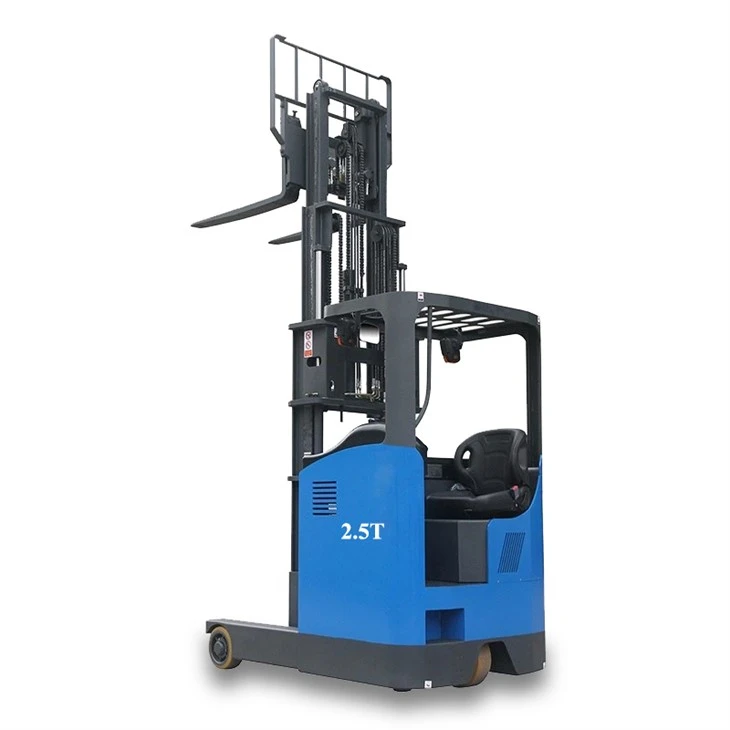

- The 2.5 ton Large Reach Electric Forklift optimizes power output and motor matching to extend continuous operation time by 25%.
- The door frame is made of high-strength special steel, which improves the stability of forklift stacking.
- 48V high-capacity battery can be used for a long time with one charge.
Key Features
Adapt to various environments
- Applicable for indoor and outdoor use: In the operator's work, the 2.5 ton Large Reach Electric Forklift is usually used for indoor warehouses and cargo stacking, but it can also adapt to relatively flat outdoor environments and is suitable for use in various workplaces such as factories and construction sites.
- Adapt to different ground surfaces: The forklift design can adapt to different ground environments for operation, including flat hard ground, relatively rugged ground and other scene operations.
Energy saving and high efficiency
- Low energy consumption: The electric drive system makes the 2.5 ton Large Reach Electric Forklift more energy efficient than traditional internal combustion forklifts, with lower energy consumption, which can reduce operating costs during long-term operations.
- Long-term operation capability: With advanced battery technology and high-efficiency motors, the forklift allows operators to work continuously for a long time, reducing the frequency of mid-way charging, and is suitable for high-intensity working environments.

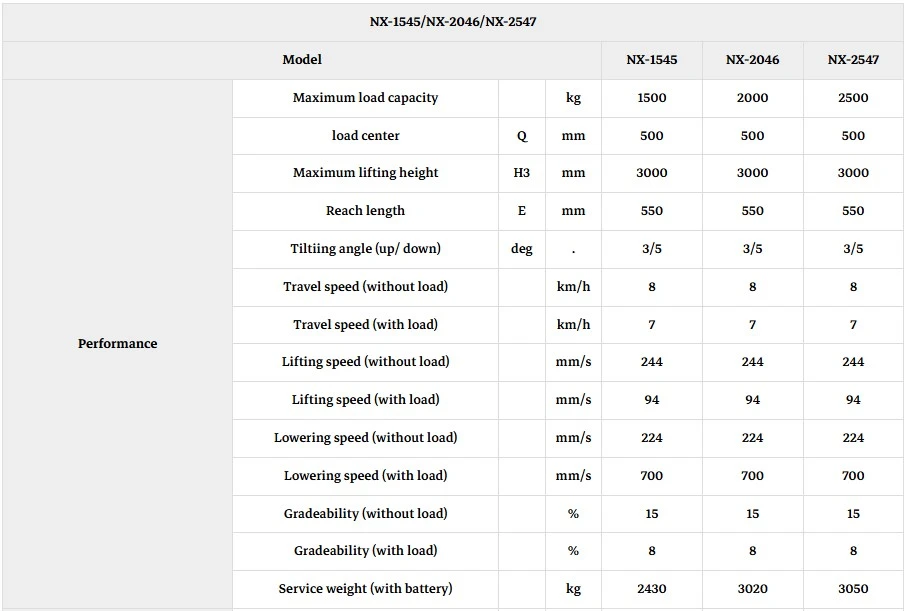

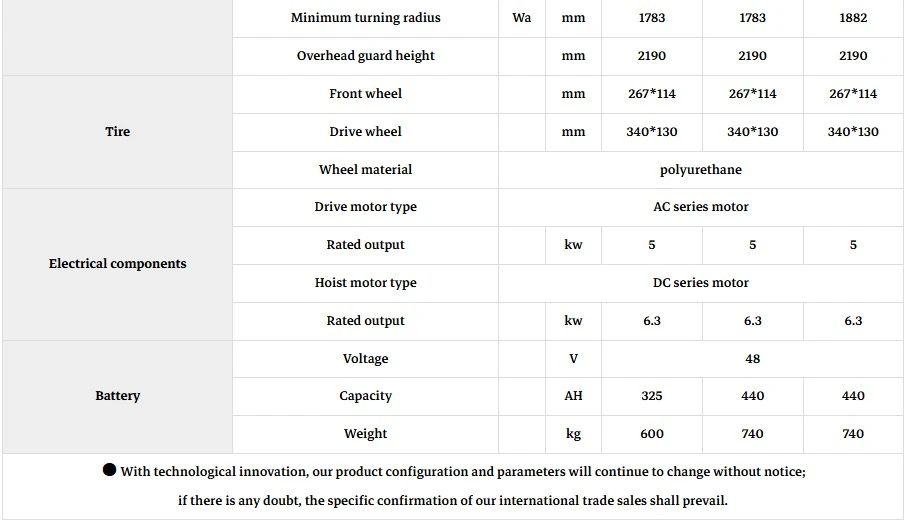

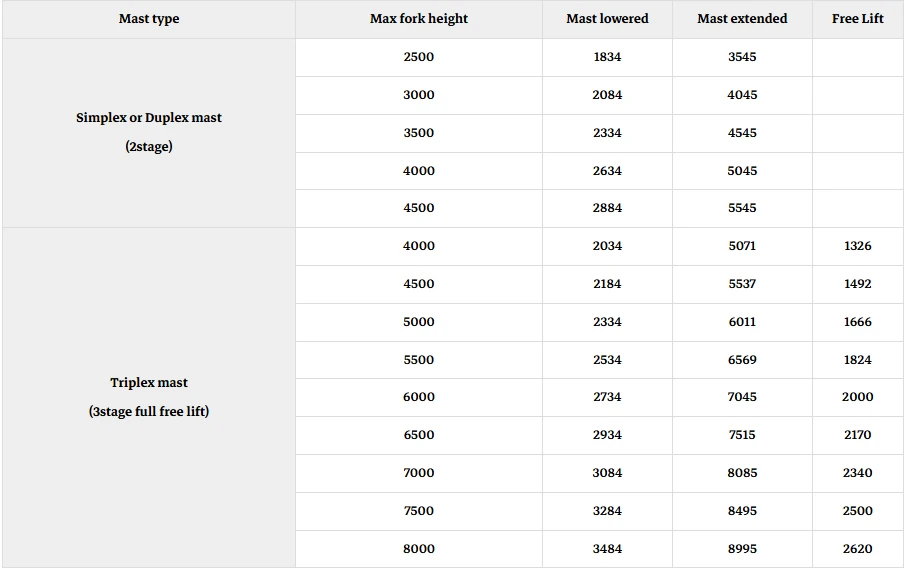

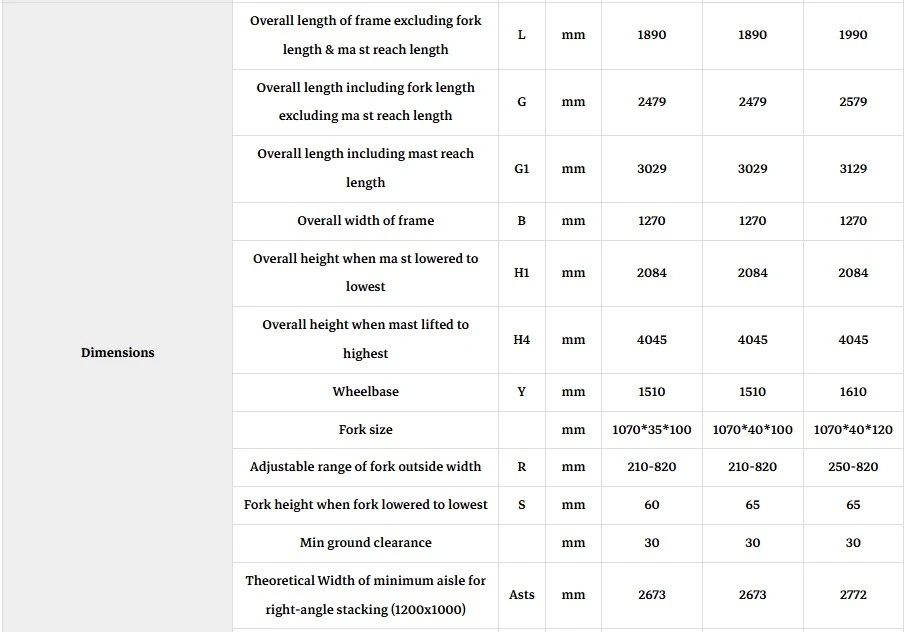

Technical Specifications
Usage and Maintenance
Inspection before operation
- Battery inspection: Before use, check whether the battery is fully charged. Make sure that the battery connection is firm and there is no corrosion. If the battery is low, charge it in time.
- Hydraulic system inspection: Check the hydraulic oil level to ensure that there is no leakage in the hydraulic system and the oil is clean.
- Tire inspection: Check whether the tires are obviously worn or damaged, ensure that the tires are properly inflated and maintain the appropriate air pressure.
- Brake system inspection: Check whether the brakes are sensitive, and whether the brake pads and brake system are normal to avoid accidents when carrying goods.
- Operating platform and control device: Check whether the operating platform is clean and oil-free, and ensure that the control devices (such as joysticks, buttons, steering wheels) are flexible and operable without jamming.
Technical Parameters
