Description
Technical Parameters

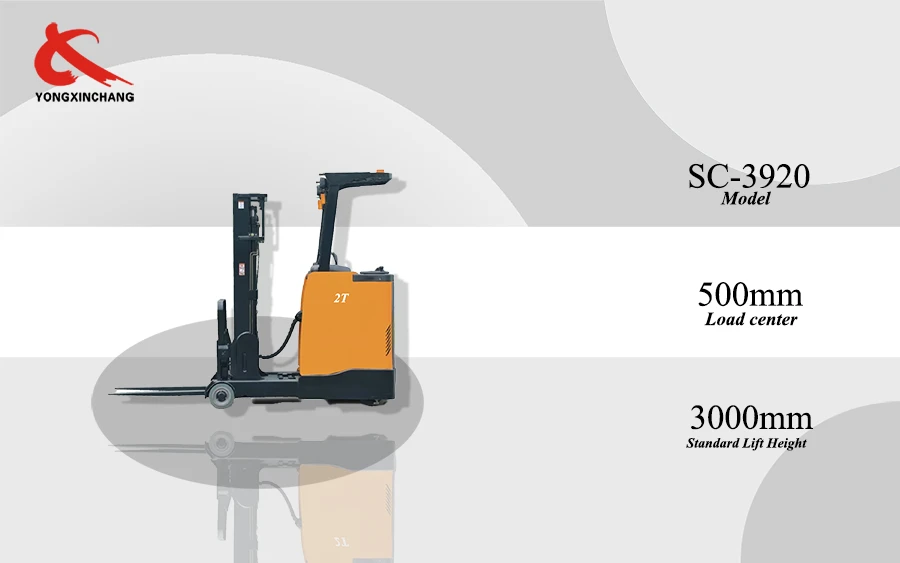

Product introduction
|
Item |
Reach Truck |
|
Other Maximum load center capacity |
1500kg; 1800kg; 2000kg; |
|
Load center |
500mm |
|
Overall length of frame |
1200mm |
|
Overall height |
2200mm |
Product detail

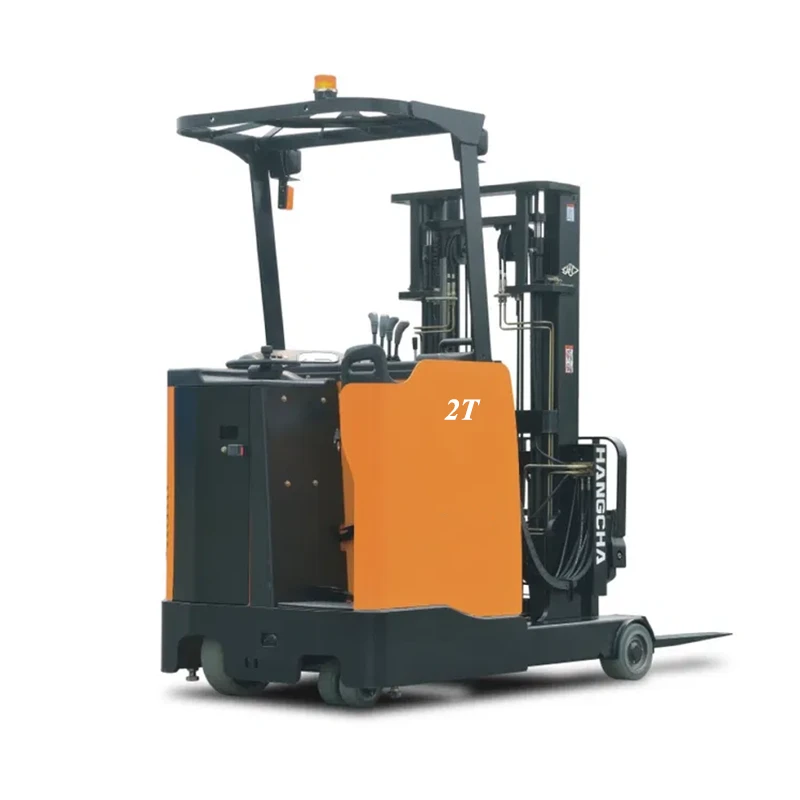

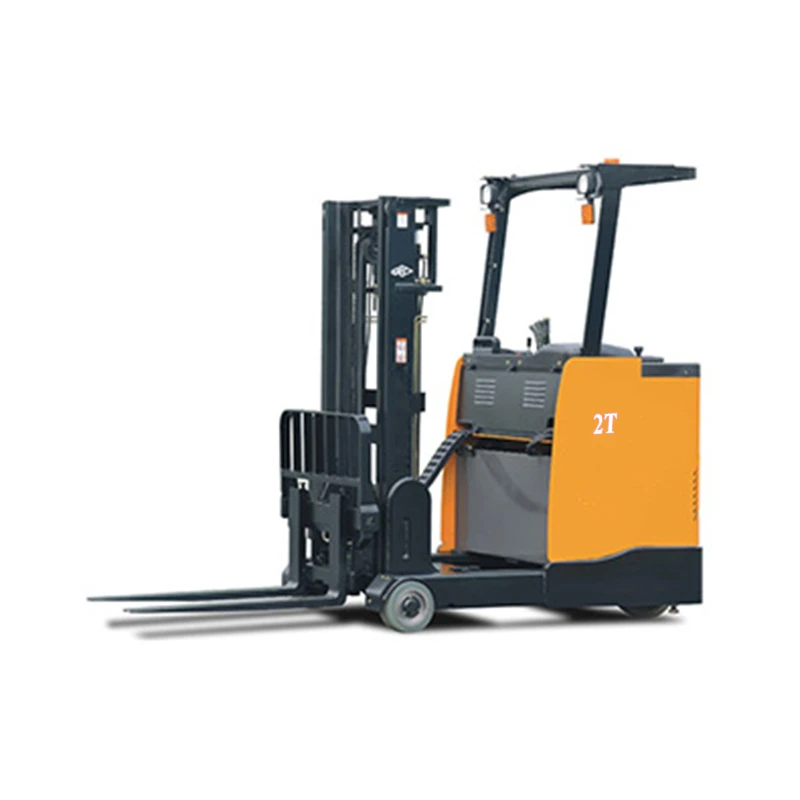

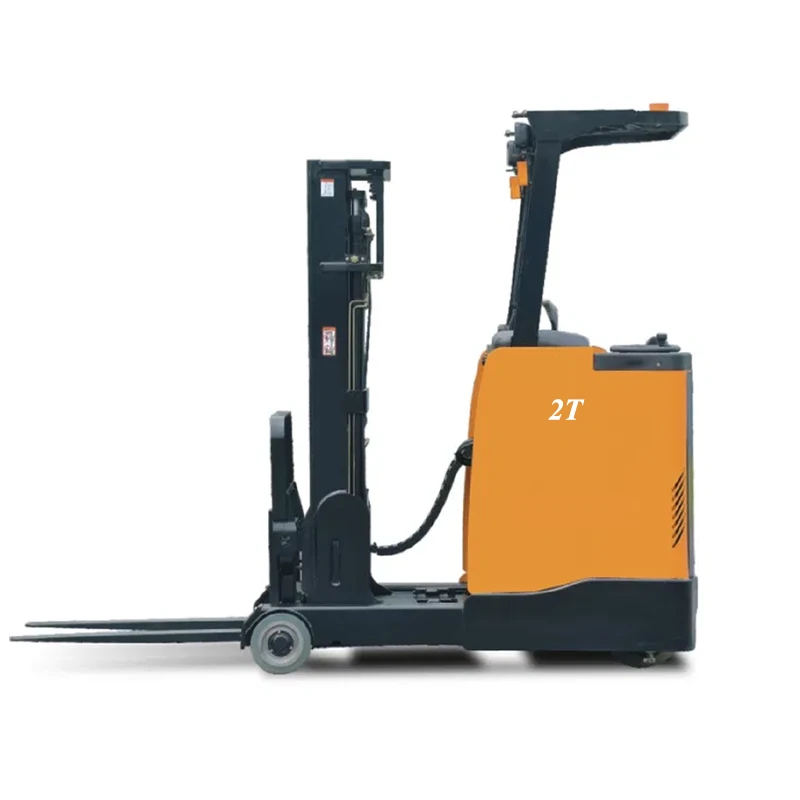

- This 2 ton Stand on Electric Reach is equipped with an advanced control system, which is convenient and flexible to operate. The driver can accurately control the driving and loading and unloading movements of the forklift, significantly improving the accuracy and efficiency of work.

Key Features
Accurate and safe operation
- The control system of the Electric forklift adopts advanced electronic control technology, and the design of the operating handle conforms to ergonomic principles. The driver's hand movements are natural and comfortable when operating, and the operation instructions can be accurately conveyed to the executive parts of the forklift.
- The limit switch uses high-precision sensors to precisely control the lifting height and forward distance of the fork to prevent damage to the goods due to collision with the shelf or excessive lifting, and to avoid structural damage caused by overtravel of the forklift.
Stand-by design advantages
- The stand-up operation provides the driver with a comprehensive field of vision. In environments with high stacking of goods or complex warehouse layouts, the driver can clearly observe the situation in all directions, detect potential hazards and respond in a timely manner.
Low noise operation experience
- Noise is extremely low during operation, due to the optimized motor design and the application of sound insulation materials.
- It creates a relatively quiet and comfortable working atmosphere for the operator, which helps to reduce the operator's fatigue and improve the concentration and efficiency of the work.
High maintenance convenience
- The structural design is sound, and the key components are compact and easy to maintain.
- The detachable design of the body shell makes it convenient for maintenance personnel to inspect and repair the internal components, reducing maintenance costs and improving the usability of the equipment.
Wide Range of Applications
- This 2 ton Stand on Electric Reach is suitable for all kinds of storage and logistics sites. Whether it is the cargo sorting and loading/unloading in large logistics centers or the daily cargo handling and stacking in small warehouses, it can perform tasks excellently.
Technical Specifications
| Model | Maximum load capacity | load center | Electrical components | Standard Lift Height | Overall length to fork face | Overall length of frame | Overall height |
| kg | mm | mm | mm | mm | mm | ||
| SC-3815 | 1500 | 500 | Electricity | 3000 | 1790 | 1200 | 2200 |
| SC-3818 | 1800 | 500 | Electricity | 3000 | 1840 | 1200 | 2200 |
| SC-3920 | 2000 | 500 | Electricity | 3000 | 1908 | 1200 | 2200 |
| ● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail. |
|||||||
Technical Parameters
| Model | Maximum load capacity | load center | Electrical components | Standard Lift Height | Overall length to fork face | Overall length of frame | Overall height |
| kg | mm | mm | mm | mm | mm | ||
| SC-3815 | 1500 | 500 | Electricity | 3000 | 1790 | 1200 | 2200 |
| SC-3818 | 1800 | 500 | Electricity | 3000 | 1840 | 1200 | 2200 |
| SC-3920 | 2000 | 500 | Electricity | 3000 | 1908 | 1200 | 2200 |
| ● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail. |
|||||||
