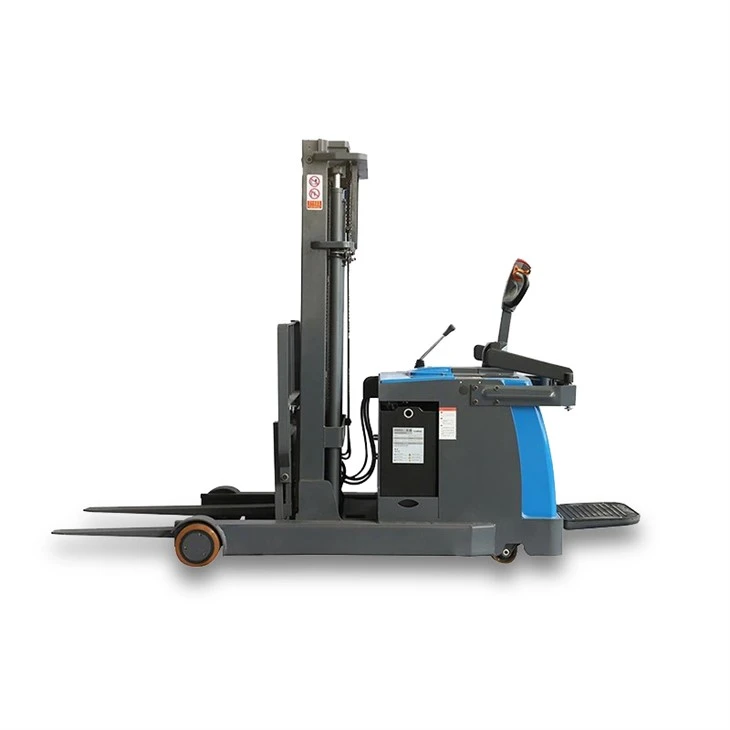

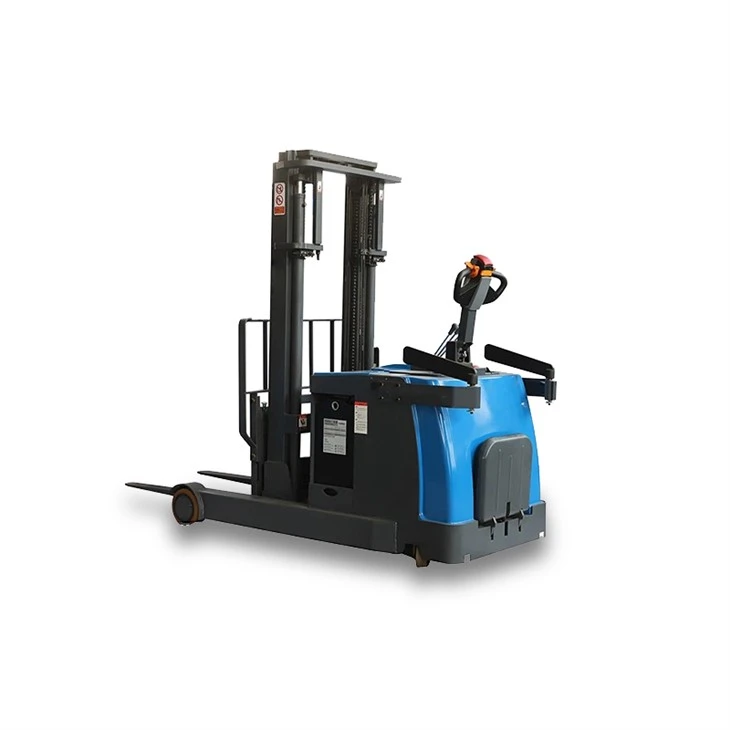

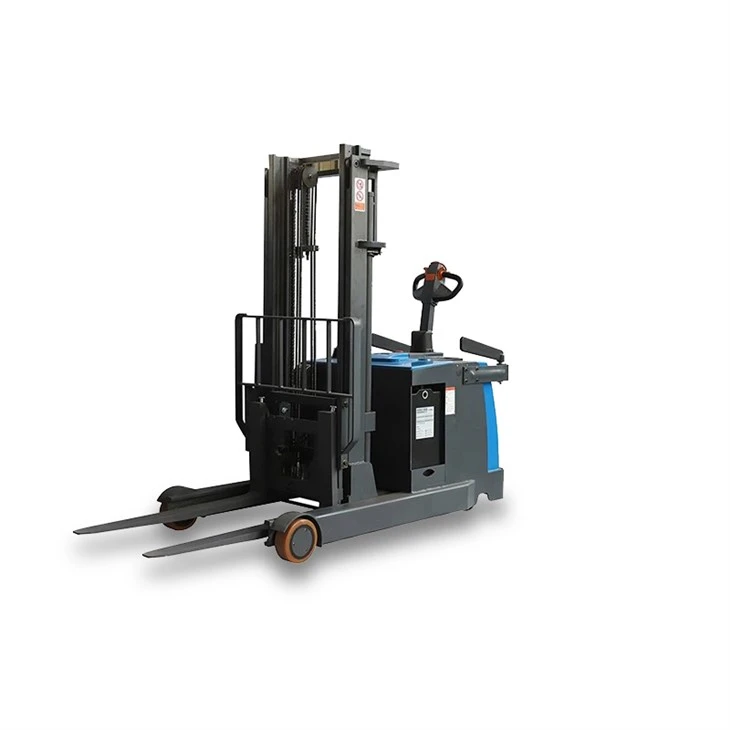

Pedal Stand-up Reach Truck

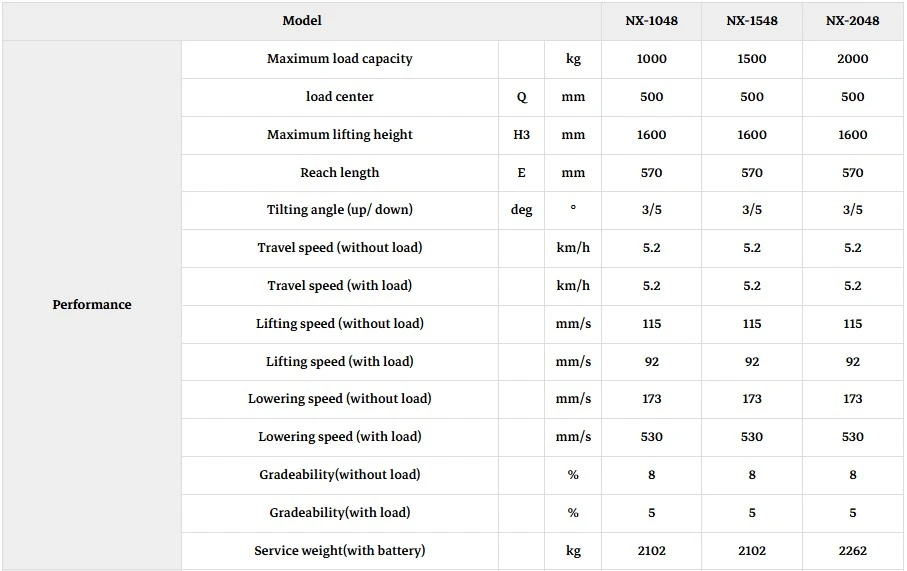

Item	Reach Truck
Other Maximum load capacity	1000kg; 1500kg; 2000kg;
load center	500mm
Reach length	700mm

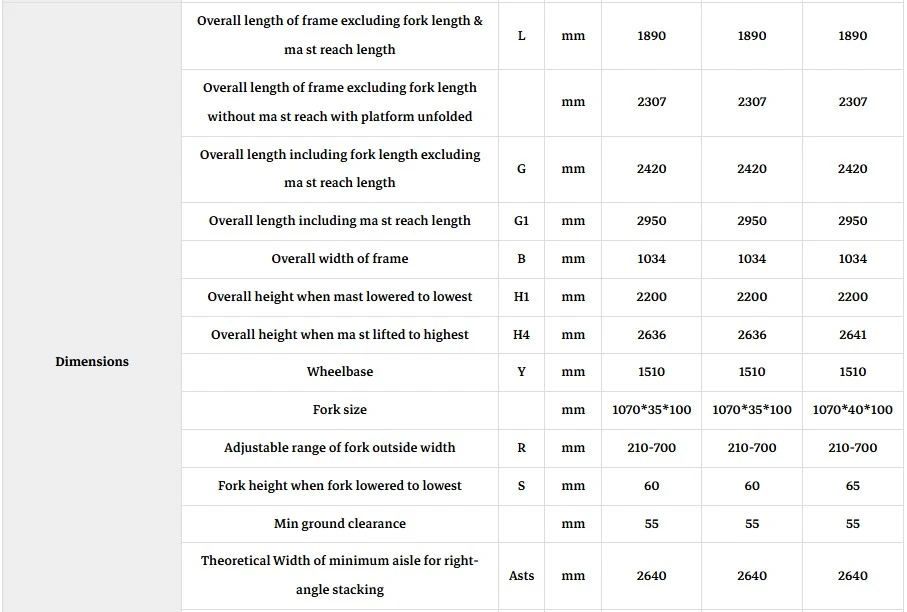

Wheelbase	1510

Pedal Stand-up Reach Truck has the advantages of environmental protection and energy saving, low noise, high lifting, easy operation, etc.





Power & Control Systems

• Dual-mode Drive Unit:

     Italian vertical drive motor (9.5km/h no-load speed) + German ZF gearbox (15% gradeability).

• Smart Energy Management:

     Curtis controller (USA) + Albright contactors (UK) enable 30% energy recovery via regenerative braking.



Ergonomics & Safety

• Operator Environment:

     60% steering effort reduction through EPS system.
     Air-suspension seat with 8hr endurance certification.

• Triple Braking System:

     Electro-magnetic parking brake + regenerative braking + anti-rollback slope control.



Structural Innovations

• 580mm Extendable Mast:

    ±3° fork tilt accommodates EURO/ISO pallets (800-1200mm width).

• Predictive Maintenance:

    CAN-BUS diagnostics reduce wiring by 40%, maintenance efficiency ↑50%.

Sustainability & Endurance

• 48V/375Ah LiFePO4 Battery:

     5hr runtime with hot-swap capability (full charge: 1.5hrs via 100A fast charger).





Designed for high-density warehousing and overhead rack operations：

• Automated Storage & Retrieval Systems (AS/RS)：

    Optimized for pallet handling and narrow-aisle operations (minimum aisle width: 1.8m).

• Manufacturing Logistics:

    Facilitates workshop material transfer and production line replenishment with ≤30s cycle time.

• Cold Chain Facilities:

    Zero-emission electric powertrain operates reliably at -25°C to 45°C ambient temperatures.

• E-commerce Sorting Centers：

    Features EPS steering + LCD dashboard for 12hr+ continuous high-frequency operations.







Periodic Servicing

• Drive System:

    Clean motor vents every 500hrs; ZF gearbox oil change every 10,000hrs.

• Tire Management:

     Adjust PU tire height (tolerance: ±2mm); dynamic balance calibration every 2000hrs.



Software & Safety

• Firmware Updates:

    Quarterly via USB-C (compatible with Windows IoT Core/Linux).

• Safety Inspections:

    Lenze brake response test (≤0.3s); mast parallelism calibration (±0.5mm/m vertical).
