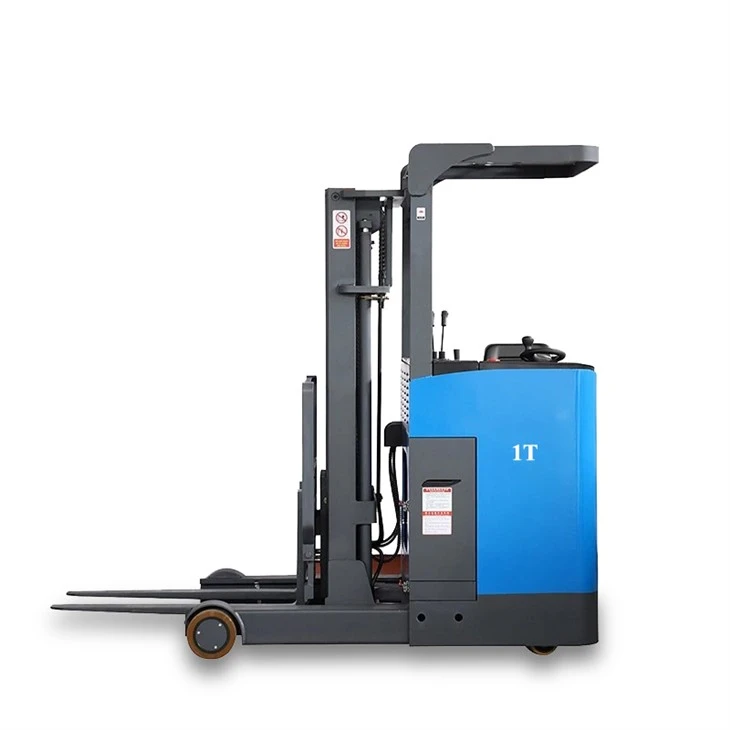

1 Ton Electric Reach Truck

1 Ton Electric Reach Truck

Item: Reach Truck
load center: 500mm
Maximum lifting height: 1600mm
Reach length: 570mm
Send Inquiry
Description
Technical Parameters

Product introduction



Item

Reach Truck

load center

500mm

Maximum lifting height

1600mm

Reach length

570mm

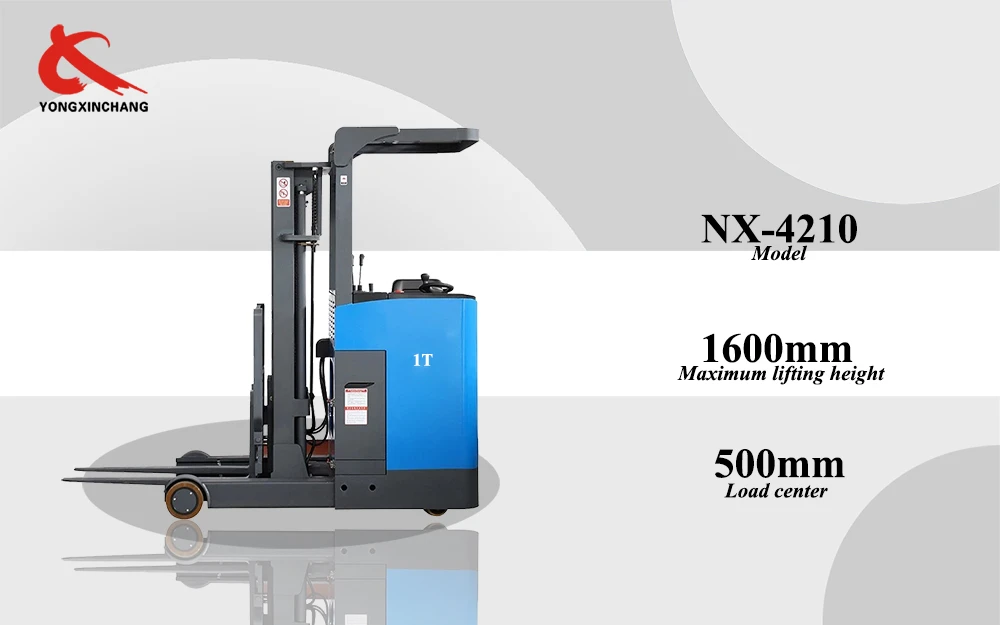

electric forklift

Product detail



  • The 1 ton Electric Reach Truck has a forkless counterweight type, suitable for single-sided or double-sided pallet cargo. It also comes standard with a fork with tilt function and steering wheel operation and a matching USB port that can be connected to a data cable.

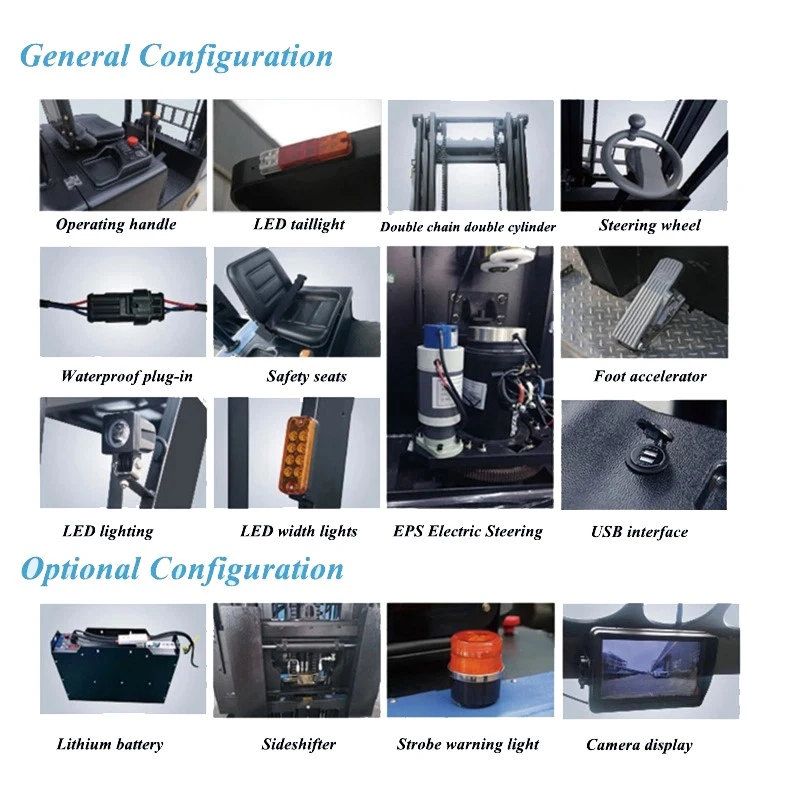

Optional configuration



Optional configuration

Efficient Space Utilization



  • Adaptable to Narrow Areas: In most operational settings, forward - moving electric forklifts feature a compact turning radius. This allows them to be maneuvered with ease even in tight spaces. They are an ideal choice for environments with narrow shelves and confined aisles, effectively enhancing the density of goods stored in warehouses. Forward - moving electric forklifts can be flexibly operated in small spaces due to their small turning radius in common operating conditions. They are well - suited for narrow shelves and aisles, which helps to increase the density of warehouse storage.
  • Optimized Storage Layout: The ability of electric reach trucks to operate proficiently in smaller spaces empowers warehouses to utilize their space more effectively. By making the most of available room, the height and overall density of shelves can be significantly enhanced, leading to an expansion of storage capacity. Since electric reach trucks can work in a smaller area, warehouse space can be used more effectively. The height and density of shelves can be increased, and storage capacity can be expanded.



Improve operating efficiency



  • Greater Lifting Height: Forward - moving electric forklifts typically come equipped with advanced high - lifting systems. These systems support operators in handling items stored at greater heights and executing high - level stacking tasks, making them highly suitable for operations in high - bay warehouses. Forward - moving electric forklifts usually have a high - lifting system to help operators carry goods at higher levels and perform high - level stacking work, which is suitable for high - bay warehouse operations.
  • Rapid Movement and Operation: Electric reach trucks are known for their swift lifting and moving capabilities. This not only sharply boosts the efficiency of cargo handling but also shortens the waiting time for staff and streamlines operational steps. Electric reach trucks have fast lifting and moving speeds, which can greatly improve cargo handling efficiency and reduce the waiting time and operation steps for staff.



Electric drive system



  • Environmental - Friendly and Low - Emission: In comparison to internal combustion forklifts, 1 Ton Electric Reach Truck are a more sustainable option. They offer the benefits of zero emissions and reduced noise levels, making them well - suited for use in complex operational settings with stringent environmental requirements, such as food, medicine, and electronics warehouses. Compared with internal combustion forklifts, electric forklifts have the advantages of zero emissions and low noise. They are suitable for use in complex operating environments with high requirements, such as food, medicine, and electronic product warehouses.
  • Quiet Operation: The electric drive system operates smoothly and generates minimal noise. This reduces environmental noise pollution and creates a more comfortable working environment for the staff. The electric drive system runs smoothly with low noise, which reduces noise pollution in the operating environment, improves the working environment, and enhances staff comfort.



Technical Specifications

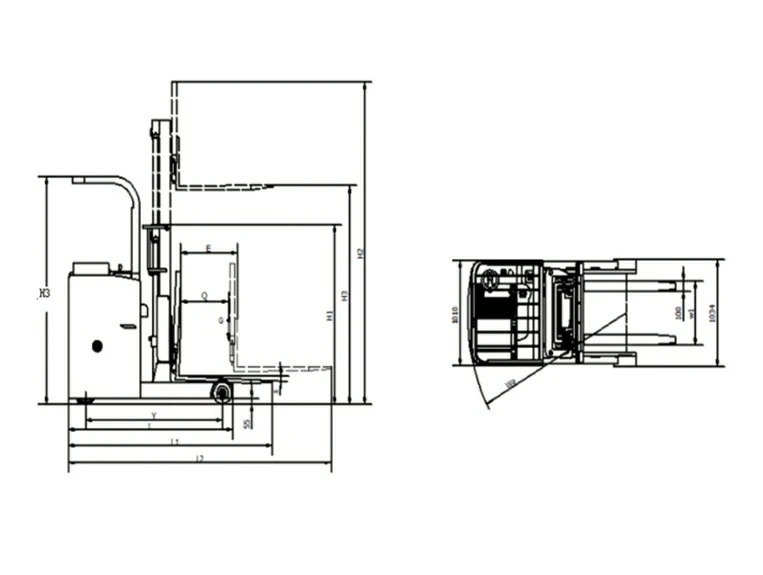

2D Electric Reach Truck

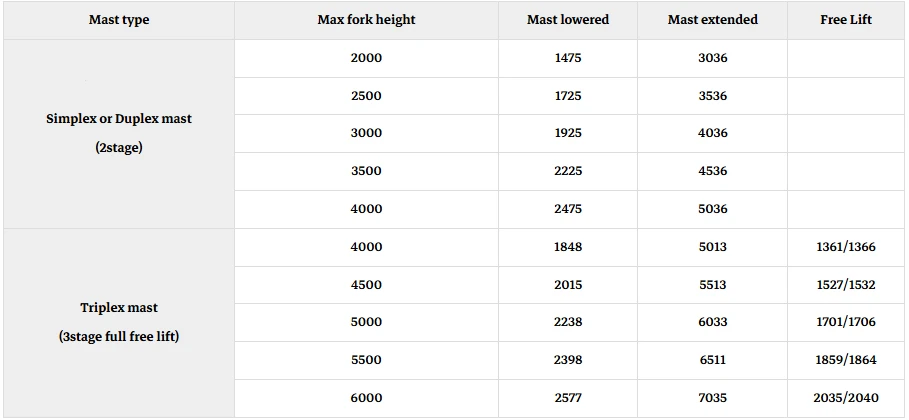

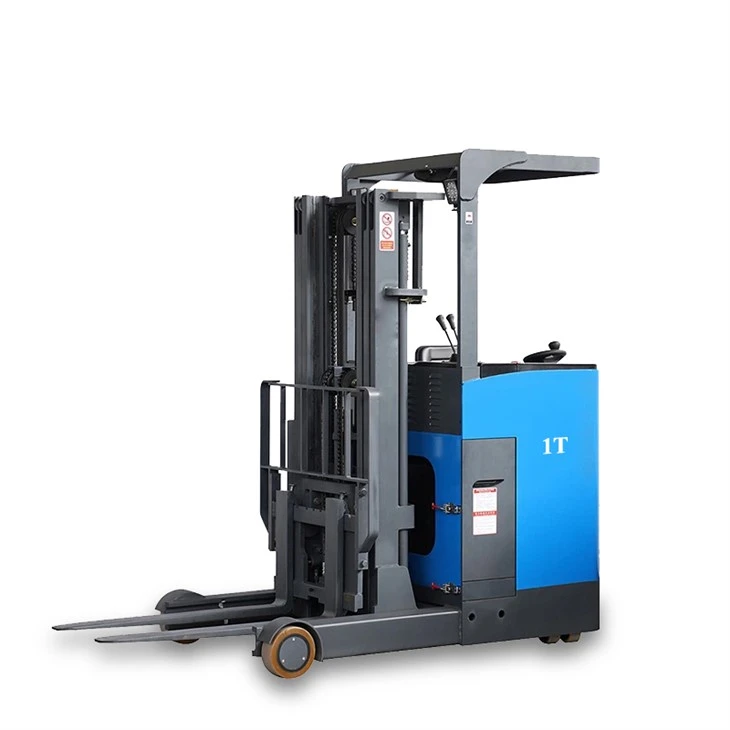

Electric Reach Truck

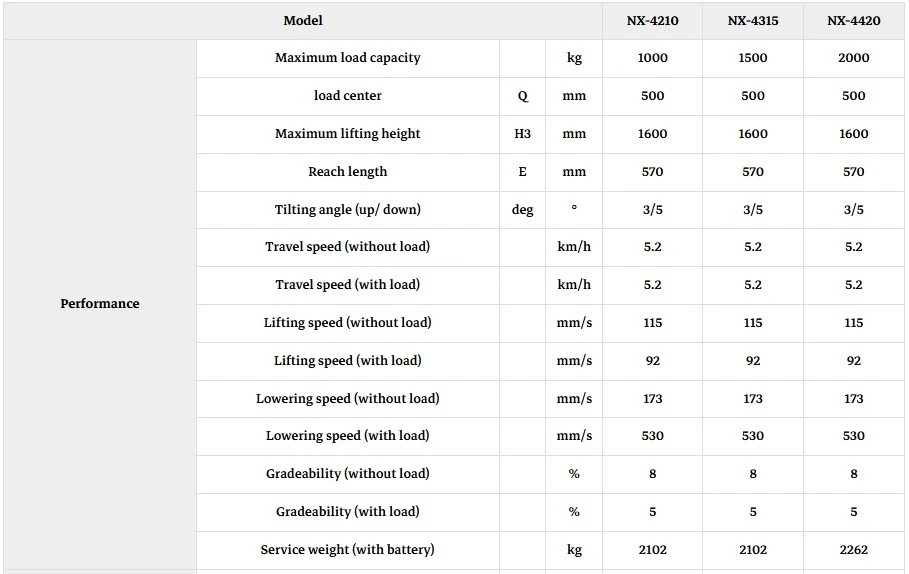

Electric Reach Truck product

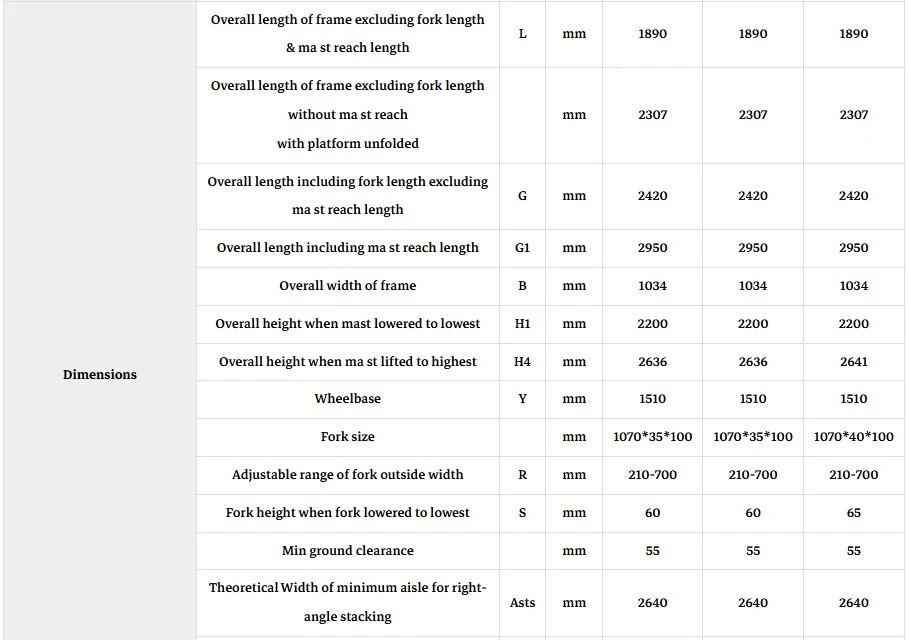

Electric forklift

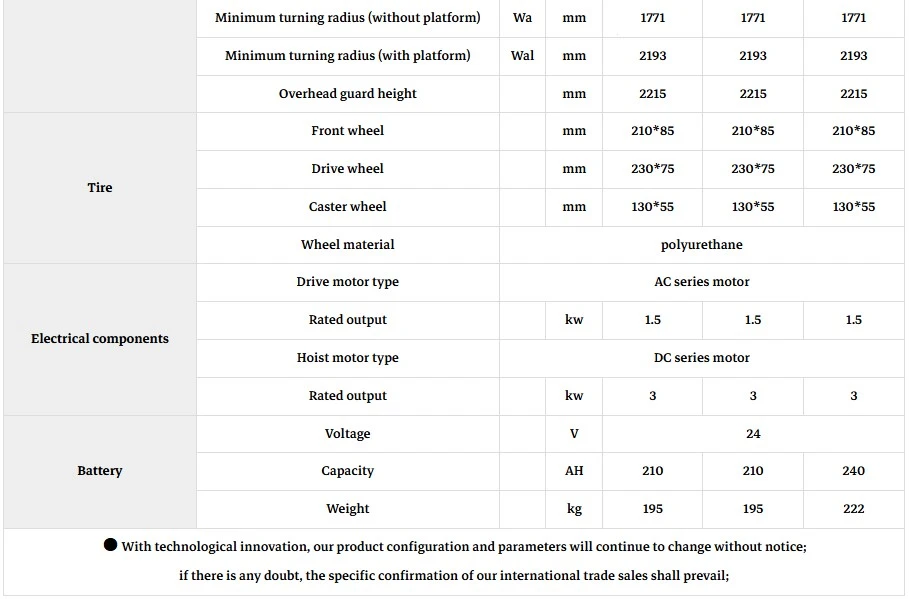

Electric forklift Technical Specifications

Technical Parameters

Electric Reach Truck.jpg

Electric Reach Truck product.jpg

Electric forklift.jpg



























































Electric forklift Technical Specifications.jpg
