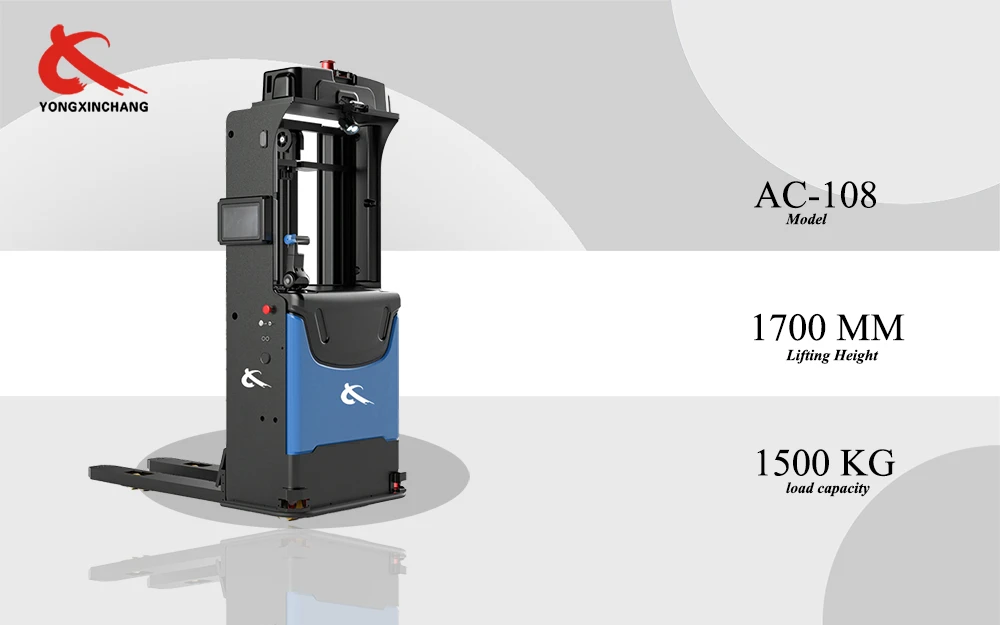

Automated Narrow Aisle Stacker



Item	Automated Narrow Aisle Stacker
Load center	600mm
Maximum Load capacity	1500kg







Automated Narrow Aisle Stacker is an intelligent stacking device designed for narrow spaces. Its ultra-thin body and flexible operation capabilities make it particularly suitable for working environments such as intensive warehousing and narrow aisles.



Ultra-thin body design

• Compact structure: The robot has a thin body design, and the thickness of the back is greatly reduced, which can easily pass through narrow passages and adapt to high-density storage environments.
• Space saving: The space required to operate the thin-back stacking robot is smaller, which is especially suitable for storage scenarios with small shelf spacing.



High-precision stacking capacity

• Flexible fork: The Automated Narrow Aisle Stacker is lightweight and can be accurately inserted into the bottom of the pallet or narrow cargo space for cargo operation.
• Adapt to high shelves: Although the thin-back stacking robot has a thin body, its stacking capacity is not affected. It can adapt to the needs of medium and high-level shelf operations and meet the handling operations in complex scenarios.





Excellent flexibility

• Small turning radius: The Automated Narrow Aisle Stacker has a very small turning radius and can complete flexible operations in a small space.
• Multiple navigation technologies: The machine supports laser and QR code navigation to ensure accurate path planning, efficient operation, and improved operation efficiency.



Efficient and intelligent

• Unmanned operation: The thin-back stacking robot can achieve fully automated handling and stacking without manual intervention, greatly improving operation efficiency.
• Intelligent scheduling system: background scheduling can optimize the multi-task execution path to ensure the maximum efficiency of multiple devices working together.



Safety and reliability

• Anti-dumping design: Even if the body is thin and light, it still has good center of gravity control ability to ensure the safety of stacking and handling.
• Real-time obstacle avoidance function: The thin-back stacking and handling machine is equipped with a variety of sensors that can detect dynamic changes in the surrounding environment and avoid collisions with obstacles.
