Product Introduction

Items	3 point Forklift
Other maximum load capacity	1.5ton; 1.6 ton; 1.8ton; 2ton
Load center	500mm
Overall width of frame	1086mm

Product detail

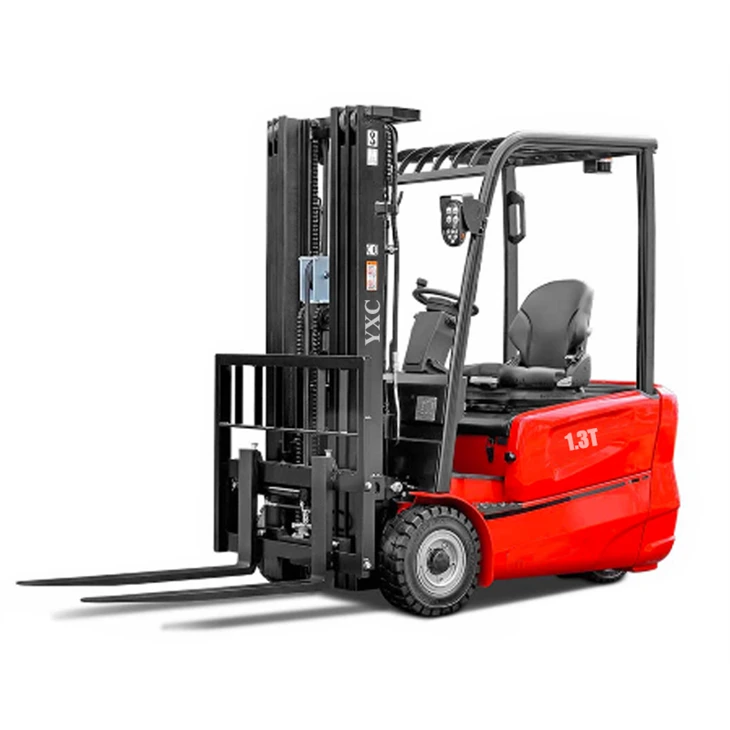

This 1.3-ton three-point electric forklift embodies industrial aesthetics through meticulously crafted design language. Its streamlined silhouette combines minimalist styling with robust structural elements, featuring a monocoque chassis finished in scratch-resistant metallic coating that visually communicates both professional craftsmanship and operational reliability.
The aerospace-grade alloy framework, refined through precision welding and extreme condition validation, delivers uncompromised structural integrity across demanding environments including automated warehouses, cold chain logistics, and automotive assembly lines.

13 ton Three-point Electric Forklift introduction

Operational Excellence

The intuitive human-machine interface revolutionizes handling precision: the multi-directional control lever with adaptive hydraulic feedback enables seamless pallet stacking in confined aisle spaces. An ergonomic suspension seat with dynamic lumbar support synergizes with the backlit touch-control dashboard, transforming extended operation into an experience of enhanced comfort and instinctive control.

Safety Ecosystem

The proprietary tri-dimensional stability system continuously monitors equipment posture, activating multi-stage protection protocols within milliseconds when detecting overloads or slope deviations. The explosion-proof overhead guard integrates with 360° digital vision systems to establish a comprehensive safety matrix encompassing both physical barriers and intelligent alerts.

Intelligent Core

Powered by a fourth-generation industrial IoT platform, the equipment employs edge computing for predictive maintenance diagnostics. Its self-optimizing energy management algorithm dynamically allocates power across operational modes, while cloud-based service scheduling proactively recommends maintenance plans – delivering full lifecycle solutions for regulated industries like pharmaceuticals and microelectronics.

Sustainable Innovation

The regenerative energy system captures kinetic energy during braking and load descent, complementing solar charging capabilities to create carbon-neutral material handling cycles for cross-border e-commerce hubs and eco-conscious ports. Whisper-quiet drive technology further redefines industrial equipment applications, enabling nighttime supermarket restocking and library logistics operations where noise sensitivity prevails.

Technical Specifications

Hot Tags: 1.3 ton three-point electric forklift, China 1.3 ton three-point electric forklift manufacturers, suppliers, factory, 1 2 Ton Three Point Electric Forklift, 1 Ton Three Point Electric Forklift, 0 99 Ton Mini 3 Point Electric Forklift, 0 8 Ton Three Point Electric Forklift, 2 Ton 3 Point Electric Forklift, 0 75 Ton Mini 3 Point Electric Forklift

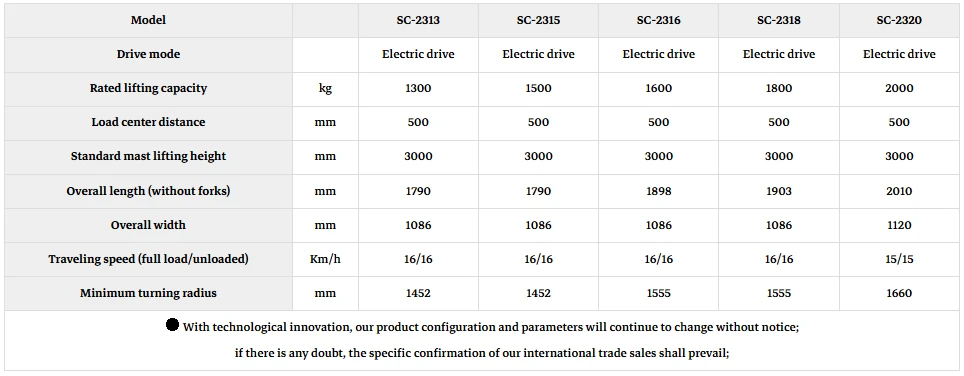

Technical Parameters

Model		SC-2313	SC-2315	SC-2316	SC-2318	SC-2320
Drive mode		Electric drive	Electric drive	Electric drive	Electric drive	Electric drive
Rated lifting capacity	kg	1300	1500	1600	1800	2000
Load center distance	mm	500	500	500	500	500
Standard mast lifting height	mm	3000	3000	3000	3000	3000
Overall length (without forks)	mm	1790	1790	1898	1903	2010
Overall width	mm	1086	1086	1086	1086	1120
Traveling speed (full load/unloaded)	Km/h	16/16	16/16	16/16	16/16	15/15
Minimum turning radius	mm	1452	1452	1555	1555	1660
● With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail;

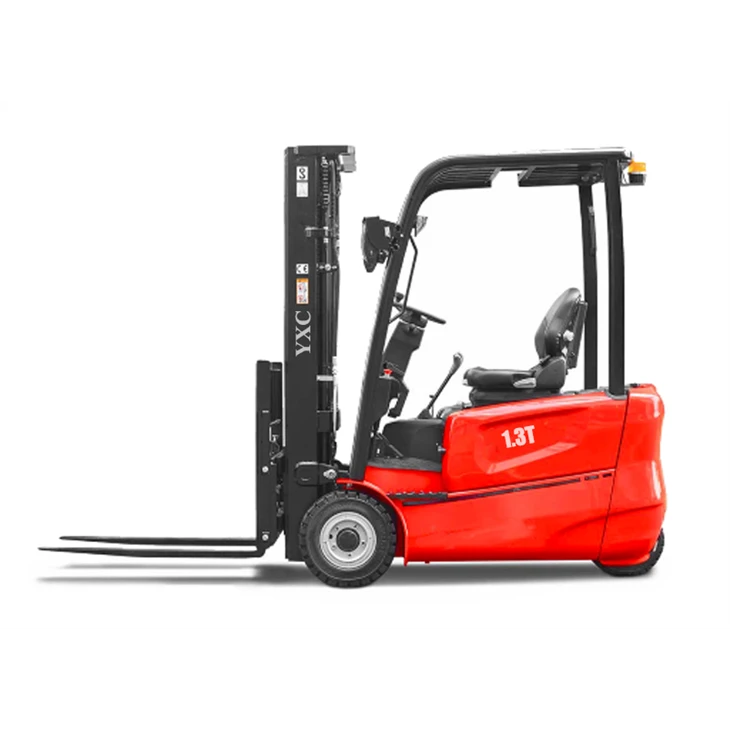

1.3 Ton Three-point Electric Forklift
