Product Introduction

electric forklift

Product Detail

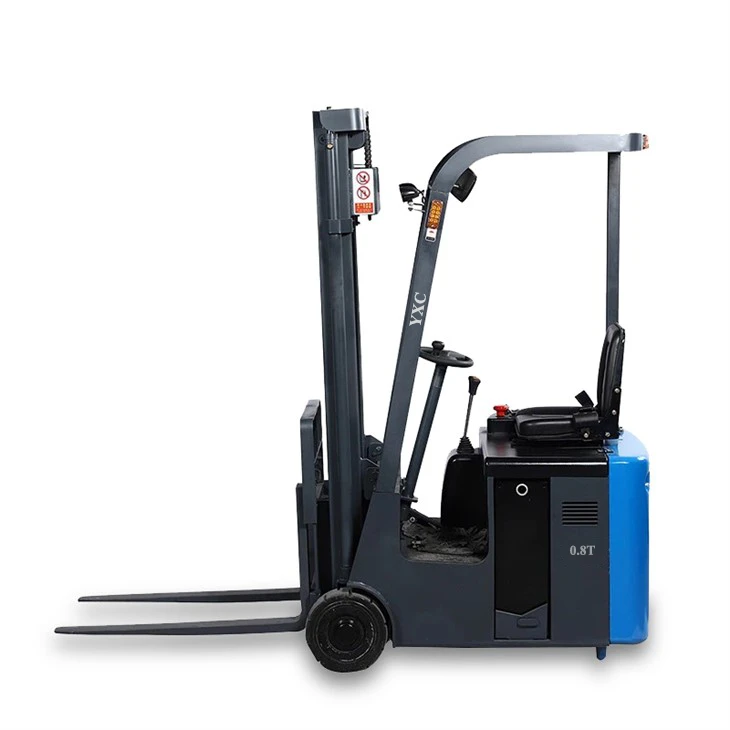

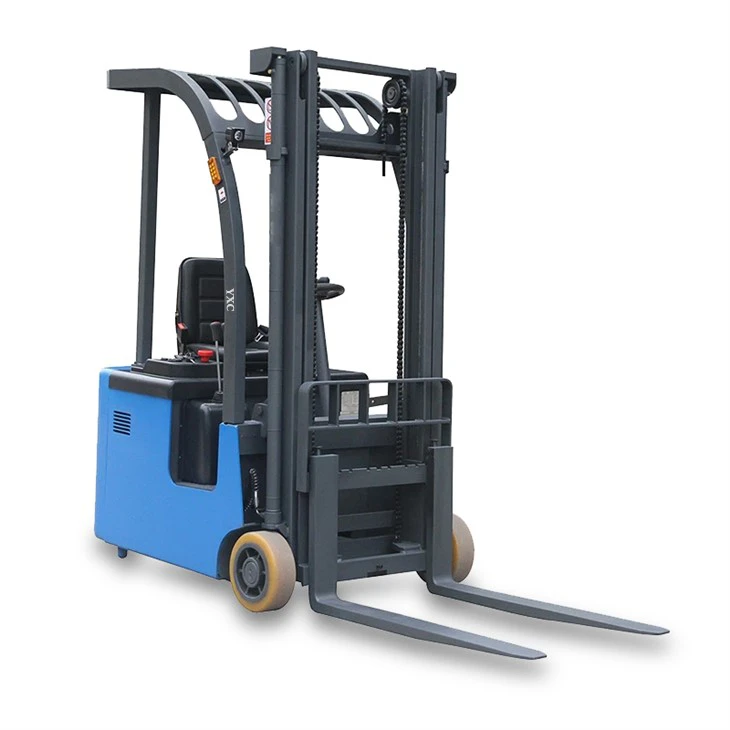

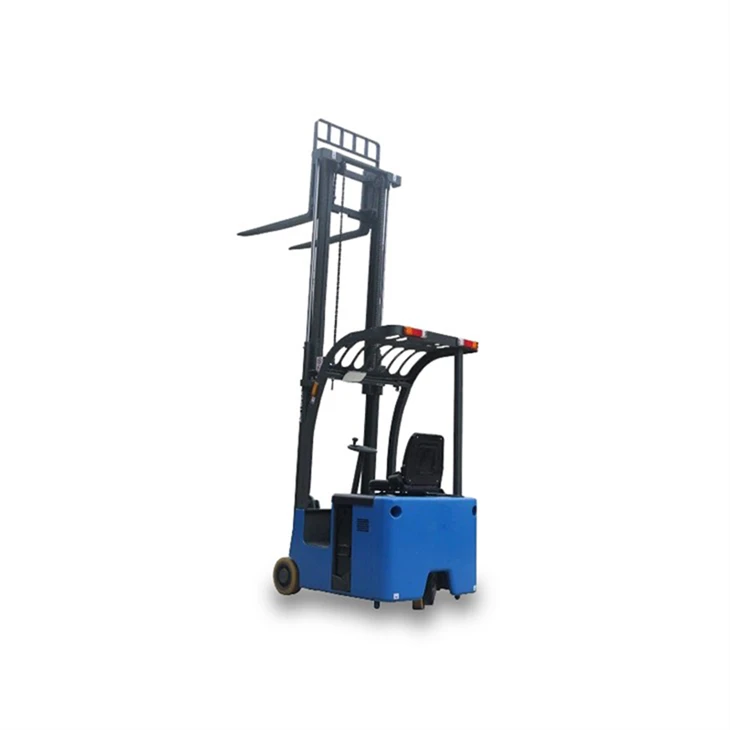

The 0.8 ton Three point Electric Forklift are an ideal choice for many companies due to their high flexibility, small turning radius and ability to adapt to narrow spaces. Their electric drive makes them energy-saving and environmentally friendly, quiet in operation and free of exhaust emissions, suitable for indoor use, and with low maintenance costs.

1.High-Efficiency Flexible Operation Design

Three-Wheel Steering System: Innovative geometric structure achieves ≤1950mm ultra-compact turning radius, reducing operational space requirements by 25% compared to conventional models. Ideal for container handling and narrow rack aisles.
AC Drive Technology: Dual AC drive motors (7.5kW×2 rated power) deliver 14 km/h max travel speed with <3s acceleration from 0-8 km/h, improving operational efficiency by 30%.

2.Intelligent Energy-Saving Power System

LiFePO4 Battery Pack: Standard 210Ah high-density battery supports 2-hour fast charge and opportunity charging, extending continuous operation to 8-10 hours (standard conditions).
Energy Recovery System: Automatically regenerates power during descent/braking, reducing overall energy consumption by 18% vs lead-acid models.

3. Ergonomic Optimization

Suspended Operator Cabin: Triple damping system + adjustable suspension seat reduces vibration transmission by 40%, compliant with ISO 2631-1:1997 ergonomic standards.
Fingertip Control System: Integrated multifunction handle with 12 control buttons enables single-hand operation for combined lift/tilt/travel functions.

4. Safety Protection System

OPS Safety Warning: Real-time load curve monitoring + center-of-gravity deviation alert ensures ±1° tilt angle precision control.
Emergency Braking: Dual-circuit hydraulic braking + electromagnetic parking brake achieves 1.5m stopping distance, exceeding EN1175 requirements.

1. Precision Warehouse Operations

Applications: E-commerce fulfillment centers (2.1-2.4m aisle width), pharmaceutical cold chain warehouses (-25°C~+45°C operational temperature).
Attachments: Compatible with 20+ attachments including paper roll clamps/push-pull devices/rotators, supporting 6.5m max lifting height.

2. Manufacturing Plant Logistics

Special Environments: Automotive component workshops (anti-static design), food processing plants (IP65 protection rating).
Performance: Sustains 8-hour intensive operations with 400-600 pallets/day handling capacity.

3. Specialized Industry Solutions

New Energy Sector: Explosion-proof configuration for lithium battery workshops, compliant with ATEX 94/9/EC standards.
Aviation Logistics: Compatible with aircraft container handling tools, 1.6T max load capacity @500mm load center.

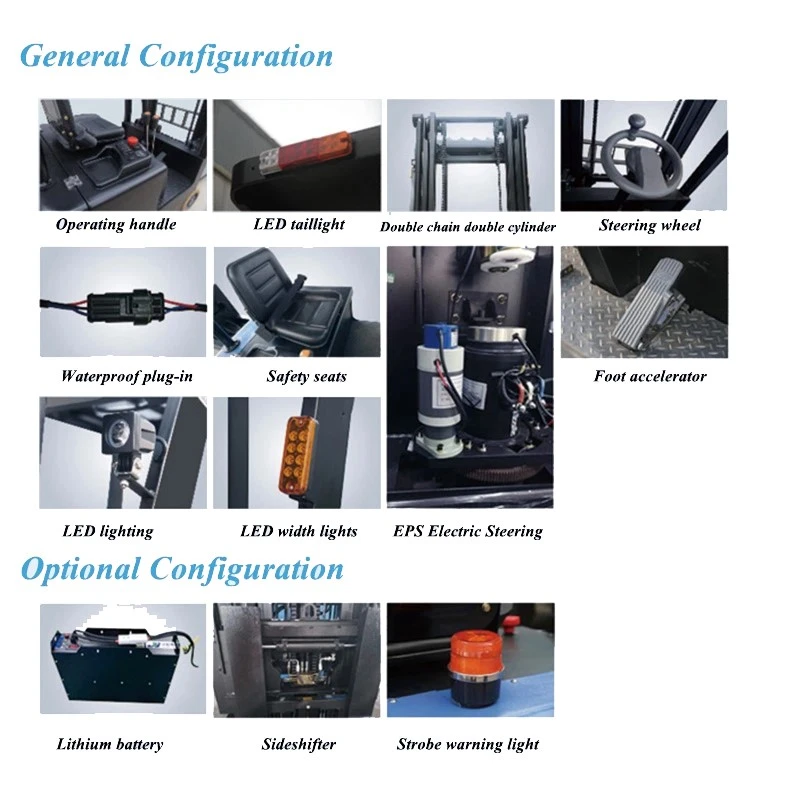

Configuration pallet stacker

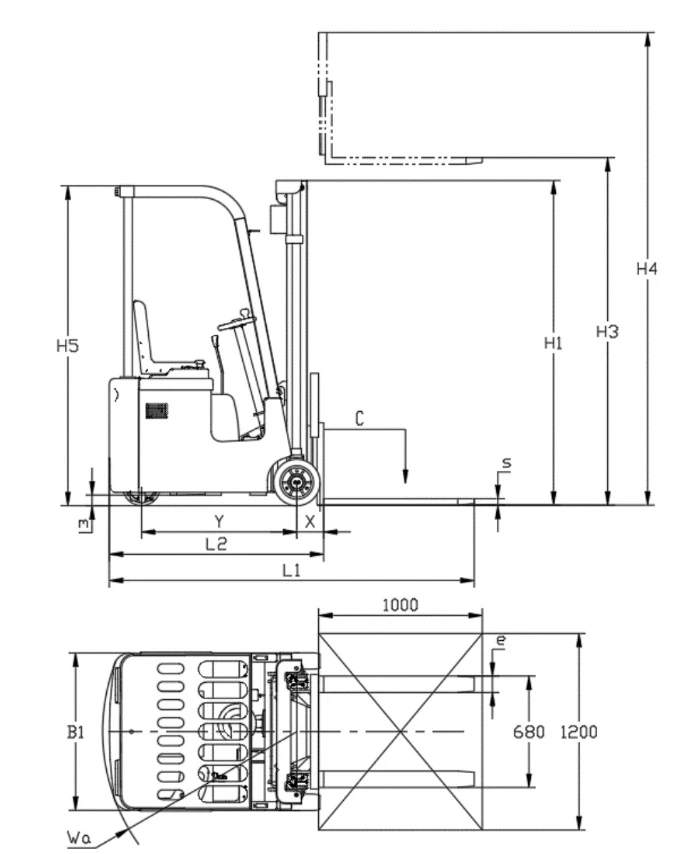

2D Three point Electric Forklift

Mast type	Max. Fork height	Mast Lowered	Mast Extended
	0.8 ton Three point Electric Forklift	0.8T	0.8T
Simplex mast	1600	2180	2180
Duplex mast (2Stage)	2000	1485	2775
	2500	1735	3275
	3000	1985	3775

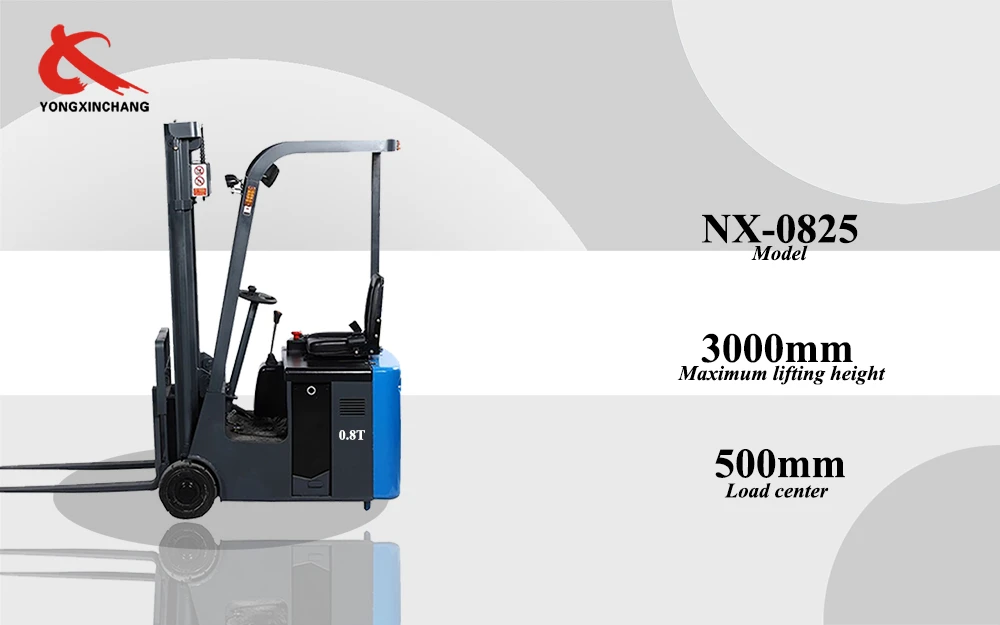

Model				NX-0825
Performance	Maximum load capacity		kg	800
	Maximum lifting height	H3	mm	3000
	with load center at	C	mm	500
	Front Overhang	X	mm	165
	Tilting angle (up/ down)	deg	°	3/6
	Travel speed (without load)		km/h	5.5
	Travel speed (with load)		km/h	5.5
	Lifting speed (without load)		mm/s	97
	Lifting speed (with load)		mm/s	78.5
	Lowered speed (without load)		mm/s	126
	Lowered speed (with load)		mm/s	140
	Ascend slope ability (without load)		%	8
	Ascend slope ability (with load)		%	5
	Weight (with battery)		kg	1950
	Overall length of frame (with fork)	L1	mm	2230
Dimensions	Overall length (without fork)	L2	mm	1309
	Overall width of frame	B1	mm	960
	Overhead guard height	H5	mm	1950
	Mast lowered height	H1	mm	1985
	Max height (mast lifted with hackrest)	H4	mm	3775
	Wheelbase	Y	mm	920/1005
	Fork length		mm	920
	Fork width		mm	100
	Fork spread width		mm	210-680
	Fork lowered height	S	mm	35
	Minimum ground clearance		mm	65
	Turning radius	Wa	mm	1188
	width of theoretical minimum aisle for right-angle stacking (1200x1000)		mm	2500
Tyre	Front wheel			φ305×127 (2)
	Drive wheel			φ250×75 (1)
	Wheel material	Rubber (front)/ Polyurethane (back)
Electrical components	Drive motor type	AC series motor
	Rated output		kw	1.5
	Hoist motor type	DC series motor
	Rated output		kw	2.2
battery	Voltage		V	24
	Capacity		AH	210
	Weight		kg	185
	hrake		electromagnetic
• With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail;
