Description
Technical Parameters

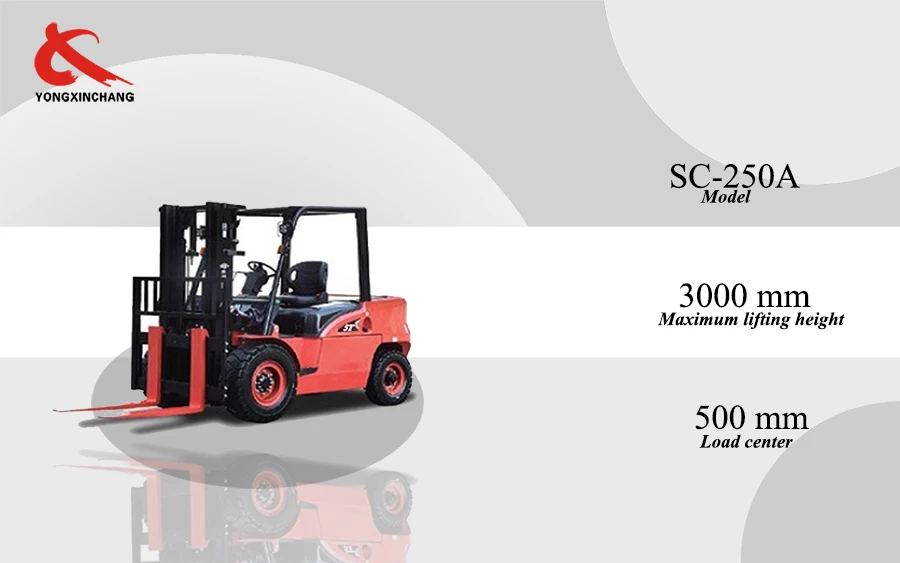

Product Introduction
|
Items |
Diesel counterbalance Forklift |
|
Other maximum load capacity |
4 ton, 4.5 ton, 5 ton. |
|
Maximum lifting height |
3000 mm |
Product Details

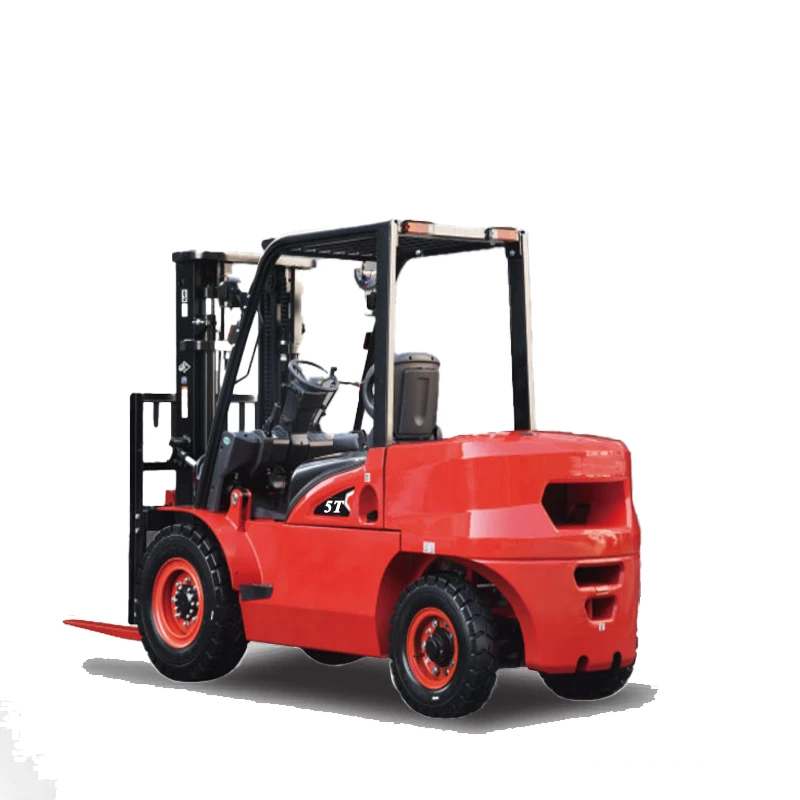

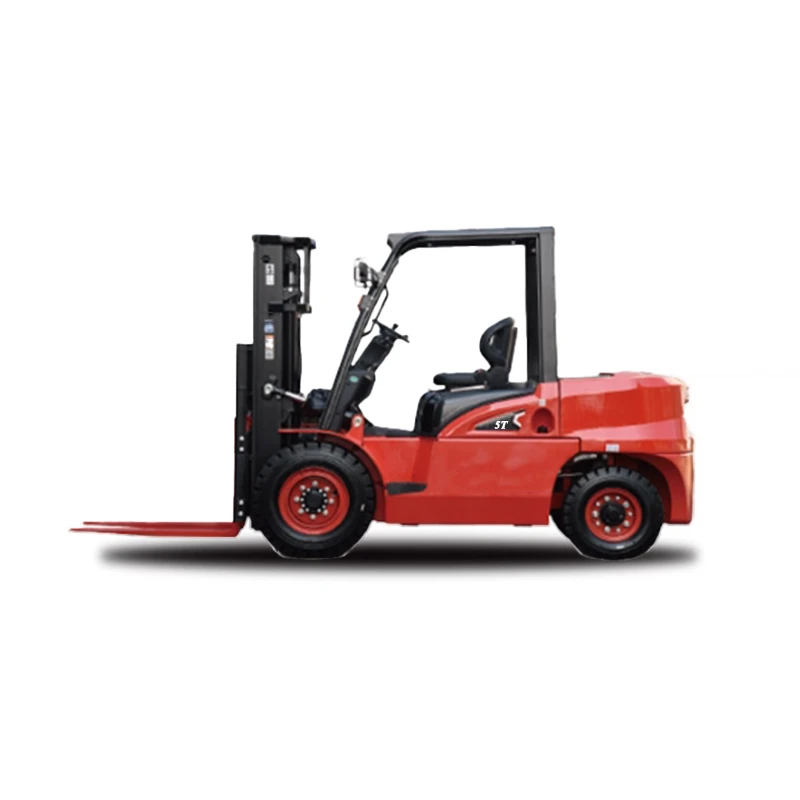

- This combustion forklift is equipped with a high-performance engine, which can provide powerful power output and ensure efficient operation in various working environments. Whether it is lifting heavy loads or long-distance transportation, it can be easily handled.
Humanized design
- Comfortable operation: The cab design of this internal combustion forklift adheres to the principles of ergonomics. The operation handle and seat position can be adjusted easily and conveniently. Even during long - term operation, the driver can remain comfortable, effectively reducing fatigue.
- Good visibility: The forklift features a wide - view design. In various working scenarios, it enables the driver to clearly observe the surrounding environment, enhancing operational safety.
- Convenient maintenance: The forklift uses repair parts that are simple to disassemble and install. This facilitates maintenance, saves maintenance time and cost, and significantly improves the work efficiency of the personnel.
High safety performance
- Reliable braking system: This internal combustion forklift is equipped with a high - performance braking system, ensuring rapid braking in case of emergencies and safeguarding the safety of both personnel and goods.
- Complete protective devices: The forklift is also equipped with a variety of protective devices, such as roof guards and shelves. This further enhances operational safety and ensures the well - being of personnel in different working environments.
High degree of intelligence
- Intuitive display system: The forklift is not only equipped with a clear and intuitive display system but can also display the real - time operating status of the vehicle. This allows the driver to understand the condition of the forklift at any time, enabling them to efficiently complete various work tasks.
- Intelligent control system: This Combustion Forklift is equipped with an intelligent control system. It can automatically adjust the power output and operation mode according to different work requirements, thus improving work efficiency.
Excellent environmental performance
- Combustion Forklift strictly abides by environmental protection standards, has low emission levels, has little impact on the environment, and reflects the company's social responsibility.

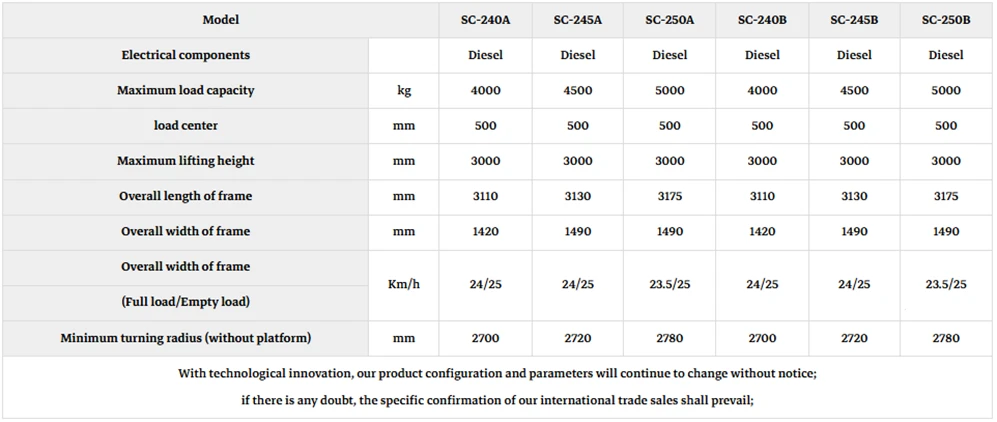

Technical Specifications
Technical Parameters
| Model | SC-240A | SC-245A | SC-250A | SC-240B | SC-245B | SC-250B | |
| Electrical components | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel | |
| Maximum load capacity | kg | 4000 | 4500 | 5000 | 4000 | 4500 | 5000 |
| load center | mm | 500 | 500 | 500 | 500 | 500 | 500 |
| Maximum lifting height | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Overall length of frame | mm | 3110 | 3130 | 3175 | 3110 | 3130 | 3175 |
| Overall width of frame | mm | 1420 | 1490 | 1490 | 1420 | 1490 | 1490 |
| Overall width of frame | Km/h | 24/25 | 24/25 | 23.5/25 | 24/25 | 24/25 | 23.5/25 |
| (Full load/Empty load) | |||||||
| Minimum turning radius (without platform) | mm | 2700 | 2720 | 2780 | 2700 | 2720 | 2780 |
| With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail; |
|||||||
