Product introduction
|
Item |
Forklift replacement |
|
Composition |
gears, shafts, synchronizers, etc. |
Product detail

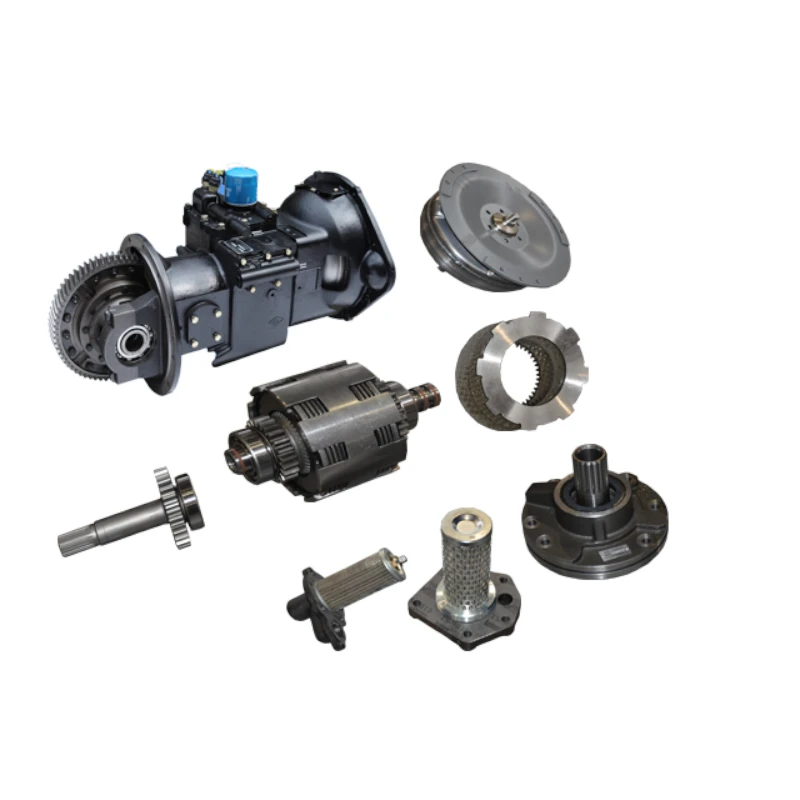

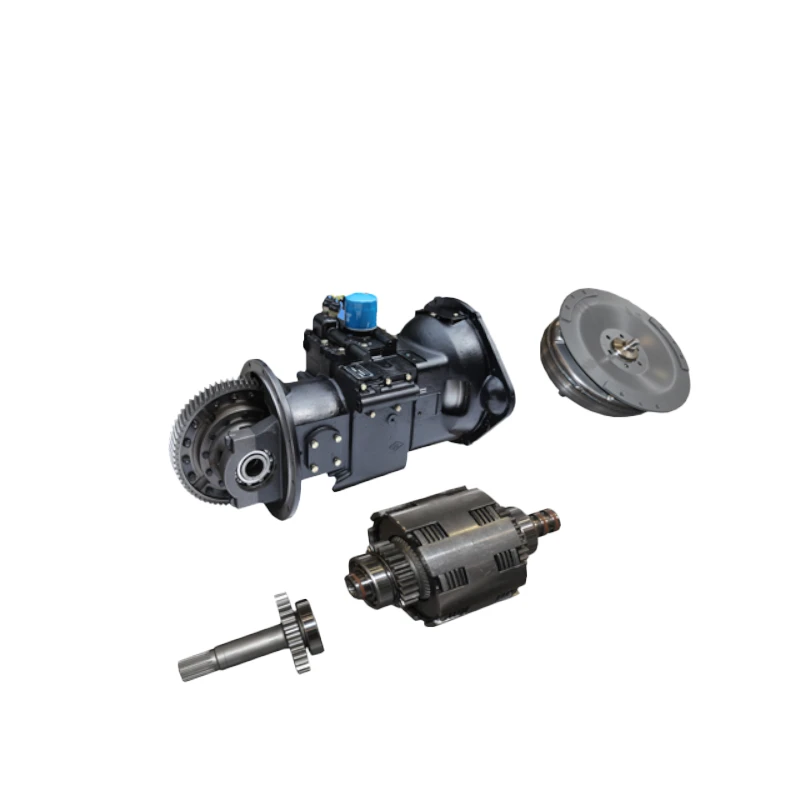

- This gear reduction gearbox is not only a key element of automotive power transmission, but also a vital part of the automotive transmission system. They work together to ensure that the vehicle can run smoothly and efficiently.

Key Features

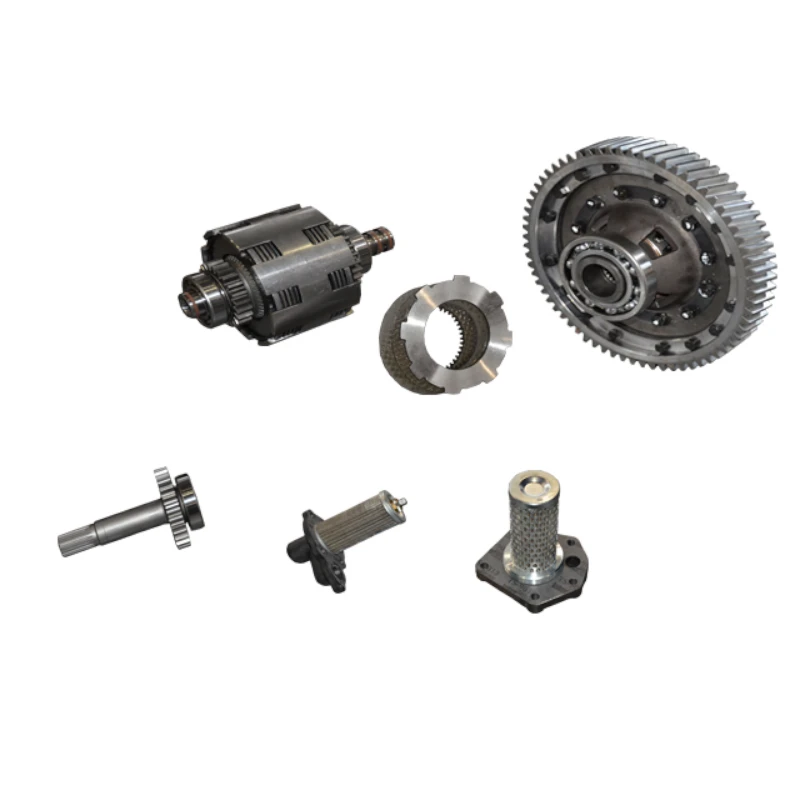

The gearbox has many precision accessories inside, such as gears, shafts, synchronizers, etc. Gears are the core components of the gearbox. They achieve different transmission ratios through different combinations of sizes and number of teeth, so as to meet the needs of the vehicle under different driving conditions. The shaft plays the role of supporting and transmitting power, ensuring that power can be transmitted stably from the engine to the wheels. The role of the synchronizer is to make the shift process smoother and smoother, reducing shift shocks.
Structure and composition
- The quality and performance of these components directly affect the working efficiency and reliability of the transmission. High-quality transmission accessories can improve the vehicle's power performance, fuel economy and driving comfort, while reducing the probability of failure.
- When maintaining and maintaining a vehicle, it is also very important to check and maintain the transmission parts. Regularly changing the transmission oil, checking the wear of the gears, and ensuring the normal operation of the synchronizer will help prolong the service life of the transmission and ensure the safety of the vehicle.
Maintenance and preservation
- In addition, with the continuous development of automotive technology, transmission parts are also constantly innovating and upgrading. The application of new materials, more advanced manufacturing processes, etc., have further improved the performance of transmission parts.
- All in all, transmission parts are an indispensable part of the automotive transmission system, and their importance is obvious. By understanding and paying attention to these parts, it is of great significance for ensuring the good operation of the vehicle and the driving experience.
Technical Specifications
| Serial number | Figure No. | Name | amount | Model used |
| 1 | YQX25AS-0102 | case | 1 | YQX18, YQX25 |
| YQX30AS-0101 | YQX30 | |||
| 2 | YQX25-0101 | Bearing seat | 2 | YQX18, YQX25 |
| YQX30-0102 | YQX30 | |||
| 3 | YQX25-0004 | Cleats | 4 | YQX18, YQX25 |
| YQX30-0023 | YQX30 | |||
| 4 | YQX30-0101 | Bolt | 4 | General |
| 5 | GB6181-86 | Nut M12 | 1 | General |
| 6 | YQX30AS-0502 | Screw | 1 | General |
| 7 | GB91-86 | Split pin 3×30 | 1 | General |
| 8 | YQX30AS-0510 | Filter assembly | 1 | General |
| 9 | GB1235-76 | O-ring seal | 1 | General |
| 28×2.4 | ||||
| 10 | YQX30AS-0503 | Gasket paper | 1 | General |
| 11 | YQX30AS-0501 | Oil filter bracket | 1 | General |
| 12 | GB93-87 | Gasket 10 | 14 | General |
| 13 | GB70-85 | Screw M10×30 | 5 | General |
| 14 | JB/ZQ4446-86 | Plug R1/2 | 5 | General |
| 15 | Q20-03 | sealant gasket | 1 | General |
| 18×24×2 | ||||
| 16 | JDS30-0046 | Screw plug | 1 | General |
| 17 | YQX30-0400 | Fuel filler cap assembly | 1 | General |
| 18 | YQX30-0007 | Fuel pipe | 1 | General |
| 19 | JB/ZQ4446-86 | Screw plug R1/4 | 3 | General |
| 20 | GB1235-76 | O-ring seal | 2 | General |
| 15×2.4 | ||||
| 21 | YQX18-1000 | Clutch assembly | 1 | YQX18 |
| YQX30-1000A | YQX25, YQX30 | |||
| 22 | GB276-94 | Ball bearing 6206 | 1 | General |
| 23 | YQX30-0015 | Idler shaft | 1 | General |
| 24 | YQX30-0013 | Idler shaft | 1 | General |
| 25 | GB893.1-86 | Elastic retaining ring for hole 24 | 2 | General |
| 26 | GB276-94 | Ball Bearing 6207 | 2 | General |
| 27 | YQX30-0012 | Output gear | 1 | General |
| 28 | YQX30-0014 | Lock nut | 1 | General |
| 29 | YQX30-0016 | Gasket | On demand | General |
| 30 | GB297-94 | Bearing 30208 | 1 | General |
| 31 | YQX30-0001 | Oil seal retainer | 1 | General |
| 32 | GB1235-76 | O-ring seal | 1 | General |
| 80×3.1 | ||||
| 33 | YQX30-0005 | Output shaft oil seal | 1 | General |
| 34 | GB297-94 | Bearing 32208 | 1 | General |
| 35 | YQX30-0003 | Shaft collar | 1 | General |
| 36 | YQX18-0001 | Output shaft | 1 | YQX18 |
| YQX25-0001 | YQX25 | |||
| YQX30-0011 | YQX30 | |||
| 37 | YQX30-0002 | Gasket | On demand | General |
| 38 | YQX30-0004 | Supporting piece | 1 | General |
| 39 | GB93-87 | Gasket 8 | 4 | General |
| 40 | GB5783-86 | Bolt M8×20 | 4 | General |
| 41 | YQX30AS-0001 | Gasket | 1 | General |
| 42 | GB119-86 | Cylindrical pin B12×20 | 2 | General |
| 43 | YQX30H-0201 | Torque converter housing | 1 | General |
| 44 | YQX30-0202 | Cover plate | 1 | General |
| 45 | GB818-85 | Cross recessed screw | 2 | General |
| M6×12 | ||||
| 46 | GB5783-86 | Bolt M10×30 | 4 | General |
| 47 | GB5783-86 | Bolt M10×50 | 1 | General |
| 48 | GB5783-86 | Bolt M10×75 | 1 | General |
| 49 | GB5783-86 | Bolt M10×55 | 3 | General |
| 50 | YQX30-0010 | Gasket | 1 | General |
| 51 | YQX30-3000 | Oil pump assembly | 1 | General |
| 52 | Q20-03 | sealing ring | 6 | General |
| 8×14×1.5 | ||||
| 53 | GB5780-86 | Bolt M8×45 | 4 | General |
| 54 | GB5780-86 | Bolt M8×40 | 2 | General |
| 55 | YQX30H-6000 | Hydrodynamic torque converter assembly | 1 | General |
| 56 | GB1235-76 | O-ring seal | 1 | General |
| 24×2.4 | ||||
| The above content for the product introduction, the chart shown may contain non-standard configuration, if there is the appearance, technical parameters or configuration of the improvement, we will try to update the information in a timely manner, but in individual cases these information may still be different from the latest situation, please contact the business manager to confirm before placing an order. | ||||
